Cable Reel 25 m, 3 × 1.5 mm², 4 Sockets, IP44
-
Code:3375
-
Weight:4.276 Kgs
Overview:
✔ 25 m H05RR-F rubber cable, 3 × 1.5 mm²
✔ Four earthed sockets with protective covers
✔ IP44 protection against solid foreign objects and splashing water
✔ Suitable for temporary outdoor use
✔ Thermal cut-out trips if the cable temperature becomes too high
✔ Maximum load: 1,000 W when wound, 3,500 W when fully unwound
The cable reel provides an extension supply for 230 V electrical appliances through a 25 m rubber cable and four earthed sockets. It is suitable for temporary outdoor use and has IP44 protection against solid foreign objects and splashing water.
The total connected load must not exceed 1,000 W with the cable wound or 3,500 W with the cable fully unwound.
Sockets and thermal protection

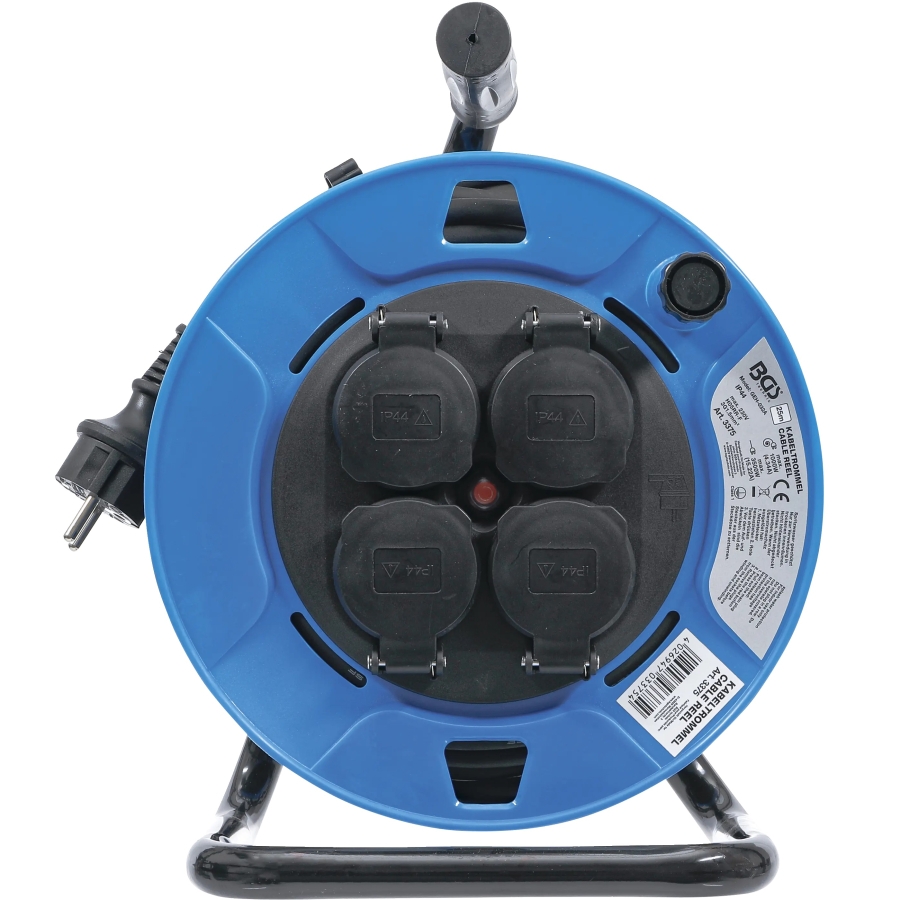

The straight plug and all four sockets have protective earth contacts. Each socket is fitted with a protective cover.
An integrated thermal cut-out trips if the cable temperature becomes too high. The permitted load applies to the combined consumption of all connected appliances.
Technical specifications
- Cable length: 25 m
- Conductor configuration: 3 × 1.5 mm²
- Cable type: H05RR-F
- Cable sheath material: Rubber
- Rated voltage: 230 V
- Maximum current, wound: 4.34 A
- Maximum current, fully unwound: 15.22 A
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,500 W
- Sockets: 4 earthed sockets with protective covers
- Plug type: Straight, earthed
- Electrical protection class: I
- Ingress protection: IP44
- Overheating protection: Thermal cut-out
- Outdoor use: Temporary use
