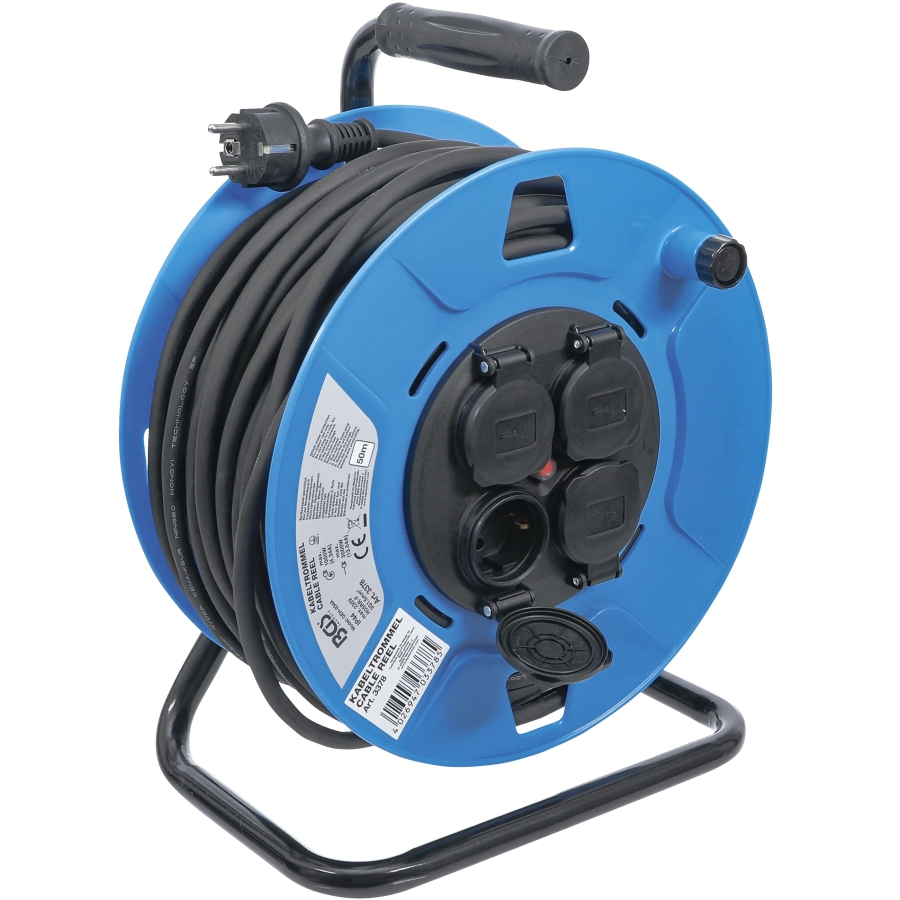

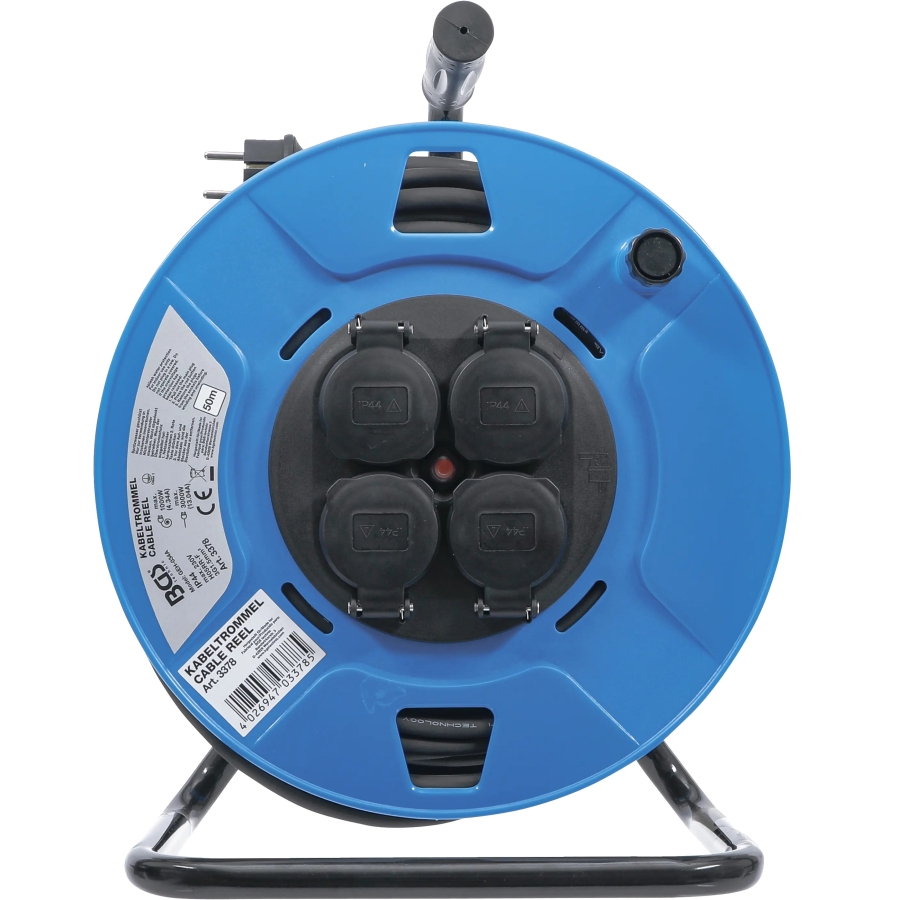

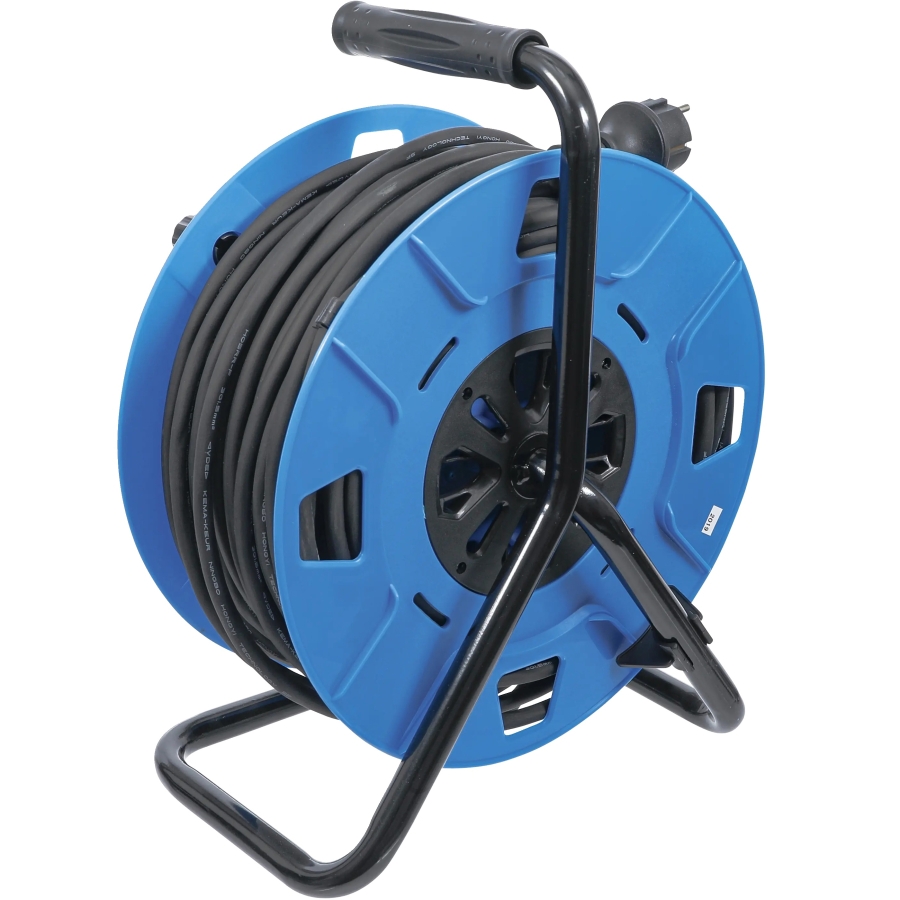

Cable Reel 50 m, 3 × 1.5 mm², 4 Sockets, IP44
-
Code:3378
-
Weight:7.790 Kgs
Overview:
✔ 50 m H05RR-F rubber cable, 3 × 1.5 mm²
✔ Four earthed sockets with protective covers
✔ IP44 protection against solid foreign objects and splashing water
✔ Suitable for temporary outdoor use
✔ Thermal cut-out trips if the cable temperature becomes too high
✔ Maximum load: 1,000 W when wound, 3,500 W when fully unwound
The cable reel provides four earthed sockets through a 50 m rubber cable. It is suitable for temporary outdoor use and has IP44 protection against solid foreign objects and splashing water.
Sockets and thermal protection
The straight plug and all four sockets have protective earth contacts. Each socket is fitted with a protective cover.
An integrated thermal cut-out trips if the cable temperature becomes too high. The permitted total connected load depends on whether the cable is wound or fully unwound.
Technical specifications
- Cable length: 50 m
- Conductor configuration: 3 × 1.5 mm²
- Cable type: H05RR-F
- Cable material: Rubber
- Rated voltage: 230 V
- Maximum current, wound: 4.34 A
- Maximum current, fully unwound: 13.04 A
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,500 W
- Sockets: 4 earthed sockets with protective covers
- Plug type: Straight, earthed
- Electrical protection class: I
- Ingress protection: IP44
- Overheating protection: Thermal cut-out
- Outdoor use: Temporary use
