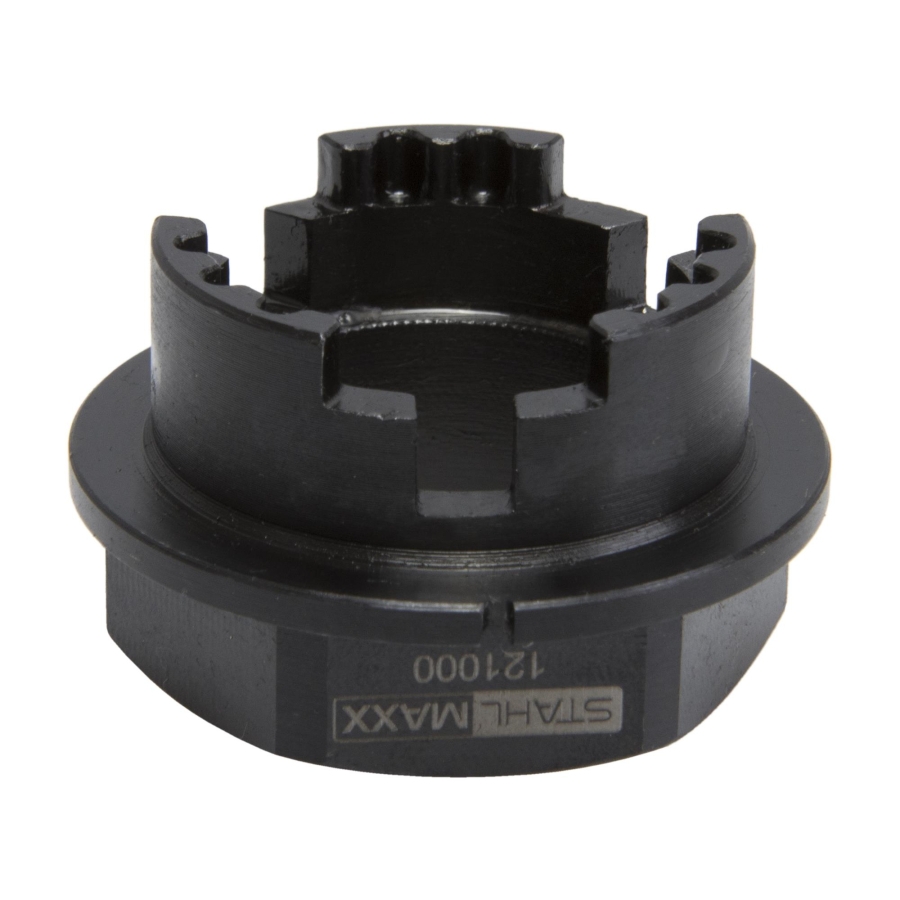

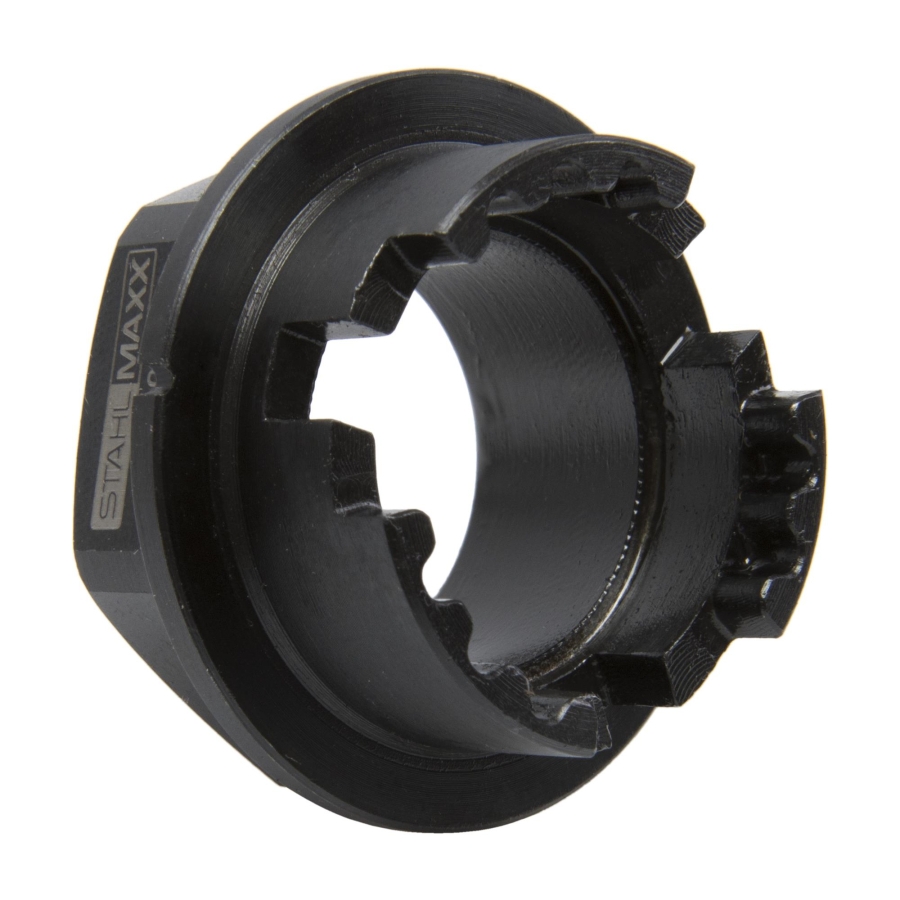

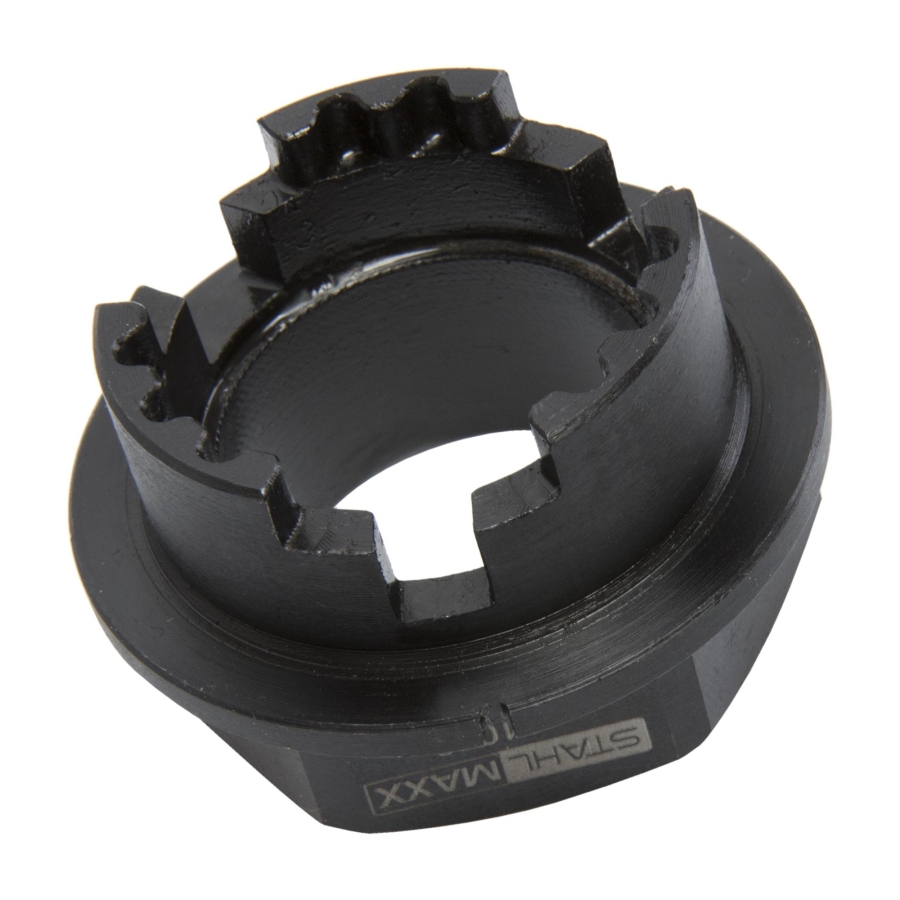

Camshaft Adjuster Counter-Holding Tool for EA825 & EA839 TFSI Engines

This special counter-holding tool is designed for holding, rotating, and precisely adjusting camshaft adjusters during engine service procedures.

It ensures safe handling of the camshaft adjuster while preventing unintended movement during adjustment.

Important Usage Note

The tool can only be installed in one specific position. The notch on the tool must align precisely with the notch on the camshaft adjuster to ensure correct operation.

Compatibility

Suitable for VAG engines:
EA825, EA839 – 2.9L, 3.0L, 4.0L TFSI

Compatible with engine codes:
CSZA, CSZB, CWGD, CWWB, CXYA, CZSE, DCAB, DCBD, DCBE, DCUA, DCUE, DECA, DGPA, DGPC, DGR, DGRB, DGRC, DHUB, DJPB, DLZA, DLZB, MCS.ZA, MCX.TA, MDC.AB, MDC.BE, MDC.UA, MDG.PA

Construction and Precision

Manufactured with high precision to ensure exact fit and reliable performance during camshaft adjustment procedures. Designed for repeated professional use.

Package Contents

• 1x Camshaft adjuster counter-holding tool, Art. no. 121000, as T90001

Additional Recommended Tools

• Art. no. KT03036 – E24 socket 1/2" for camshaft adjuster, as T90000
• Art. no. 121001 – Counter-holding tool with torque adapter, as T90002
• Art. no. 120996 – Crankshaft fixing pin pulley, as T40264/3
• Art. no. 120997 – Camshaft locking tool, as T40331

Original numbers are for comparison purposes only; this is not an original tool!

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) S4 quattro (354 HP, 260 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) RS4 quattro (450 HP, 331 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) S4 quattro (354 HP, 260 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) RS5 quattro (450 HP, 331 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) S5 quattro (354 HP, 260 kW)

AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) S5 quattro (354 HP, 260 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) RS5 quattro (450 HP, 331 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) S5 quattro (354 HP, 260 kW)

AUDI A6 Allroad C8 (4AH) (11.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A6 C8 (4A2) (02.2018 - ) 55 TFSi Mild Hybrid quattro (340 HP, 250 kW)

AUDI A6 C8 Avant (4A5) (05.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A6 C8 Avant (4A5) (05.2018 - ) RS6 Mild Hybrid quattro (600 HP, 441 kW)

AUDI A7 Sportback (4KA) (10.2017 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A7 Sportback (4KA) (10.2017 - ) RS7 Mild Hybrid quattro (600 HP, 441 kW)

AUDI A8 (4N2, 4N8) (06.2017 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A8 (4N2, 4N8) (06.2017 - ) 60 TFSI Mild Hybrid quattro (460 HP, 338 kW)

AUDI A8 (4N2, 4N8) (06.2017 - ) 60 TFSI e quattro (340 HP, 250 kW)

AUDI A8 (4N2, 4N8) (06.2017 - ) 60 TFSI e quattro (449 HP, 330 kW)

AUDI A8 (4N2, 4N8) (06.2017 - ) S8 Mild Hybrid quattro (571 HP, 420 kW)

AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) SQ5 TFSI quattro (354 HP, 260 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (455 HP, 335 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) SQ7 Mild Hybrid quattro (507 HP, 373 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) SQ7 quattro (507 HP, 373 kW)

AUDI Q8 (4MN) (02.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI Q8 (4MN) (02.2018 - ) 55 TFSI e quattro (340 HP, 250 kW)

AUDI Q8 (4MN) (02.2018 - ) 60 TFSI e quattro (340 HP, 250 kW)

AUDI Q8 (4MN) (02.2018 - ) RS Mild Hybrid quattro (600 HP, 441 kW)

AUDI Q8 (4MN) (02.2018 - ) SQ8 Mild Hybrid quattro (507 HP, 373 kW)

AUDI Q8 (4MN) (02.2018 - ) SQ8 quattro (507 HP, 373 kW)

BENTLEY BENTAYGA (4V1) (10.2015 - ) 3.0 Hybrid (340 HP, 250 kW)

BENTLEY BENTAYGA (4V1) (10.2015 - ) 4.0 (550 HP, 404 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 2.9 S AWD (9YABB1) (440 HP, 324 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 AWD (9YAAA1) (340 HP, 250 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 E-Hybrid AWD (462 HP, 340 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 E-Hybrid AWD (9YAAE1) (340 HP, 250 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 4.0 Turbo AWD (9YACF1) (550 HP, 404 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 4.0 Turbo S E-Hybrid AWD (9YACH1) (680 HP, 500 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 2.9 S AWD (9YBBB1) (440 HP, 324 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 AWD (9YBAA1) (340 HP, 250 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (340 HP, 250 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (461 HP, 339 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 4.0 Turbo AWD (9YBCF1) (550 HP, 404 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 4.0 Turbo S E-Hybrid AWD (9YBCH1) (680 HP, 500 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 2.9 Turbo AWD (441 HP, 324 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 3.0 S (354 HP, 260 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 2.9 (97AAY1, 97BAY1, 97AGY1) (330 HP, 243 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 (97ABY1, 97BBY1) (330 HP, 243 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 E-Hybrid (97ABE1, 97BBE1) (330 HP, 243 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 E-Hybrid (97ABE1, 97BBE1) (462 HP, 340 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4S (97ADB1, 97BDB1) (440 HP, 324 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 3.0 (97AAA1, 97BAA1) (330 HP, 243 kW)

PORSCHE PANAMERA (971) (05.2016 - ) 3.0 4 (97ABA1, 97BBA1) (330 hp, 243 kW)

PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 (97CBY1) (330 hp, 243 kW)

PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 E-Hybrid (97CBE1) (330 hp, 243 kW)

PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 E-Hybrid (97CBE1) (462 hp, 340 kW)

PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4S (97CDB1) (440 HP, 324 kW)

PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 3.0 4 (97CBA1) (330 HP, 243 kW)

VW TOUAREG (CR7) (11.2017 - ) 3.0 TSI 4motion (340 HP, 250 kW)
