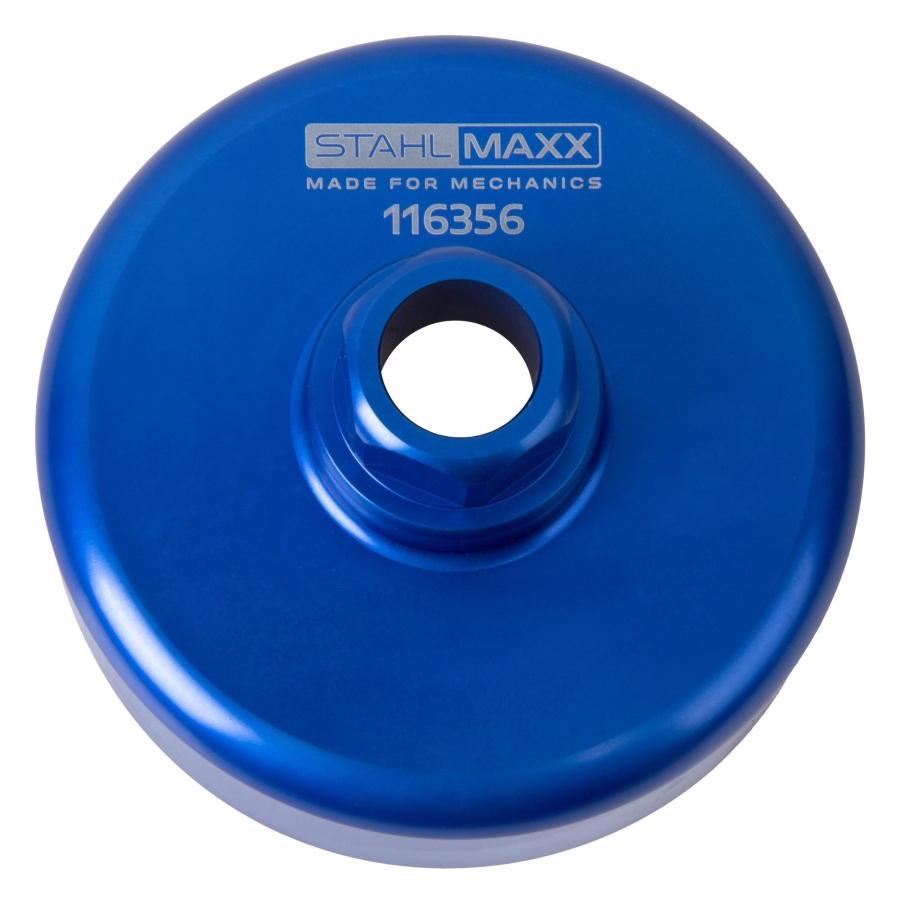

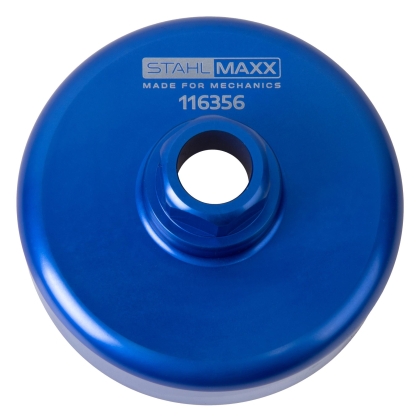

Camshaft Adjustment Socket for VAG 3.0L V6 TFSI Engines
-
Code:116356
-
Weight:0.160 Kgs
Overview:
✔ Camshaft adjustment socket for timing chain tensioning
✔ Designed for 3.0L V6 direct injection TFSI engines (Gen IV)
✔ Enables precise adjustment via camshaft adjuster
✔ Suitable for Audi models with V6 compressor engines
✔ Durable precision-machined socket design
✔ Covers OEM reference as T40297
✔ Ideal for professional workshop use
This special socket is designed for tensioning the timing chain via the camshaft adjustment unit on VAG 3.0L V6 TFSI engines.
It allows controlled and precise adjustment of the camshaft timing system during engine service and repair.
Compatibility
Suitable for the following vehicles:
- Audi A6 (from 2011>)
- Audi A7 Sportback (from 2011>)
- Audi A8 (from 2010>)
- Audi Q5 (from 2008>)
Compatible with engine codes:
CCAA, CGWA, CGWB, CGWD, CGXA, CGXB, CGXC, CHMA, CMDA, CREA, CREC, CREG, CTDA, CTTA, CTUA, CTUB, CTUC, CTVA, DAZA, MCS.TA, MCX.TA, MDG.PA
OEM Reference
Designed to function as:
as T40297
Construction and Design
Manufactured for precision fitment and durability, ensuring reliable operation during timing chain adjustment procedures in professional workshop environments.
Original numbers are for comparison purposes only; this is not an original tool!
AUDI A6 Allroad C7 (4GH, 4GJ) (01.2012 - 09.2018) 3.0 TFSI quattro (310 HP, 228 kW)
AUDI A6 Allroad C7 (4GH, 4GJ) (01.2012 - 09.2018) 3.0 TFSI quattro (333 HP, 245 kW)
AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TFSI quattro (300 HP, 220 kW)
AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TFSI quattro (310 HP, 228 kW)
AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TFSI quattro (314 HP, 231 kW)
AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TFSI quattro (333 HP, 245 kW)
AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 3.0 TFSI quattro (300 HP, 220 kW)
AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 3.0 TFSI quattro (310 HP, 228 kW)
AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 3.0 TFSI quattro (333 hp, 245 kW)
AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TFSI quattro (300 HP, 220 kW)
AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TFSI quattro (310 HP, 228 kW)
AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TFSI quattro (333 HP, 245 kW)
AUDI A8 (4H2, 4H8, 4HC, 4HL) (11.2009 - 01.2018) 3.0 TFSI quattro (290 HP, 213 kW)
AUDI A8 (4H2, 4H8, 4HC, 4HL) (11.2009 - 01.2018) 3.0 TFSI quattro (310 HP, 228 kW)
AUDI A8 (4H2, 4H8, 4HC, 4HL) (11.2009 - 01.2018) 3.0 TFSI quattro (333 HP, 245 kW)
AUDI Q5 (8RB) (11.2008 - 12.2017) 3.0 TFSI quattro (272 HP, 200 kW)
