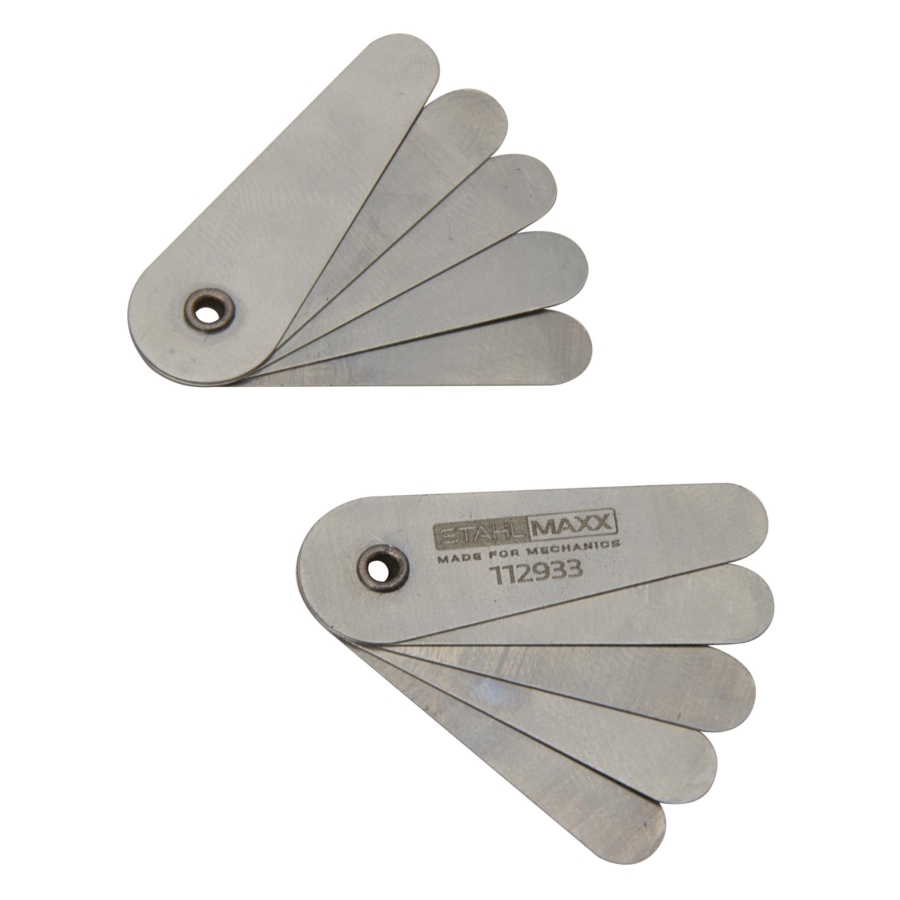

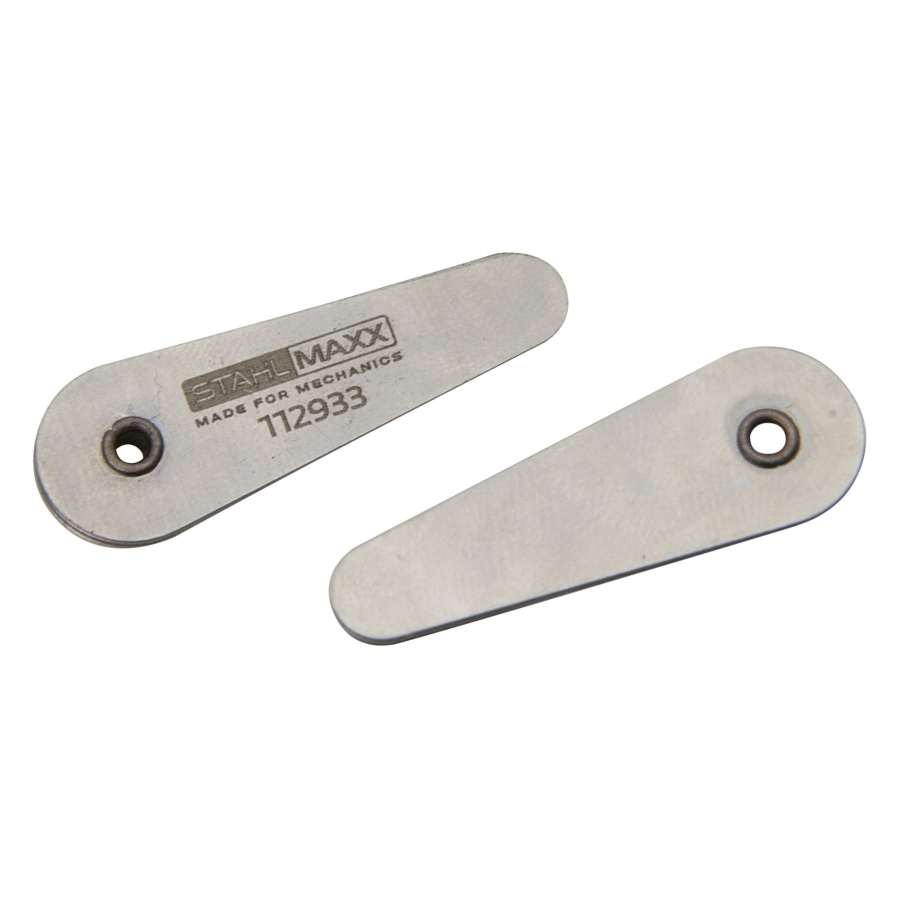

Alignment Shims Set for Camshaft Alignment Ruler (Art. 16022 / 16022A)

Shim set designed for precise alignment of camshaft alignment rulers when used with tool sets 16022 and 16022A.

Used in:

• Engine timing procedures
• Camshaft alignment adjustments
• Fine calibration during repair work

Function

These alignment shims allow fine adjustment of the camshaft alignment ruler to ensure accurate positioning relative to the cylinder head and camshaft.

They compensate for:

• Manufacturing tolerances
• Wear or variations in engine components

This ensures precise camshaft alignment and correct engine timing.

Compatibility

• Suitable for camshaft alignment tool (16022)
• Suitable for camshaft alignment tool (16022A)

Scope of Delivery

Advantages

• Enables precise adjustment of alignment ruler
• Improves accuracy during timing procedures
• Compatible with professional camshaft tools
• Essential for fine calibration work
• Durable and workshop-ready construction

OEM numbers are for reference purposes only and do not imply original tooling.
