Camshaft Control Valve Tool Set VAG – 5 pcs

Tool set designed for removal and installation of camshaft control valves (4/3-way central valves) on VAG petrol engines. Enables controlled operation during servicing without damaging valve components.

Compatibility

Suitable for the following engine types:

• 1.8 / 2.0 16V engines (from 2004-)
• 1.8 / 2.0 16V TFSI engines (from 2016-, 3rd generation)
• 2.0 16V TFSI engines with timing chain (from 2008-)

Compatible with vehicles from:

• Audi: A3, A4, A5, Q5, TT
• Seat: Altea, Leon, Toledo, Exeo
• Skoda: Octavia II, Superb II, Yeti
• Volkswagen: Eos, Golf, Jetta, Passat, Scirocco, Sharan, Tiguan

Function

Designed for precise engagement with camshaft control valves, allowing safe removal and installation of the 4/3-way central valve during engine service procedures.

Contents

• 1 × Camshaft control valve socket, 10 mm (3/8") – T10352
• 1 × Camshaft control valve socket, 10 mm (3/8") – T10352/1
• 1 × Camshaft control valve socket, 10 mm (3/8") – T10352/2
• 1 × Camshaft control valve socket, 10 mm (3/8") – T10352/3
• 1 × Camshaft control valve socket, 10 mm (3/8") – T10352/4

OEM numbers are provided for reference purposes only.

Remove the engine cover, camshaft control valve electrical connectors, and the upper timing case cover.

Rotate the camshaft to the service position.

WARNING: The camshaft control valves have a left-hand thread.

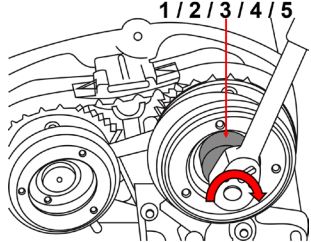

To remove the left and right camshaft control valves, turn the tool in the direction of the arrow.

OEM numbers are provided for reference purposes only.
