Camshaft Locking Bar / Alignment Tool – VAG T10098A

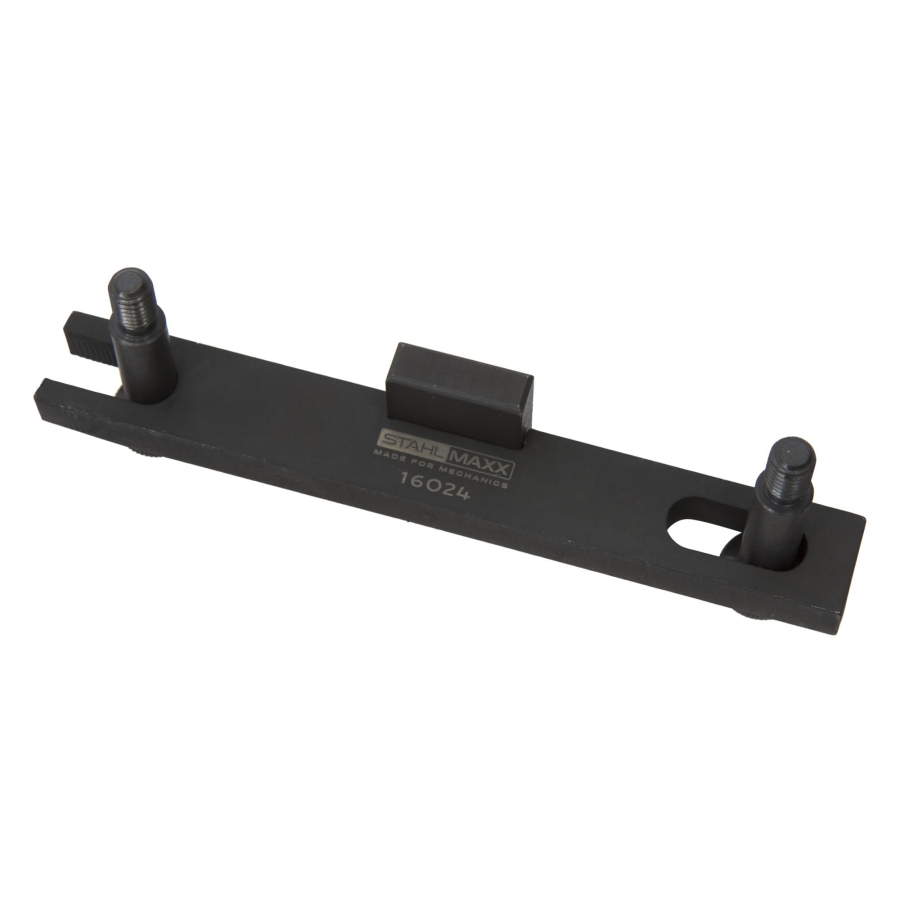

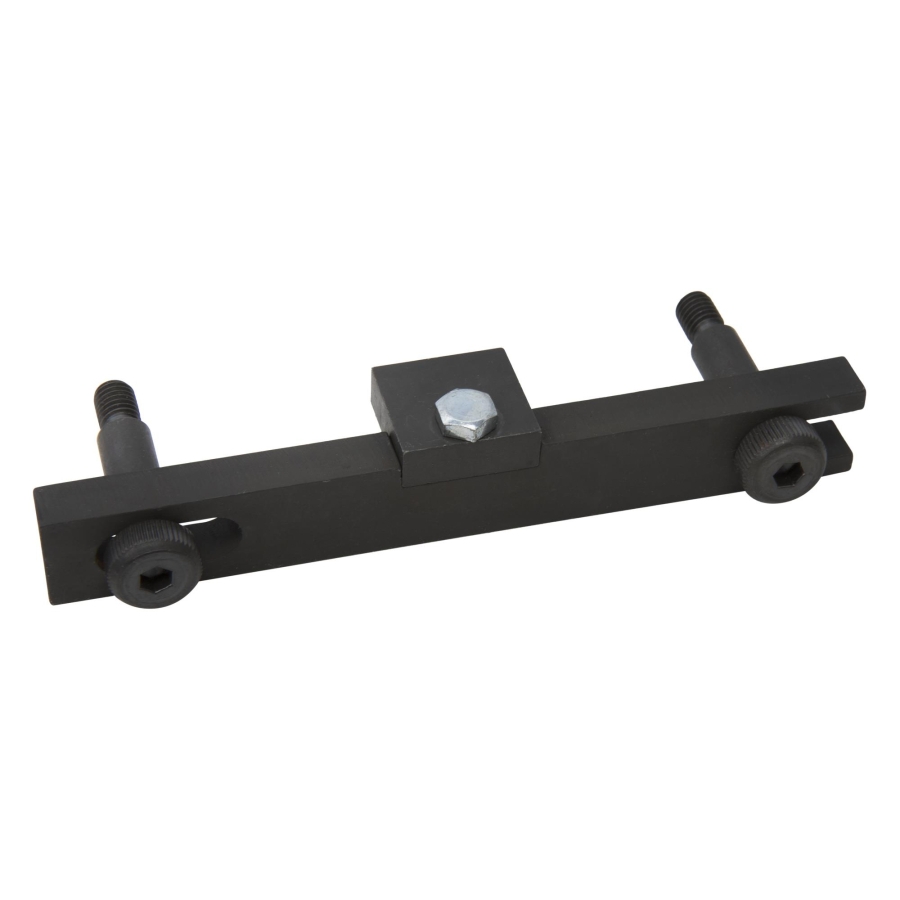

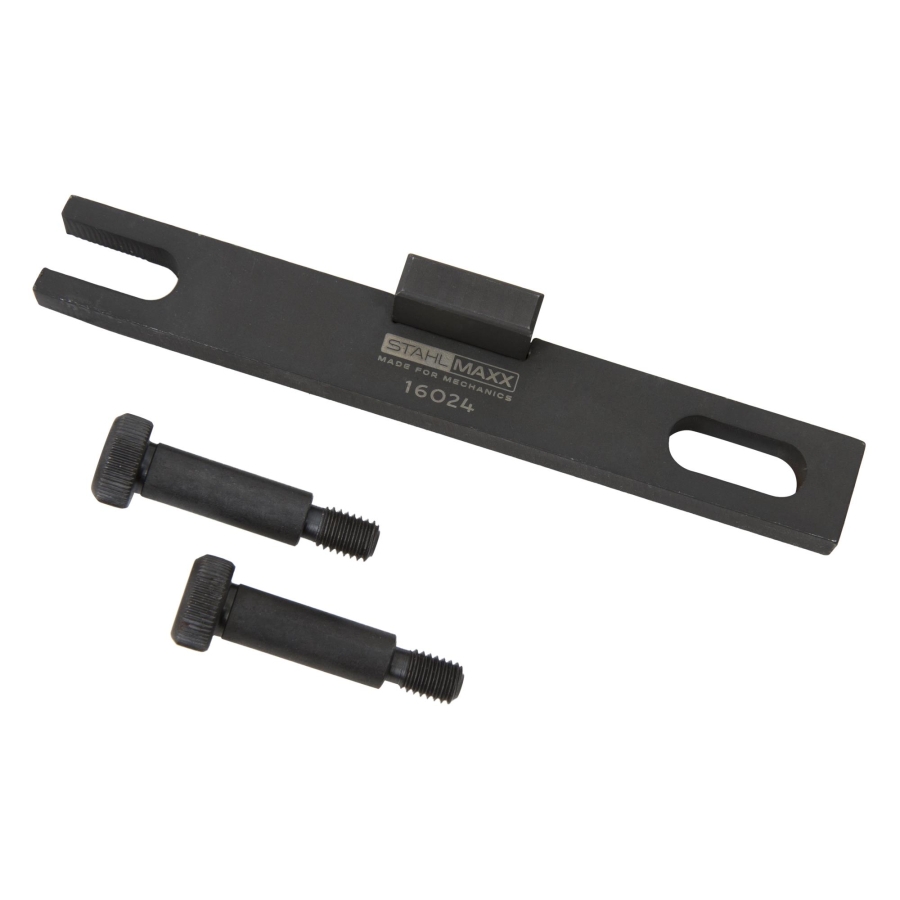

This camshaft locking bar is a precision-engineered special tool designed to lock the camshaft in the correct position during timing belt replacement or engine repair.

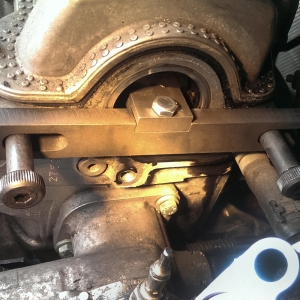

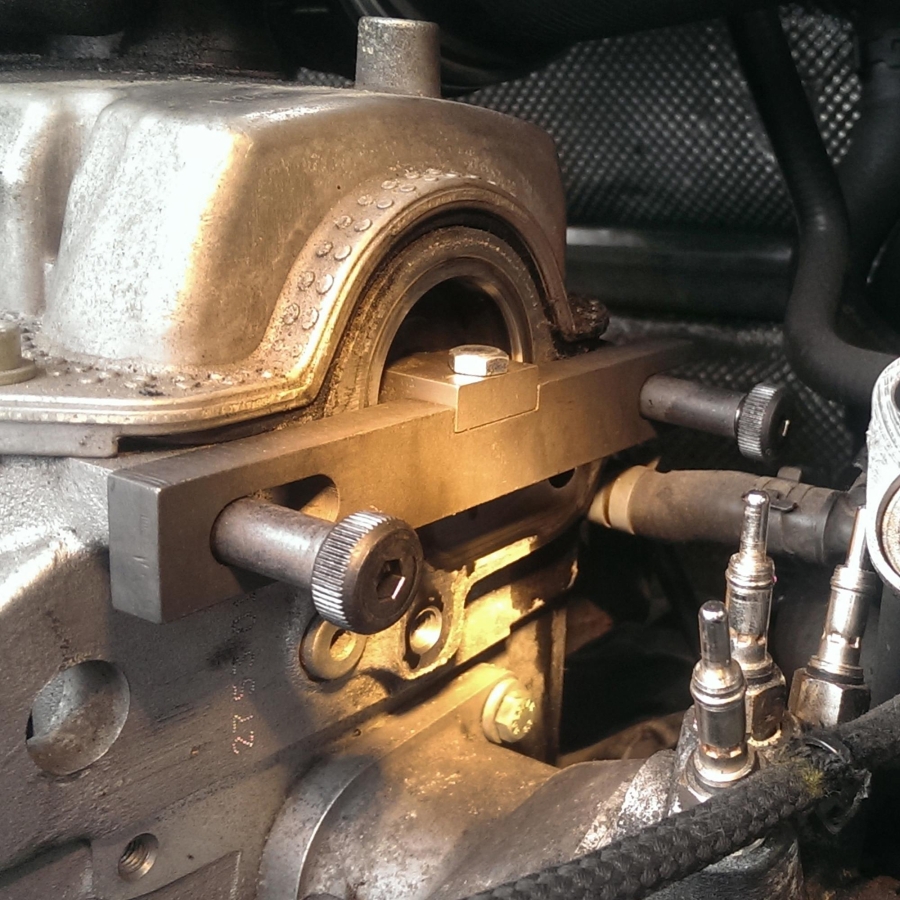

The tool is installed in place of the vacuum pump, allowing direct and secure locking of the camshaft without removing the valve cover. This significantly simplifies the service procedure and reduces the risk of oil leaks or additional costs associated with valve cover gasket replacement.

Key Advantage

By eliminating the need to remove the valve cover, this tool saves time and ensures a more efficient repair process.

Important note:
The valve cover gasket is not available separately and must be replaced together with the valve cover if removed.

Vehicle Compatibility

VW:

• Beetle
• Bora
• Caddy
• Golf 4
• Polo

Audi:

• A3
• A4

Seat:

• Alhambra
• Cordoba
• Ibiza
• Inca
• Leon
• Toledo

Skoda:

• Octavia

Engine Compatibility

Suitable for VAG engines:

• 1.9 SDI
• 1.9 TDI

Engine codes (1997–2005):
1Y, 1Z, AEY, AFN, AGP, AGR, AHF, AHU, ALE, ALH, AQM, ASK, ASV, ASY, AYQ

OEM Reference

For use as OEM tool:

• (T10098A)
• (3418)

OEM numbers are for reference purposes only. This product is not an original manufacturer tool.

AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (110 HP, 81 kW)

AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 SDI (68 HP, 50 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA (6K2) (06.1999 - 10.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA (6K2) (06.1999 - 10.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA (6L2) (09.2002 - 11.2009) 1.9 SDI (64 HP, 47 kW)

SEAT CORDOBA Vario (6K5) (06.1999 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA Vario (6K5) (06.1999 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 SDI (68 HP, 50 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 SDI (68 HP, 50 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 TDI (110 HP, 81 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA III (6K1) (08.1999 - 02.2002) 1.9 TDI (110 HP, 81 kW)

SEAT IBIZA III (6K1) (08.1999 - 02.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA III (6L1) (02.2002 - 11.2009) 1.9 SDI (64 HP, 47 kW)

SEAT INCA (6K9) (11.1995 - 11.2003) 1.9 SDI (64 HP, 47 kW)

SEAT INCA (6K9) (11.1995 - 11.2003) 1.9 TDI (90 HP, 66 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

SEAT LEON (1P1) (05.2005 - 12.2013) 1.9 TDi (110 HP, 81 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 SDI (68 HP, 50 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (110 HP, 81 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (90 HP, 66 kW)

SKODA FABIA I (6Y2) (08.1999 - 03.2008) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Combi (6Y5) (04.2000 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Praktik (6Y5) (01.2000 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Saloon (6Y3) (10.1999 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 SDI (68 HP, 50 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (110 HP, 81 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (90 HP, 66 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 SDI (68 HP, 50 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (110 HP, 81 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (90 HP, 66 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI 4x4 (90 HP, 66 kW)

SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 D (68 HP, 50 kW)

SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 TDI (90 HP, 66 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 SDI (68 HP, 50 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (110 HP, 81 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (90 HP, 66 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (90 HP, 66 kW)

VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (110 HP, 81 kW)

VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (90 hp, 66 kW)

VW CADDY II MPV (9K9B) (11.1995 - 12.2004) 1.9 SDI (64 hp, 47 kW)

VW CADDY II MPV (9K9B) (11.1995 - 12.2004) 1.9 TDI (90 hp, 66 kW)

VW CADDY II Panel Van/MPV (9K9A) (11.1995 - 01.2004) 1.9 SDI (64 hp, 47 kW)

VW CADDY II Panel Van/MPV (9K9A) (11.1995 - 01.2004) 1.9 TDI (90 hp, 66 kW)

VW FOX Hatchback (5Z1, 5Z3, 5Z4) (08.2003 - 10.2014) 1.9 D (64 HP, 47 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 SDI (68 HP, 50 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (90 HP, 66 kW)

VW GOLF IV Van (1J1) (10.1997 - 05.2004) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (90 HP, 66 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.9 TDI (90 HP, 66 kW)

VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.9 TDI (90 HP, 66 kW)

VW POLO (9N_) (10.2001 - 10.2014) 1.9 SDI (64 HP, 47 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 110 1.9 TDI (110 HP, 81 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 68 1.9 SDI (68 HP, 50 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 90 1.9 TDI (90 HP, 66 kW)

VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) (08.1996 - 12.2014) 1.9 SDI (64 HP, 47 kW)

VW POLO Van Box Body/Estate (6V5) (05.1996 - 09.2001) 1.9 SDI (68 HP, 50 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 SDI (68 HP, 50 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 TDI (110 HP, 81 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 TDI (90 HP, 66 kW)

VW SPACEFOX / SPACE CROSS (5Z6, 5Z7, 5Z9) (03.2006 - 12.2018) 1.9 SDI (64 HP, 47 kW)
