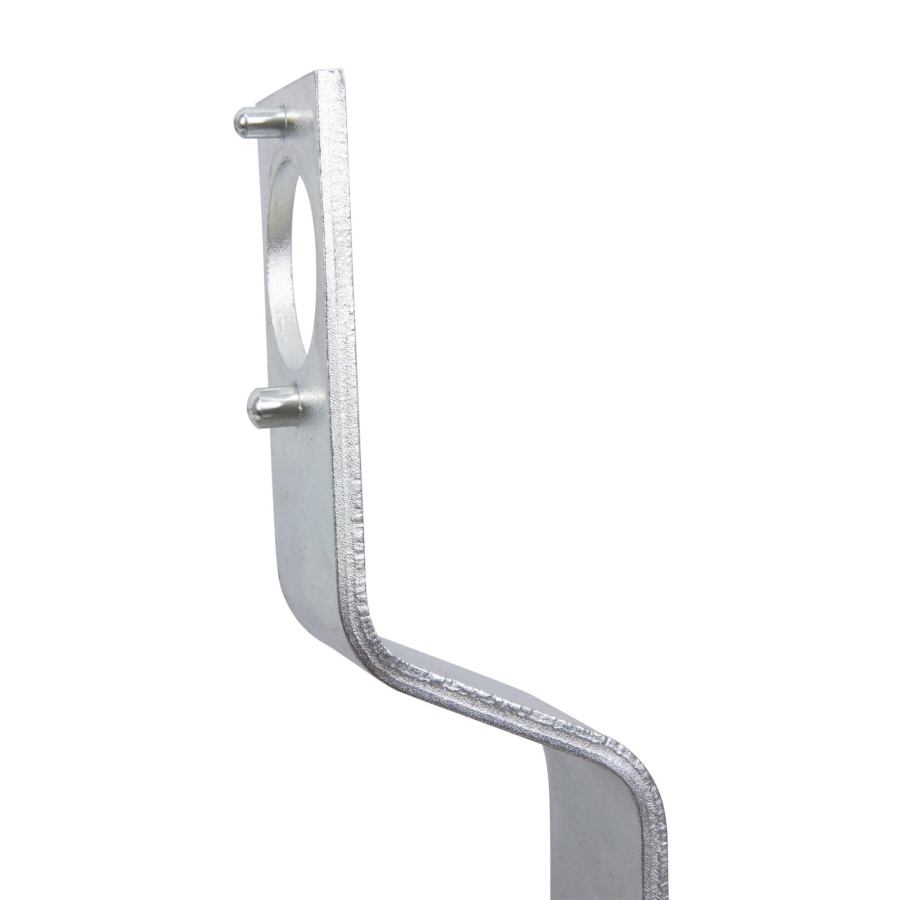

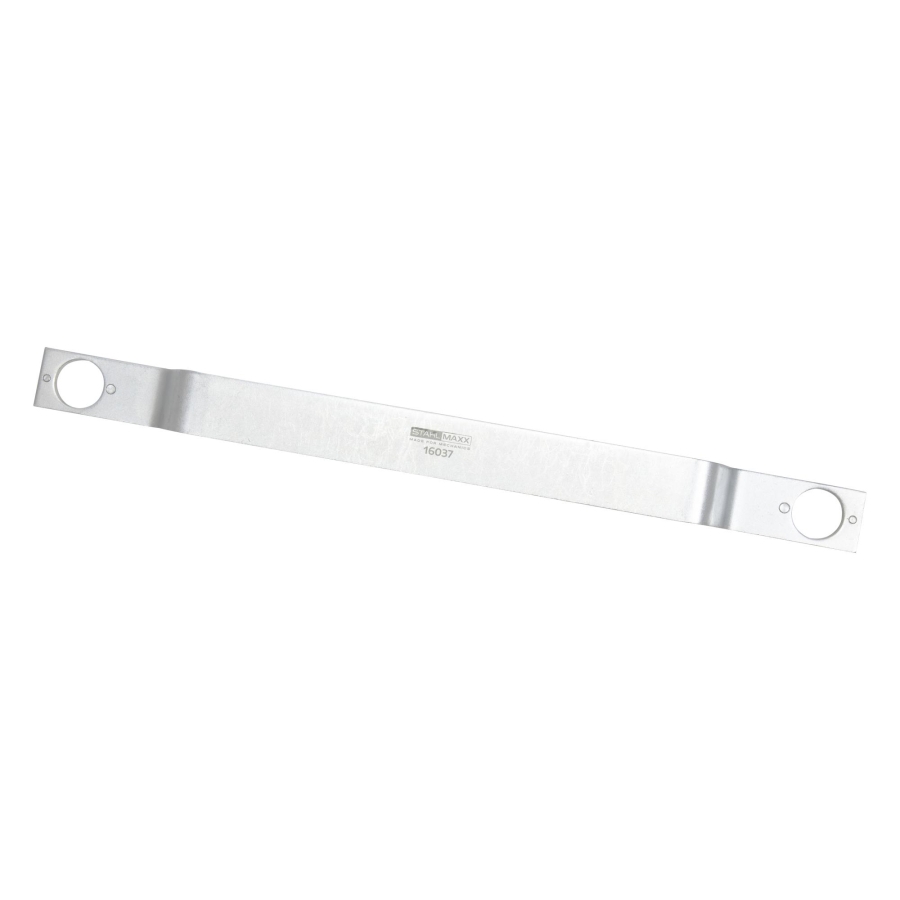

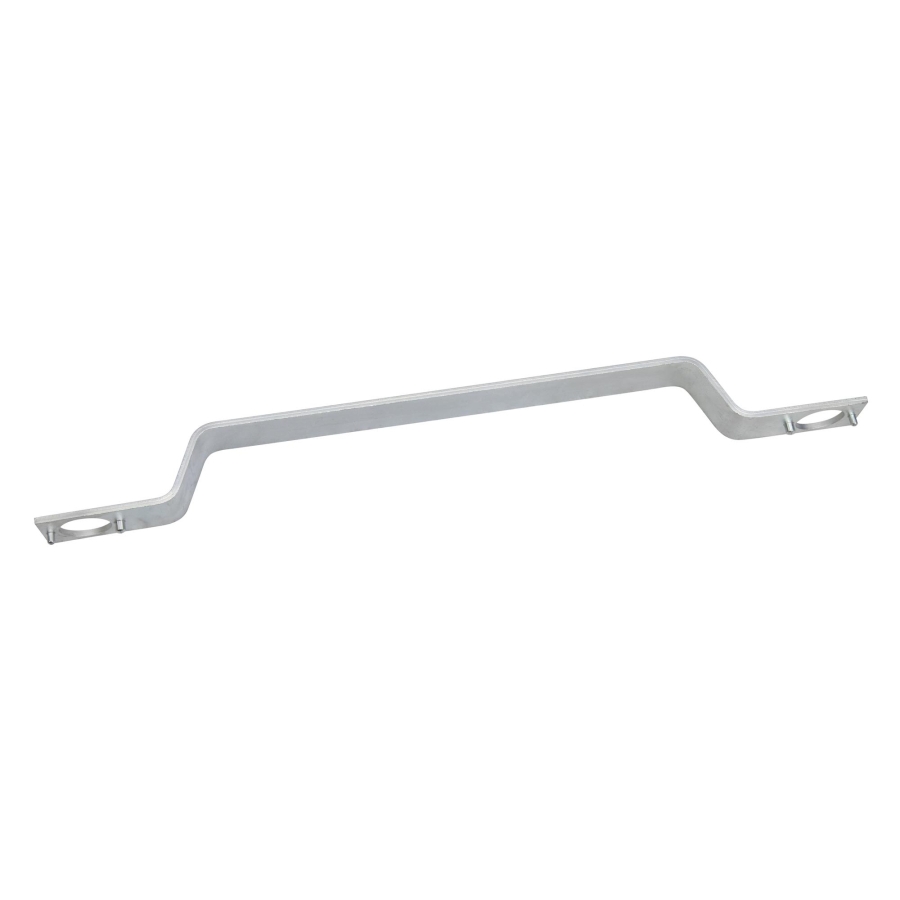

Camshaft Locking Tool for VAG V6 as 3391
-
Code:16037
-
Weight:1.760 Kgs
Overview:
✔ Camshaft locking tool for VAG V6 petrol engines
✔ Suitable for 2.4L, 2.8L and 2.7L Turbo engines
✔ Compatible with Audi and VW models
✔ Ensures precise camshaft positioning during timing work
✔ High-precision fit for safe and efficient operation
✔ Used as OEM tool 3391
This camshaft locking tool is designed for securing camshafts during timing belt service and engine repair on VAG V6 engines. It ensures stable positioning and accurate alignment during maintenance procedures.
Compatibility
Suitable for the following models:
Audi A4 / A6 / A8 2.4 / 2.8 / 2.8 30V
Audi S4 2.7 Turbo
VW Passat 2.8 30V
Compatible with the following engine codes:
ACK, AGA, AGB, AGE, AHA, AJG, AJK, ALF, ALG, ALW, AML, AMM, AMX, APC, APR, APS, APZ, AQD, ARE, ARJ, ARN, ASJ, ASM, ATZ, ATQ, AQD, AZA, AZR, BBG, BDV, BES
Function
The tool locks the camshafts in the correct position during timing adjustments and engine repairs. Its precision design ensures accurate alignment and reduces the risk of damage to engine components.
OEM Reference
To be used as OEM tool as:
3391
Additional Note
For crankshaft locking, a fixing bolt (Art. No. 16023) is required, used as:
3242
OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.4 (163 HP, 120 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.4 (165 HP, 121 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.4 quattro (163 HP, 120 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.4 quattro (165 HP, 121 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.7 Turbo quattro (230 HP, 169 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.8 (193 HP, 142 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.8 quattro (193 HP, 142 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) S4 quattro (265 HP, 195 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.4 (163 HP, 120 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.4 (165 HP, 121 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.4 quattro (163 HP, 120 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.4 quattro (165 HP, 121 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.8 (193 HP, 142 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.8 quattro (193 HP, 142 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) RS4 quattro (380 HP, 280 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) S4 quattro (265 HP, 195 kW)
AUDI A4 B6 (8E2) (11.2000 - 12.2005) 2.4 (163 HP, 120 kW)
AUDI A4 B6 (8E2) (11.2000 - 12.2005) 2.4 (170 HP, 125 kW)
AUDI A4 B6 Avant (8E5) (04.2001 - 12.2005) 2.4 (163 HP, 120 kW)
AUDI A4 B6 Avant (8E5) (04.2001 - 12.2005) 2.4 (170 HP, 125 kW)
AUDI A4 B6 Avant (8E5) (04.2001 - 12.2005) 2.7 RS4 quattro (265 HP, 195 kW)
AUDI A4 B6 Avant (8E5) (04.2001 - 12.2005) 2.7 S4 quattro (254 HP, 187 kW)
AUDI A4 B6 Cabriolet (8H7) (04.2002 - 12.2008) 2.4 (163 HP, 120 kW)
AUDI A4 B6 Cabriolet (8H7) (04.2002 - 12.2008) 2.4 (170 HP, 125 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.8 (193 HP, 142 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.8 quattro (193 HP, 142 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.8 (193 HP, 142 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.8 quattro (193 HP, 142 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 (136 HP, 100 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 (156 HP, 115 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 (163 HP, 120 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 (165 HP, 121 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 (170 HP, 125 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 quattro (156 HP, 115 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 quattro (163 HP, 120 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 quattro (165 hp, 121 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.4 quattro (170 HP, 125 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 (254 HP, 187 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 T (230 HP, 169 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 T quattro (230 HP, 169 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 T quattro (250 hp, 184 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 quattro (254 HP, 187 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.7 quattro (265 HP, 195 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.8 (193 HP, 142 kW)
AUDI A6 C5 (4B2) (01.1997 - 12.2005) 2.8 quattro (193 HP, 142 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 (136 HP, 100 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 (156 HP, 115 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 (163 HP, 120 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 (165 HP, 121 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 (170 HP, 125 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 quattro (156 HP, 115 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 quattro (163 HP, 120 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 quattro (165 HP, 121 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.4 quattro (170 HP, 125 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.7 T (230 HP, 169 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.7 T quattro (230 HP, 169 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.7 T quattro (250 HP, 184 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.8 (193 HP, 142 kW)
AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 2.8 quattro (193 HP, 142 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 (193 HP, 142 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 quattro (193 hp, 142 kW)
AUDI ALLROAD C5 (4BH) (05.2000 - 08.2005) 2.7 T quattro (250 HP, 184 kW)
AUDI ALLROAD C5 (4BH) (05.2000 - 08.2005) 2.7 quattro (254 HP, 187 kW)
SKODA SUPERB I (3U4) (12.2001 - 03.2008) 2.8 V6 (193 HP, 142 kW)
VW PASSAT B5 (3B2) (08.1996 - 12.2001) 2.8 V6 (193 HP, 142 kW)
VW PASSAT B5 (3B2) (08.1996 - 12.2001) 2.8 V6 Syncro/4motion (193 HP, 142 kW)
VW PASSAT B5 Variant (3B5) (05.1997 - 12.2001) 2.8 V6 (193 HP, 142 kW)
VW PASSAT B5 Variant (3B5) (05.1997 - 12.2001) 2.8 V6 Syncro/4motion (193 HP, 142 kW)
VW PASSAT B5.5 (3B3) (10.2000 - 12.2005) 2.8 (193 HP, 142 kW)
VW PASSAT B5.5 (3B3) (10.2000 - 12.2005) 2.8 4motion (193 HP, 142 kW)
VW PASSAT B5.5 Variant (3B6) (09.2000 - 08.2005) 2.8 4motion (193 hp, 142 kW)
