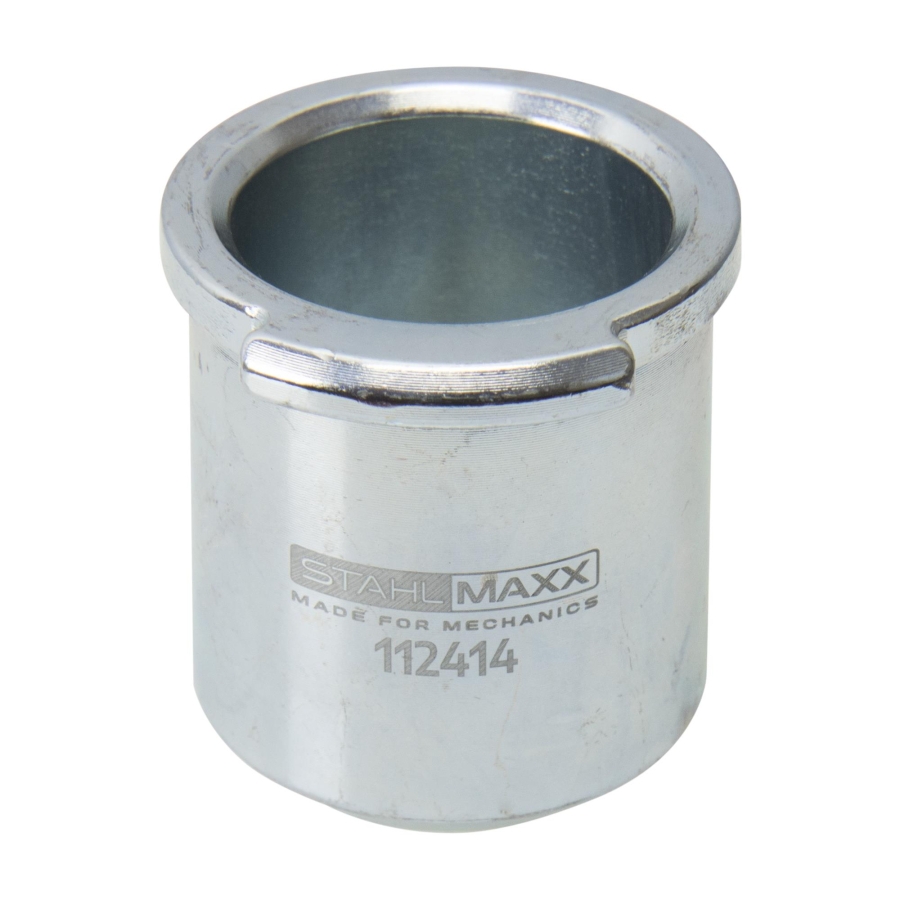

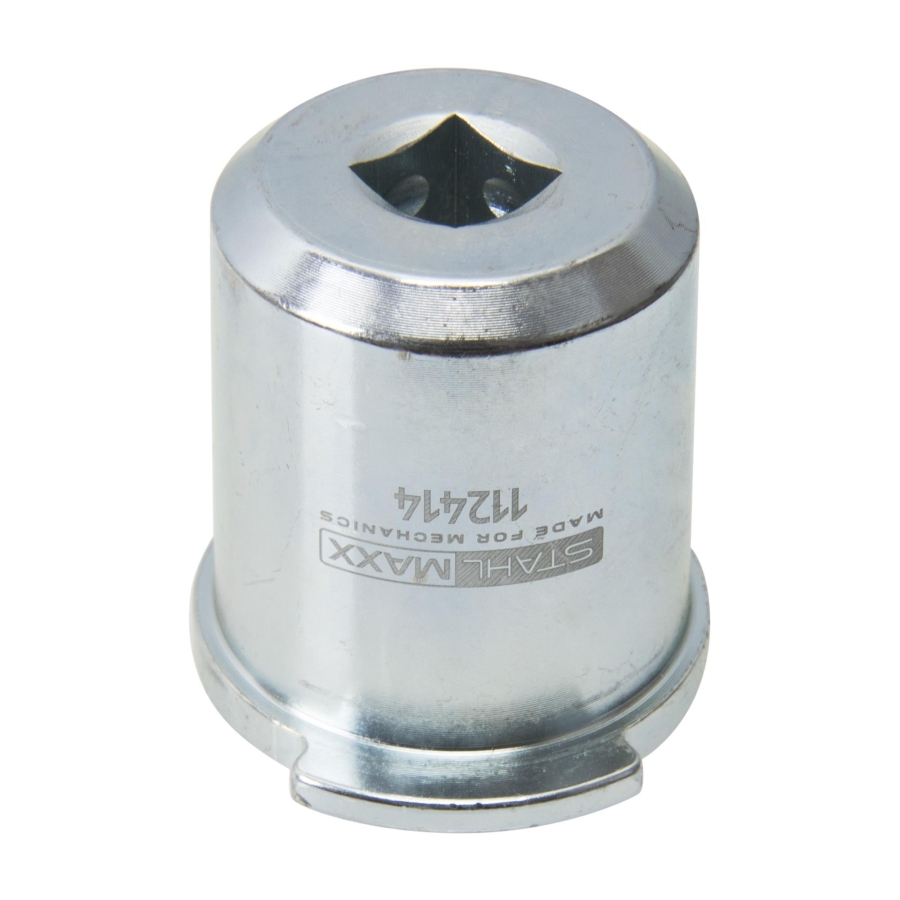

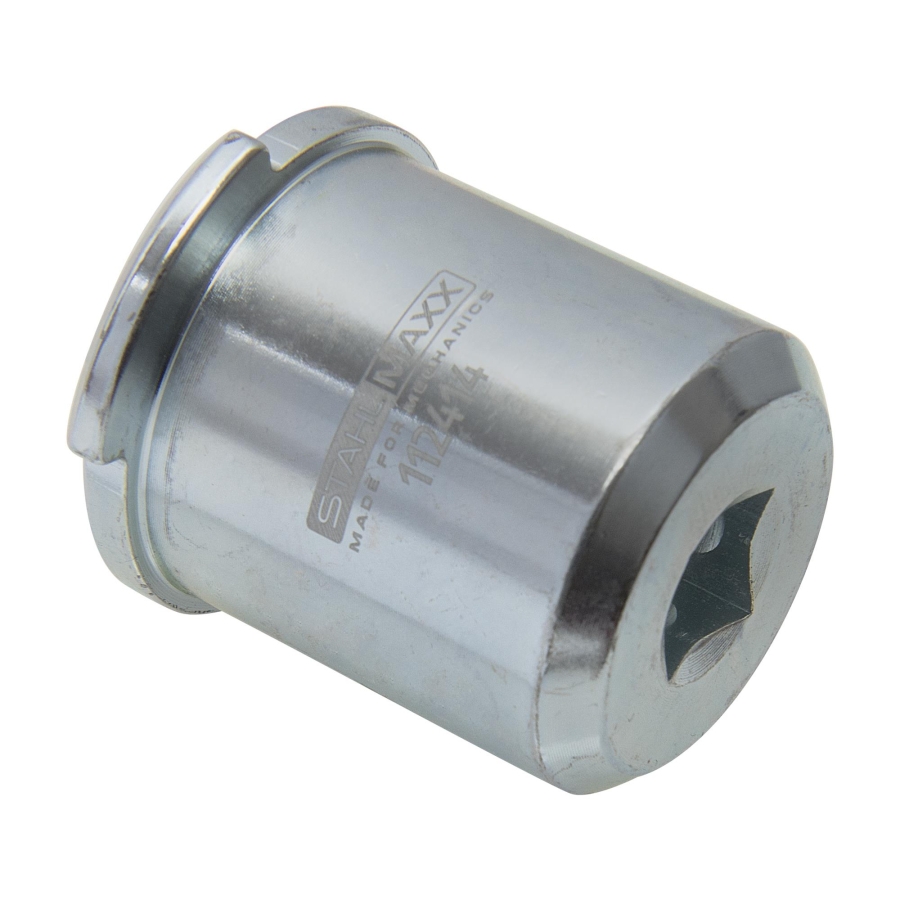

Camshaft Turning Adapter for VAG 1.8 2.0 TFSI as T40266

This camshaft turning adapter is designed for controlled rotation of the camshaft during engine service and timing procedures. It allows safe and precise adjustment without damaging sensitive components.

Compatibility

Suitable for VAG 4-cylinder direct injection petrol engines (EA888 Gen III) with 1.8L and 2.0L displacement.

Compatible with the following models:
Audi A3 (from 2012)
Audi A4 (from 2008)
Audi A5 Cabriolet (from 2009)
Audi A5 Coupe (from 2008)
Audi Q5 (from 2008)

Compatible with the following engine codes:
CABA, CABB, CABD, CADA, CAEA, CAEB, CAED, CDHA, CDHB, CDNA, CDNB, CDNC, CFKA, CHHB, CJEB, CJEE, CJSA, CJSB, CNCB, CNCD, CNCE, CNSB, CNTC, CPMA, CPMB, CZPB, CZRA, DADA, DAXB, DAXC, DAYB, DKRF, DKZA, DNTA, DPCA

Function

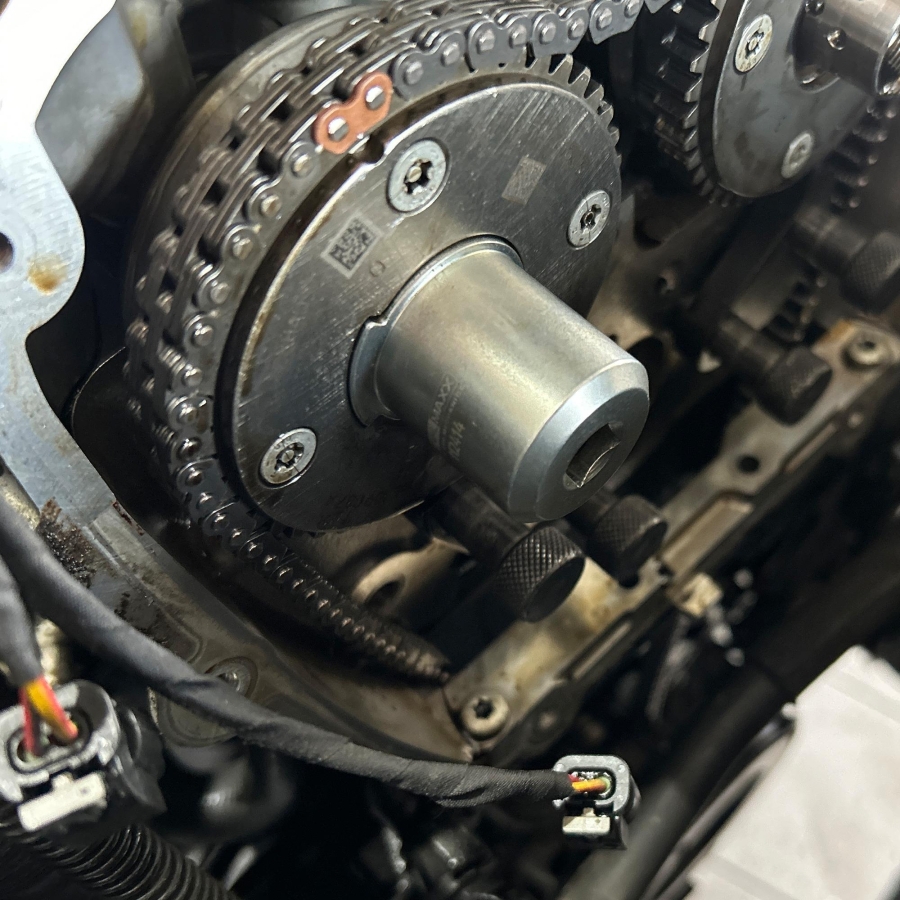

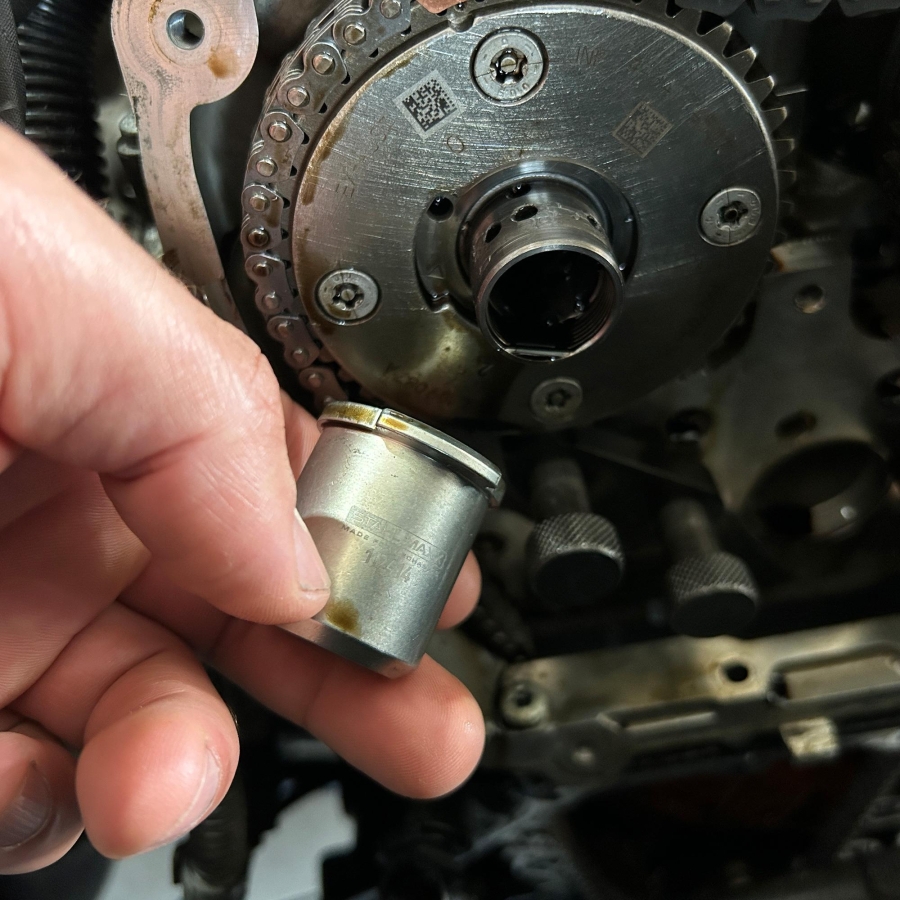

The adapter allows precise manual rotation of the camshaft during timing adjustment and engine assembly. It ensures controlled movement and reduces the risk of misalignment or damage.

OEM Reference

To be used as OEM tool as:
T40266

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.8 TFSI (180 HP, 132 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.8 TFSI quattro (180 HP, 132 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 2.0 TFSI quattro (190 HP, 140 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.8 TFSI (170 HP, 125 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.8 TFSI (180 HP, 132 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.8 TFSI quattro (180 HP, 132 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (186 HP, 137 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (211 HP, 155 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI quattro (190 HP, 140 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI quattro (220 HP, 162 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 35 TFSI (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.8 TFSI (170 HP, 125 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.8 TFSI (180 HP, 132 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.8 TFSI quattro (180 HP, 132 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (186 HP, 137 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (220 HP, 162 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI Flex (220 HP, 162 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI quattro (190 HP, 140 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI quattro (220 HP, 162 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 30 TFSI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 35 TFSI (150 HP, 110 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 1.8 TFSI (120 HP, 88 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 1.8 TFSI (160 HP, 118 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 1.8 TFSI (170 HP, 125 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 1.8 TFSI quattro (160 HP, 118 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 1.8 TFSI quattro (170 HP, 125 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (180 HP, 132 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (211 HP, 155 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (220 HP, 162 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (224 HP, 165 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI Flexfuel quattro (211 HP, 155 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI Flexfuel quattro (220 HP, 162 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI flexible fuel (180 HP, 132 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI flexible fuel quattro (180 HP, 132 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI quattro (180 HP, 132 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI quattro (211 HP, 155 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI quattro (220 HP, 162 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI quattro (224 HP, 165 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 1.8 TFSI (120 HP, 88 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 1.8 TFSI (160 HP, 118 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 1.8 TFSI (170 HP, 125 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 1.8 TFSI quattro (160 HP, 118 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 1.8 TFSI quattro (170 HP, 125 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 1.8 TFSI (160 HP, 118 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 1.8 TFSI (170 HP, 125 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 1.8 TFSI (177 HP, 130 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (180 HP, 132 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (211 HP, 155 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (224 HP, 165 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (230 HP, 169 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI Flexfuel quattro (220 HP, 162 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI quattro (211 HP, 155 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI quattro (220 HP, 162 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI quattro (224 HP, 165 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI quattro (230 HP, 169 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI Flexfuel quattro (211 HP, 155 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI Flexfuel quattro (220 HP, 162 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (177 HP, 130 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (180 HP, 132 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (211 HP, 155 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (220 HP, 162 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (224 HP, 165 kW)

AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TFSI quattro (230 HP, 169 kW)

AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) 2.0 TFSI quattro (245 HP, 180 kW)

AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) 2.0 TFSI quattro (249 HP, 183 kW)

AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) 2.0 TFSI quattro (252 HP, 185 kW)
