Color Endoscope Camera with TFT Monitor, Ø8 mm Camera Head
-
Code:63216
-
Weight:1.116 Kgs
Overview:
✔ Professional color endoscope camera for inspection of hard-to-reach areas
✔ Suitable for vehicles, workshop environments and household applications
✔ Ø8 mm camera head with integrated adjustable illumination
✔ 3.31" TFT-LCD monitor for direct image viewing
✔ Includes accessories for retrieving dropped screws, nuts and small objects
✔ Flexible 980 mm gooseneck probe for difficult access areas
✔ IP67 protected camera lens and probe
✔ Complete kit with batteries and inspection accessories included
This color endoscope camera with TFT monitor is designed for inspection of hard-to-access areas in vehicles, workshops, household environments and other applications where direct visual access is limited.
The integrated display allows direct viewing of inspection images without requiring external devices. The camera head features adjustable illumination for improved visibility inside dark cavities and restricted spaces.
The included accessories significantly expand the functionality of the endoscope, allowing retrieval and lifting of dropped screws, nuts and other small components.
The flexible gooseneck probe provides access to narrow and difficult locations while maintaining sufficient rigidity for controlled positioning.
The camera head and probe are protected according to IP67 standards for reliable operation in challenging working conditions.
Suitable for inspection, diagnostics, maintenance and retrieval applications.
Technical Specifications
Display Specifications
- Display type: TFT LCD
- Display size: 84 mm (3.31")
- Contrast ratio: 300
- Brightness: 220 cd/m²
Power Supply
- 4 × AA batteries, 1.5 V
- Operating time: max. 6 hours
- Power consumption: 238 mA
Video Specifications
- Video output impedance: 75 Ohm
- Video signal strength: 0.9–1.3 Vp-p
- Video system: PAL / NTSC
Camera Specifications
- Camera diameter: 8 mm
- Camera sensor: CMOS 2.82 mm (1/9")
- Effective pixels: 640 × 480
- Horizontal viewing angle: 48°
- Adjustable camera illumination
- Protection class: IP67 (camera lens and probe)
Probe Specifications
- Gooseneck length: 980 mm
Dimensions
- Handle dimensions:
- 257 × 92 × 44 mm
- (without probe)
Operating Conditions
- Relative humidity: 15–85%

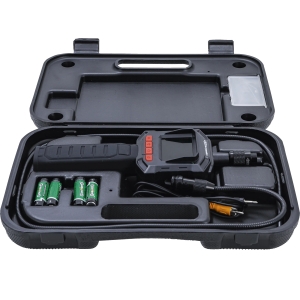

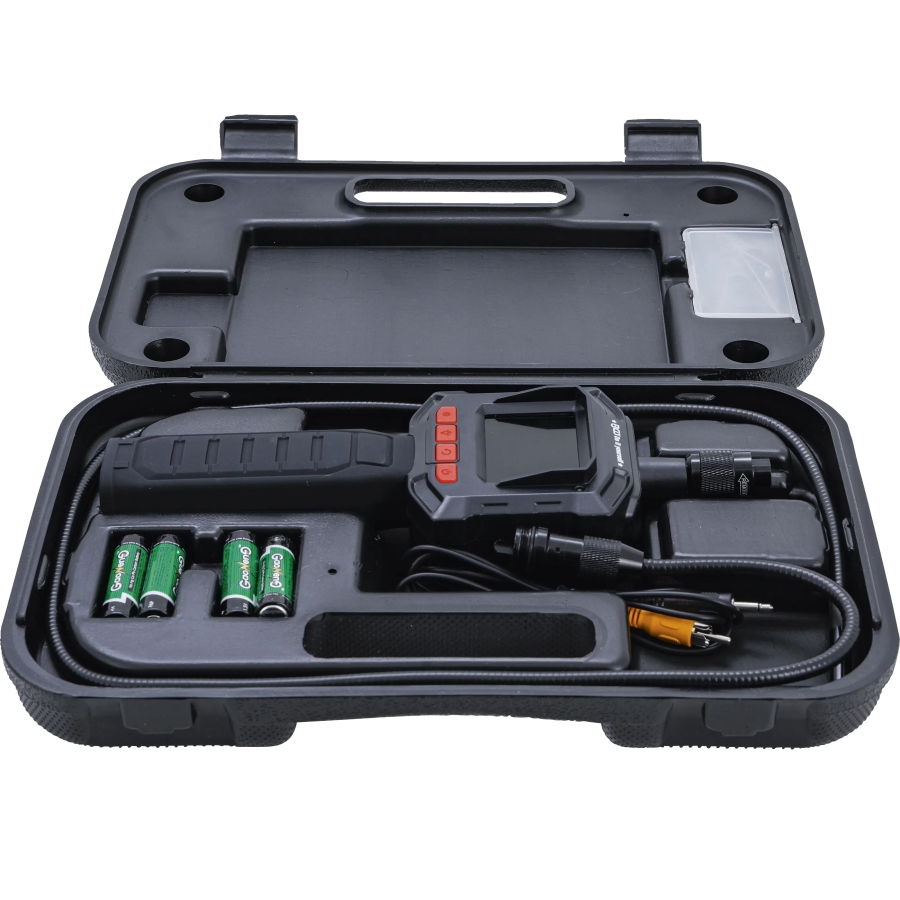

Set Contents

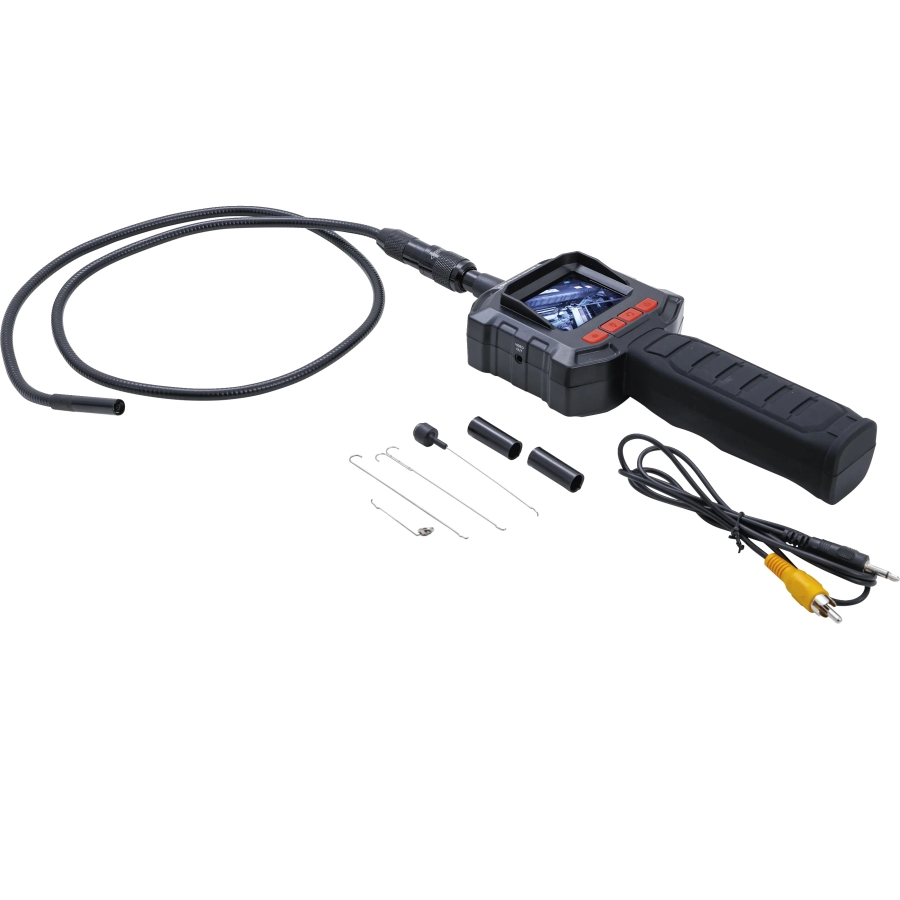

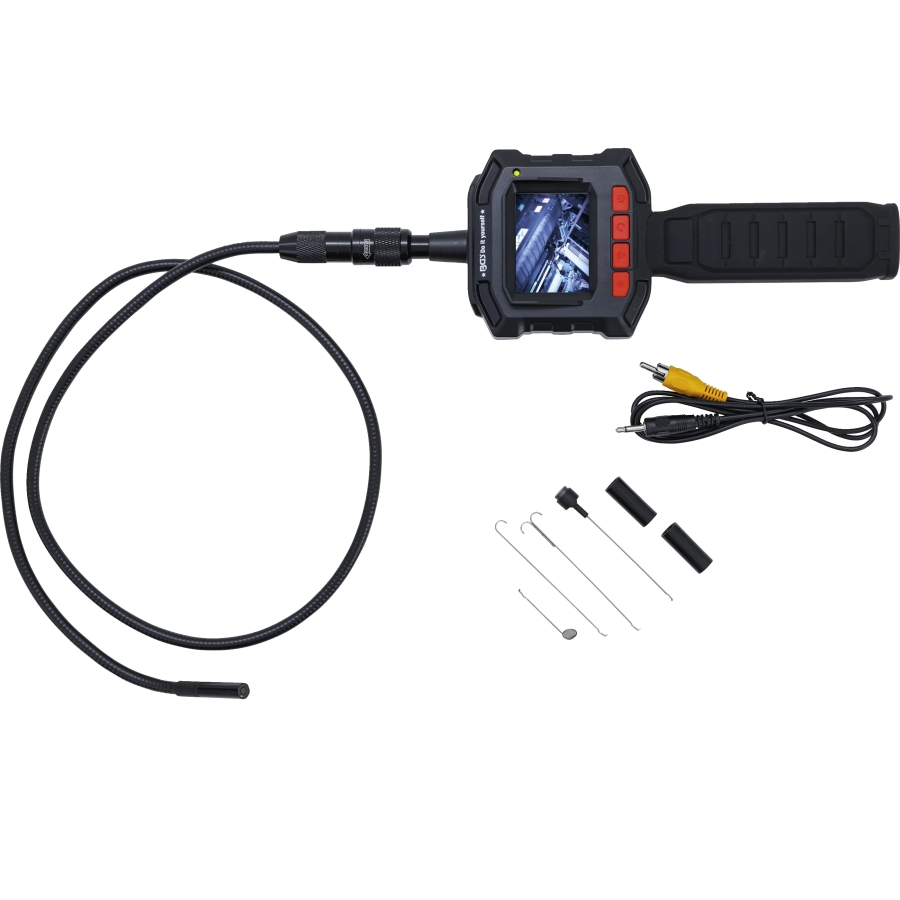

Included Components
- 1 handle with LCD monitor
- 1 flexible gooseneck probe
- 1 hook
- 1 double hook
- 1 magnet
- 1 mirror attachment
- 2 retaining rings
- 1 video cable
- 4 × AA 1.5 V batteries
Applications
- Vehicle inspections
- Workshop diagnostics
- Household inspections
- Inspection of cavities
- Retrieval of dropped screws and nuts
- Inspection of difficult-to-access areas
- Maintenance and service work
Technical Features
- Integrated TFT monitor
- Adjustable LED illumination
- Flexible gooseneck probe
- Retrieval accessories included
- Dust and water protection according to IP67
- Battery-powered portable operation
- Suitable for professional inspection applications
