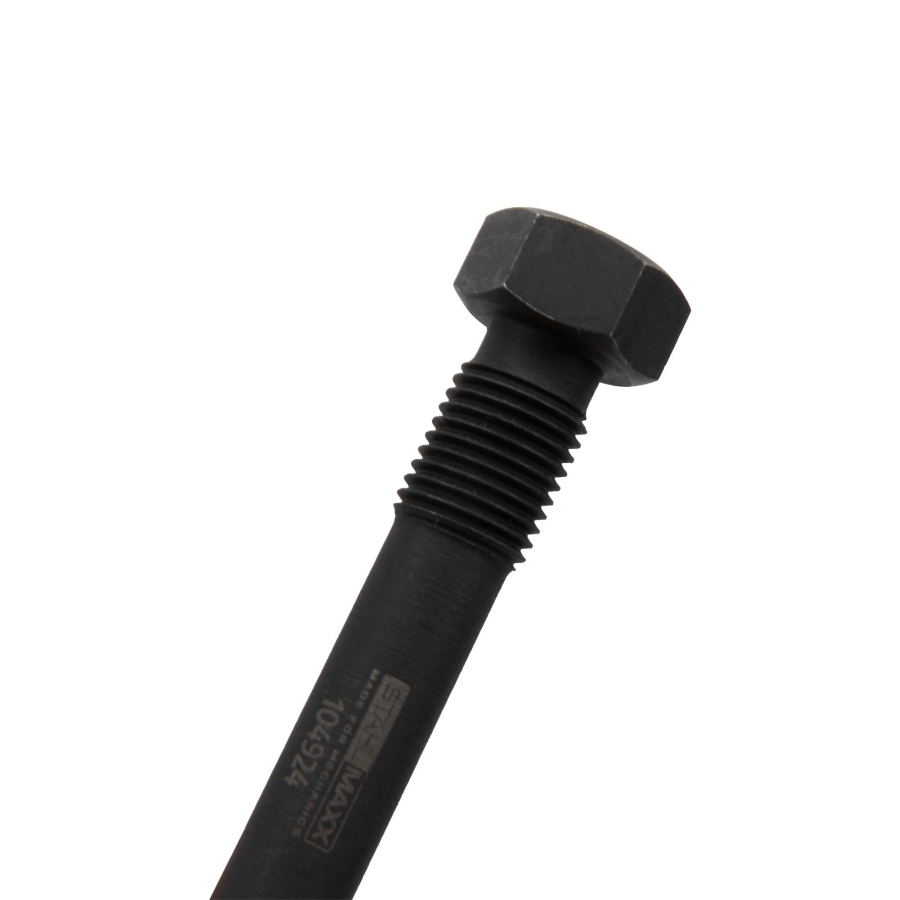

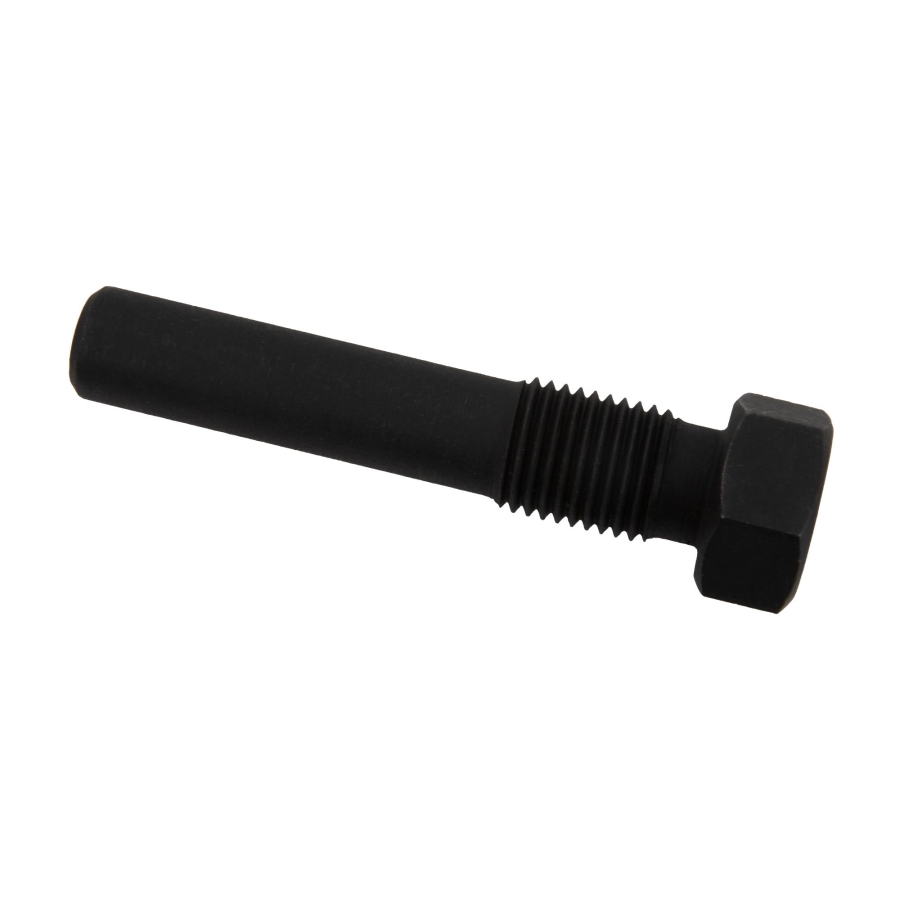

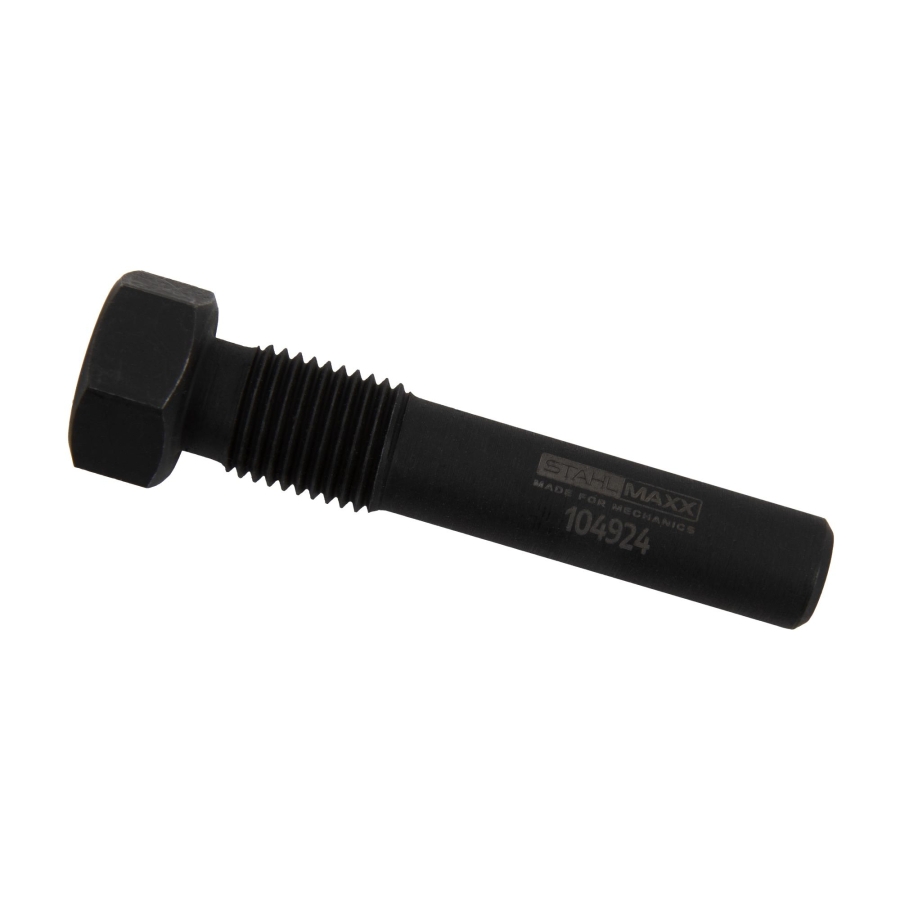

Crankshaft Locking Bolt for VAG Engines – T10340, 303-1717

Specialized locking bolt designed for securing the crankshaft in the correct position during engine service.
Used in timing procedures to ensure accurate alignment and positioning.

Functionality

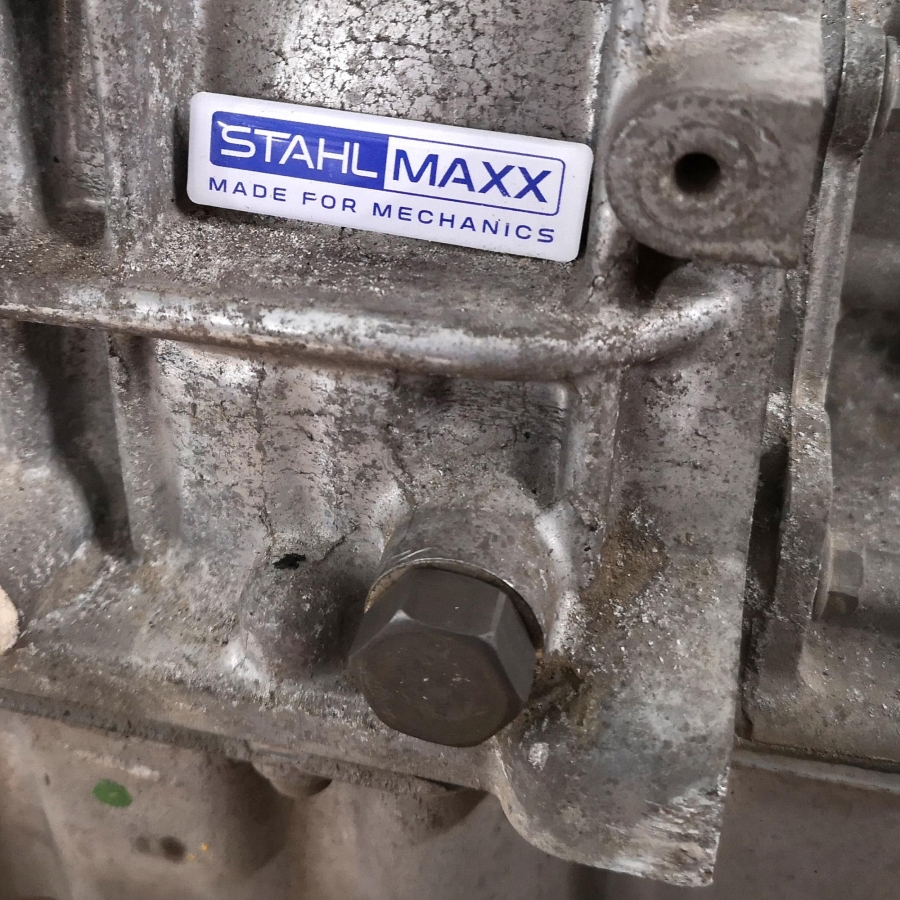

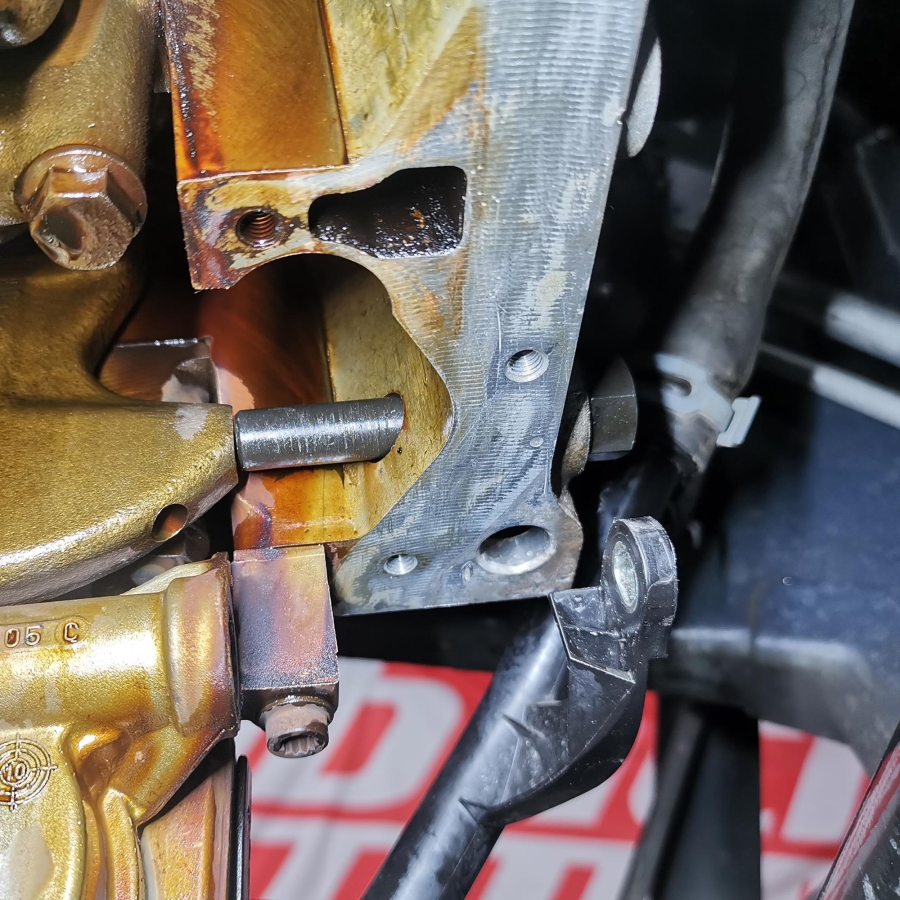

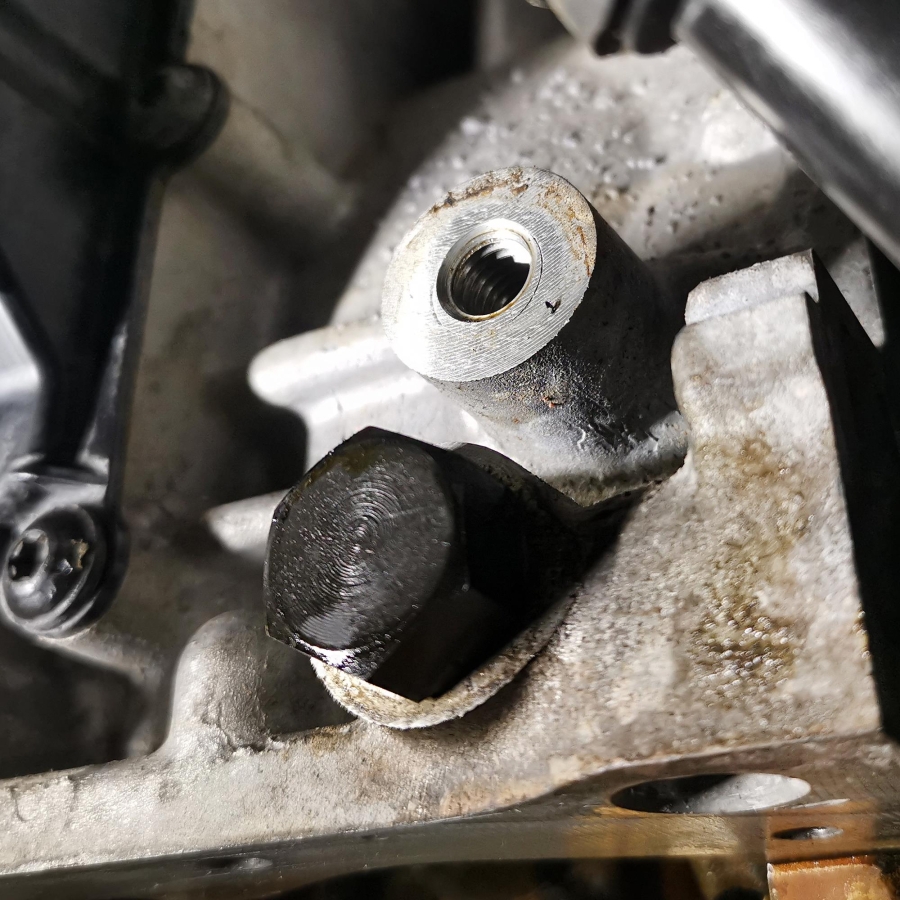

The tool is installed into the engine block to lock the crankshaft in place.
Prevents unwanted rotation and ensures precise timing setup during maintenance and repair operations.

Engine Compatibility

Suitable for engine codes:
CBZA, CBZB, CBZC, CYVD

OEM Reference

T10340
303-1717

OEM numbers are for reference purposes only and do not imply original manufacturer tooling.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A3 (8P1) (05.2003 - 08.2012) 1.2 TSI (105 HP, 77 kW)

AUDI A3 Cabriolet (8P7) (04.2008 - 05.2013) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 1.2 TSI (105 HP, 77 kW)

SEAT ALTEA (5P1) (03.2004 - 08.2011) 1.2 TSI (105 HP, 77 kW)

SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (86 HP, 63 kW)

SEAT LEON (1P1) (05.2005 - 12.2013) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA III (1Z3) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (105 HP, 77 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA ROOMSTER Practice (5Y) (03.2007 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI (105 HP, 77 kW)

VW BEETLE Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI (105 HP, 77 kW)

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW CADDY III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (105 hp, 77 kW)

VW CADDY III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW GOLF PLUS V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (105 hp, 77 kW)

VW Golf Plus V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (86 hp, 63 kW)

VW Golf Plus Van (521) (01.2009 - 08.2014) 1.2 TSI (105 hp, 77 kW)

VW Golf Van VI Variant (AJ5) (07.2009 - 05.2014) 1.2 TSI (105 hp, 77 kW)

VW Golf VI (5K1) (10.2008 - 12.2014) 1.2 TSI (105 hp, 77 kW)

VW Golf VI (5K1) (10.2008 - 12.2014) 1.2 TSI (86 HP, 63 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi (86 HP, 63 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (86 HP, 63 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI (105 HP, 77 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (86 HP, 63 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW TOURAN (1T3) (05.2010 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW VENTO (01.2010 - 05.2016) 1.2 (105 HP, 77 kW)
