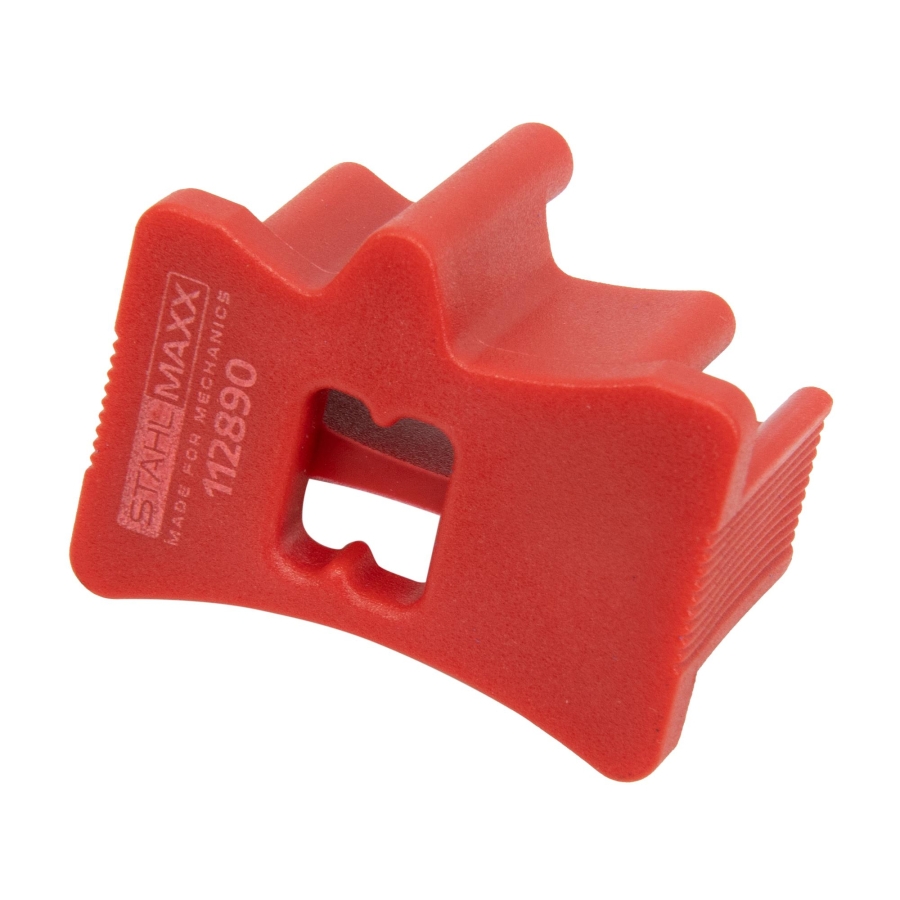

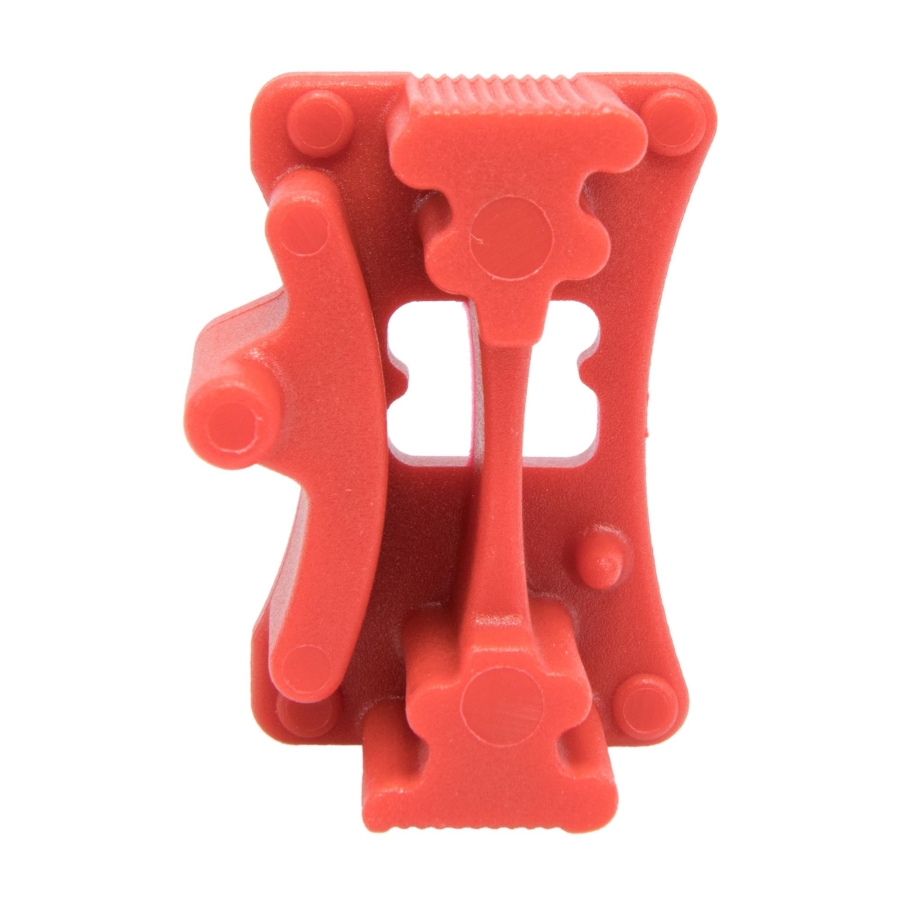

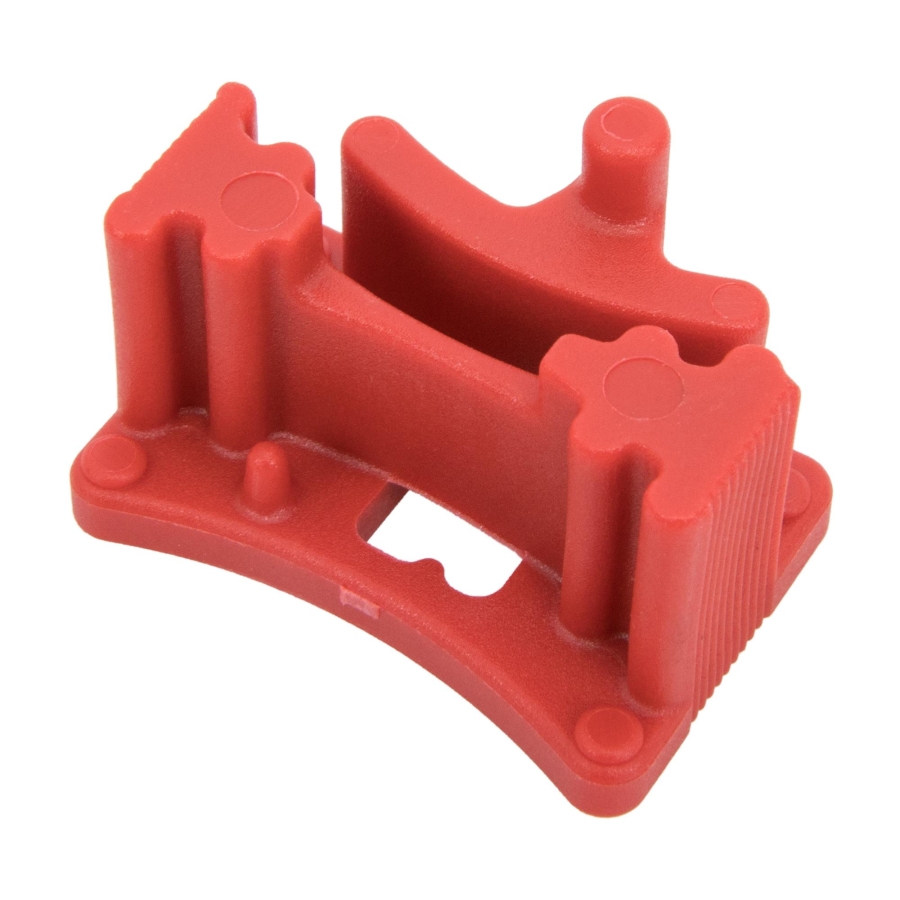

Camshaft Sprocket Locking Tool for VAG 1.0 TFSI TSI as T10476 T10476A

This camshaft sprocket locking tool is designed for fixing camshaft gears during inspection and adjustment of engine timing. It ensures stable positioning and prevents movement during service operations.

---

Compatibility

Suitable for VAG 1.0L petrol engines including TFSI, FSI, TGI and TSI variants.

Compatible with the following engine codes:
CHYA, CHYB, CHYE, CHZA, CHZB, CHZC, CHZD, CHZE, CHZG, CHZK, CHZL, CHZJ, CPGA, CWRA, DAFA, DKJA, DKLA, DKLC, DKLB, DKLD, DKRA, DKRC, DKRD, DKRE, DKRF

---

Function

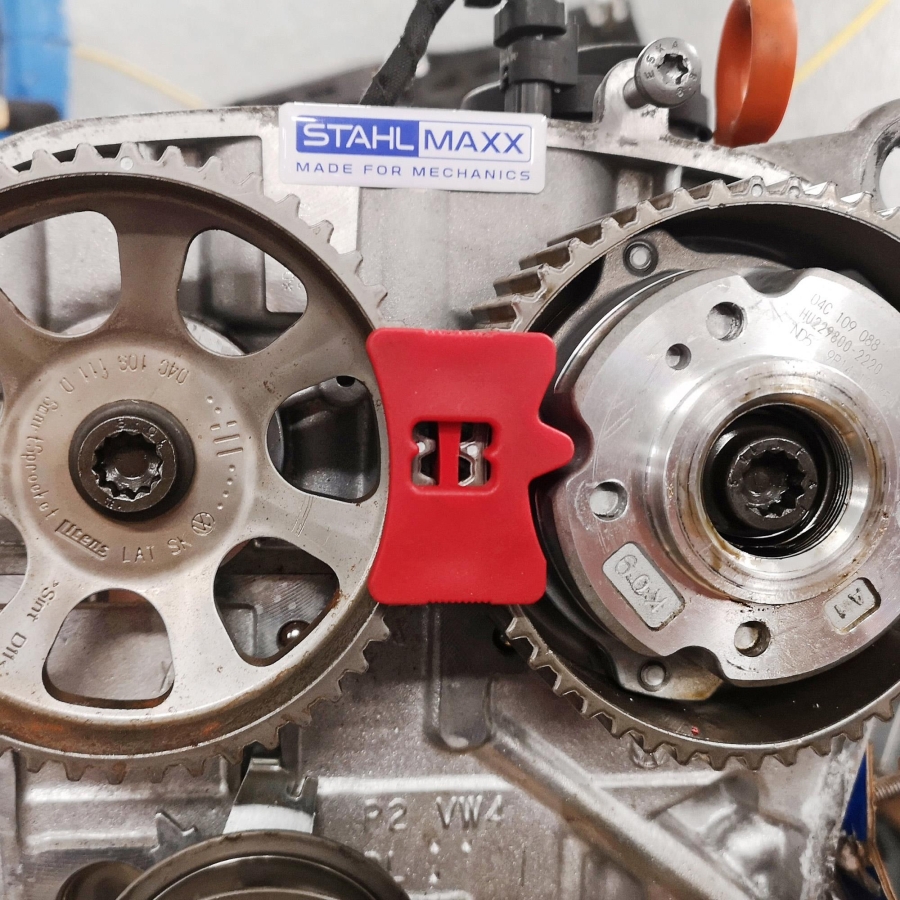

The tool locks the camshaft sprockets in place during timing inspection and adjustment. This ensures accurate synchronization and reduces the risk of incorrect timing setup.

---

OEM Reference

To be used as OEM tool as:
T10476, T10476A



OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (82 HP, 60 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (95 HP, 70 kW)

AUDI A1 CITY CARVER (GBH) (07.2019 - ) 25 TFSI (95 HP, 70 kW)

AUDI A1 CITY CARVER (GBH) (07.2019 - ) 30 TFSI (116 HP, 85 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (82 HP, 60 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (95 HP, 70 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 25 TFSI (95 HP, 70 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 30 TFSI (116 HP, 85 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 30 TFSI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 30 TFSI (116 HP, 85 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.0 TFSI (115 HP, 85 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 30 TFSI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.0 TSI (115 HP, 85 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 TSI (110 HP, 81 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 (75 HP, 55 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT LEON (5F1) (09.2012 - ) 1.0 TSI (115 HP, 85 kW)

SEAT LEON (5F1) (09.2012 - ) 1.0 TSi (86 HP, 63 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.0 TSI (115 HP, 85 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.0 TSI (115 HP, 85 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSI (115 HP, 85 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSi (86 HP, 63 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.0 TSI (115 HP, 85 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (60 HP, 44 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (75 HP, 55 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 EcoFuel (68 HP, 50 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (110 HP, 81 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (95 HP, 70 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (60 HP, 44 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (75 HP, 55 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 CNG (68 HP, 50 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 LPG (60 HP, 44 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (95 HP, 70 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 TSI (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 TSI (95 HP, 70 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (115 HP, 85 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (95 HP, 70 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (116 HP, 85 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (95 HP, 70 kW)

VW CADDY ALLTRACK MPV (SAB) (05.2015 - 11.2017) 1.0 TSI (102 HP, 75 kW)

VW CADDY ALLTRACK MPV (SAB) (05.2015 - 11.2017) 1.0 TSI (84 HP, 62 kW)

VW CADDY ALLTRACK Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW)

VW Caddy IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW)

VW Caddy IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (84 hp, 62 kW)

VW Caddy IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW)

VW Golf Sportsvan VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (110 HP, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (115 HP, 85 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (115 HP, 85 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (86 HP, 63 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (115 HP, 85 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (86 HP, 63 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 (60 HP, 44 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 BlueMotion (75 HP, 55 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 EcoFuel (68 HP, 50 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 TSi BlueMotion (90 HP, 66 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (60 HP, 44 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (75 HP, 55 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (95 HP, 70 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 (75 HP, 55 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (115 HP, 85 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (95 HP, 70 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (60 HP, 44 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (75 HP, 55 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 TSI (95 HP, 70 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (116 HP, 85 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (95 HP, 70 kW)

VW T-ROC (A11) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

VW T-ROC (A11) (07.2017 - ) 1.0 TSI 4motion (115 HP, 85 kW)

VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.0 TSI (116 HP, 85 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (60 HP, 44 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (75 HP, 55 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 EcoFuel (68 HP, 50 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 GTI (115 HP, 85 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 TSI (90 HP, 66 kW)
