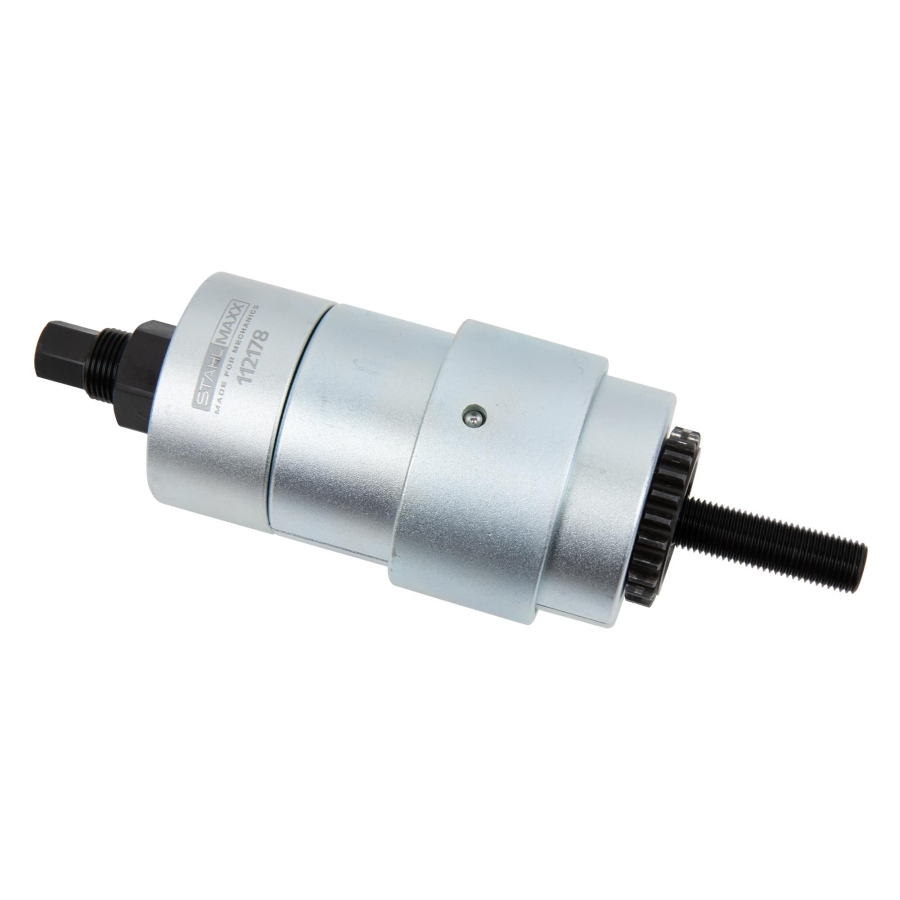

Crankshaft Timing Chain Sprocket Removal & Installation Tool for VAG 1.2 TSI / TFSI, as T30122, T10311

This special tool is designed for the professional removal and installation of the crankshaft timing chain sprocket on VAG 1.2L TSI and TFSI engines. It is essential during timing chain service and engine repair procedures.

Function

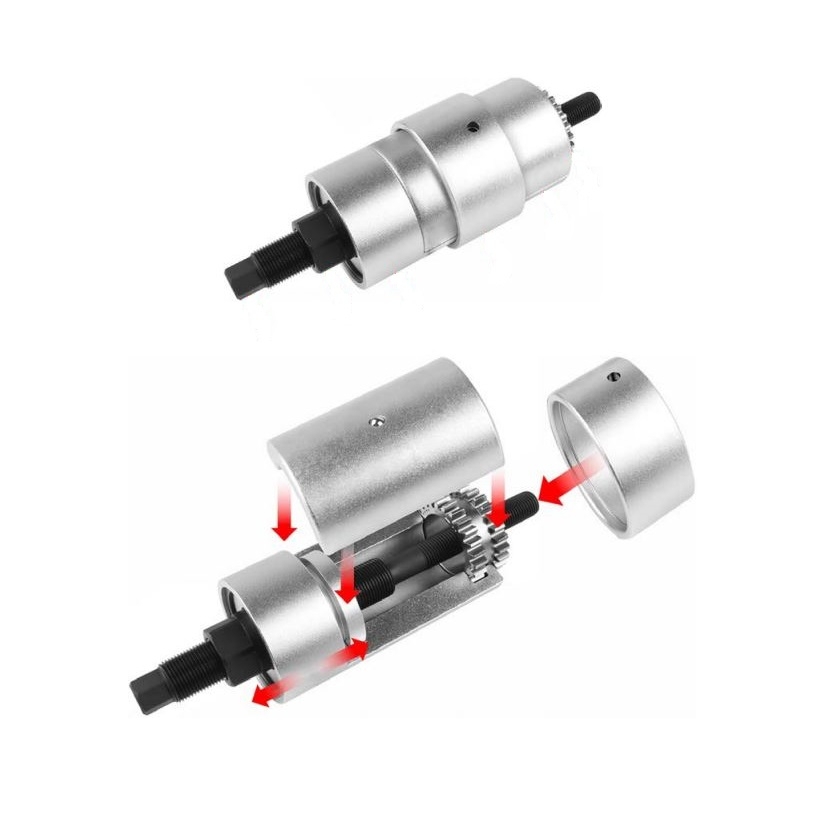

With this tool set, it is possible to:

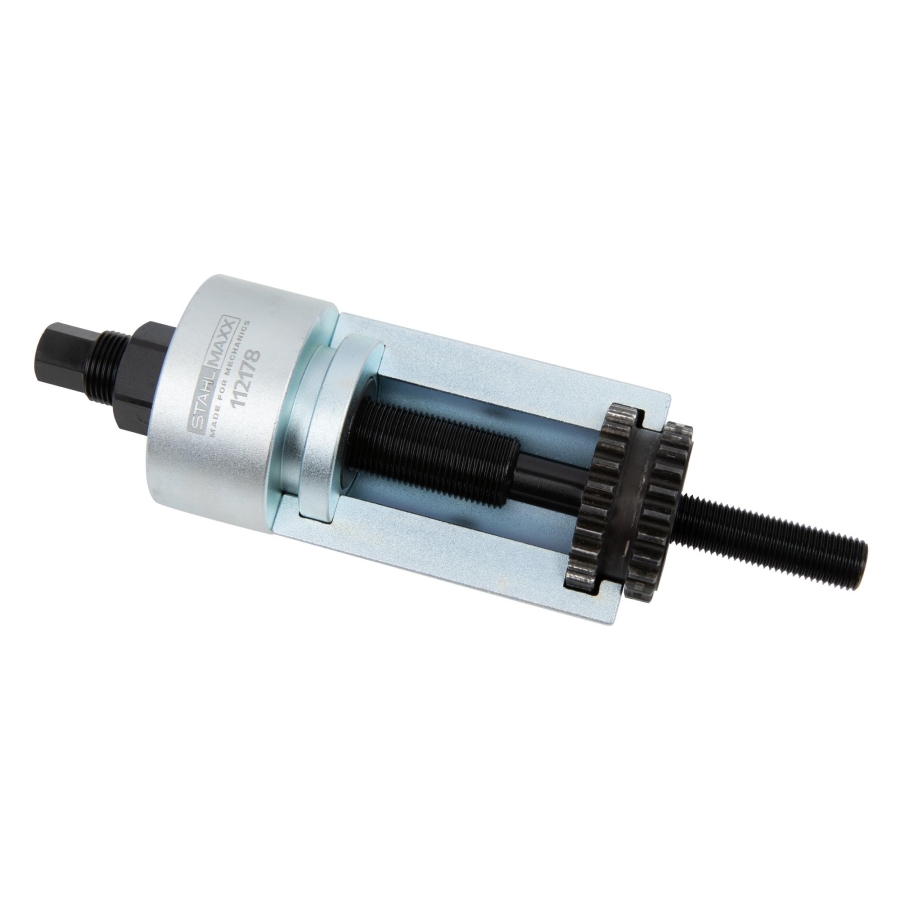

• Remove the old crankshaft sprocket
• Press-fit the new sprocket onto the crankshaft
• Replace the crankshaft oil seal
• Lock the flywheel to prevent rotation during service

Technical Note

Due to common issues with timing chain elongation and wear in VAG engines, it is essential to install the latest generation timing chain kits.

The sprocket tooth profile is not identical to the chain, meaning the crankshaft sprocket must also be replaced when servicing.

For installation, the sprocket should be heated (max. 150°C) before press-fitting.

Compatibility

Suitable for engines:
1.2L TSI / TFSI

Engine codes:
CBZA, CBZB, CBZC

Spare Part Compatibility

Suitable for sprocket with part number:
03F 105 209 D

Technical Data

Spindle wrench size: 15 mm
Nut wrench size: 27 mm

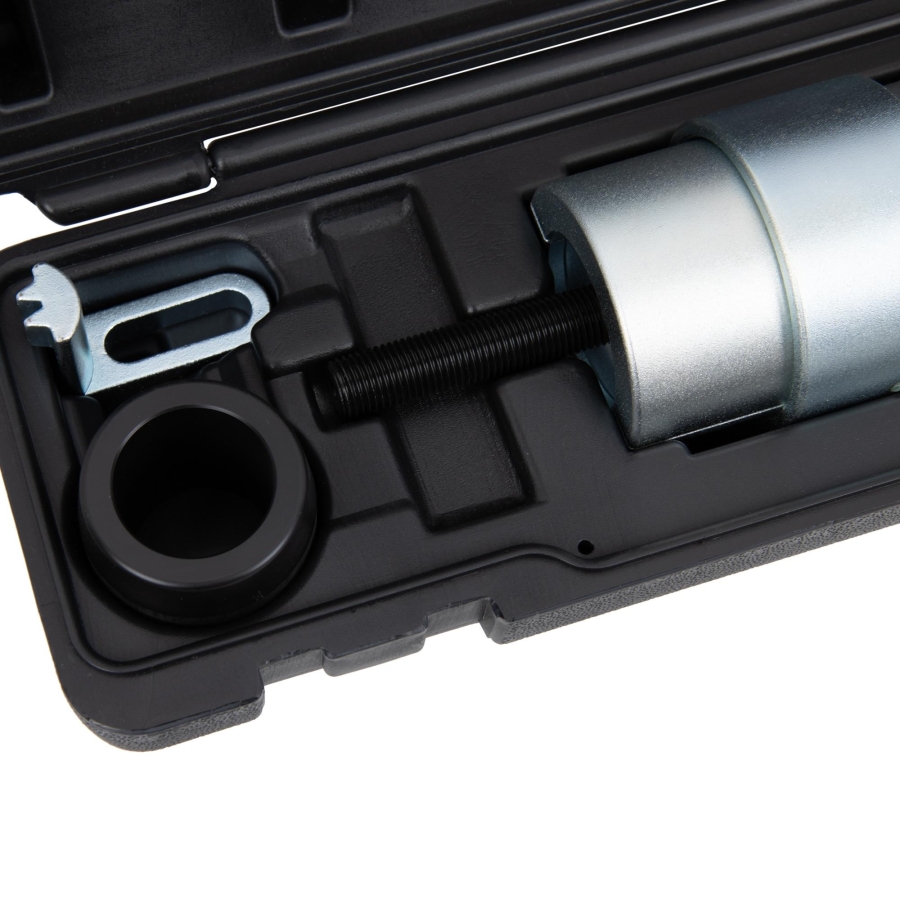

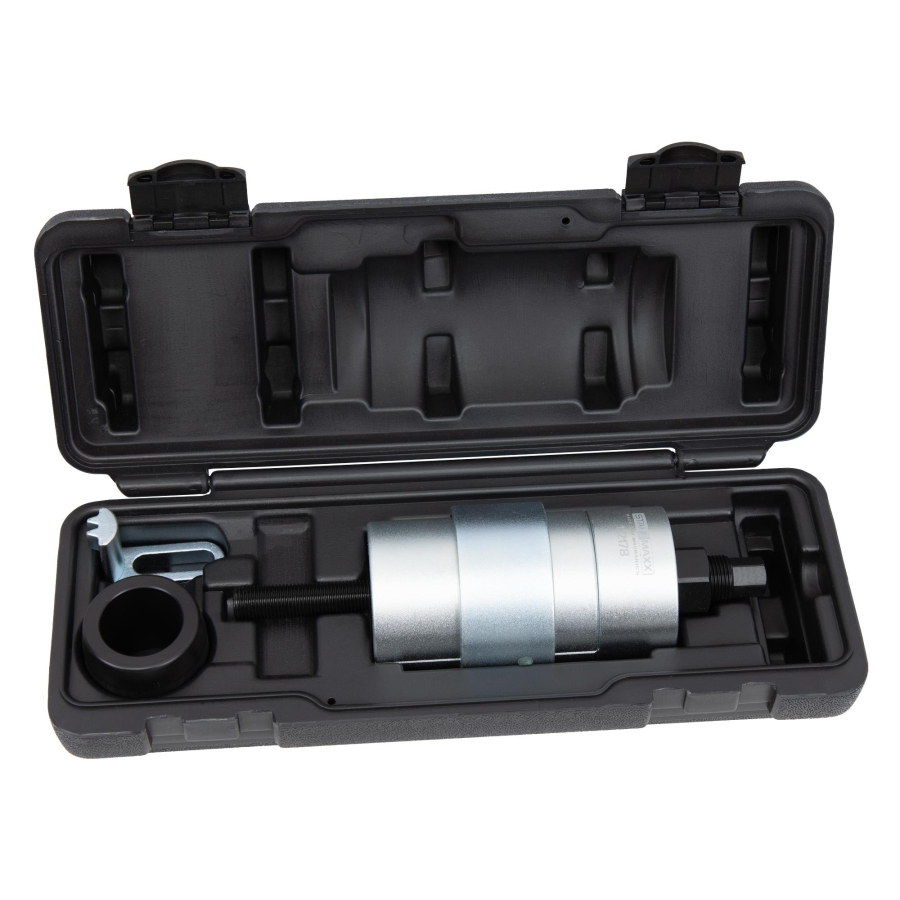

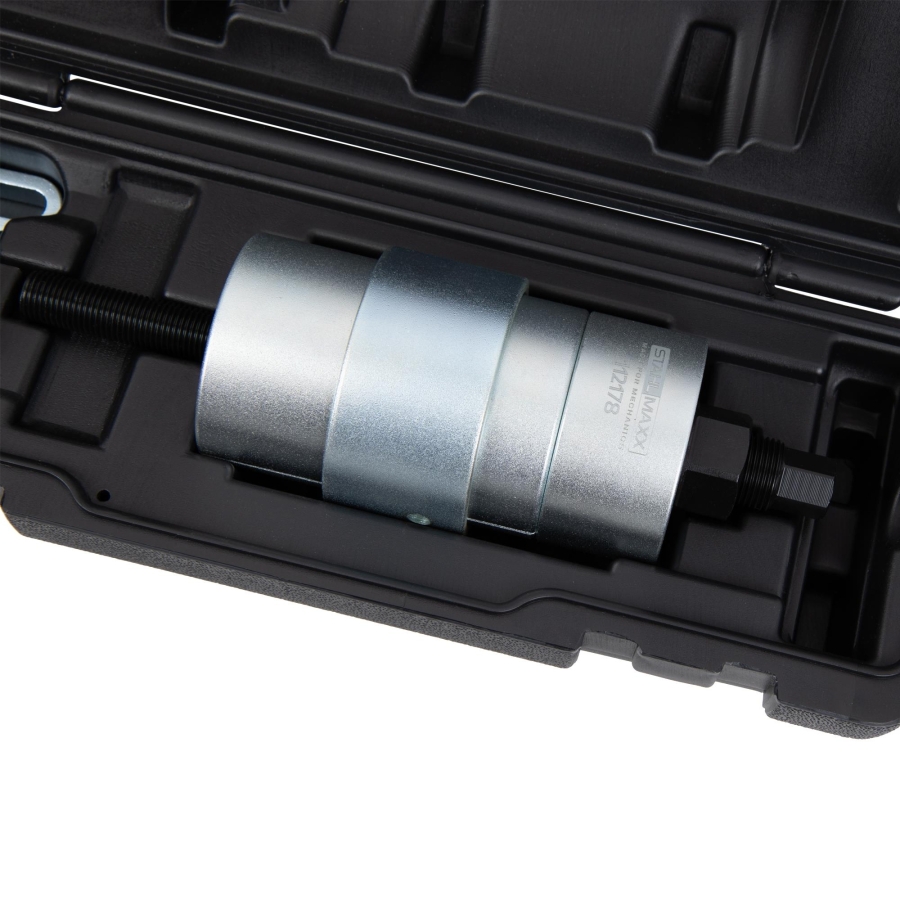

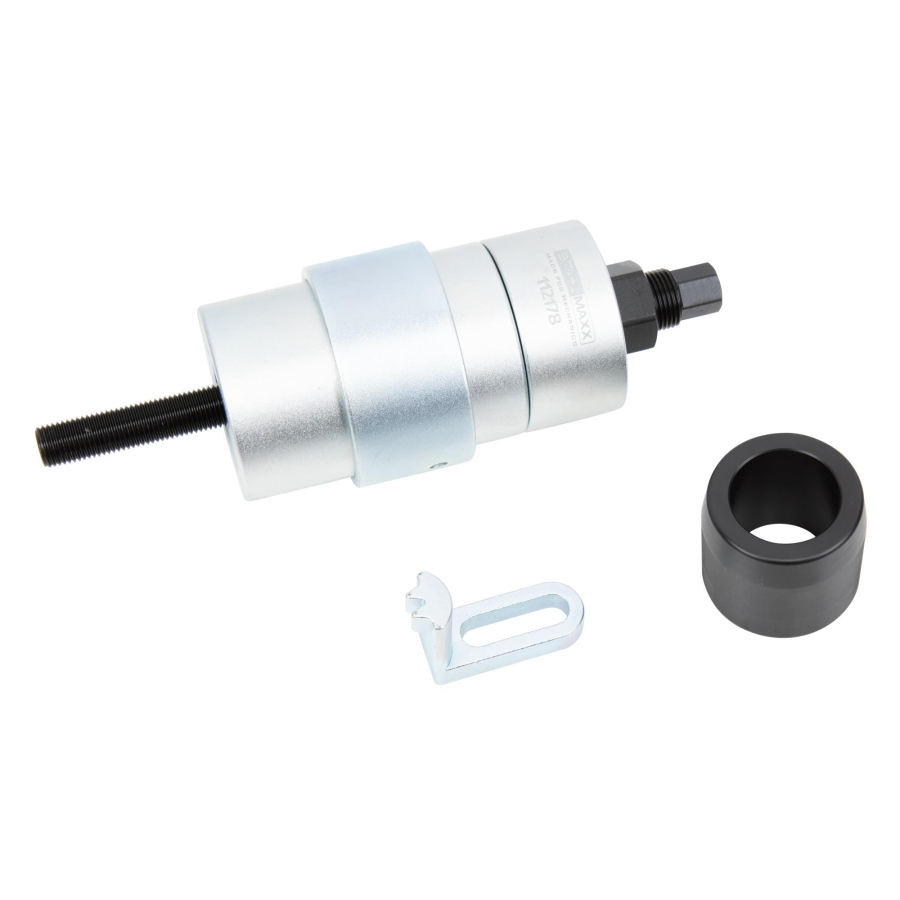

Scope of Delivery

✔ 1 × Crankshaft sprocket removal & installation tool, as T30122
✔ 1 × Flywheel locking tool, as T10311, T10161
✔ 1 × Crankshaft seal installation tool, as T10417

OEM Reference

Used as OEM references:
T10161
T10311
T10417
T30122

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer part.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A3 (8P1) (05.2003 - 08.2012) 1.2 TSI (105 HP, 77 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Cabriolet (8P7) (04.2008 - 05.2013) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 1.2 TSI (105 HP, 77 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (105 HP, 77 kW)

SEAT ALTEA (5P1) (03.2004 - 08.2011) 1.2 TSI (105 HP, 77 kW)

SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (86 HP, 63 kW)

SEAT LEON (1P1) (05.2005 - 12.2013) 1.2 TSI (105 HP, 77 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (105 HP, 77 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA III (1Z3) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (105 HP, 77 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA ROOMSTER Praktik (5J) (03.2007 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI (105 hp, 77 kW)

VW Beetle (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Beetle Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI (105 hp, 77 kW)

VW Beetle Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Caddy III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (105 hp, 77 kW)

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW CADDY III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (105 hp, 77 kW)

VW CADDY III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW GOLF PLUS V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (105 HP, 77 kW)

VW GOLF PLUS V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (86 HP, 63 kW)

VW GOLF PLUS Van (521) (01.2009 - 08.2014) 1.2 TSi (105 HP, 77 kW)

VW GOLF VAN VI Variant (AJ5) (07.2009 - 05.2014) 1.2 TSi (105 HP, 77 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VI (5K1) (10.2008 - 12.2014) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI (5K1) (10.2008 - 12.2014) 1.2 TSI (86 HP, 63 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI 16V (105 HP, 77 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi (86 HP, 63 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI 16V (105 HP, 77 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (86 HP, 63 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW TOURAN (1T3) (05.2010 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW TOURAN VAN (1T3) (05.2010 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW VENTO (01.2010 - 05.2016) 1.2 (105 hp, 77 kW)
