Engine Timing Tool Set for Timing Chain, Mercedes-Benz 1.6L / 2.0L M133, M260, M264, M270, M274

Price: €239.00 467.44лв.

Code:

115398A
Weight:

3.585 Kgs

Overview:
✔ Professional engine timing tool set for Mercedes-Benz petrol engines
✔ Suitable for 1.6L and 2.0L 4-cylinder engines
✔ Compatible with engine codes M133, M260, M264, M270 and M274
✔ Designed for timing chain replacement and camshaft timing adjustment
✔ Includes camshaft locking tool, retainers and camshaft adjuster valve sockets
✔ Reinforced design for improved stability and easier handling
✔ Compatible with Camtronic and non-Camtronic versions
✔ Supplied in durable storage case for workshop use

Engine Timing Tool Set for Timing Chain, Mercedes-Benz 1.6L / 2.0L M133, M260, M264, M270, M274

Send to friend

Rate this product

This professional timing tool set is developed for precise adjustment and locking of the camshaft timing during timing chain replacement, engine repair and camshaft service operations on Mercedes-Benz 4-cylinder petrol engines with 1.6L and 2.0L displacement.

The set is compatible with Mercedes-Benz engine series M133, M260, M264, M270 and M274 and is designed for workshop-grade servicing and accurate engine timing procedures.

The updated camshaft alignment tool design provides increased rigidity, improved stability and easier handling during installation and removal procedures.

Applications

Suitable for the following engine codes:

M133.980
M260.920
M264.915
M264.920
M270.910
M270.920
M274.910
M274.920

Camshaft Locking and Timing Functions

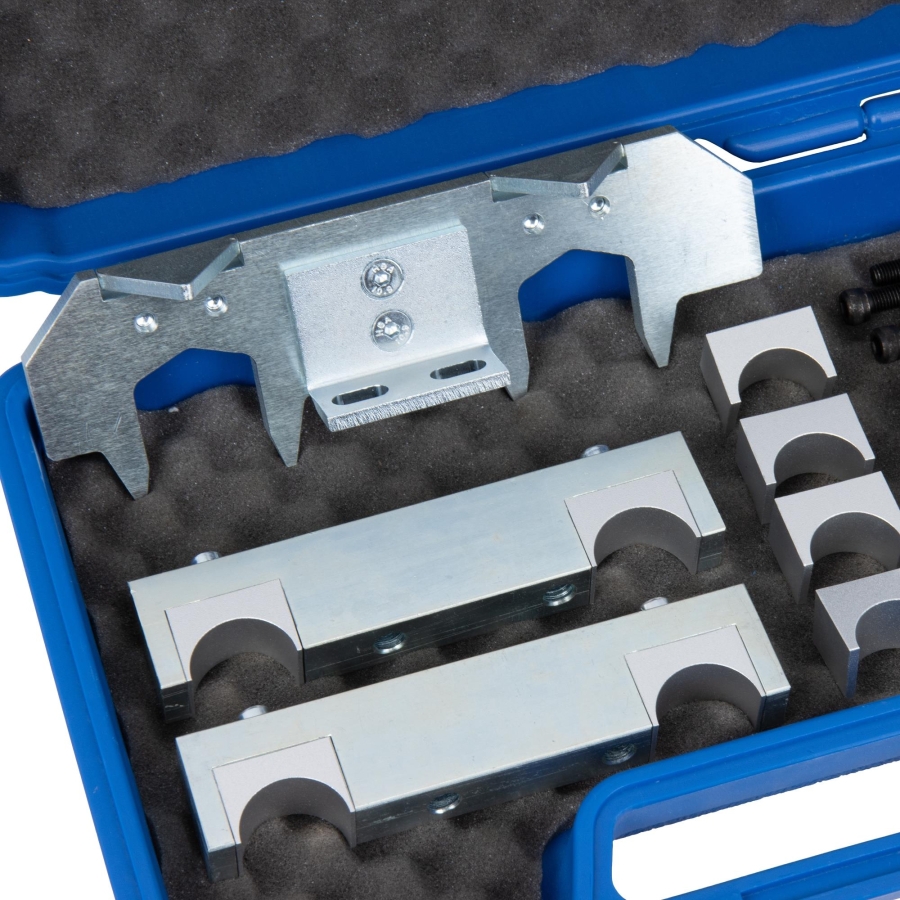

The included camshaft locking tool is designed for secure locking of the camshafts during loosening and tightening of the central valves of the camshaft adjusters.

The camshafts are mounted within the split valve cover design, meaning improper handling may cause cylinder head damage. Accurate fixation during service procedures is therefore essential.

Compatible with both versions:

Camtronic (CODE A14) – Ø 29 mm
Without Camtronic – Ø 26 mm

Timing Inspection Information

For inspection of timing chain elongation and verification of valve timing without removing the cylinder head cover, the camshaft position can be checked through the camshaft sensors using:

Item No. 122960 Camshaft Position Testing Tool

Reference Tightening Torques

Reference vehicle:
Mercedes-Benz C-Class (W204) C180 with M274.910 engine

Camshaft adjuster control valves: 18 Nm + 45°
Chain tensioner: 40 Nm
Crankshaft central bolt: 200 Nm + 180°
Camshaft retainer bolt: 28 Nm
High-pressure pump bolts to cylinder head cover: 9 Nm
Fuel line union nut to high-pressure pump/fuel rail: 15 Nm + 75° + 25°
Vacuum pump bolts: 8 Nm + 30°
Fuel rail bolts to cylinder head cover: 8 Nm
Cylinder head cover bolts: 10 Nm + 90°

OEM Reference Compatibility

To be used as:

as W001589650900
as W001 589 65 09 00
as W177589000900
as W177 589 00 09 00
as W270589006100
as W207 589 00 61 00
as W270589016100
as W270 589 01 61 00
as W271589001000
as W271 589 00 10 00

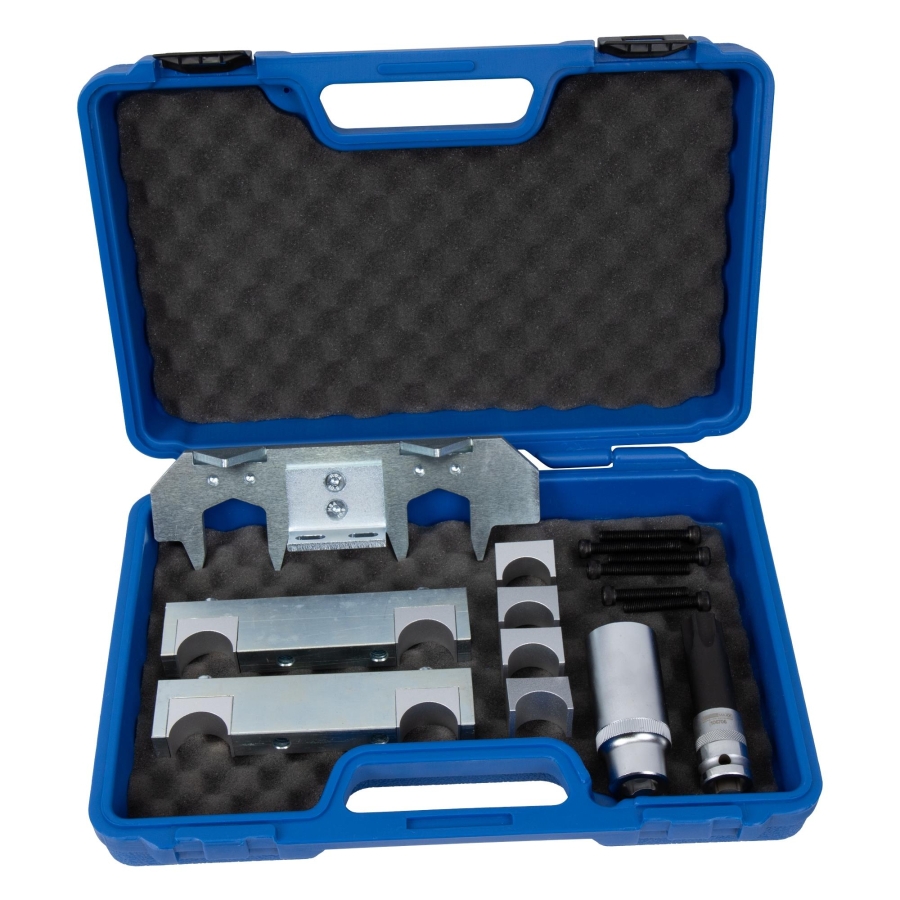

Package Contents

Item No. 123781 Camshaft locking tool including retainer pairs, to be used as W270589006100 / W270589016100

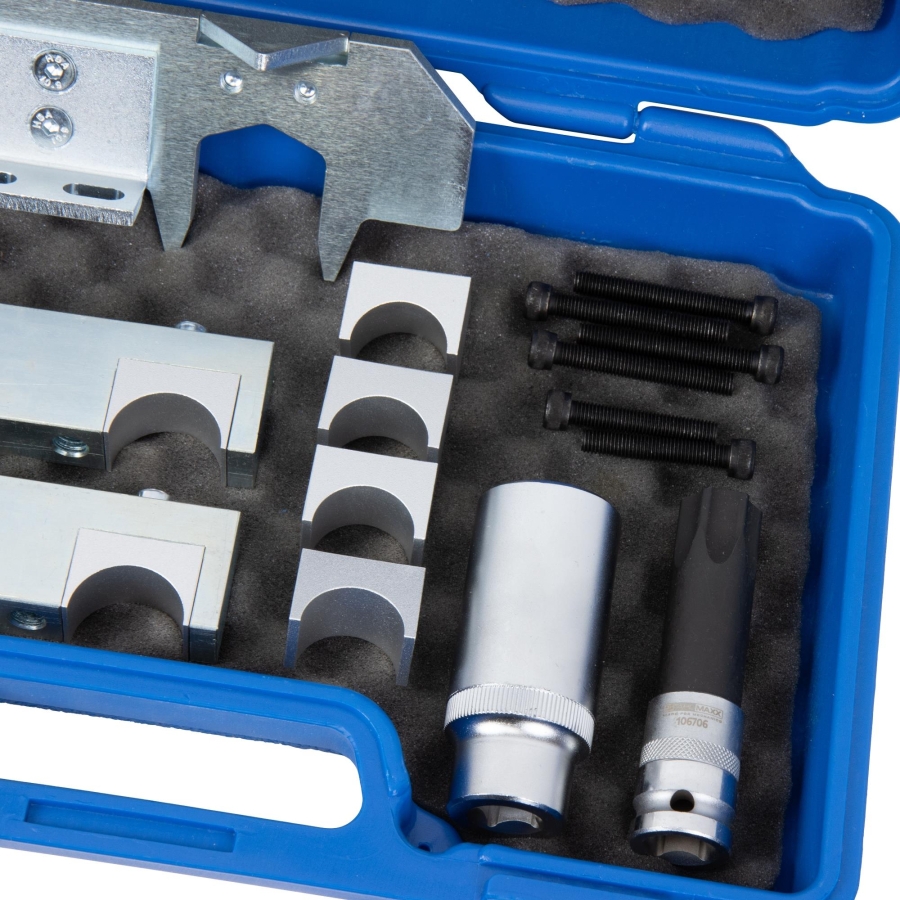

Item No. 123781 Socket for camshaft central valves, T100, to be used as W271589001000 / W177589000900
Item No. 101199 Extra deep 12-point socket insert for camshaft central valves, 27 mm, to be used as W001589650900
Item No. 51003 Heavy-duty storage case

OEM numbers and reference numbers are for comparison purposes only. This is not an original Mercedes-Benz tool.
