Self-Adjusting Ferrule Crimping Pliers 0.25–10 mm² with Ferrule Assortment
-
Code:71000
-
Weight:0.834 Kgs
Overview:
✔ Self-adjusting ferrule crimping pliers for 0.25–10 mm²
✔ Includes 1,200 ferrules from 0.5 to 10 mm²
✔ Square crimping mechanism applies pressure evenly from four sides
✔ Integrated ratchet lock ensures a complete and controlled crimping cycle
✔ Parallel crimping with synchronously driven jaws
✔ Side insertion of the ferrules

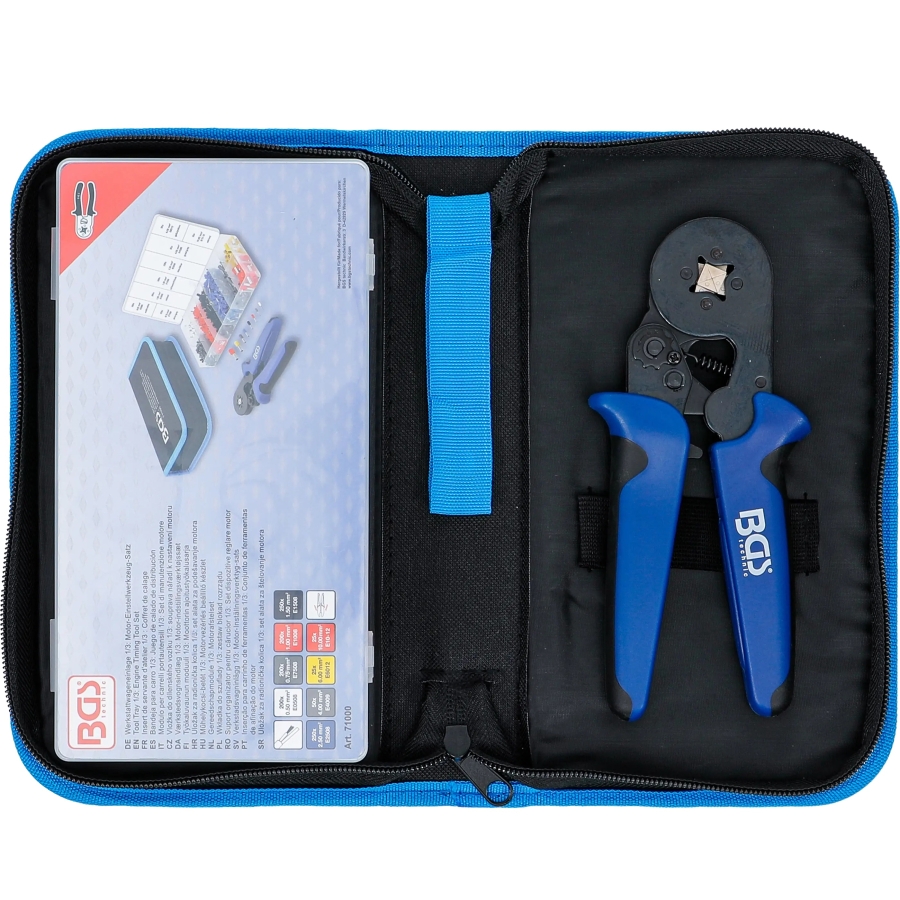

✔ Supplied with a zippered storage pouch
The crimping pliers are designed for clean and reliable crimping of wire-end ferrules from 0.25 mm² to 10 mm².

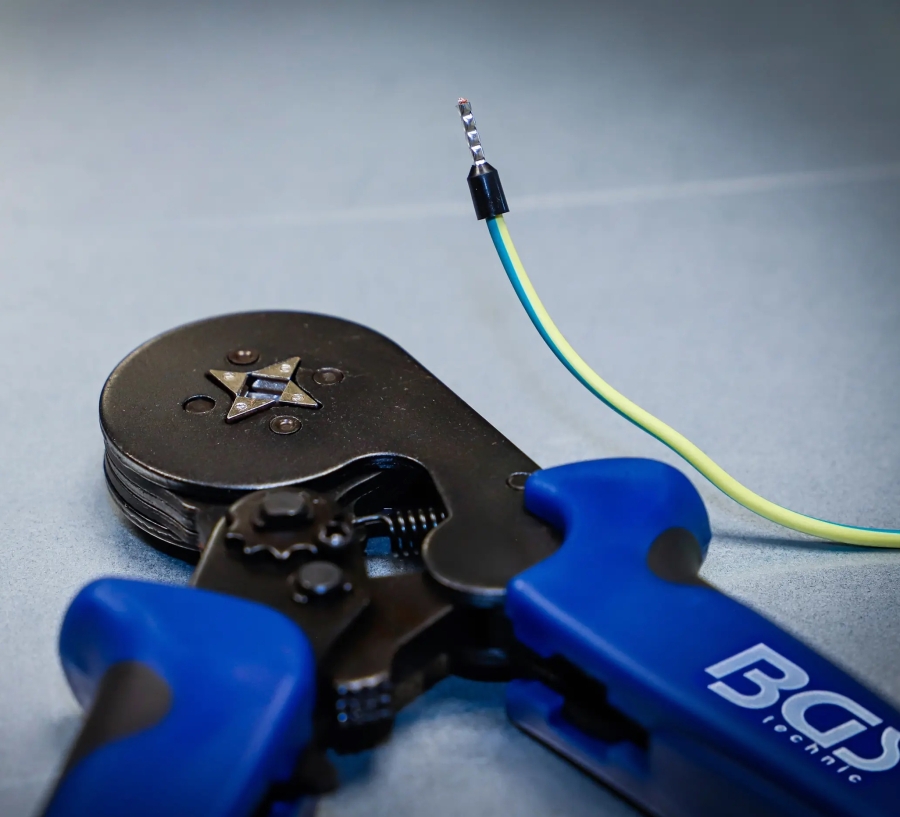

The resulting firm and durable crimp provides a secure connection between the conductor and ferrule.

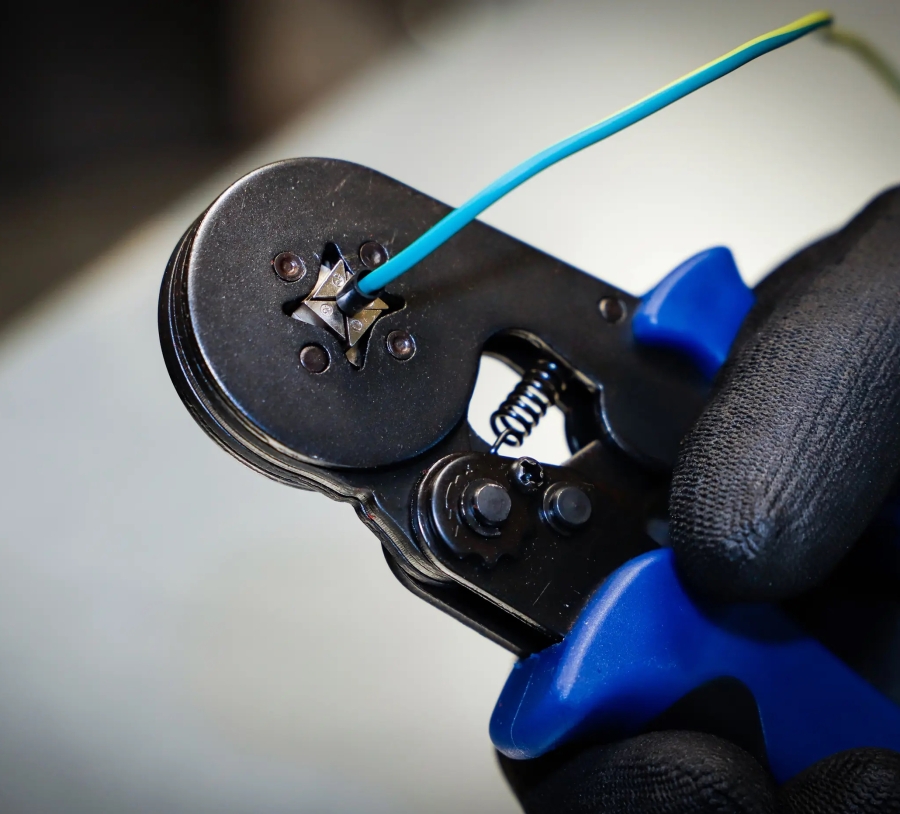

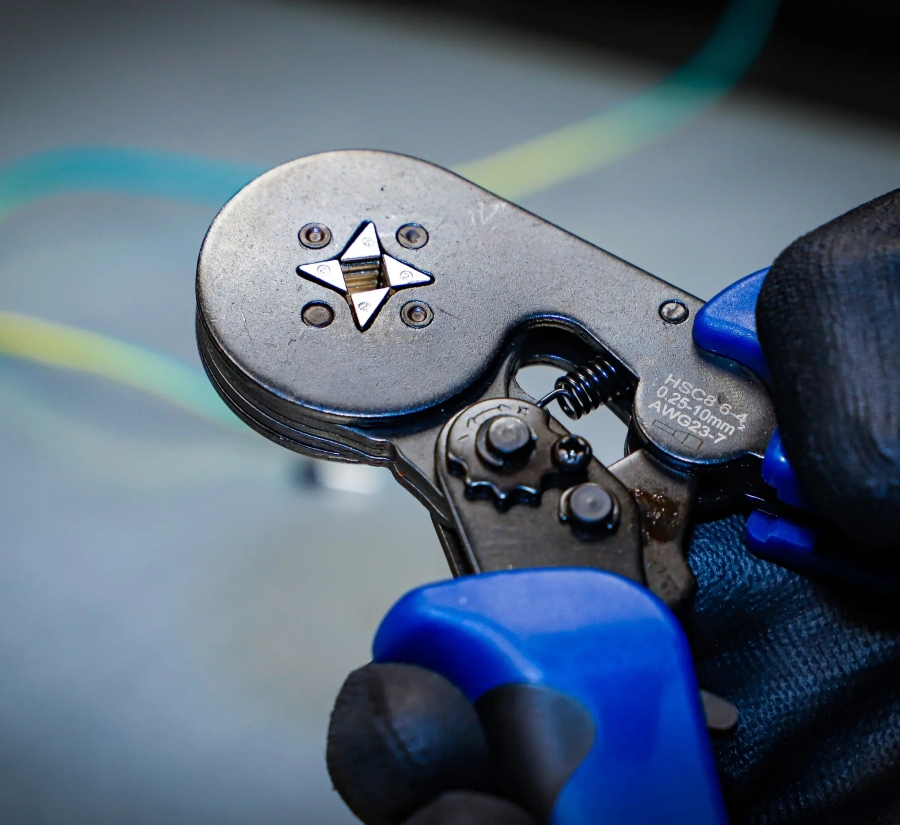

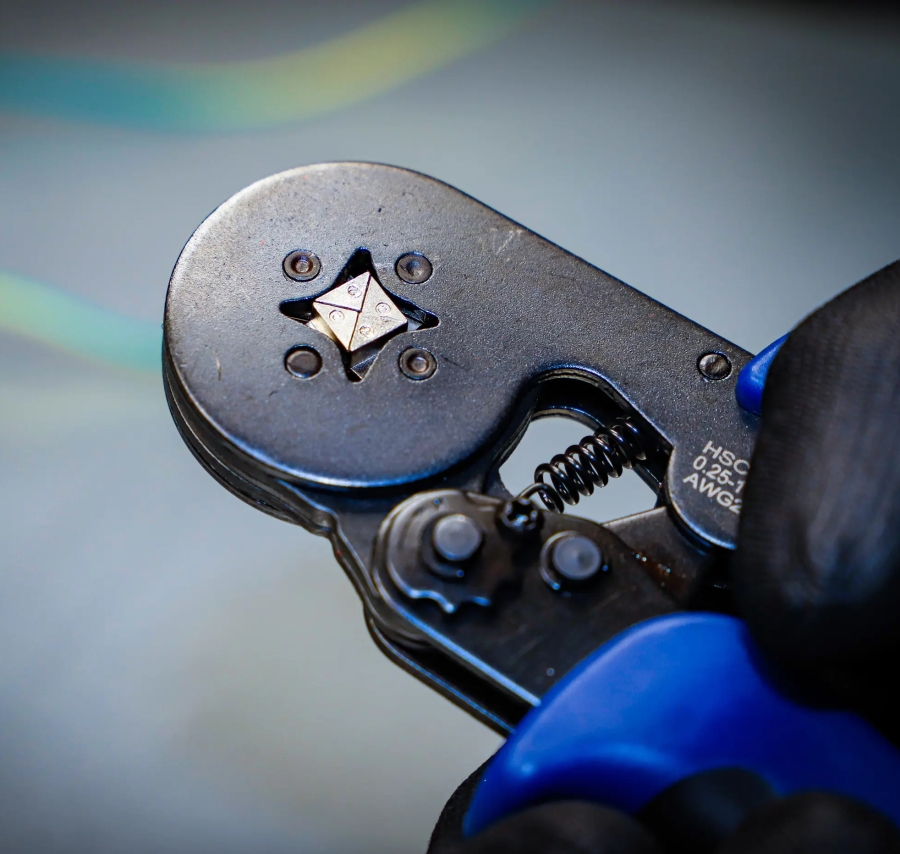

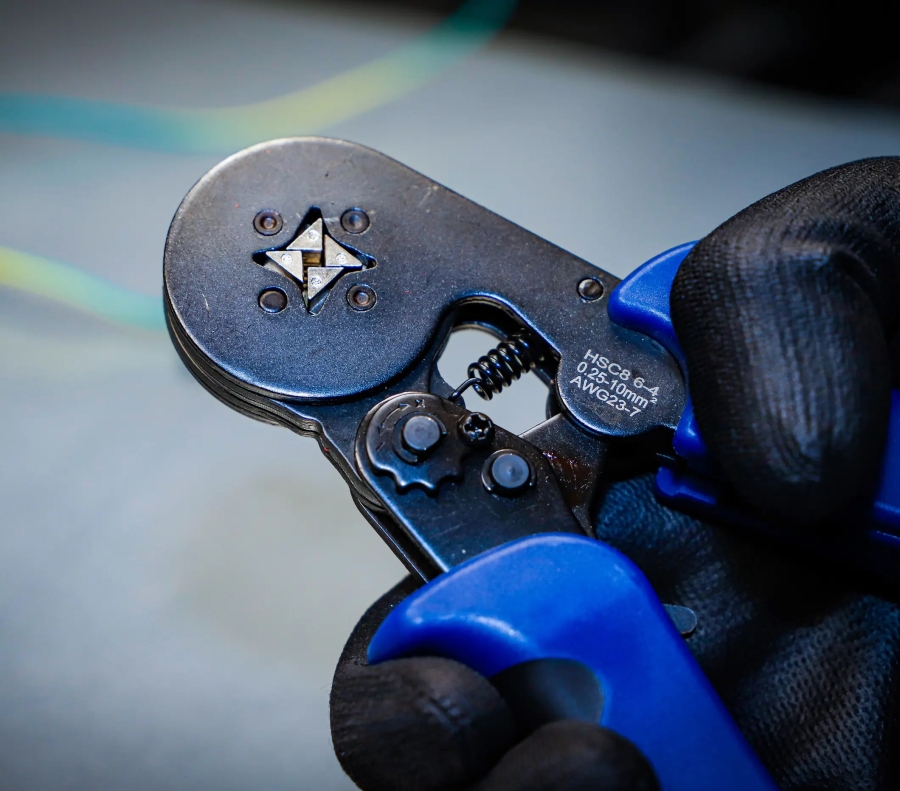

Self-Adjusting Square Crimping Mechanism
The self-adjusting square crimping mechanism automatically adapts to the ferrule size and distributes the crimping pressure evenly across all four sides.
Controlled Parallel Crimping
The integrated ratchet lock ensures that the defined crimping force is reached before the tool is released.
The synchronously driven jaws move in parallel to provide uniform crimping.
Side Ferrule Insertion
The ferrules are inserted into the side of the tool for straightforward positioning during crimping.

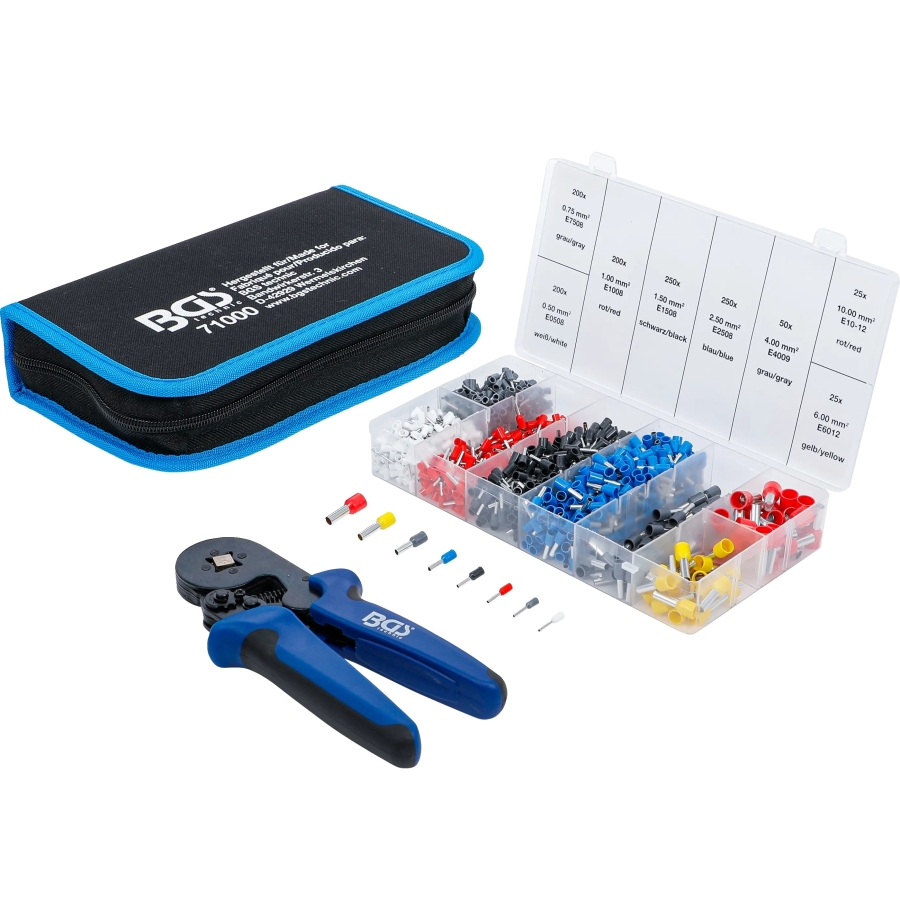

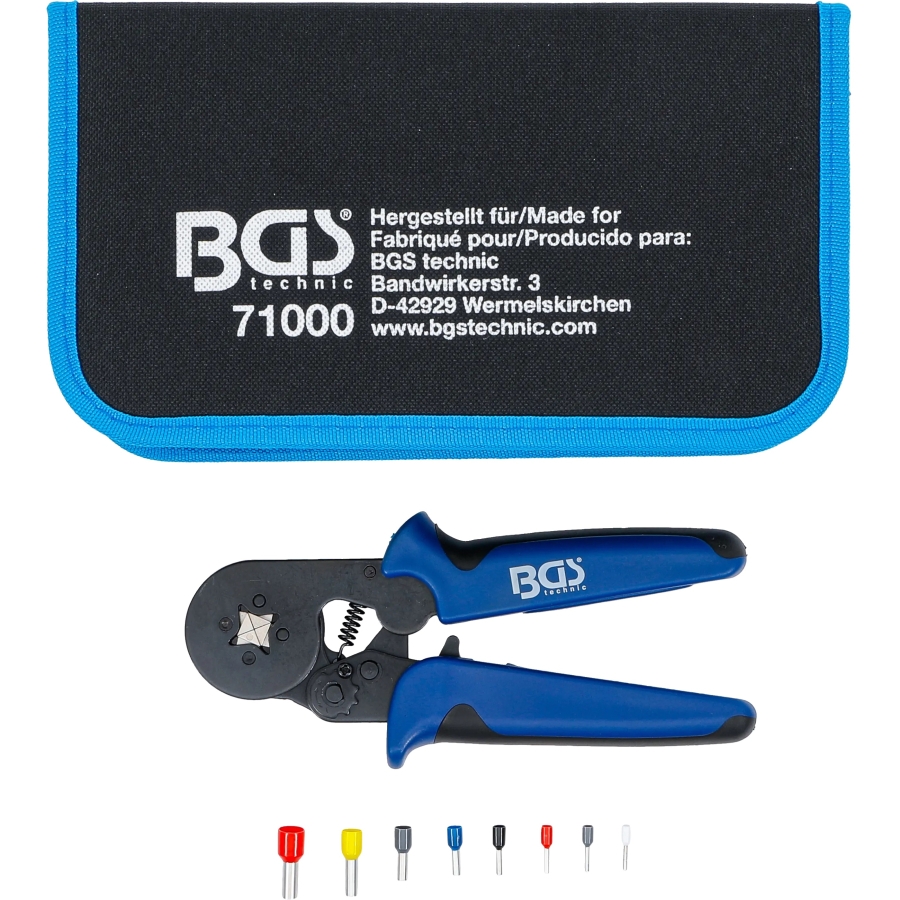

Scope of Delivery
- 1 ferrule crimping pliers
- 200 white ferrules, 0.50 mm², Item no. E0508
- 200 grey ferrules, 0.75 mm², Item no. E7508
- 200 red ferrules, 1.00 mm², Item no. E1008
- 250 black ferrules, 1.50 mm², Item no. E1508
- 250 blue ferrules, 2.50 mm², Item no. E2508
- 50 grey ferrules, 4.00 mm², Item no. E4009
- 25 yellow ferrules, 6.00 mm², Item no. E6012
- 25 red ferrules, 10.00 mm², Item no. E10-12
- 1 zippered storage pouch
