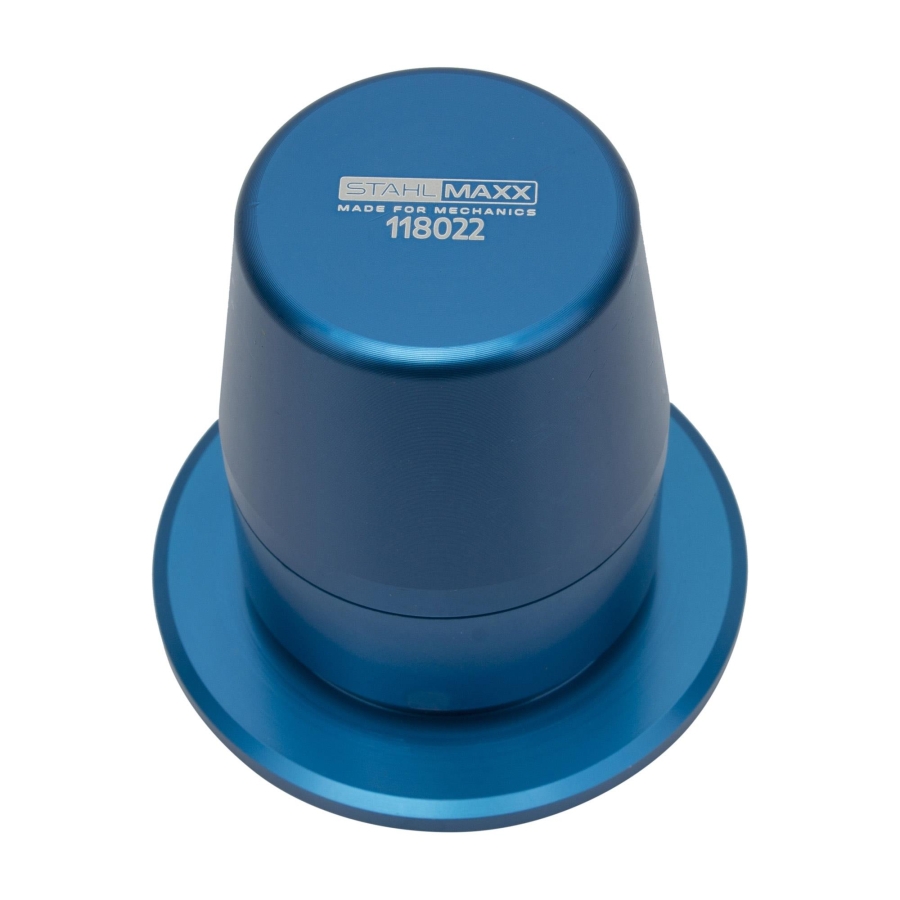

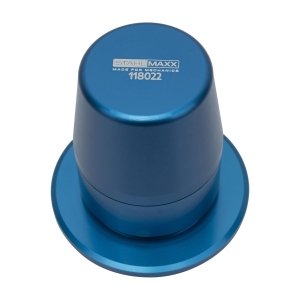

Front Crankshaft Oil Seal Installation Tool for BMW and MINI B37, B38, as BMW 2357900
Price:
€59.95
117.25лв.
-
Code:118022
-
Weight:0.400 Kgs
Overview:
✔ Special tool for installing the front crankshaft oil seal
✔ Suitable for selected BMW and MINI models with B37 and B38 engines
✔ Designed for installing the oil seal in the timing case cover
✔ Compatible with BMW and MINI F-series and i8 I12 vehicles
✔ To be used as BMW 2357900
This special tool is designed for installing the front crankshaft oil seal in the timing case cover on selected BMW and MINI vehicles.
It enables the seal to be installed evenly and at the correct depth, helping to reduce the risk of deformation or damage during assembly.
Suitable Vehicles
BMW and MINI: F20, F21, F22, F23, F30, F31, F32, F33, F36, F39, F45, F46, F48, F54, F55, F56, F57, F60, i8 I12
Suitable Engine Codes
B37C, B37D, B38A, B38B
Important Compatibility Information
Different seal designs may be installed depending on the vehicle and production version.
On some first-generation vehicles, such as the BMW 1 Series F20 114d, the crankshaft oil seal could still be replaced separately. On most later versions, the oil seal is not available as an individual replacement part, and the complete timing case cover must be replaced.
For replacing the earlier seal design, use Item no. 116622.
Recommended Additional Tool
We recommend using flywheel holding tool Item no. 118126, as BMW 116130, to securely lock the crankshaft during the repair.
To Be Used As
- BMW 2357900
Original numbers are for comparison purposes only; this is not an original tool!
Potentially Required Tightening Torques
- Starter motor, B47/B37: 19 Nm
- Front axle carrier connecting rod: 3 Nm
Required Preparatory Work
Remove the crankshaft pulley. To do so:
- Remove the starter motor.
- Lock the flywheel using tool as 118126.
- Tightening specification for B37: 40 Nm + 120°.
2. Removal
- Remove the timing case cover.
- Thoroughly clean all mating surfaces. They must be completely free from grease and oil.
- CAUTION: At both joints between the oil pan and the engine block, apply a sealing bead approximately 2 mm thick.
3. Installation

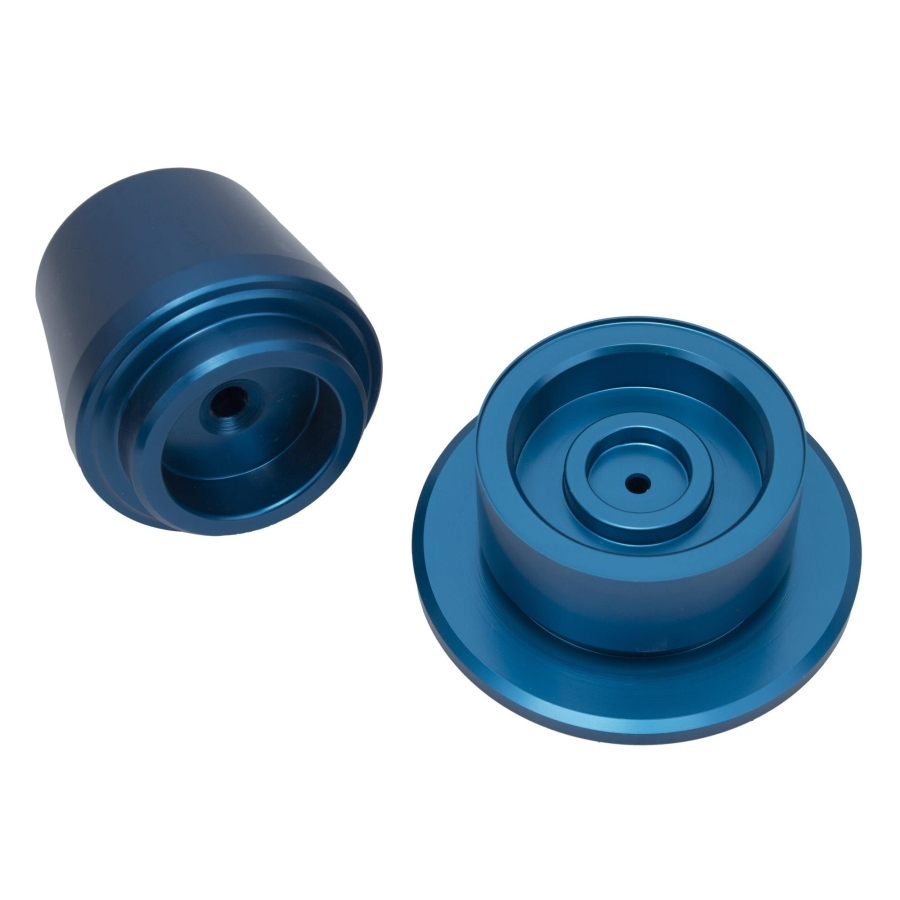

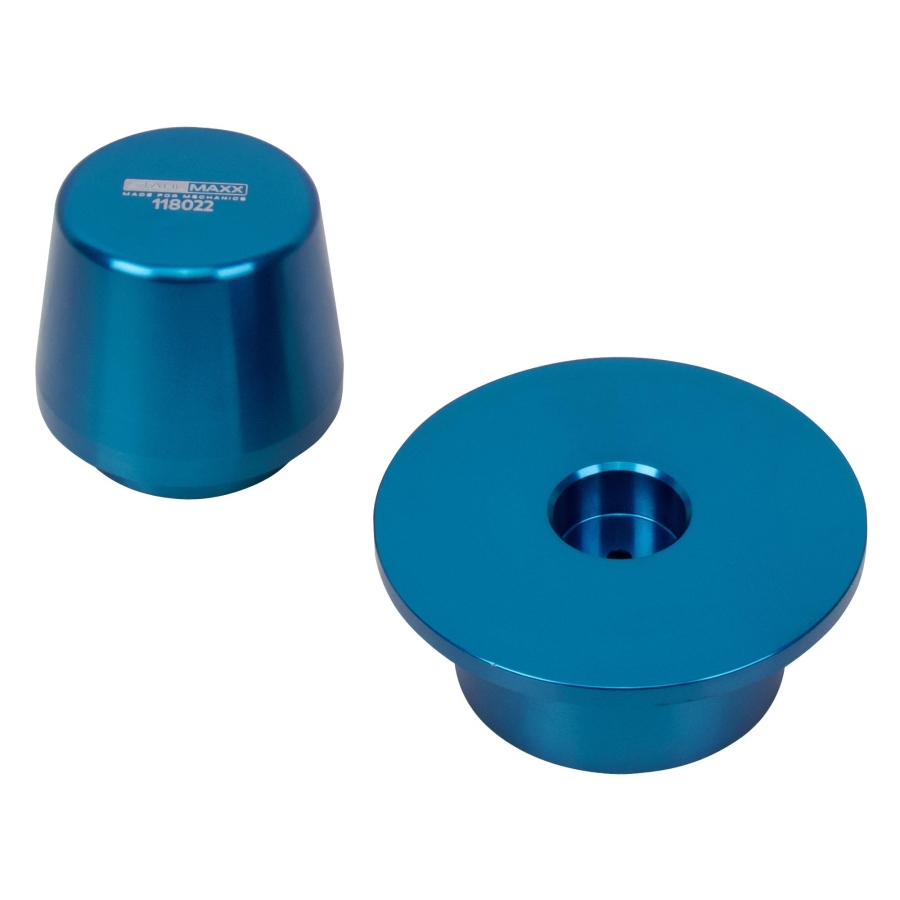

- Join parts A and B of the tool.
- Carefully guide the assembled tool through the crankshaft seal and timing case cover. This allows the seal to expand gradually until it is positioned on the installation sleeve.
- Remove the tool component and position the timing case cover together with the installation sleeve on the crankshaft.
- When pressing the timing case cover into position, ensure that it is correctly aligned with the two outer guide sleeves on the left and right.
- Remove the installation sleeve.
- Inspect the dust lip of the crankshaft seal. It must face outward and must not be folded inward.
- Tighten the screws on the engine block to 8 Nm for B37 engines.
- Tighten the screws on the oil pan to 24 Nm for B37 engines.
- Reassemble the vehicle completely.
Vehicle Compatibility
Search by brand, model, engine, power, year or chassis code.
0 vehicles found
BMW 1 (F20) (07.2011 - 06.2019) 114 d (95 hp, 70 kW)
BMW 1 (F20) (07.2011 - 06.2019) 116 d (116 hp, 85 kW)
BMW 1 (F20) (07.2011 - 06.2019) 116 i (109 hp, 80 kW)
BMW 1 (F20) (07.2011 - 06.2019) 118 i (136 hp, 100 kW)
BMW 1 (F21) (12.2011 - 12.2019) 114 d (95 hp, 70 kW)
BMW 1 (F21) (12.2011 - 12.2019) 116 d (116 hp, 85 kW)
BMW 1 (F21) (12.2011 - 12.2019) 116 i (109 hp, 80 kW)
BMW 1 (F21) (12.2011 - 12.2019) 118 i (136 hp, 100 kW)
BMW 1 (F40) (07.2019 - ) 116 d (116 hp, 85 kW)
BMW 1 (F40) (07.2019 - ) 116 i (109 hp, 80 kW)
BMW 1 (F40) (07.2019 - ) 118 i (136 hp, 100 kW)
BMW 1 (F40) (07.2019 - ) 118 i (140 hp, 103 kW)
BMW 1 (F52) (01.2017 - ) 118 i (136 hp, 100 kW)
BMW 1 Van (F20) (03.2015 - 06.2019) 118 i (136 hp, 100 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 214 d (95 hp, 70 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 216 d (116 hp, 85 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 216 i (102 hp, 75 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 216 i (109 hp, 80 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 218 i (136 hp, 100 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 218 i (140 hp, 103 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe Plug-in-Hybrid (125 hp, 92 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe Plug-in-Hybrid (136 hp, 100 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe Plug-in-Hybrid (220 hp, 162 kW)
BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe Plug-in-Hybrid (224 hp, 165 kW)
BMW 2 Active Tourer Van (F45) (07.2014 - ) 218 i (140 hp, 103 kW)
BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 218 i (136 hp, 100 kW)
BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 220 i (136 hp, 100 kW)
BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 218 i (136 hp, 100 kW)
BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 220 i (136 hp, 100 kW)
BMW 2 Gran Coupe (F44) (11.2019 - ) 216 d (116 hp, 85 kW)
BMW 2 Gran Coupe (F44) (11.2019 - ) 218 i (136 hp, 100 kW)
BMW 2 Gran Coupe (F44) (11.2019 - ) 218 i (140 hp, 103 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 214 d (95 hp, 70 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 216 d (116 hp, 85 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 216 i (102 hp, 75 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 216 i (109 hp, 80 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 218 i (136 hp, 100 kW)
BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 218 i (140 hp, 103 kW)
BMW 2 Gran Tourer Van (F46) (07.2014 - ) 218 i (140 hp, 103 kW)
BMW 3 (F30, F80) (04.2011 - 10.2018) 318 i (136 hp, 100 kW)
BMW 3 Estate (F31) (07.2012 - 06.2019) 318 i (136 hp, 100 kW)
BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 418 i (136 hp, 100 kW)
BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 418 i (136 hp, 100 kW)
BMW X1 (F48) (11.2014 - 02.2018) sDrive 16 d (116 hp, 85 kW)
BMW X1 (F48) (11.2014 - 02.2018) sDrive 18 i (136 hp, 100 kW)
BMW X1 (F48) (11.2014 - 02.2018) sDrive 18 i (140 hp, 103 kW)
BMW X1 (F48) (11.2014 - 02.2018) xDrive 25 e Plug-in-Hybrid (125 hp, 92 kW)
BMW X1 (F48) (11.2014 - 02.2018) xDrive 25 e Plug-in-Hybrid (220 hp, 162 kW)
BMW X1 Van (F48) (07.2015 - ) sDrive 18 i (140 hp, 103 kW)
BMW X2 (F39) (11.2017 - 10.2020) sDrive 16 d (116 hp, 85 kW)
BMW X2 (F39) (11.2017 - 10.2020) sDrive 18 i (136 hp, 100 kW)
BMW X2 (F39) (11.2017 - 10.2020) sDrive 18 i (140 hp, 103 kW)
BMW X2 (F39) (11.2017 - 10.2020) xDrive 25 e Plug-in-Hybrid (125 hp, 92 kW)
BMW X2 (F39) (11.2017 - 10.2020) xDrive 25 e Plug-in-Hybrid (220 hp, 162 kW)
MINI Cooper (F55) (09.2013 - 10.2017) Cooper (136 hp, 100 kW)
MINI Cooper (F55) (09.2013 - 10.2017) Cooper D (116 hp, 85 kW)
MINI One (F55) (09.2013 - 10.2017) One (102 hp, 75 kW)
MINI One (F55) (09.2013 - 10.2017) One D (95 hp, 70 kW)
MINI One (F55) (09.2013 - 10.2017) One First (75 hp, 55 kW)
MINI Cooper (F56) (12.2013 - 10.2017) Cooper (136 hp, 100 kW)
MINI Cooper (F56) (12.2013 - 10.2017) Cooper D (116 hp, 85 kW)
MINI One (F56) (12.2013 - 10.2017) One (102 hp, 75 kW)
MINI One (F56) (12.2013 - 10.2017) One D (95 hp, 70 kW)
MINI One (F56) (12.2013 - 10.2017) One First (75 hp, 55 kW)
MINI CLUBMAN (F54) (11.2014 - 06.2019) Cooper (136 hp, 100 kW)
MINI CLUBMAN (F54) (11.2014 - 06.2019) One (102 hp, 75 kW)
MINI CLUBMAN (F54) (11.2014 - 06.2019) One D (116 hp, 85 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper (136 hp, 100 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper AWD (136 hp, 100 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE AWD (125 hp, 92 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE AWD (136 hp, 100 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE AWD (220 hp, 162 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE AWD (224 hp, 165 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) One (102 hp, 75 kW)
MINI COUNTRYMAN (F60) (10.2016 - 06.2019) One D (116 hp, 85 kW)
MINI Cabriolet (F57) (11.2014 - 10.2017) Cooper (136 hp, 100 kW)
MINI Cabriolet (F57) (11.2014 - 10.2017) Cooper D (116 hp, 85 kW)
MINI Cabriolet (F57) (11.2014 - 10.2017) One (102 hp, 75 kW)
-
