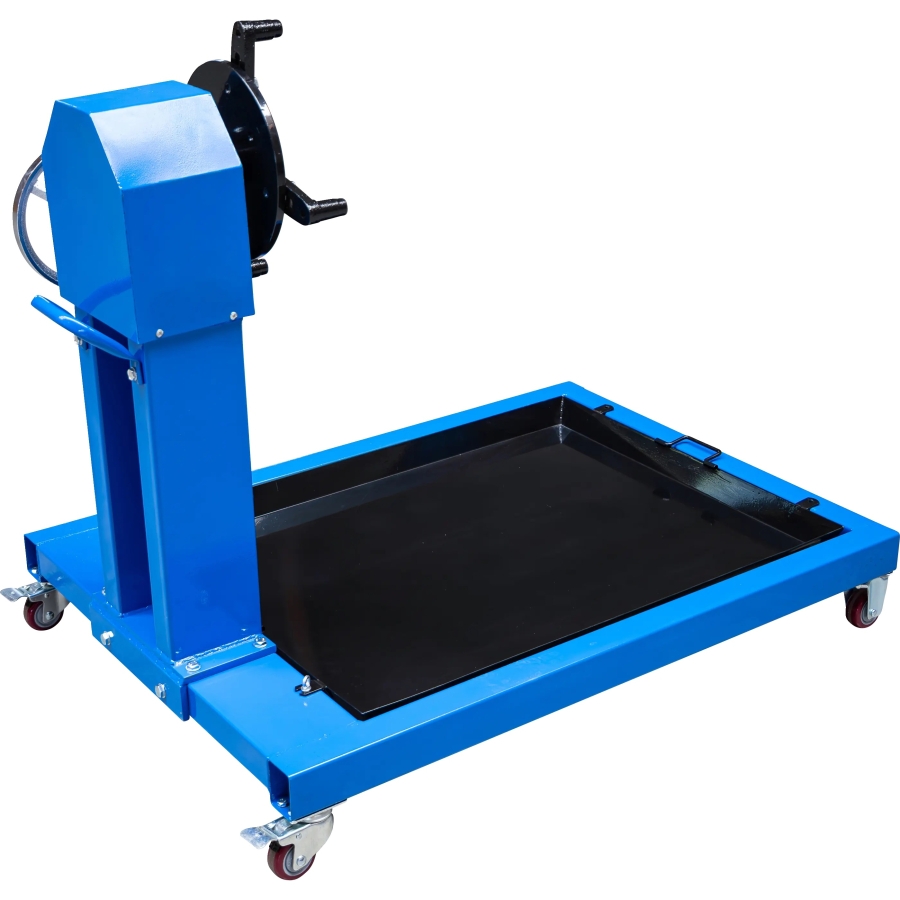

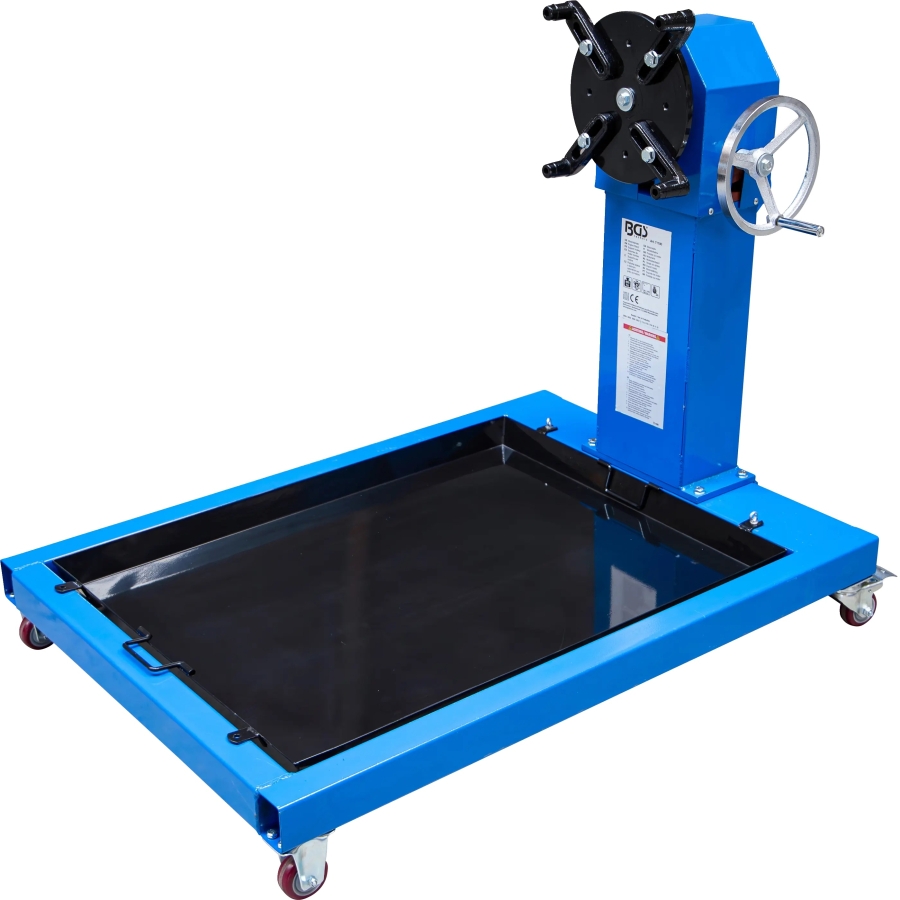

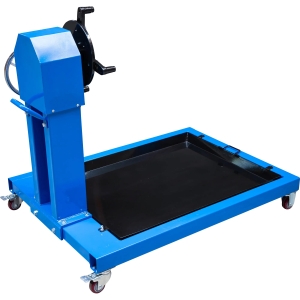

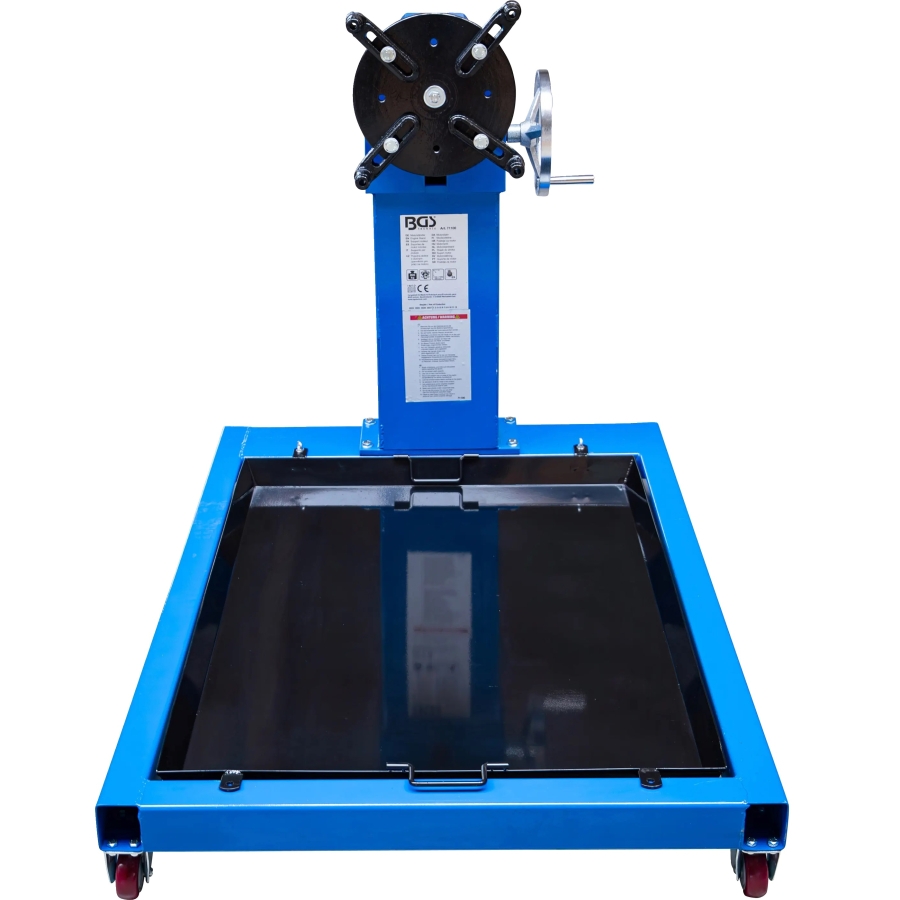

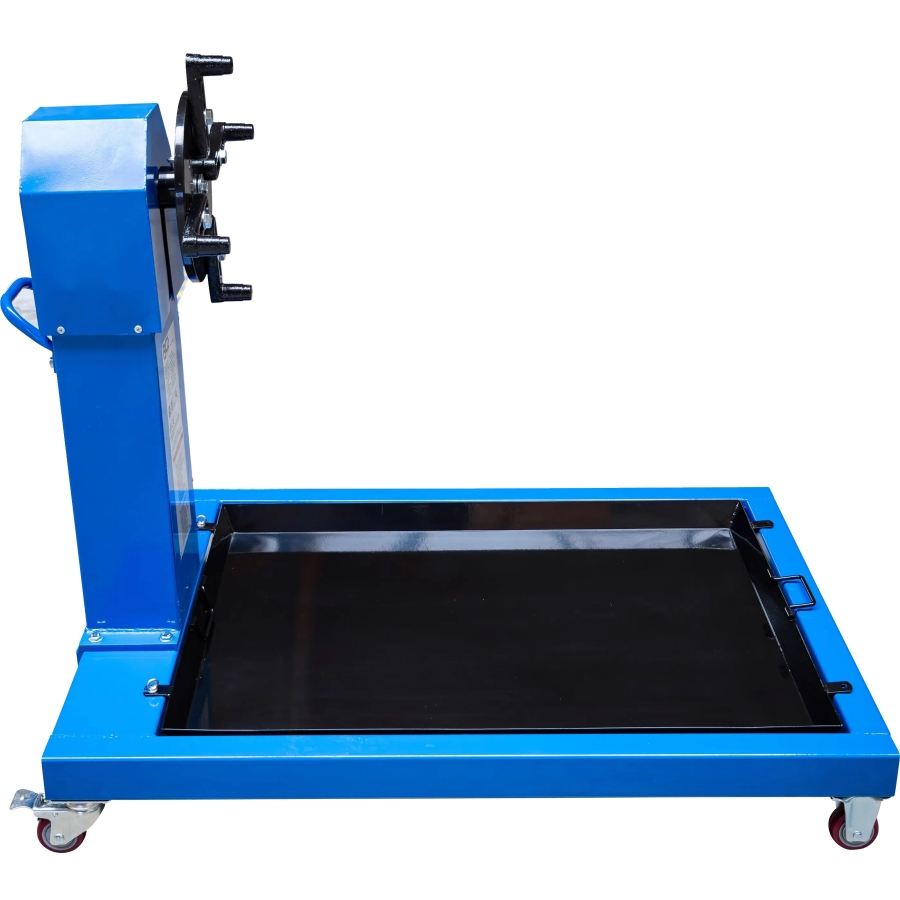

Heavy-Duty Engine Stand, 800 kg

This heavy-duty engine stand is designed for mounting engines removed from the vehicle chassis. It provides convenient access to difficult-to-reach engine components during dismantling, repair and assembly work.

The lockable rotating mounting plate allows the engine to be turned into the required working position. Four adjustable mounting arms with elongated holes enable secure positioning of different engines. The wheeled chassis provides excellent mobility on flat and level surfaces.

Features

• Particularly useful for dismantling and assembling engines
• Mounting plate rotates through 360° using a 90° offset hand crank
• Four mounting arms with elongated adjustment holes
• Large drip tray helps prevent floor contamination when removing the oil pan, cylinder head and other components
• Two braked swivel castors and two fixed wheels for easy manoeuvring

Technical Specifications

Maximum load capacity: 800 kg
Length: 1300 mm
Height: 1100 mm
Width: 940 mm
