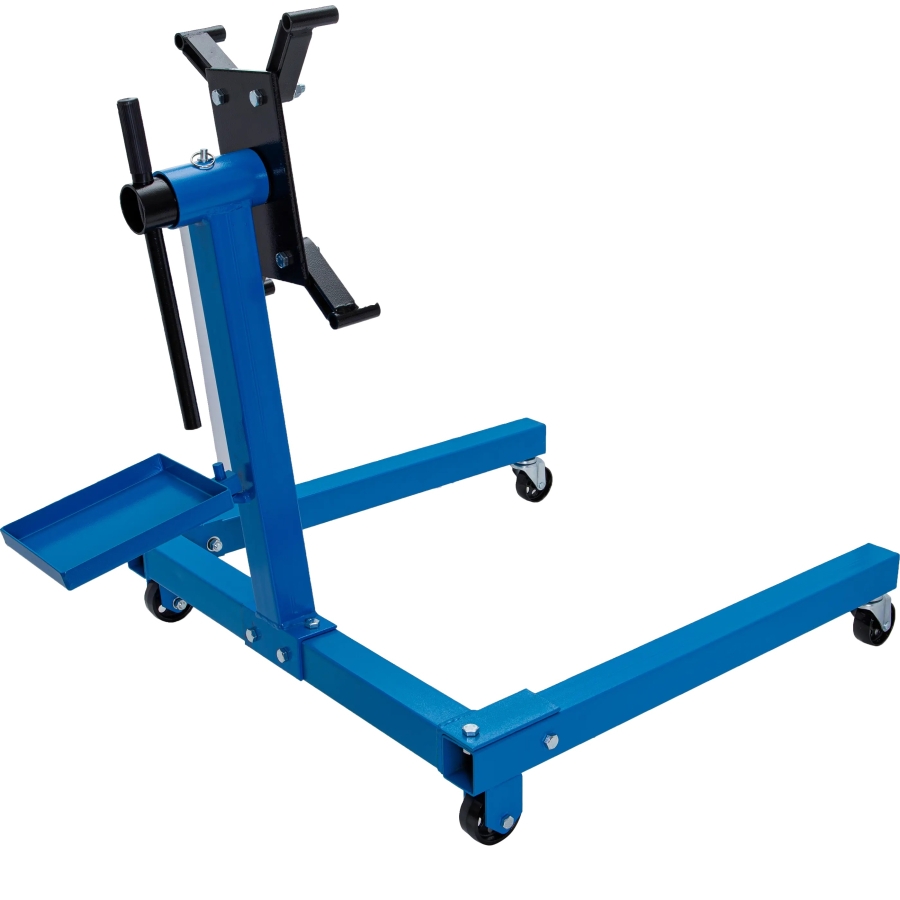

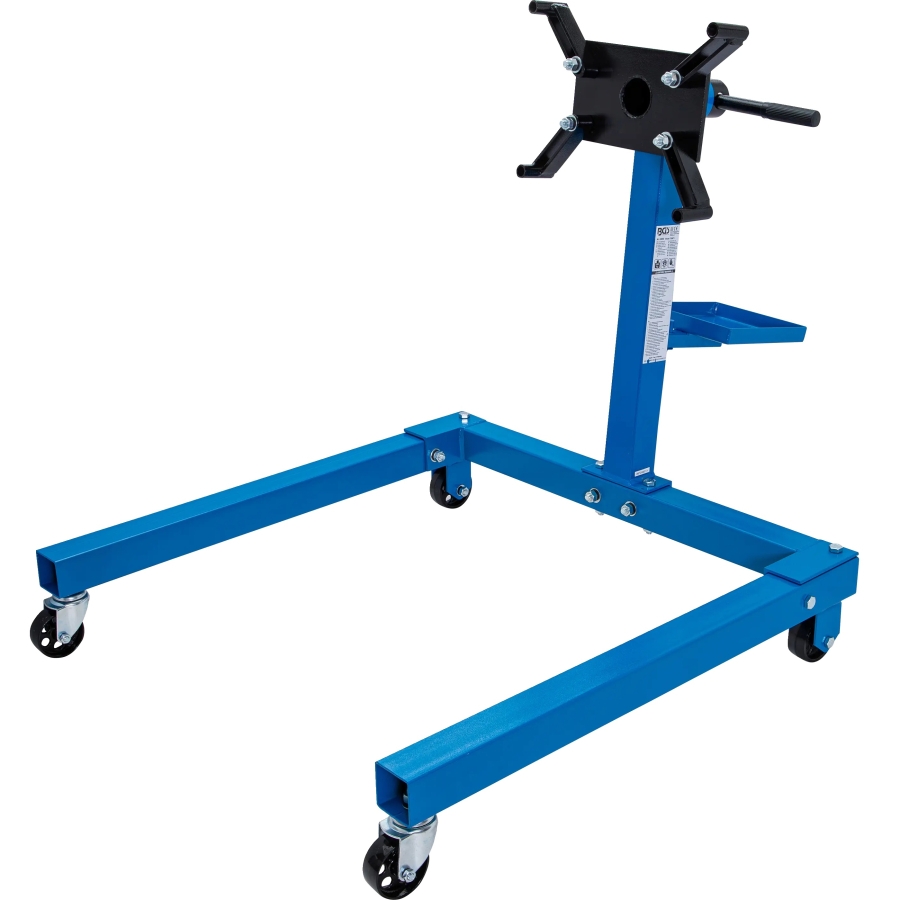

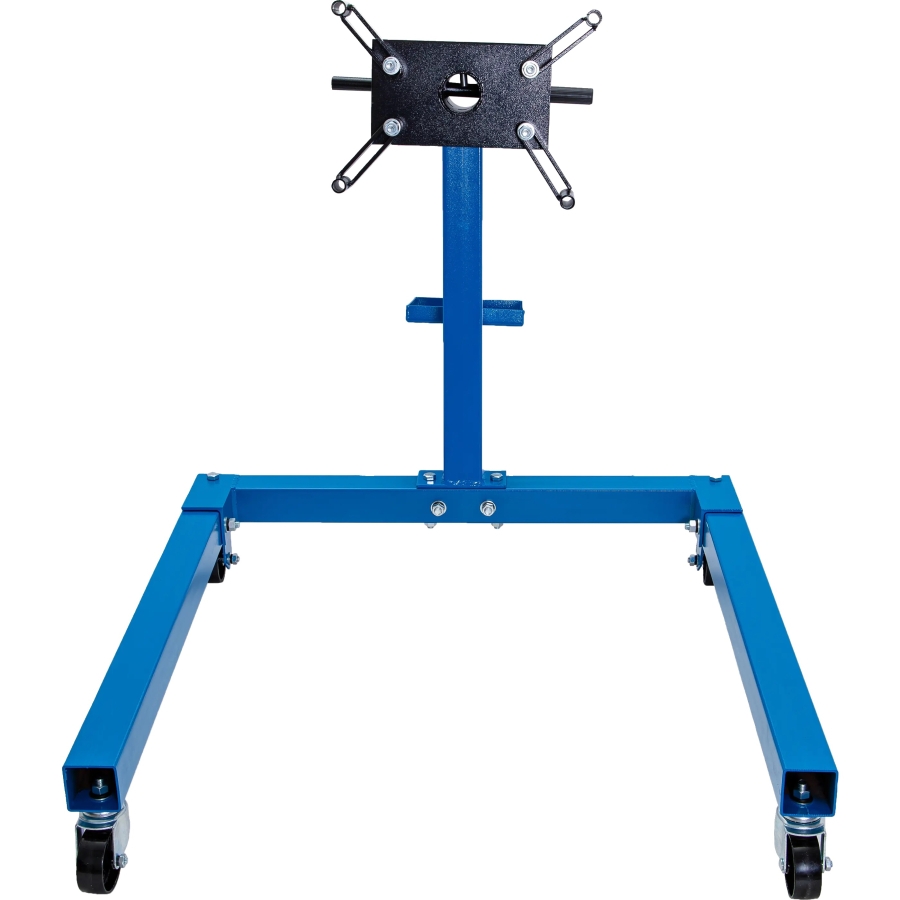

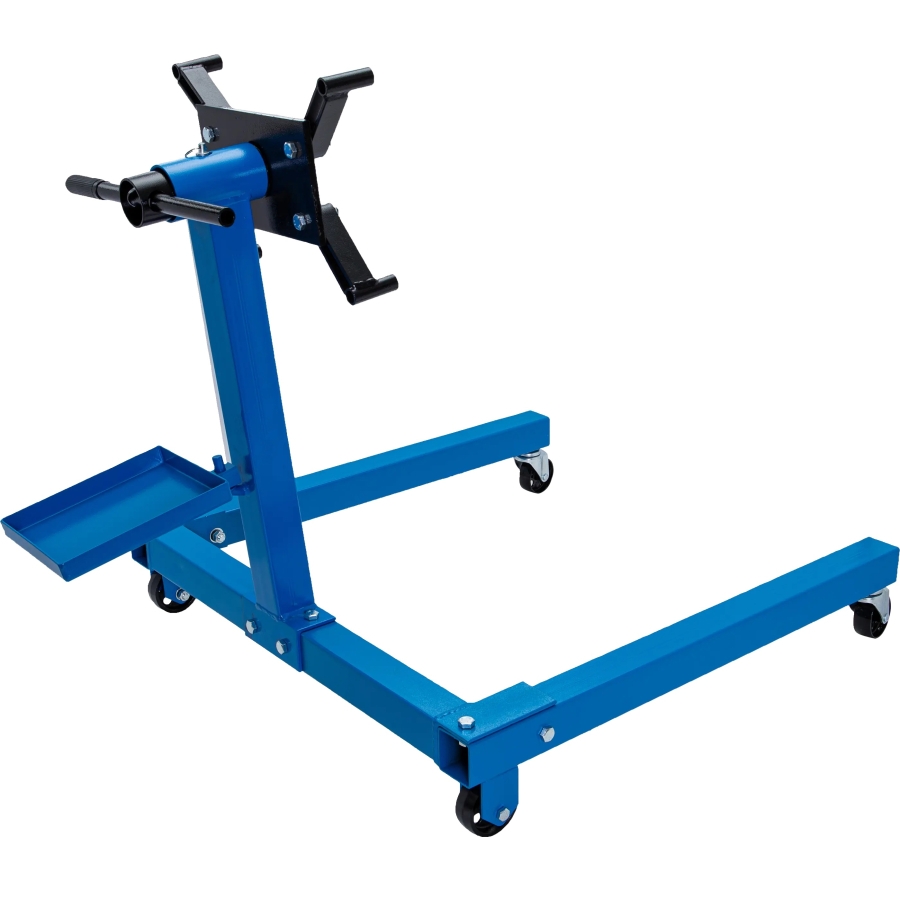

XL Engine Stand, 560 kg
-
Code:9230
-
Weight:29.500 Kgs
Overview:
✔ Maximum load capacity of 560 kg
✔ Rotates through 360°
✔ Lockable in eight working positions
✔ Four adjustable engine mounting points
✔ Ball-bearing wheels for easy manoeuvring
✔ Suitable for engine dismantling, repair and assembly
This XL engine stand is designed for mounting engines removed from the vehicle chassis. It provides convenient access to difficult-to-reach components during dismantling, repair and assembly work.
The rotating mounting plate allows the engine to be turned through 360° and securely locked in eight different working positions. Four mounting points can be adjusted in both angle and distance to suit different engines. Ball-bearing wheels provide excellent mobility on flat and level surfaces.
Features
- Mounting plate rotates through 360°
- Lockable in eight positions
- Four mounting points with adjustable angle and spacing
- Ball-bearing wheels for smooth movement
Technical Specifications
Maximum load capacity: 560 kg
Height: 850 mm
Width: 850 mm
Depth: 850 mm
Weight: Approx. 28 kg
