Hydraulic Transmission Jack, 600 kg

Price: €695.00

Code:

9239
Weight:

40.000 Kgs

Overview:
✔ For installing and removing transmissions, rear axles and axle components
✔ Maximum load capacity: 600 kg
✔ Saddle height range: 1130–1970 mm
✔ Large lifting range of up to 840 mm
✔ Rotating support saddle
✔ Rapid lifting through a hydraulic foot pump

Send to friend

Rate this product

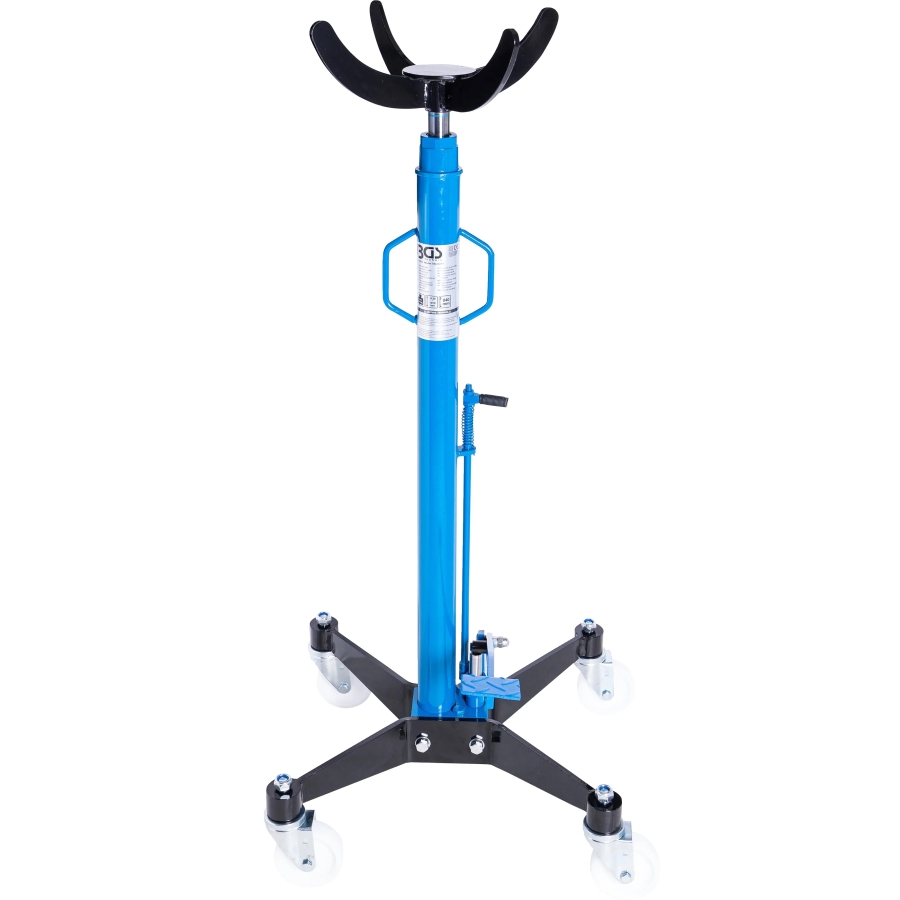

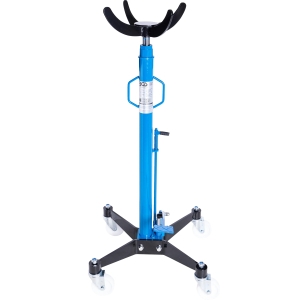

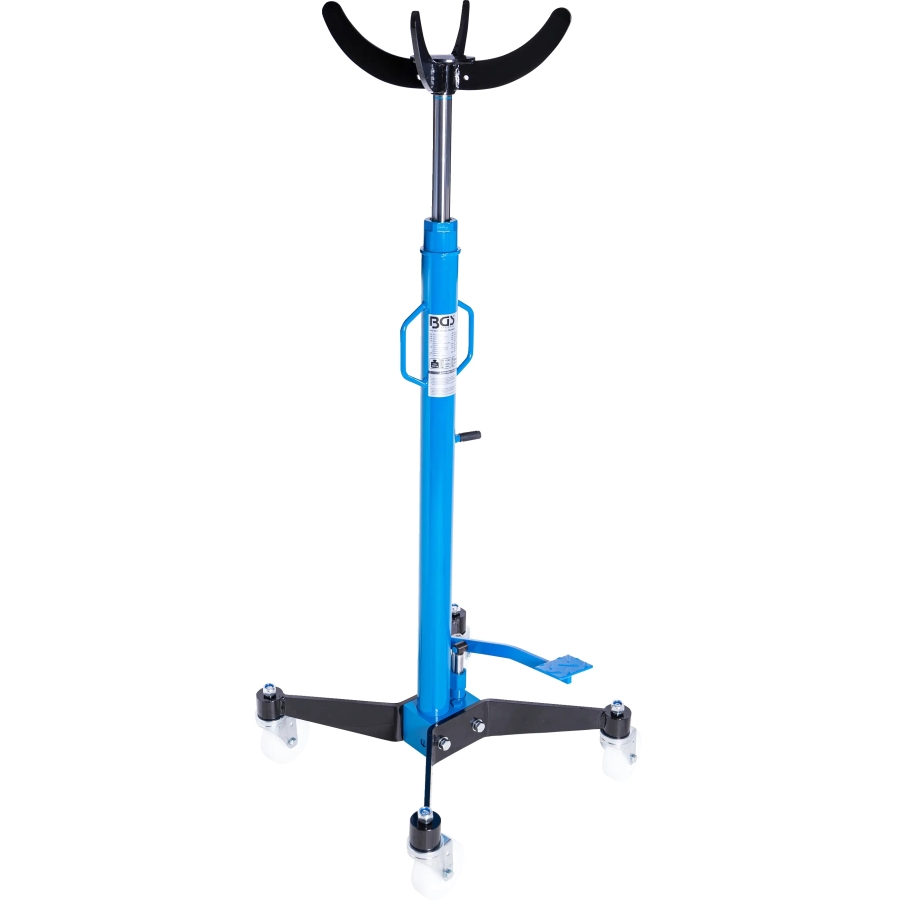

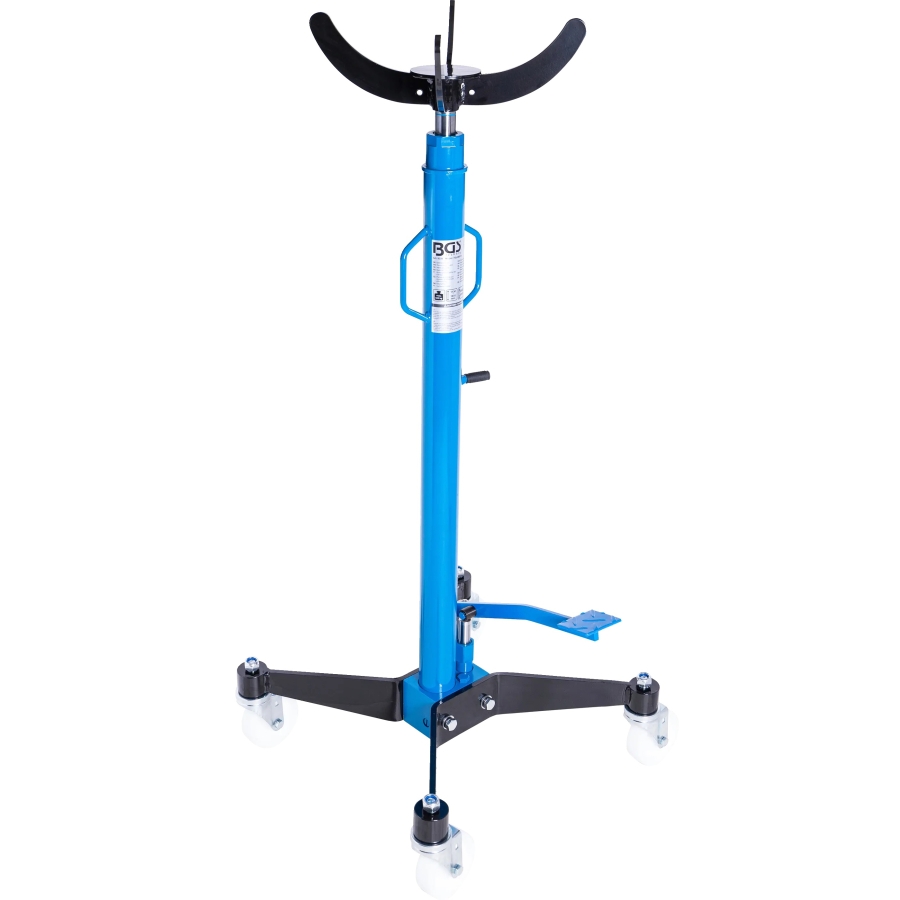

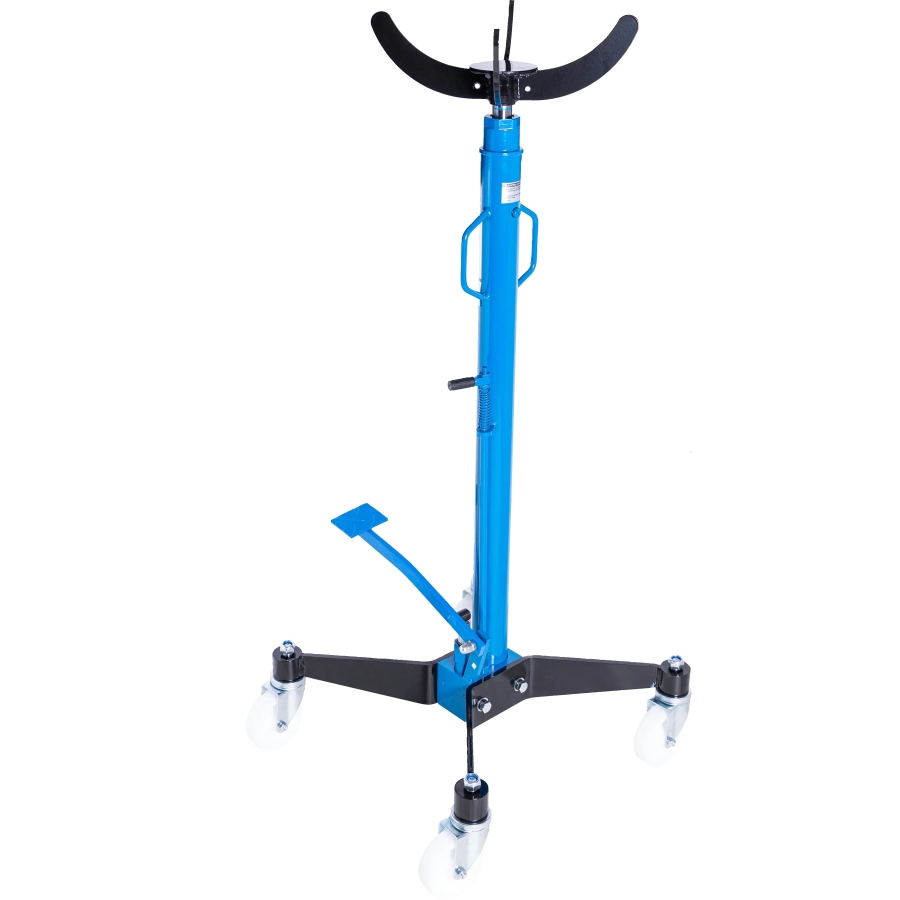

This hydraulic transmission jack is designed for lifting loads weighing up to 600 kg. Its compact construction, relatively low weight and large lifting range make it suitable for installing and removing transmissions, rear axles, axle components and other vehicle assemblies.

The rotating saddle facilitates component positioning, while four ball-bearing swivel castors allow the jack to be moved easily around the workshop. The hydraulic foot pump enables rapid lifting while keeping both hands available for guiding the component.

Technical Specifications

Maximum load capacity: 600 kg
Minimum saddle height: 1130 mm
Maximum saddle height: 1970 mm
Maximum lifting range: 840 mm
Saddle: Rotating
Lifting system: Hydraulic foot pump
Castors: 4 ball-bearing swivel castors
Weight: 34 kg
