Injector Removal Tool with Slide Hammer for BMW & Mini Direct Injection Engines B38, B46, B48, B58

This professional special tool set is designed for removing fuel injectors installed in BMW and Mini engines from the B38, B46, B48 and B58 engine series.

These injectors are manufactured from plastic, and their long construction combined with extreme temperature fluctuations can make removal of seized injectors particularly difficult. The tool set enables controlled extraction of individual injectors without requiring the otherwise necessary puller bridge assembly.

The system is designed for efficient and cost-effective injector removal in professional workshop environments.

Important Notice

This procedure is recommended only for defective injectors that will not be reinstalled.

Failure to follow proper procedures may result in fuel leakage and potential vehicle fire hazards.

Installation Note

A combustion chamber Teflon seal installation tool is not required.

New injectors are supplied with a pre-installed sealing ring and plastic installation sleeve that maintains the correct installation dimension. The plastic sleeve should only be removed immediately before installation.

Compatible Engine Codes

Suitable for the following BMW and Mini engine codes:

• B38
• B46
• B48
• B58

OEM Compatibility

To be used as:

• 2358417
• 2358022
• 83302358417
• 83302358022

Please note:
The application method and procedure are not identical to the OE tool.

Product Features

• High-quality special tool based on the original design
• Improved tool construction
• Significant cost savings compared to OEM solutions
• Professional Stahlmaxx quality
• High-quality materials
• Spare parts available
• Suitable for professional workshop use

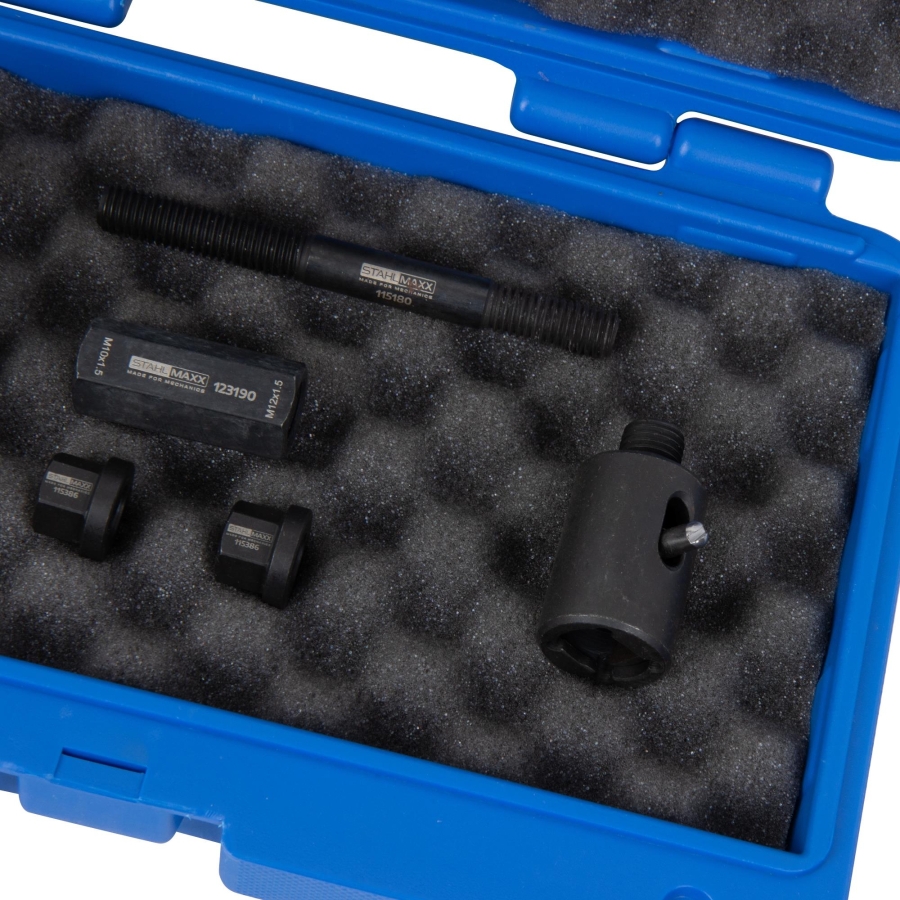

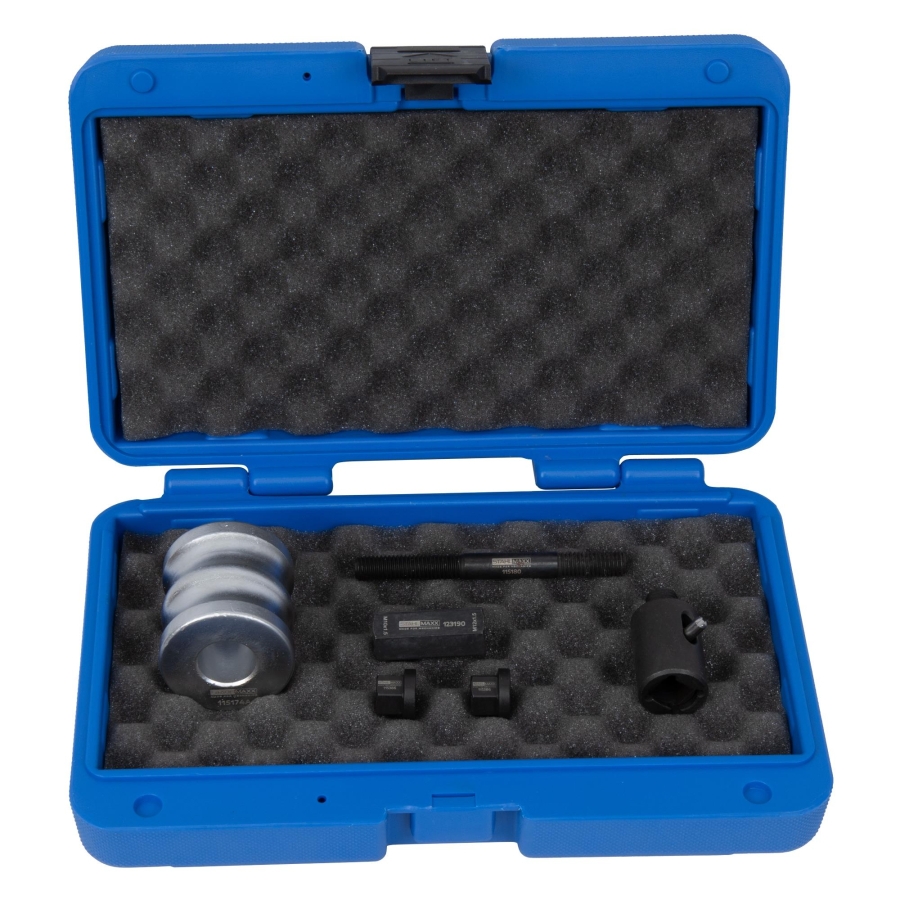

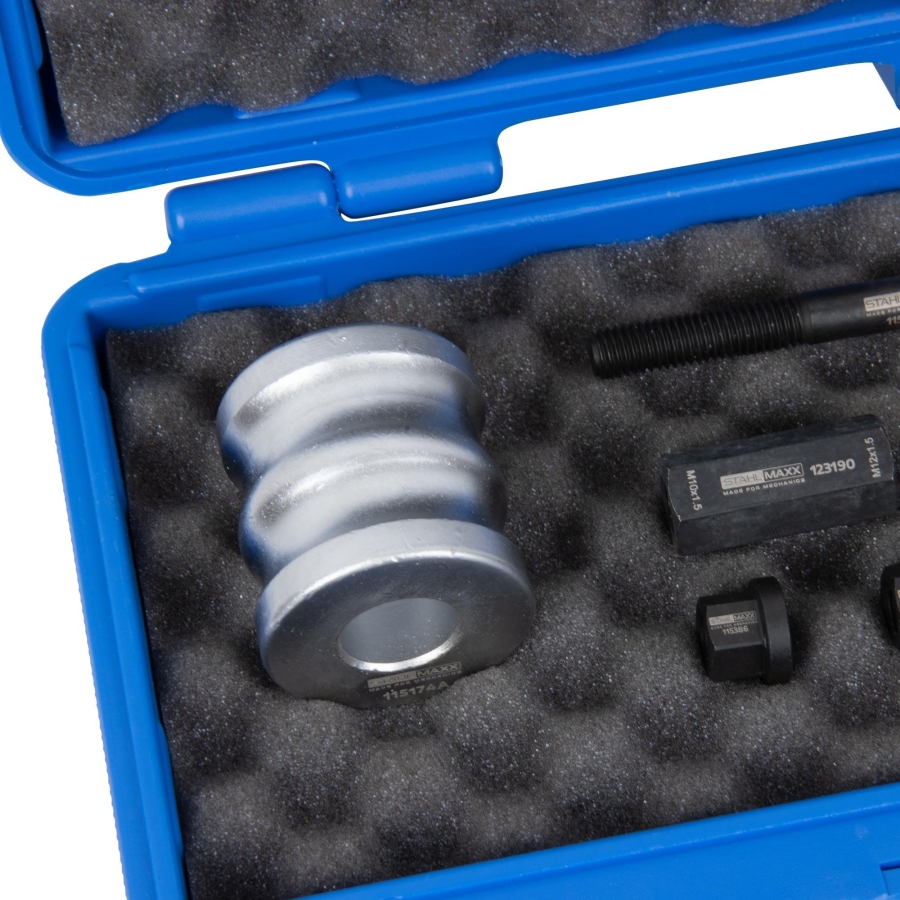

Package Contents

• 1 x Item no. 123190 Thread adapter female M12x1.5 to female M10x1.5
• 1 x Item no. 123191 Injector pull adapter for BMW & Mini B38, B46, B48, B58
• 1 x Item no. 115180 Slide hammer guide rod, 100 mm, M10 x 1.5
• 1 x Item no. 115174 Slide hammer weight, 555 g, 50 x 48 mm
• 1 x Item no. 115386 Stop nut for slide hammer, hex SW14, 2 pcs.
• 1 x Item no. 66009 Storage case for workshop organization

Professional Workshop Application

Suitable for professional workshops and technicians performing:

• Injector removal
• Direct injection fuel system repairs
• Removal of seized injectors
• BMW and Mini engine servicing
• Fuel injector replacement procedures

OEM numbers are mentioned for identification purposes only. This product is not an original OEM tool.
