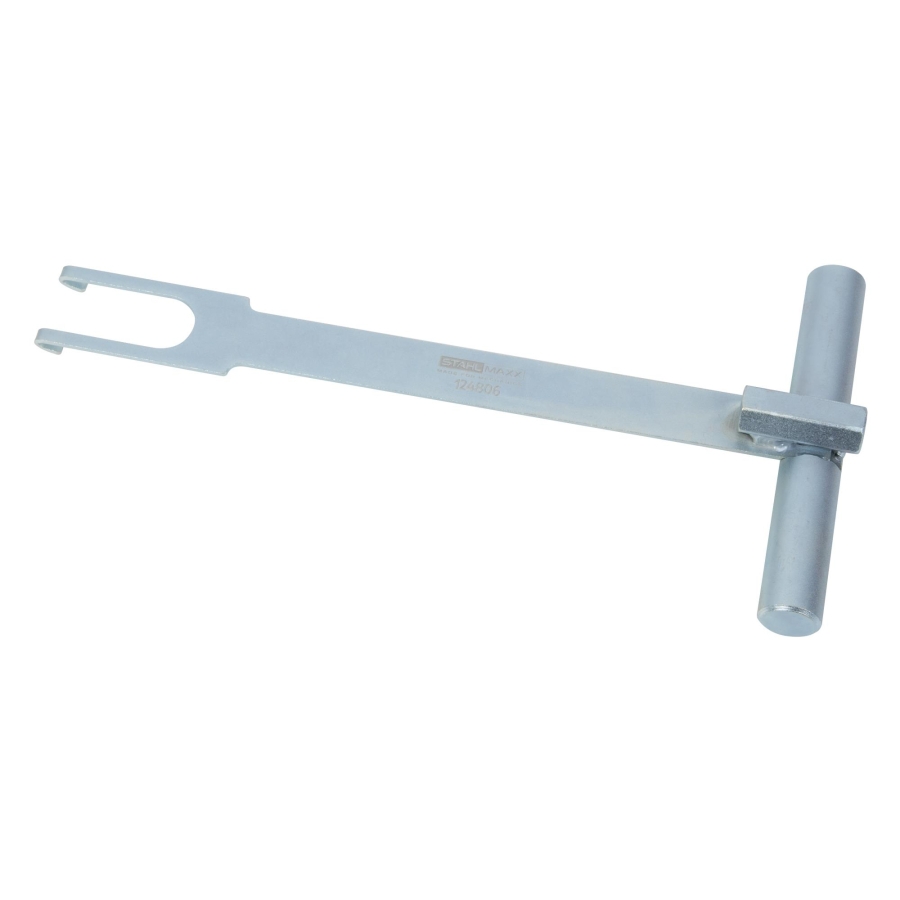

Injector Removal Tool for Volvo B4204 Petrol Engines, as Volvo 9997498

Price: €38.95 76.18лв.

Code:

124806
Weight:

0.200 Kgs

Overview:
✔ Professional injector removal tool for Volvo B4204 petrol engines
✔ Designed for removing seized direct injection fuel injectors
✔ Suitable for T5, T6, T8 and Polestar engine variants
✔ M8x1.25 thread allows use with slide hammer extraction
✔ Compact design for controlled axial pulling force
✔ Suitable for professional workshop use

Injector Removal Tool for Volvo B4204 Petrol Engines, as Volvo 9997498

Send to friend

Rate this product

This professional special tool is designed for removing seized fuel injectors from Volvo B4204 petrol direct injection engines. The extractor enables controlled removal of carbonized or corroded injectors from the cylinder head without damaging the injector housing or injector seat, which is a common issue on these engine types.

The compact design ensures direct axial force transfer to the injector, reducing the risk of damaging the surrounding plastic components during removal.

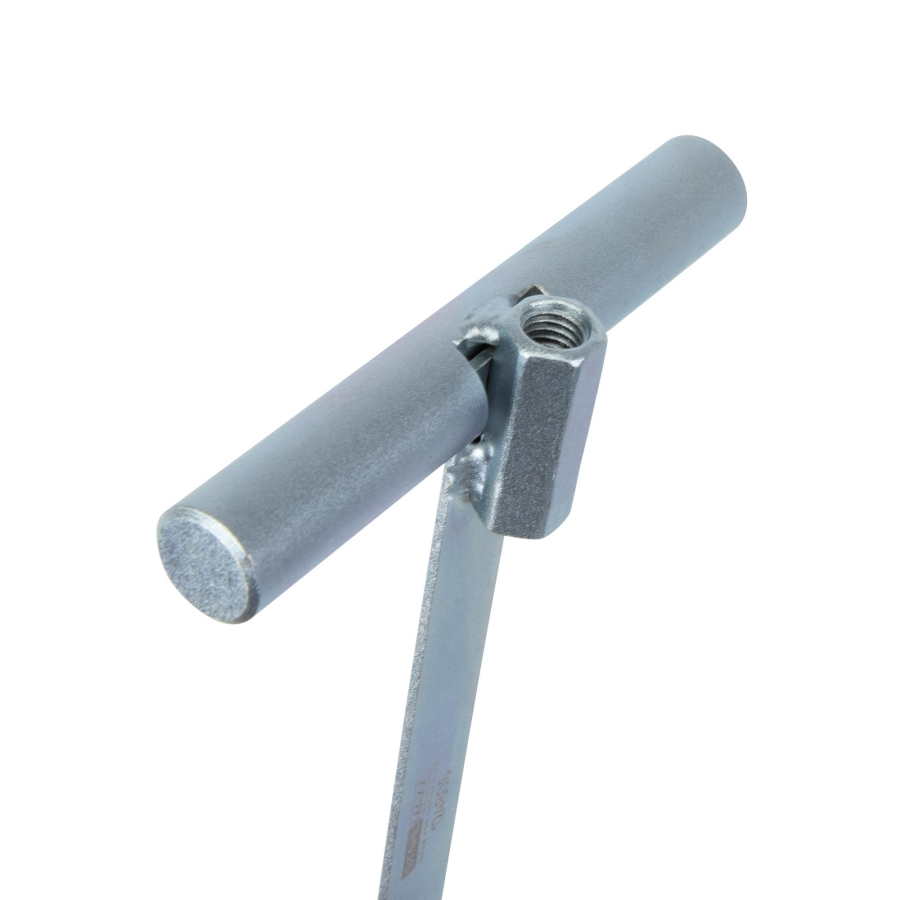

Integrated Slide Hammer Thread

Compared to the OE tool, the Stahlmaxx version additionally features an M8x1.25 thread, allowing injector removal using a slide hammer for increased extraction force when dealing with heavily seized injectors.

This provides improved flexibility and efficiency during professional injector service work.

Compatible Engine Codes

Suitable for the following Volvo engine codes:

B4204T9
B4204T11
B4204T12
B4204T23
B4204T27
B4204T28
B4204T39
B4204T43

Compatible with 2.0L direct injection petrol engines including:

T5
T6
T8
Polestar variants

OEM Compatibility

To be used as:

Volvo 9997498

Professional Workshop Application

Suitable for professional workshops and technicians performing:

Injector removal
Direct injection fuel system repairs
Cylinder head servicing
Removal of seized injectors
Volvo petrol engine maintenance

Product Features

Compact and robust workshop-grade construction
Controlled injector extraction without damage
Suitable for seized and carbonized injectors
Direct axial pulling action
Compatible with slide hammer extraction systems
Professional quality Stahlmaxx tool

OEM numbers are mentioned for identification purposes only. This product is not an original OEM tool.

VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T3 (152 HP, 112 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 Polestar AWD (367 HP, 270 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T3 (152 HP, 112 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T5 Flexfuel (220 hp, 162 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 (245 hp, 180 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 (306 hp, 225 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 AWD (245 hp, 180 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 Drive-E Polestar AWD (253 hp, 186 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T6 (306 HP, 225 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T6 AWD (306 HP, 225 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T6 AWD (321 HP, 236 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 Drive-E AWD (405 HP, 298 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 Plug-in Hybrid AWD (407 HP, 299 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 R-Design Hybrid AWD (334 hp, 246 kW) VOLVO S60 III (224) (02.2019 - ) T4 (190 HP, 140 kW) VOLVO S60 III (224) (02.2019 - ) T4 Polestar (210 HP, 155 kW) VOLVO S60 III (224) (02.2019 - ) T5 (250 HP, 184 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (249 HP, 183 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (250 HP, 184 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (254 HP, 187 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (261 HP, 192 kW) VOLVO S60 III (224) (02.2019 - ) T5 Polestar (253 HP, 186 kW) VOLVO S60 III (224) (02.2019 - ) T5 Polestar AWD (253 HP, 186 kW) VOLVO S60 III (224) (02.2019 - ) T6 AWD (310 HP, 228 kW) VOLVO S60 III (224) (02.2019 - ) T6 Drive-E Polestar AWD (317 HP, 233 kW) VOLVO S60 III (224) (02.2019 - ) T6 Hybrid Polestar AWD (333 HP, 245 kW) VOLVO S60 III (224) (02.2019 - ) T6 Twin Engine AWD (253 HP, 186 kW) VOLVO S60 III (224) (02.2019 - ) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO S60 III (224) (02.2019 - ) T8 Plug-in Hybrid AWD (320 HP, 235 kW) VOLVO S60 III (224) (02.2019 - ) T8 Twin Engine AWD (303 HP, 223 kW) VOLVO S60 III (224) (02.2019 - ) T8 Twin Engine Polestar AWD (318 HP, 233 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 Drive-E (245 HP, 180 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 T5 (220 HP, 162 kW) VOLVO S80 II (124) (03.2006 - 12.2016) T5 (245 HP, 180 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 (249 HP, 183 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 B5 mild hybrid (250 hp, 184 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T4 (190 HP, 140 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T4 Polestar (210 HP, 155 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 (250 HP, 184 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 (254 HP, 187 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 AWD (254 HP, 187 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 Drive-E Polestar (253 HP, 186 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 Drive-E Polestar (261 HP, 192 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 AWD (310 HP, 228 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 AWD (320 HP, 235 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 Drive-E Polestar AWD (326 HP, 240 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid AWD (405 HP, 298 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Plug-in Hybrid AWD (320 HP, 235 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Plug-in Hybrid AWD (407 HP, 299 kW) VOLVO S90 II (234) (01.2016 - ) T6 Drive-E Polestar AWD (334 HP, 246 kW) VOLVO S90 II (234) (01.2016 - ) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T2 (122 hp, 90 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T3 (122 hp, 90 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T3 (152 hp, 112 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 (190 hp, 140 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 AWD (190 hp, 140 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 (245 hp, 180 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 AWD (245 hp, 180 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 Drive-E Polestar (253 hp, 186 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 Polestar AWD (253 hp, 186 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 Polestar AWD (367 HP, 270 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 T5 (220 HP, 162 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T3 (152 HP, 112 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 (245 HP, 180 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 AWD (245 HP, 180 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 Drive-E Polestar (253 HP, 186 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 Drive-E Polestar AWD (253 HP, 186 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T6 (306 HP, 225 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T6 AWD (306 HP, 225 kW) VOLVO V60 II (225, 227) (02.2018 - ) 2.0 T4 (190 HP, 140 kW) VOLVO V60 II (225, 227) (02.2018 - ) 2.0 T6 Drive-E Polestar AWD (326 HP, 240 kW) VOLVO V60 II (225, 227) (02.2018 - ) T4 Polestar (210 HP, 155 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 (250 hp, 184 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 (254 hp, 187 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 AWD (250 hp, 184 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 AWD (261 hp, 192 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 Polestar (253 hp, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 Polestar AWD (253 hp, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T6 AWD (310 HP, 228 kW) VOLVO V60 II (225, 227) (02.2018 - ) T6 Plug-in Hybrid AWD (253 HP, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid AWD (303 HP, 223 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid Polestar AWD (318 HP, 233 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO V70 III (135) (04.2007 - 04.2016) T4 (190 HP, 140 kW) VOLVO V70 III (135) (04.2007 - 04.2016) T5 (245 HP, 180 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 Hybrid AWD (320 HP, 235 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T4 (190 HP, 140 kW) VOLVO V90 II station wagon (235, 236) (03.2016 - 07.2020) 2.0 T4 AWD (190 HP, 140 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T4 Polestar (210 HP, 155 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (250 HP, 184 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (254 HP, 187 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (249 hp, 183 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (250 HP, 184 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (254 HP, 187 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 Polestar (253 HP, 186 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 Polestar AWD (253 HP, 186 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 AWD (310 HP, 228 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 AWD (320 HP, 235 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Plug-in Hybrid AWD (340 HP, 250 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Polestar AWD (326 HP, 240 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Polestar AWD (334 HP, 246 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Plug-in Hybrid Polestar AWD (317 HP, 233 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Plug-in Hybrid AWD (390 HP, 287 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T4 Polestar (209 HP, 154 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T5 Drive-E Polestar AWD (261 HP, 192 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 1.5 T3 (163 HP, 120 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 (190 hp, 140 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 AWD (190 HP, 140 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T2 (129 HP, 95 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T4 Plug-in Hybrid (129 HP, 95 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (247 HP, 182 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (250 HP, 184 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (252 HP, 185 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 Polestar AWD (249 HP, 183 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) 2.0 T5 Flexfuel (220 HP, 162 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 (245 HP, 180 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 AWD (245 HP, 180 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T6 (306 HP, 225 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T6 AWD (306 HP, 225 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B4 mild hybrid (253 hp, 186 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B5 mild hybrid (250 hp, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B5 Mild hybrid AWD (250 hp, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (250 HP, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (254 HP, 187 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (249 HP, 183 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (250 HP, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (254 HP, 187 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 Polestar AWD (261 HP, 192 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 AWD (310 HP, 228 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 AWD (320 HP, 235 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 Polestar AWD (334 HP, 246 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Drive-E AWD (405 HP, 298 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (320 HP, 235 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (334 HP, 246 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T4 Polestar (210 HP, 155 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T5 Polestar (253 HP, 186 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T5 Polestar AWD (253 HP, 186 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T6 Polestar AWD (326 HP, 240 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO XC70 II (136) (04.2007 - 12.2016) T5 (245 HP, 180 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 B5 mild hybrid AWD (250 HP, 184 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T5 AWD (249 HP, 183 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T5 AWD (250 HP, 184 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T6 AWD (310 HP, 228 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 (254 HP, 187 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 AWD (254 HP, 187 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Drive-E Polestar AWD (239 HP, 176 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Drive-E Polestar AWD (261 HP, 192 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Polestar AWD (253 HP, 186 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 AWD (320 HP, 235 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 Polestar AWD (326 HP, 240 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 Polestar AWD (334 HP, 246 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Hybrid AWD (320 HP, 235 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Hybrid AWD (405 HP, 298 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Twin Engine AWD (390 PS, 287 kW)
