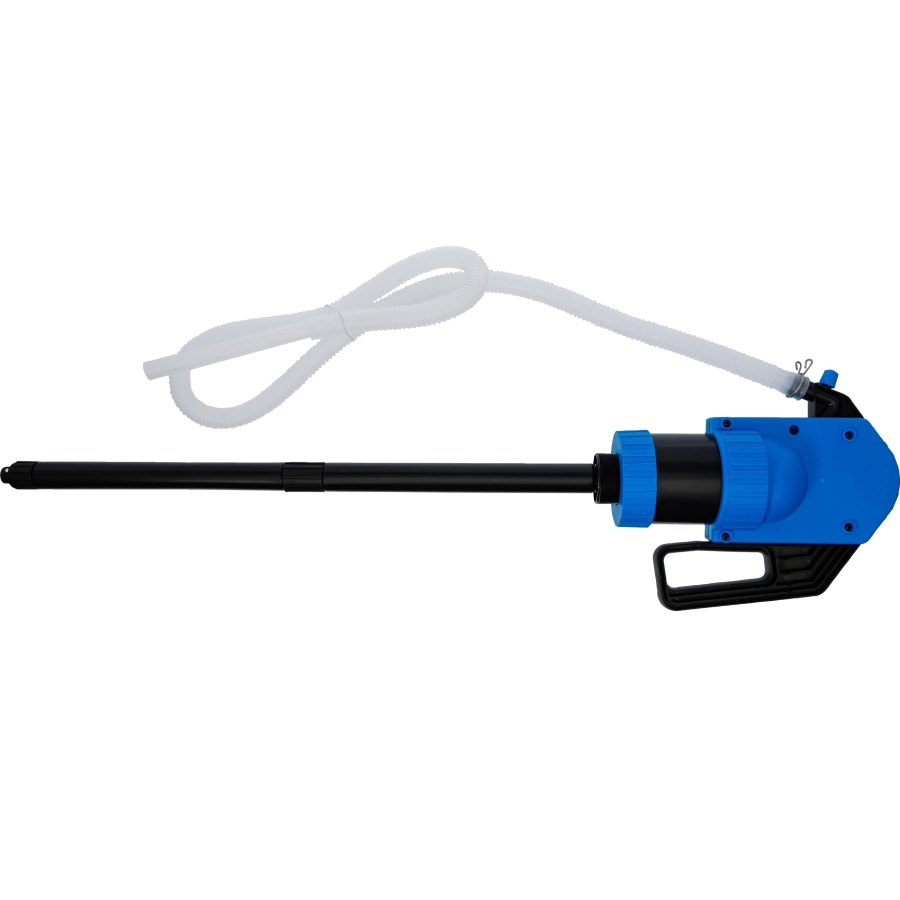

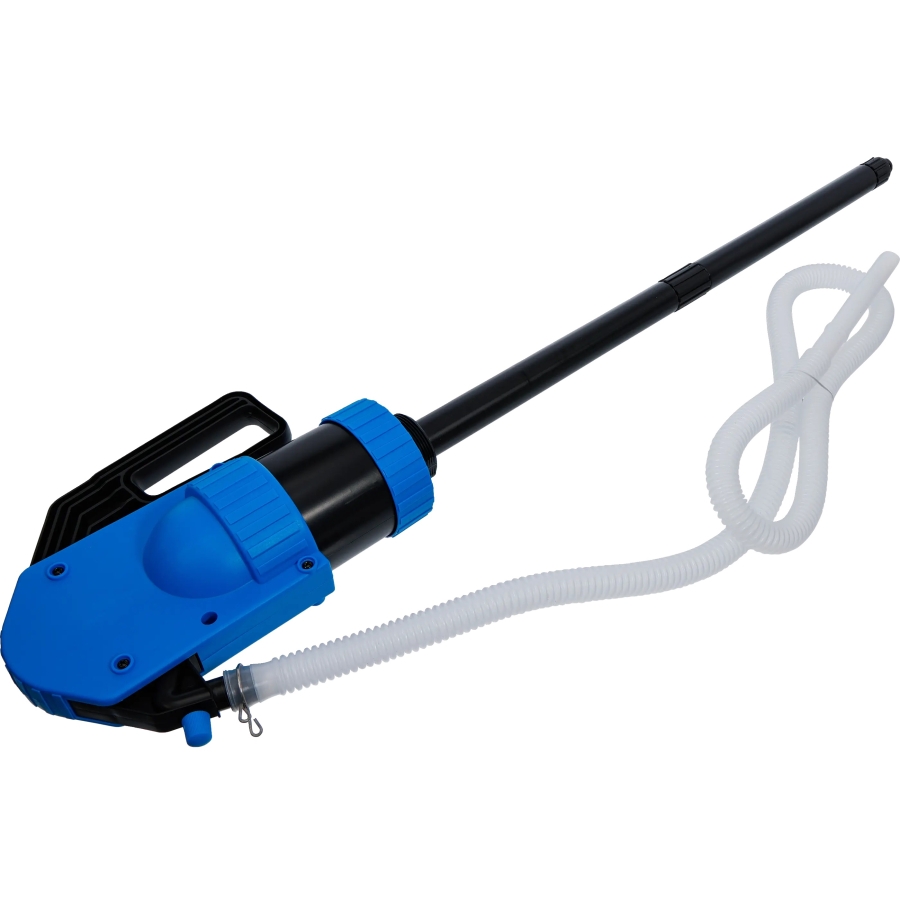

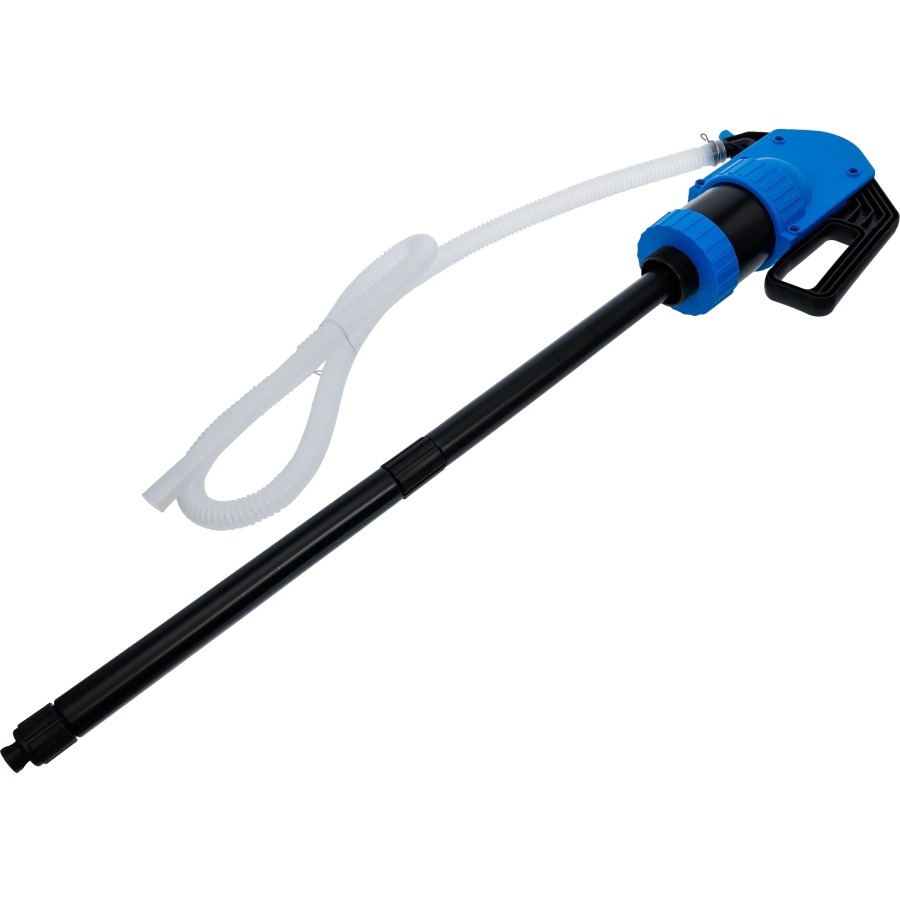

Lever-Operated Drum Pump for AUS32
-15%
Price:
€46.75
List Price:
€55.00
Discount:
€8.25 (15%)
-
Code:8332
-
Weight:1.270 Kgs
Overview:
✔ For transferring AUS32, water, lubricants, screenwash and other specified liquids
✔ Fits 60, 200 and 220 L drums with a 2″ BSP connection
✔ Delivery volume of 0.5 L per stroke; stated flow rate of 20 L/min
✔ Adjustable suction tube from 350 to 980 mm
✔ Supplied with a 2 m flexible delivery hose
✔ Polypropylene and polyethylene construction with fluoroelastomer seals
The lever pump is designed to transfer liquids from 60, 200 and 220 L drums. Suitable liquids listed for the pump include AUS32, water, lubricants, screenwash, antifreeze, mild cleaning agents and agricultural chemicals.
The pump has a 2″ BSP connection. Its suction tube can be assembled to a length between 350 and 980 mm, while the flexible delivery hose is 2 m long.
Flow and materials
- Delivery volume: 0.5 L per stroke
- Stated flow rate: 20 L/min
- Operating temperature: −5 °C to +45 °C
- Main materials: Polypropylene and polyethylene
- Seals: Fluoroelastomer
How to operate the pump

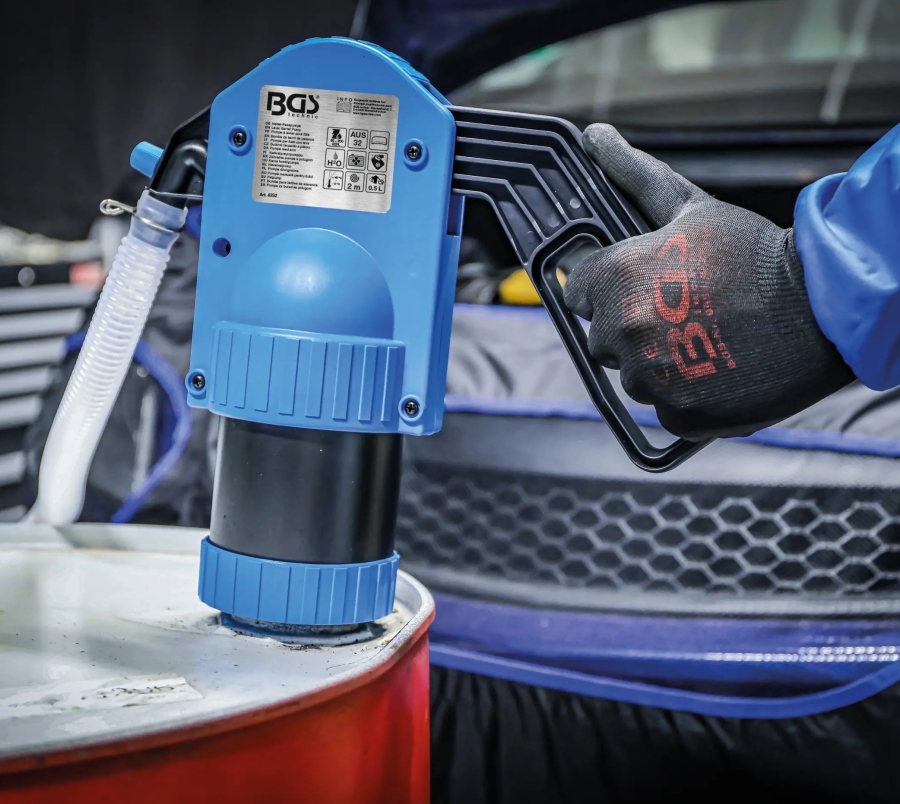

- Insert the suction tube into the drum and screw the pump head onto the drum opening.
- Turn the pump head to the required position and secure it with the locking nut.
- Push the delivery hose onto the outlet spigot and secure it with the hose clamp.

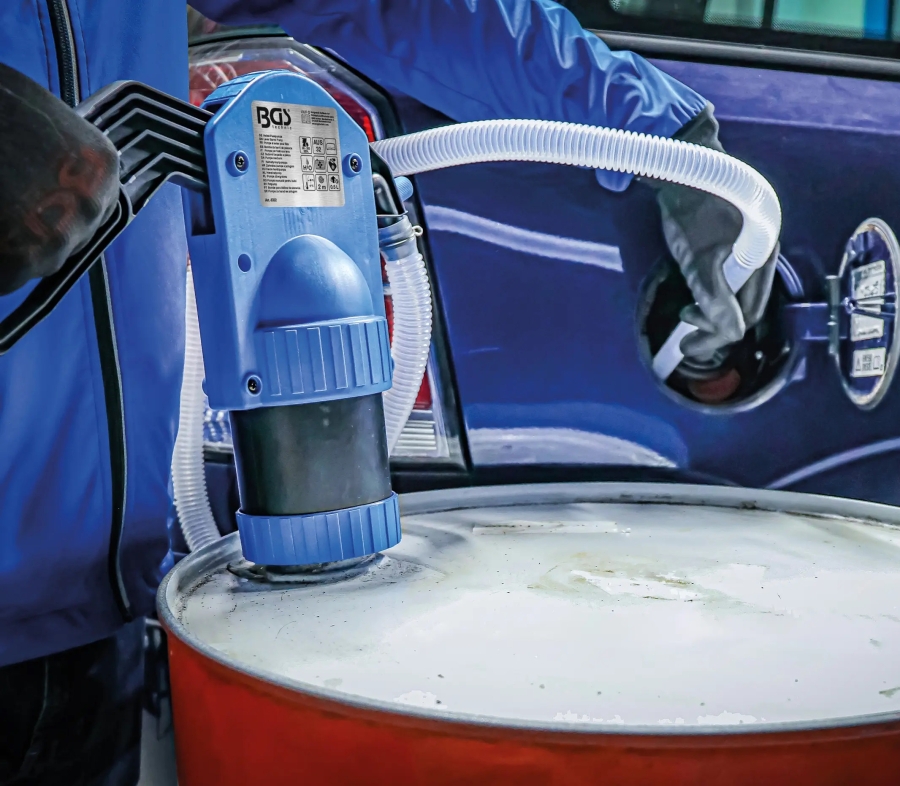

- Move the lever steadily up and down until liquid begins to flow. Direct the hose into the receiving container to avoid spills.
- Turn the vent cap anticlockwise to prevent further suction.
