M12 XZN Socket Set for VAG Bolted Wheel Bearings Without Driveshaft Removal

This professional 2-piece socket set has been developed for improved removal and installation of bolted wheel bearing units used on VAG vehicles.

Bolted wheel bearing units have been widely used on VAG vehicles since approximately 2004 and are typically secured to the steering knuckle with four M12 XZN bolts.

Using conventional sockets often requires complete driveshaft removal. This special socket set allows the wheel bearing retaining bolts to be accessed and serviced without removing the driveshaft.

Improved Service Procedure

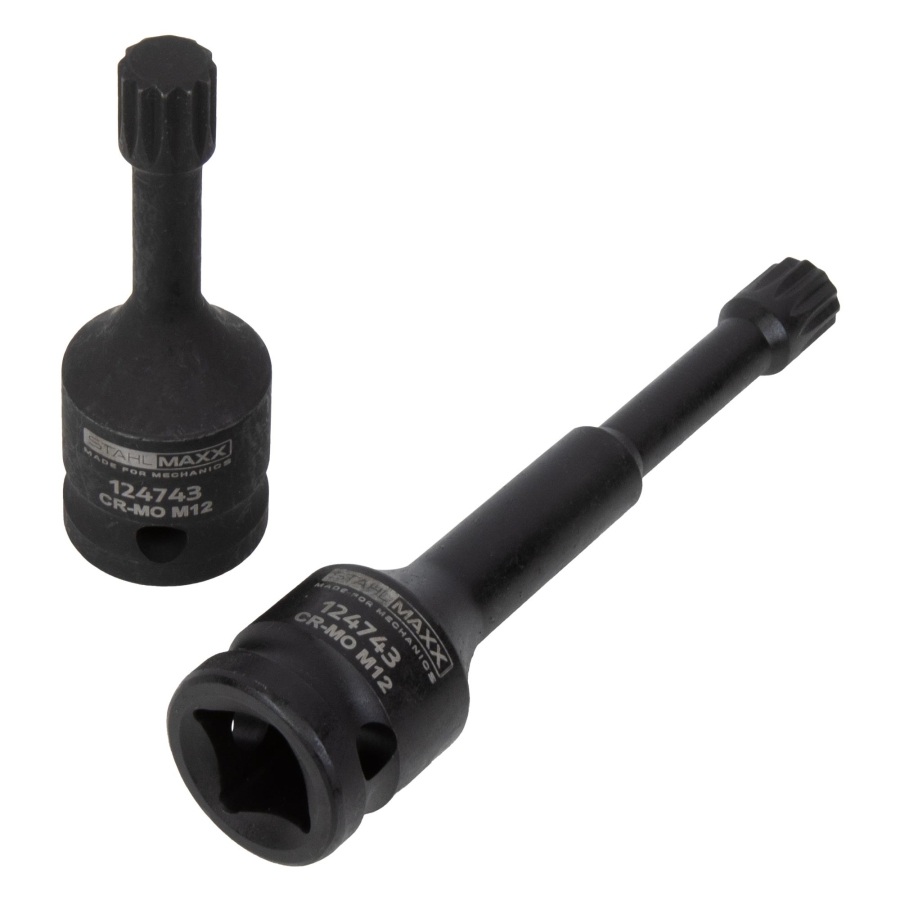

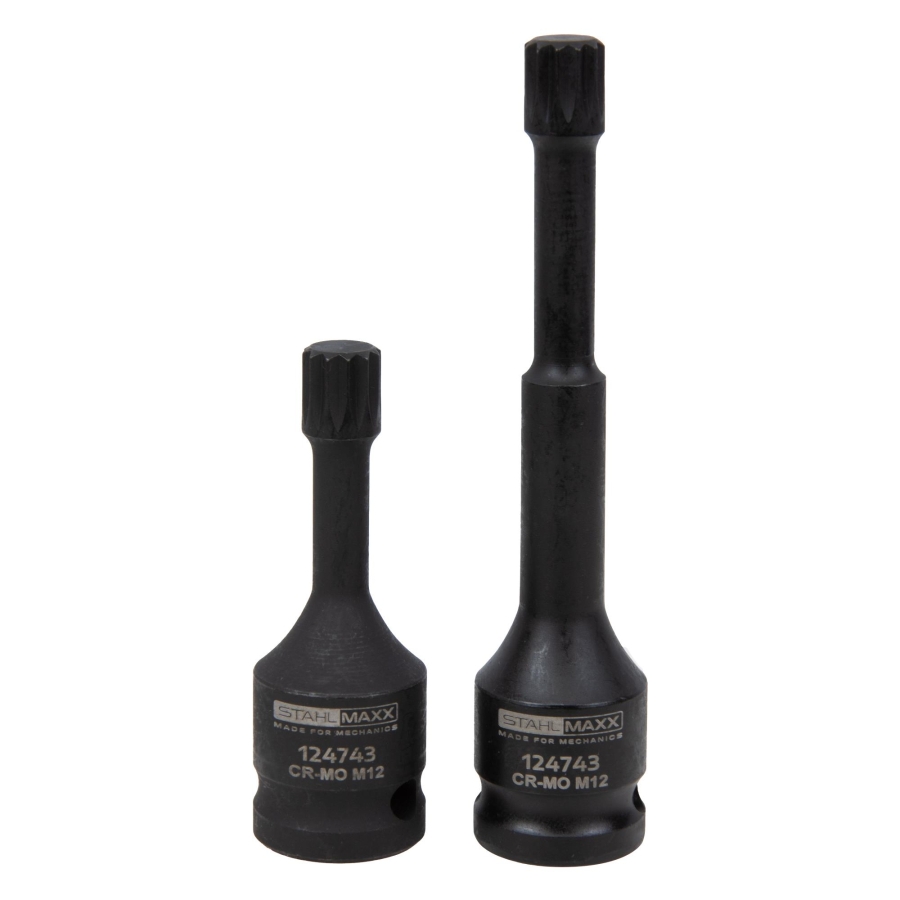

The set includes two specially designed M12 XZN sockets with lengths of 78 mm and 120 mm.

These extended profiles provide access to the front wheel bearing retaining bolts, allowing loosening and tightening operations without prior driveshaft removal.

The central driveshaft bolt must still be removed due to the vehicle design, however complete driveshaft removal is generally not required.

Installation & Removal Notes

After removing the driveshaft centre bolt and dismantling the brake assembly, the wheel bearing retaining bolts can be accessed using these sockets.

The wheel hub and wheel bearing unit can then be removed using a suitable hub flange and slide hammer system.

The hub flange is designed to fit both the wheel hub bolt pattern and the wheel bearing unit bolt pattern.

Vehicle Compatibility

Audi

• Audi A1 (from 2010)
• Audi A3 (from 2004)
• Audi A4 (from 1994)
• Audi A5 (from 2007)
• Audi A6 (from 2006)
• Audi A7 (from 2010)
• Audi Q3 (from 2011)
• Audi Q5 (from 2008)
• Audi R8 (from 2007)
• Audi TT (from 2006)

Cupra

• Cupra Ateca (from 2018)
• Cupra Born (from 2021)

SEAT

• SEAT Alhambra (from 2010)
• SEAT Altea (from 2004)
• SEAT Ateca (from 2016)
• SEAT Exeo (from 2008)
• SEAT Leon (from 2005)
• SEAT Tarraco (from 2018)
• SEAT Toledo (from 2004)

Škoda

• Škoda Karoq (from 2017)
• Škoda Kodiaq (from 2016)
• Škoda Octavia (from 2004)
• Škoda Superb (from 2008)
• Škoda Yeti (from 2009)

Volkswagen

• Volkswagen Beetle (from 2011)
• Volkswagen Caddy (from 2004)
• Volkswagen Eos (from 2006)
• Volkswagen Golf (from 2003)
• Volkswagen Jetta (from 2004)
• Volkswagen Passat (from 1996)
• Volkswagen Phaeton (from 2002)
• Volkswagen Scirocco (from 2008)
• Volkswagen Sharan (from 2010)
• Volkswagen Tiguan (from 2007)
• Volkswagen Touran (from 2003)

Technical Specifications

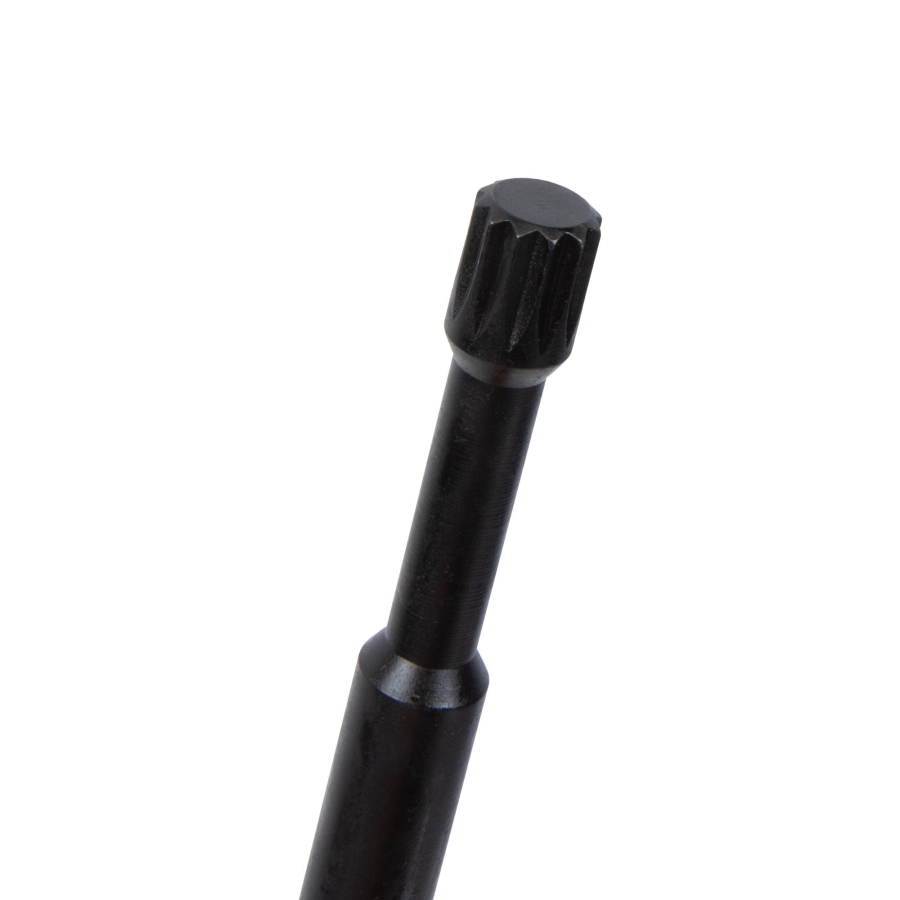

• Profile: M12 XZN (Triple Square)
• Lengths: 78 mm and 120 mm
• Drive: 1/2" square drive
• Material: Chrome-Molybdenum (Cr-Mo)
• Impact wrench suitable

Features

• Stahlmaxx quality tool
• Significant reduction in labour time
• Allows servicing without driveshaft removal
• Impact wrench compatible
• Professional workshop quality

Package Contents

• 1 × M12 XZN socket, length 78 mm, for bolted wheel bearing removal and installation
• 1 × M12 XZN socket, length 120 mm, for bolted wheel bearing removal and installation
