Metric Rubber Grommet Assortment, 180-Piece
Price:
€12.50
-
Code:8125
-
Weight:0.216 Kgs
Overview:
✔ Protects cables routed through holes in metal or plastic panels
✔ Helps prevent abrasion and damage to cable insulation
✔ Eight metric sizes for different hole and cable diameters
✔ 180 rubber grommets in total
✔ Supplied in a practical organiser case
This assortment contains 180 rubber grommets for protecting cables where they pass through drilled holes in sheet metal or plastic components.
The grommets cover eight size combinations and help prevent sharp hole edges from rubbing against or damaging cable insulation.

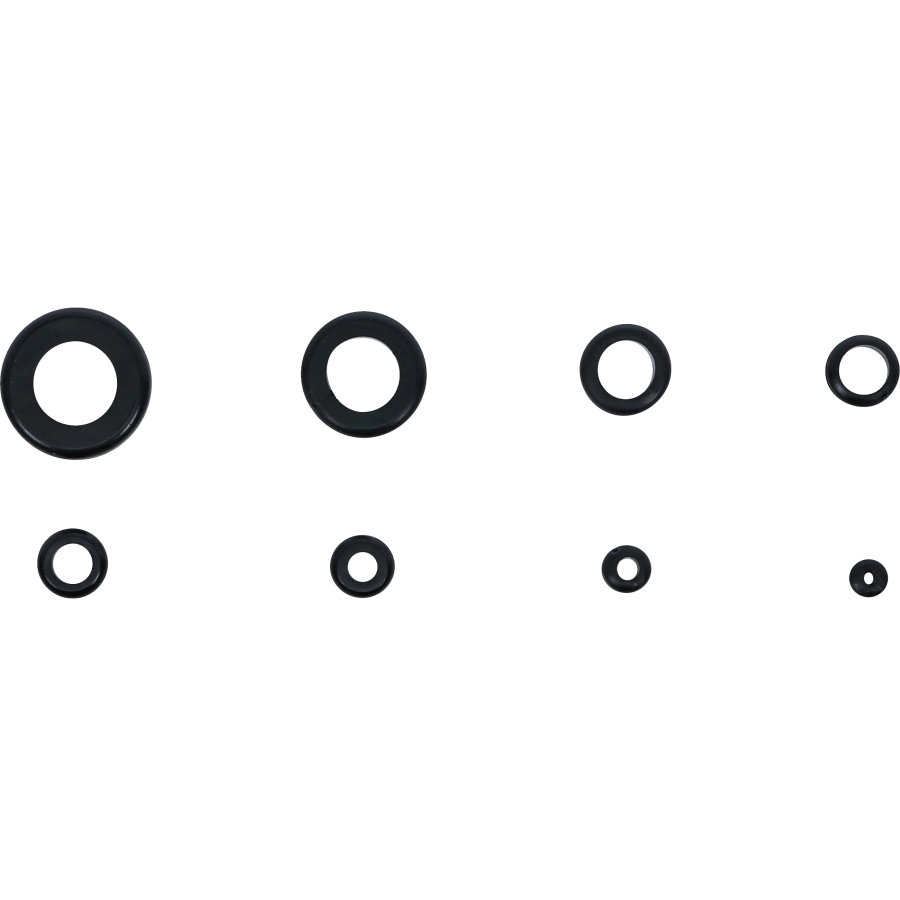

Sizes and Contents
| Quantity | Mounting hole Ø | Pass-through Ø | Overall Ø |
|---|---|---|---|
| 5 | 22 mm | 15 mm | 26 mm |
| 5 | 15.5 mm | 12 mm | 19 mm |
| 5 | 28 mm | 17 mm | 32 mm |
| 20 | 12 mm | 11 mm | 15 mm |
| 25 | 11 mm | 9 mm | 15 mm |
| 40 | 10 mm | 6 mm | 13 mm |
| 40 | 7.5 mm | 5 mm | 10 mm |
| 40 | 6 mm | 3 mm | 8 mm |
Technical Specifications
- Material: rubber
- Number of sizes: 8
- Total quantity: 180 pieces
- Application: cable protection in metal and plastic panels
- Packaging: organiser case
Scope of Delivery
- 180 × metric rubber grommets in eight sizes
- 1 × organiser case
