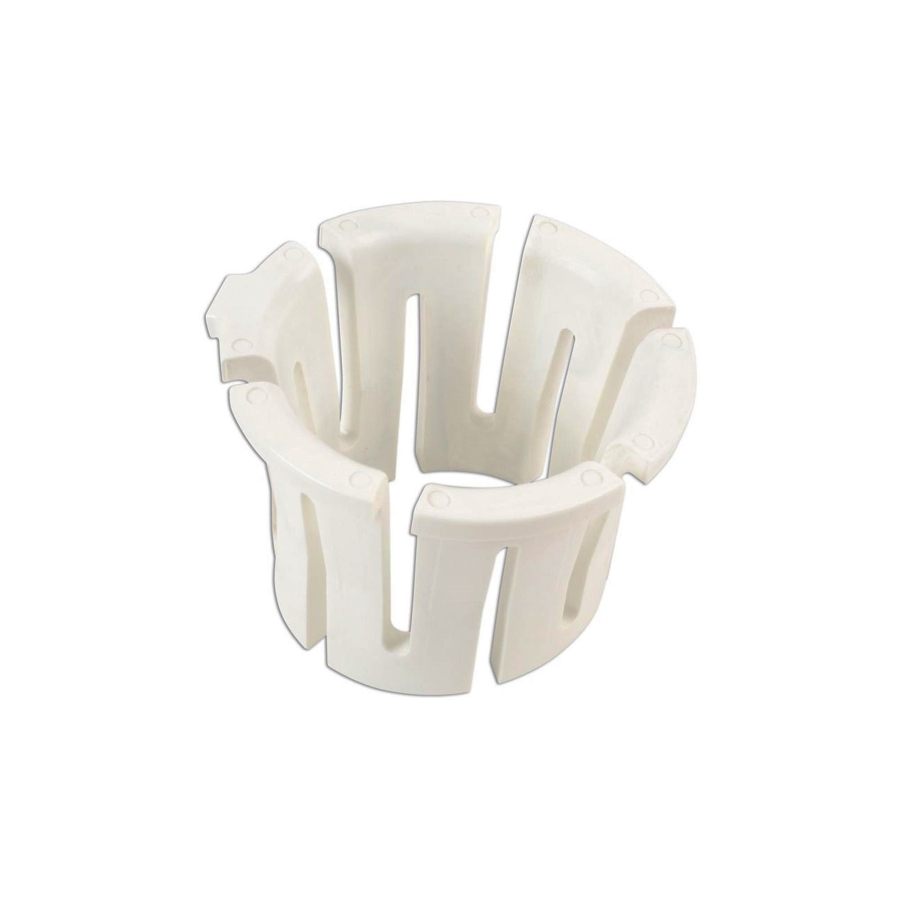

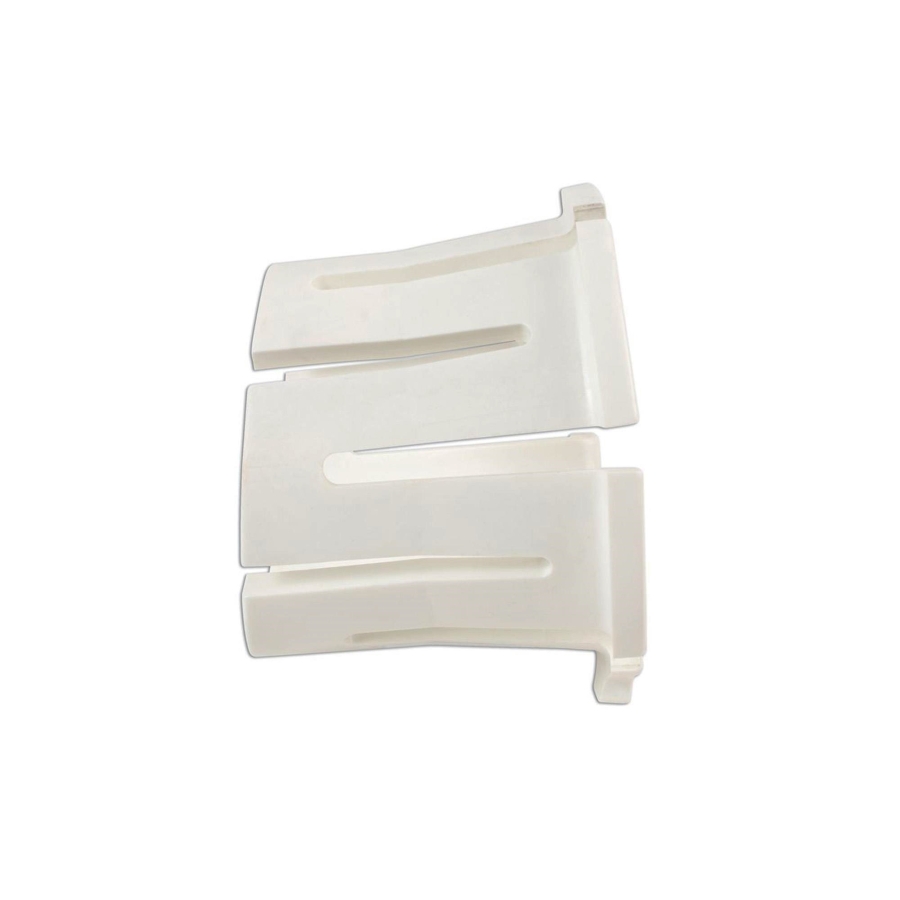

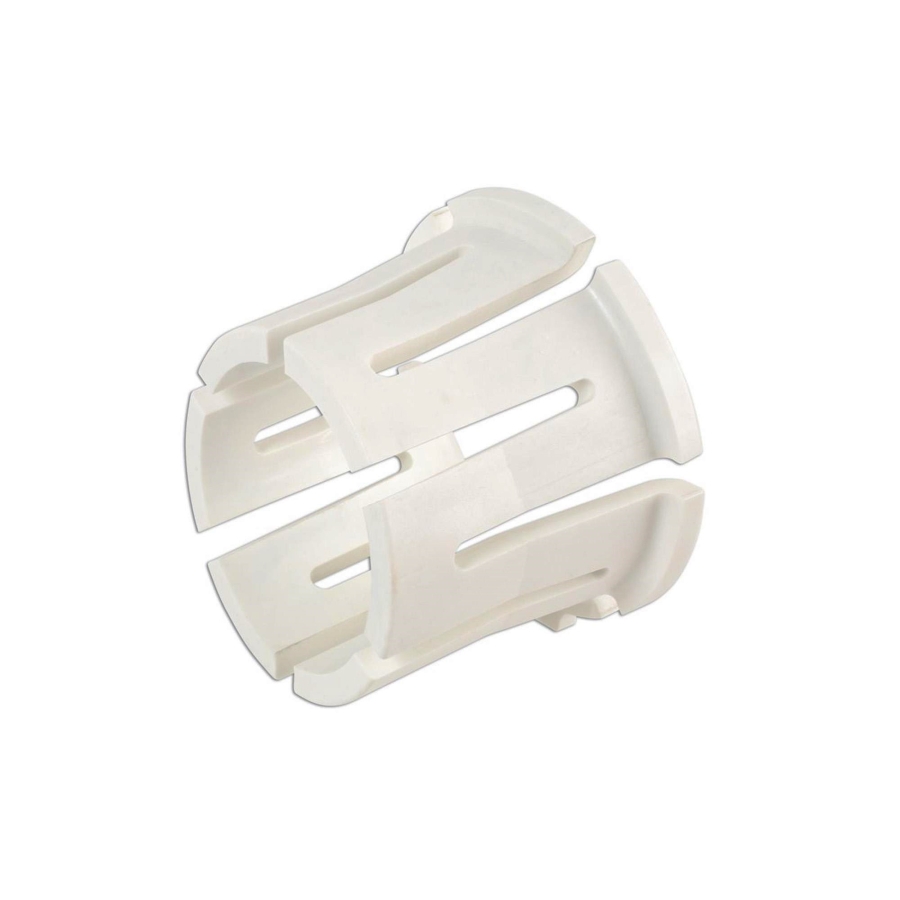

Piston Installation Funnel, 84 mm, as Audi/VW T10147
-
Code:116373
-
Weight:0.330 Kgs
Overview:
✔ Piston installation funnel for selected Audi and Volkswagen engines
✔ Designed for pistons with a diameter of 84 mm
✔ Guides the piston rings during installation into the cylinder
✔ Suitable for engine codes BDB, BFH, BJS, BML, BMJ, BUB, CBRA and NFH
✔ Compatible with CBRA engines fitted with standard pistons
✔ For use as VAG T10147
Special installation funnel for fitting 84 mm pistons into selected Audi and Volkswagen engines.
The tool guides the piston rings during installation and helps insert the piston safely into the cylinder.
Before First Use
Before using the tool for the first time, pass a well-oiled piston with installed rings through the tool twice. Afterwards, remove and wipe away all plastic shavings.
Compatible Engine Codes
- BDB
- BFH
- BJS
- BML
- BMJ
- BUB
- CBRA with standard pistons
- NFH
Compatible Vehicles
- AUDI A3 (8P1) (05.2003–08.2012) 3.2 V6 quattro (250 hp, 184 kW)
- AUDI A3 (8P1) (05.2003–08.2012) 3.2 quattro (253 hp, 186 kW)
- AUDI A3 Sportback (8PA) (09.2004–12.2015) 3.2 V6 quattro (250 hp, 184 kW)
- AUDI TT (8J3) (07.2006–01.2015) 3.2 V6 quattro (250 hp, 184 kW)
- AUDI TT Roadster (8J9) (05.2008–06.2014) 3.2 V6 quattro (250 hp, 184 kW)
- VW EOS (1F7, 1F8) (03.2006–08.2015) 3.2 V6 (250 hp, 184 kW)
- VW GOLF IV (1J1) (08.1997–12.2007) 3.2 R32 4Motion (241 hp, 177 kW)
- VW GOLF V (1K1) (10.2003–02.2009) 3.2 (250 hp, 184 kW)
- VW GOLF V (1K1) (10.2003–02.2009) 3.2 R32 4Motion (250 hp, 184 kW)
Reference
- For use as VAG T10147
Original reference numbers are for identification purposes only; this is not an original tool.
