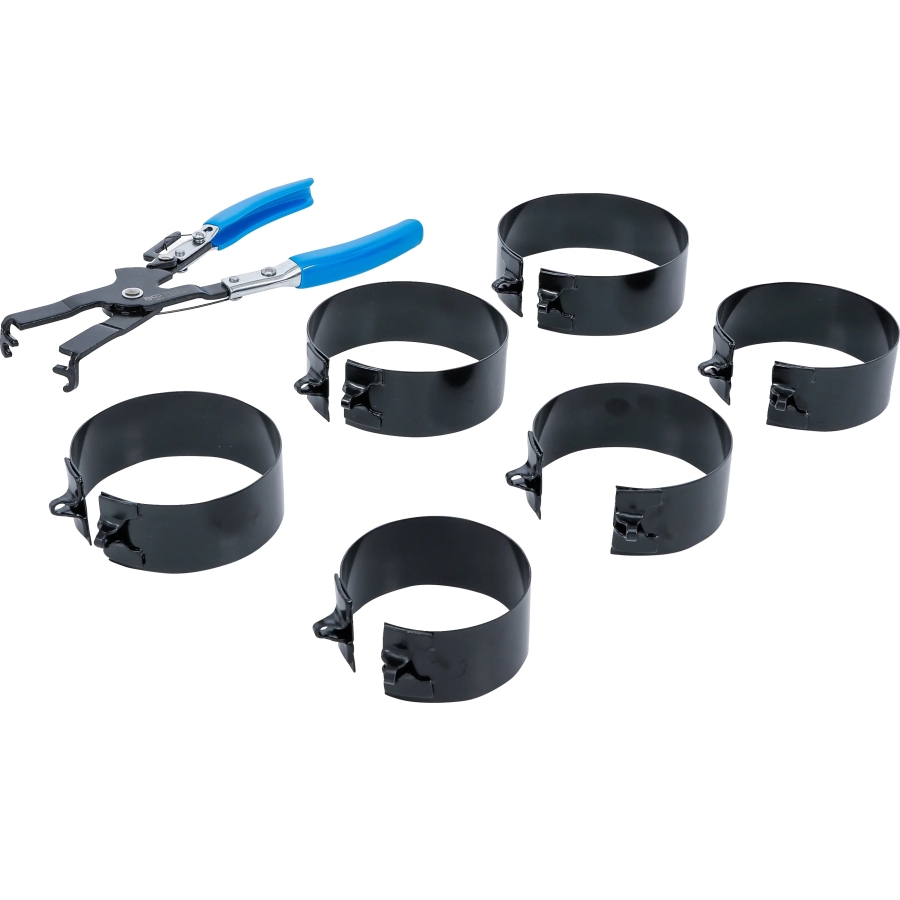

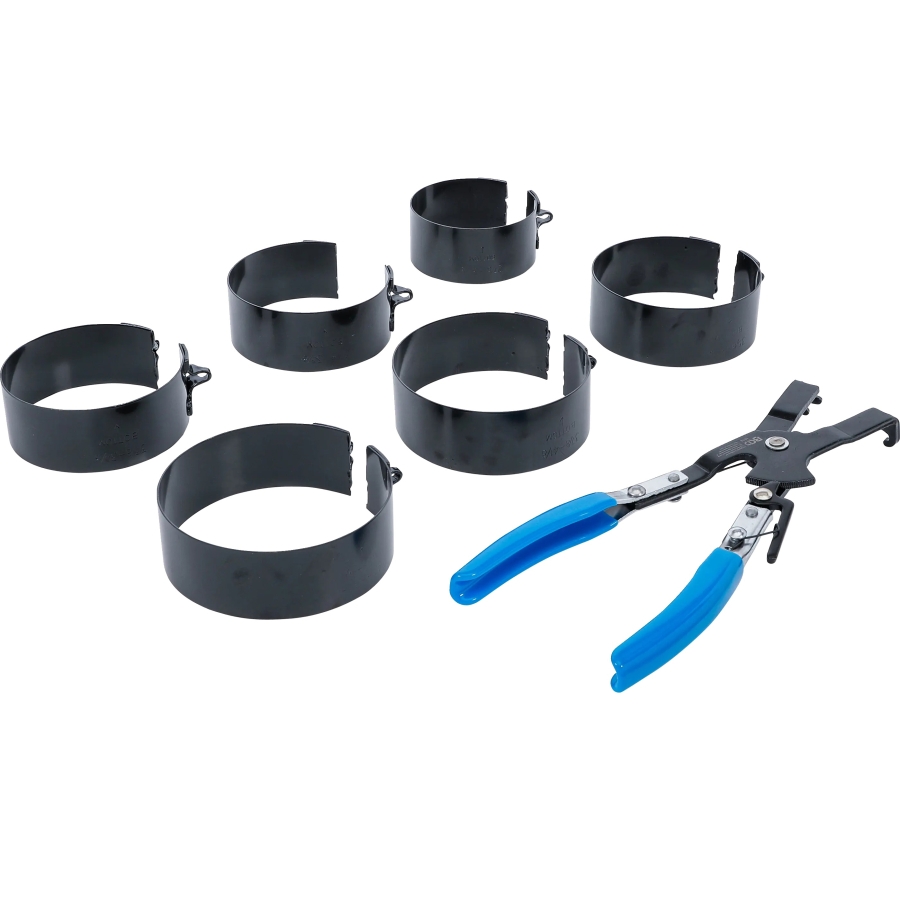

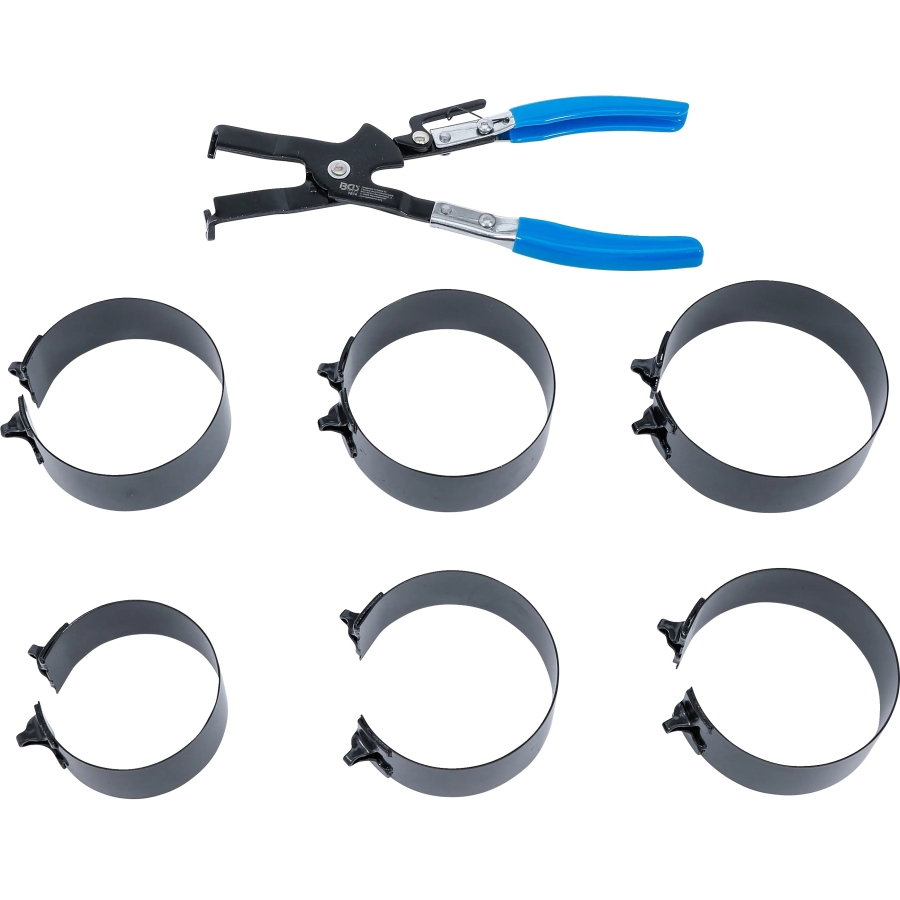

Piston Ring Compressor Band Set, Ø 73–111 mm, 7-Piece

This piston ring compressor set protects the piston rings from damage when inserting the piston into the engine block.

It includes six interchangeable compressor bands covering diameters from 73 to 111 mm and compressor pliers with a self-locking ratchet mechanism. The ratchet holds the selected band securely around the piston during installation.

Technical Data

• Clamping range: Ø 73–111 mm
• Compressor band height: 38 mm
• Number of compressor bands: 6
• Pliers mechanism: Self-locking ratchet
• Set: 7-piece

Scope of Delivery

• 1 × compressor band, Ø 73–79 mm
• 1 × compressor band, Ø 79–86 mm
• 1 × compressor band, Ø 86–92 mm
• 1 × compressor band, Ø 92–98 mm
• 1 × compressor band, Ø 98–105 mm
• 1 × compressor band, Ø 105–111 mm
• 1 × compressor pliers with self-locking ratchet mechanism

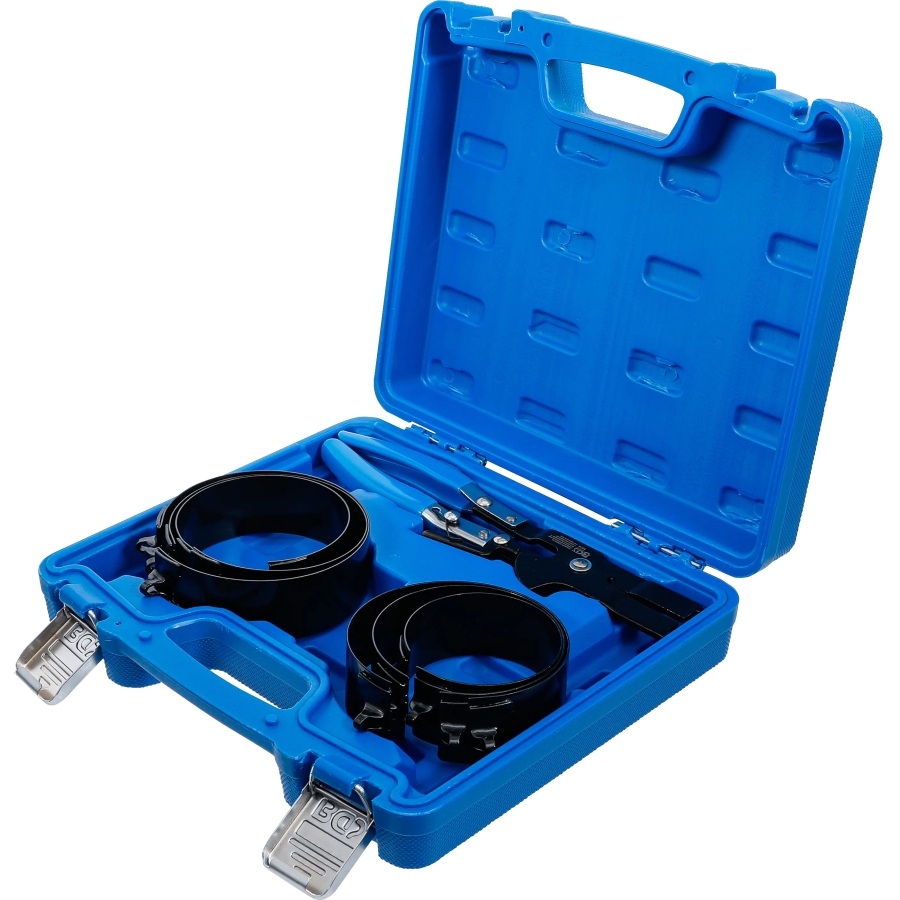

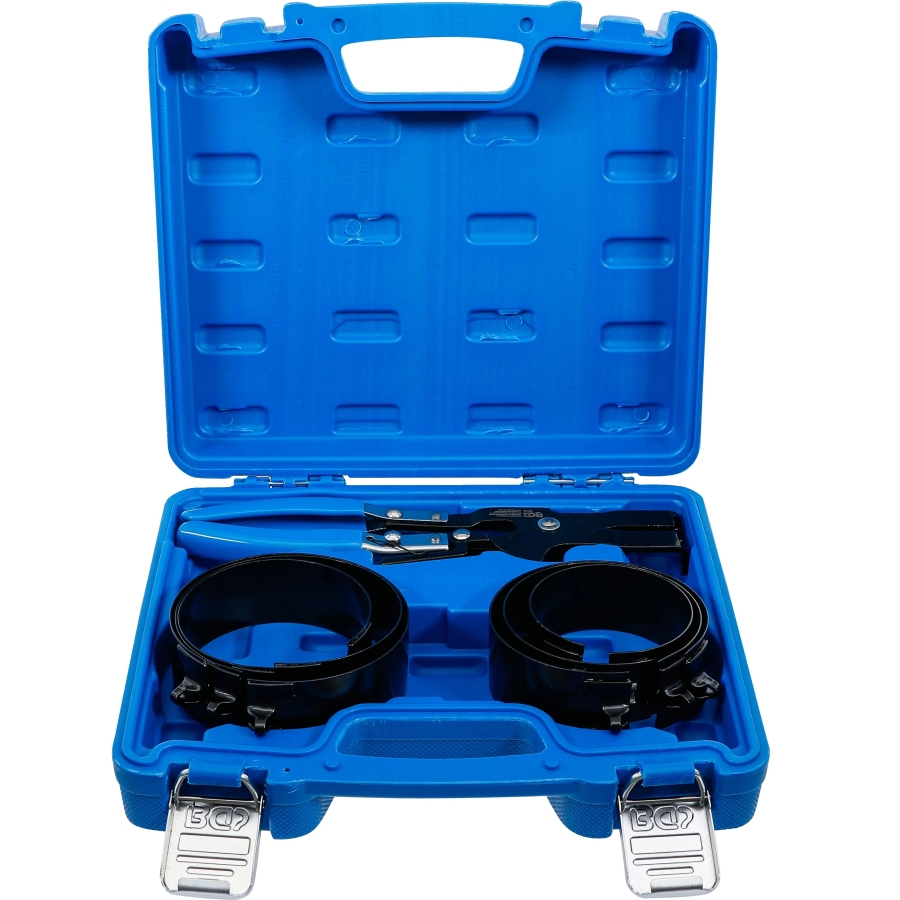

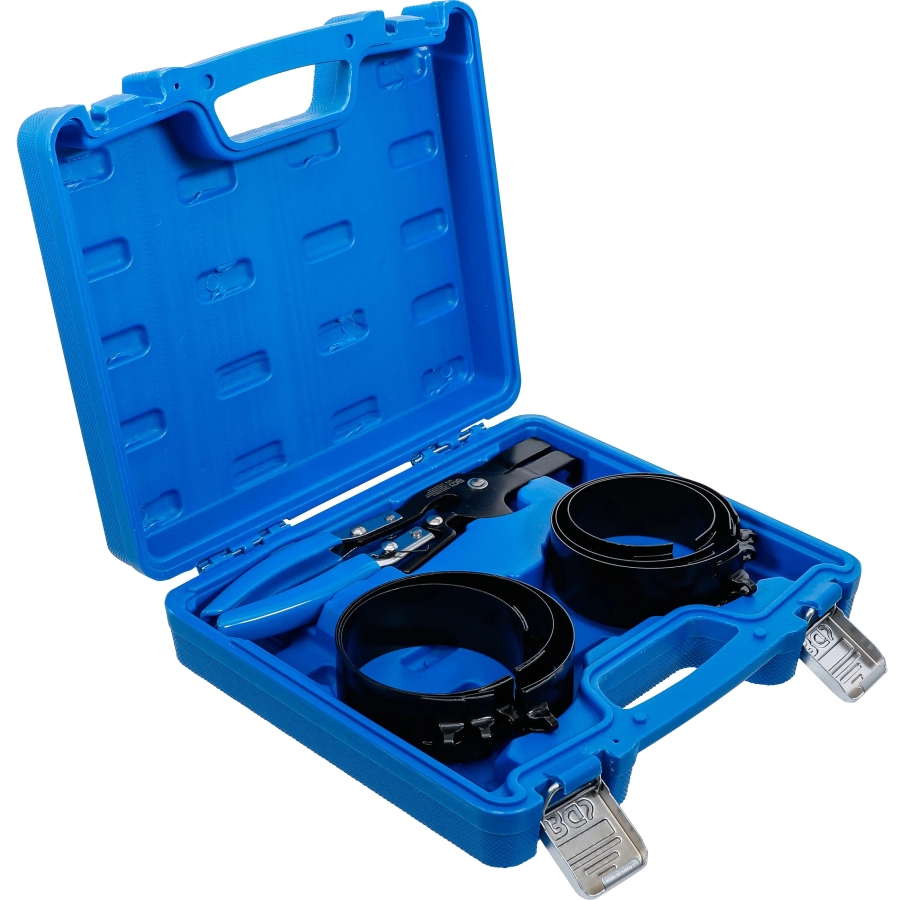

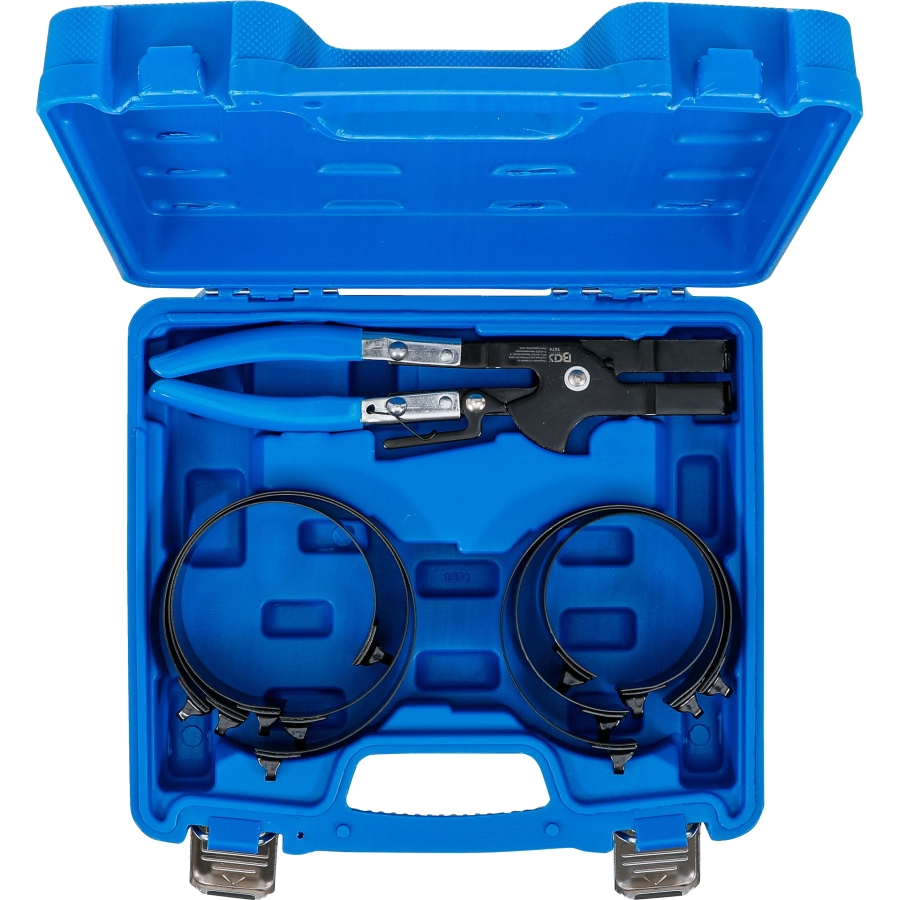

• 1 × plastic storage case
