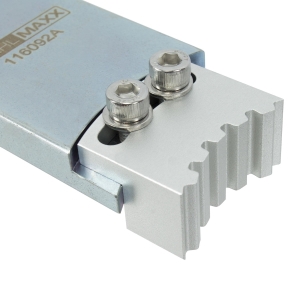

Opel High-Pressure Pump Holding Tool

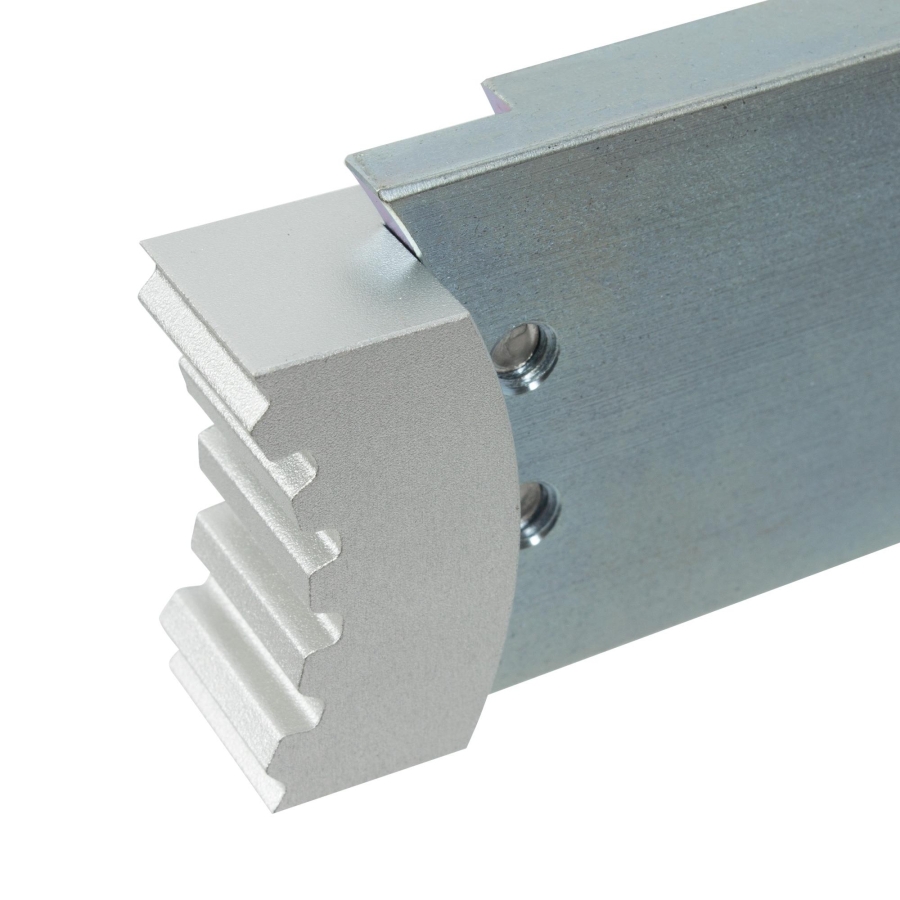

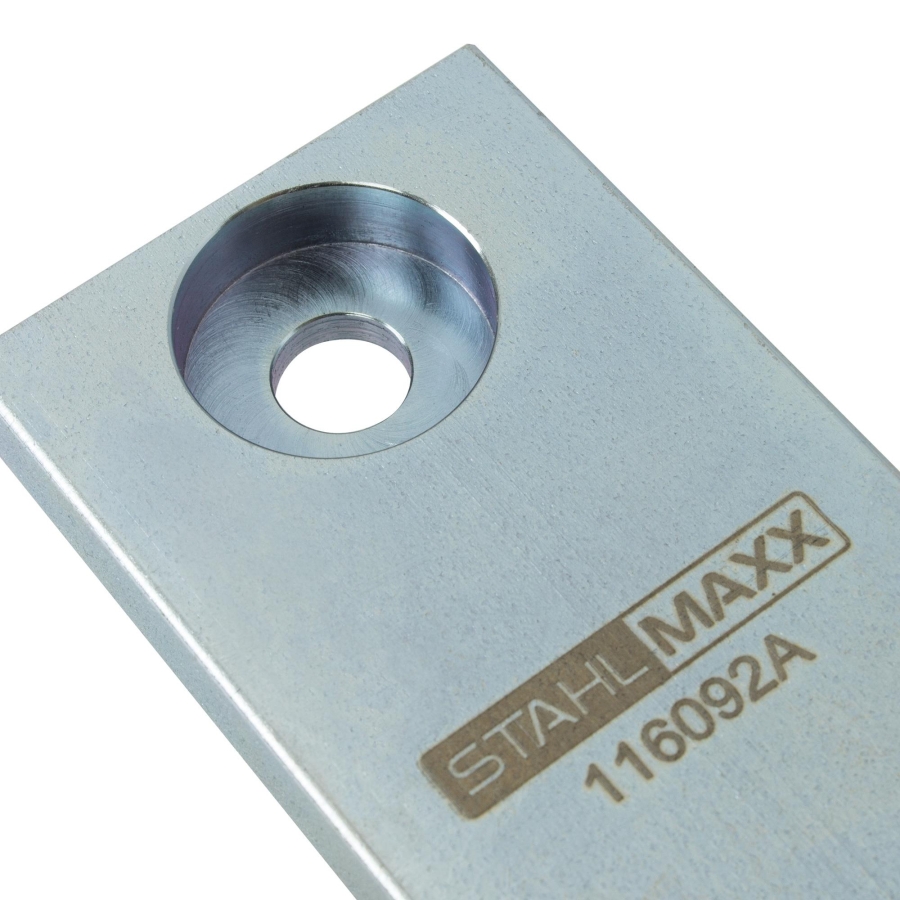

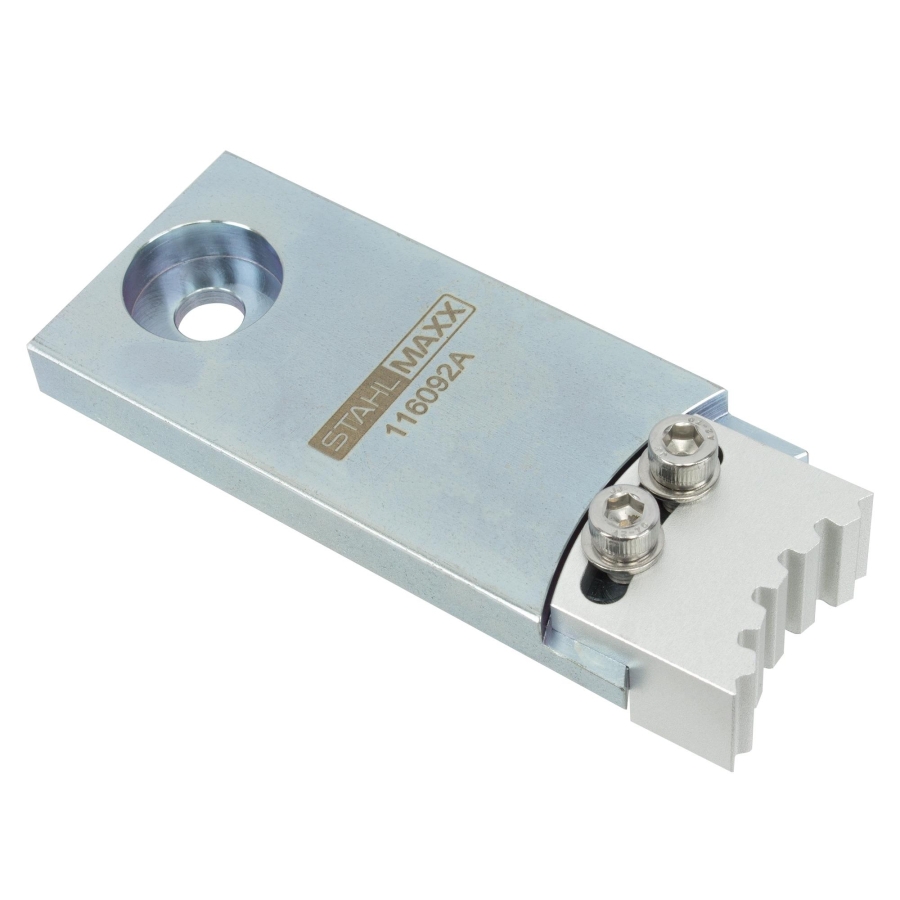

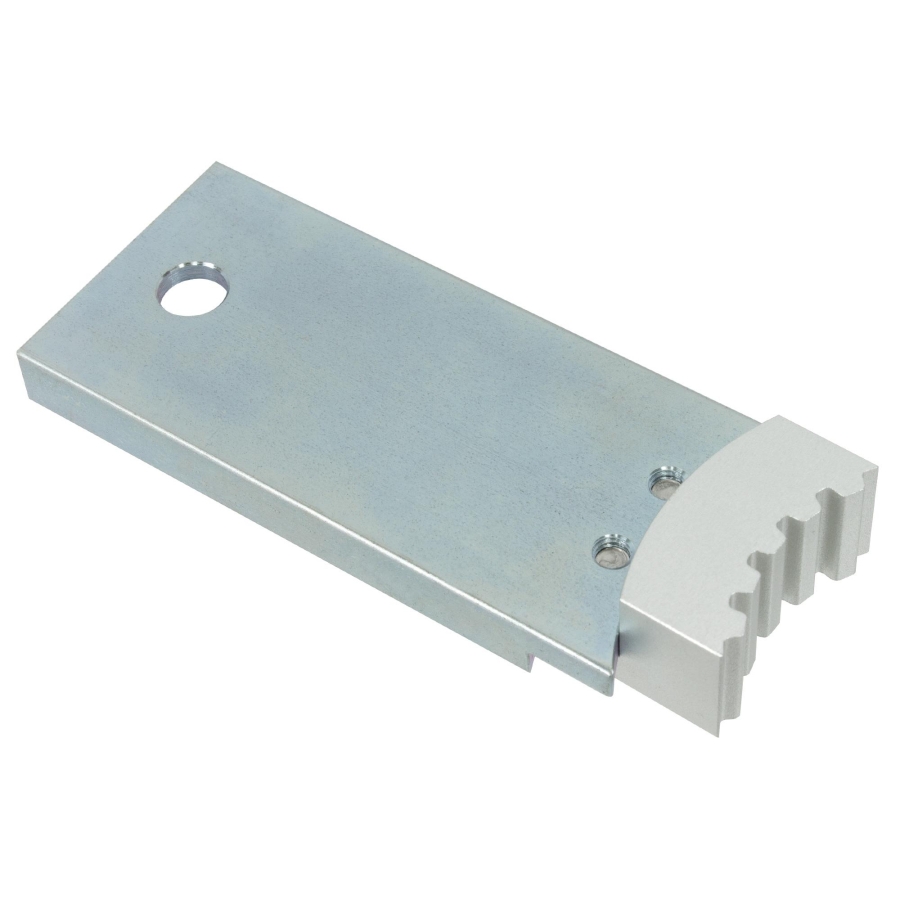

This holding tool is designed for Opel and Saab engines to lock the drive gear of the fuel/injection pump during removal. It allows the pump to be removed without disassembling the timing belt or altering valve timing.

Vehicle Compatibility

Suitable for the following vehicles with 2.0L Biturbo CDTI (143KW/194HP) from 2009 onward:

• Opel Astra J

• Opel Cascada

• Opel Insignia

• Opel Zafira C

• Saab 9-5 (140KW)

Engine Codes

Compatible with A20DTR and LBY engines

OE Reference Numbers

• EN-49826 / EN49826

Recommendation

To remove the timing belt pulley, a 2-arm puller with flat ends is recommended, such as 999168 (VAG T40001). Unlike the workshop manual, it is recommended to set the engine to top dead center, as the timing belt is only loosened, not fully removed. This facilitates checking valve timing after the repair. It is also recommended to mark the timing belt position relative to the drive gear.

Usage / Installation

1. Expose the fuel pump and remove the upper timing belt cover.

2. Install the holding tool, align it, and secure it.

3. Loosen the central screw and remove the drive gear – mark the pump position relative to the housing (tongue and groove).

4. The pump can now be removed – the holding tool remains installed.

5. During installation, ensure the holding tool grips the drive gear properly – check the marks, tongue, and groove, and tighten the central screw to 50 Nm (follow manufacturer instructions).

Original numbers are for comparison only and do not represent the original tool.

OPEL ASTRA J (P10) (09.2009 - 10.2015) 2.0 BiTurbo CDTI (68) (194 HP, 143 kW)

OPEL ASTRA J Caravan (P10) (10.2010 - 10.2015) 2.0 BiTurbo CDTI (35) (194 HP, 143 kW)

OPEL ASTRA J GTC (10.2011 - 10.2015) 2.0 BiTurbo CDTI (08) (194 HP, 143 kW)

OPEL CASCADA (W13) (03.2013 - 04.2019) 2.0 CDTI (67) (194 HP, 143 kW)

OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (68) (190 hp, 140 kW)

OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (68) (195 HP, 143 kW)

OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (68) (190 HP, 140 kW)

OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (68) (195 HP, 143 kW)

OPEL INSIGNIA A Country Tourer (G09) (07.2008 - 03.2017) 2.0 CDTi 4x4 (47) (194 HP, 143 kW)

OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (35) (190 HP, 140 kW)

OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (35) (195 HP, 143 kW)

OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (35) (190 HP, 140 kW)

OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (35) (195 HP, 143 kW)

OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (69) (190 HP, 140 kW)

OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI (69) (195 HP, 143 kW)

OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (69) (190 HP, 140 kW)

OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 Biturbo CDTI 4x4 (69) (195 HP, 143 kW)

OPEL ZAFIRA TOURER C (P12) (10.2011 - ) 2.0 BiTurbo CDTI (75) (194 HP, 143 kW)

SAAB 9-5 (YS3G) (05.2010 - 01.2012) 2.0 TTiD (190 HP, 140 kW)

SAAB 9-5 (YS3G) (05.2010 - 01.2012) 2.0 TTiD XWD (190 HP, 140 kW
