Flywheel Locking Tool Set for Kia & Hyundai 1.0L–2.7L (as 09231-2B100, 09231-3N100)

This specialized flywheel locking tool set is designed to secure the crankshaft via the flywheel during engine service operations. It allows controlled loosening and tightening of the crankshaft central bolt, even at high torque levels.

Design and Installation

The tool set includes a base locking tool and a holding adapter. The assembly is mounted in place of the starter motor, providing a secure and stable connection for professional engine work.

Modular System Advantage

For workshops already equipped with the base tool (item.no. 117434), the adapter (item.no. 123378) can be purchased separately as an extension, offering a cost-effective upgrade solution.

Engine Compatibility

Compatible with the following engine codes:
B3LA, D3FA, D4CB, D4FA, D4FB, D4FD, D4HA, D4HB, D4UU, G3LA, G3LC, G4FA, G4FC, G4FD, G4FJ, G4JB, G4KD, G4KE, G4KF, G4KJ, G4LA, G4LC, G4LD, G4NA, G4NC, G4ND, G4NE, G6BA

Suitable for petrol and diesel engines with:
1.0 / 1.2 / 1.25 / 1.4 / 1.6 / 2.0 / 2.2 / 2.4 / 2.7 liters

Vehicle Compatibility

Suitable for a wide range of Kia and Hyundai models, including:

Hyundai:
Accent, Elantra, Genesis, Grand Santa Fe, Santa Fe, H1, H300, i10, i20, i30, i40, i800, iLoad, iMax, ix20, ix35, Sonata, Tiburon, Tucson, Veloster

Kia:
Carens, Ceed, Magentis, Optima, Picanto, ProCeed, Rio, Sedona, Carnival, Soul, Sportage, Venga

Key Features

✔ Precision-engineered professional tool
✔ Supports work according to OEM repair procedures
✔ Enables safe handling of high torque crankshaft bolts
✔ Expandable system for flexible workshop use

Tool Reference

Used as:
09231-2B100
09231-3N100

Scope of Delivery

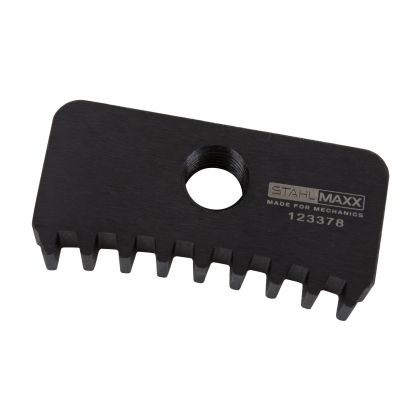

✔ item.no. 123378 Adapter / extension – as 09231-3N100
✔ item.no. 117434 Flywheel locking tool – as 09231-2B100 (expandable to 09231-3N100)

Original numbers are for comparison purposes only. This is not an original tool.
