Crankshaft Vibration Damper Counter Holder for 2.0L B4154 B4204 D4204 Volvo Engines, as 9997495

During timing belt replacement on Volvo B4154, B4204 and D4204 engines, loosening the crankshaft center bolt is required.

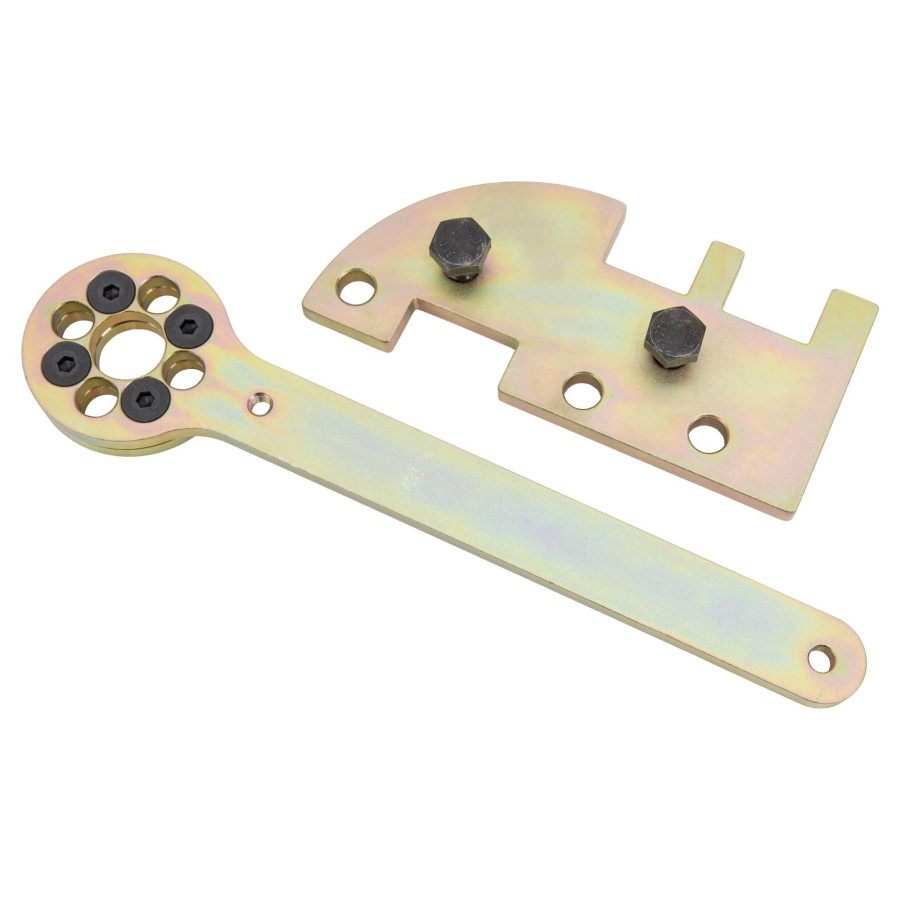

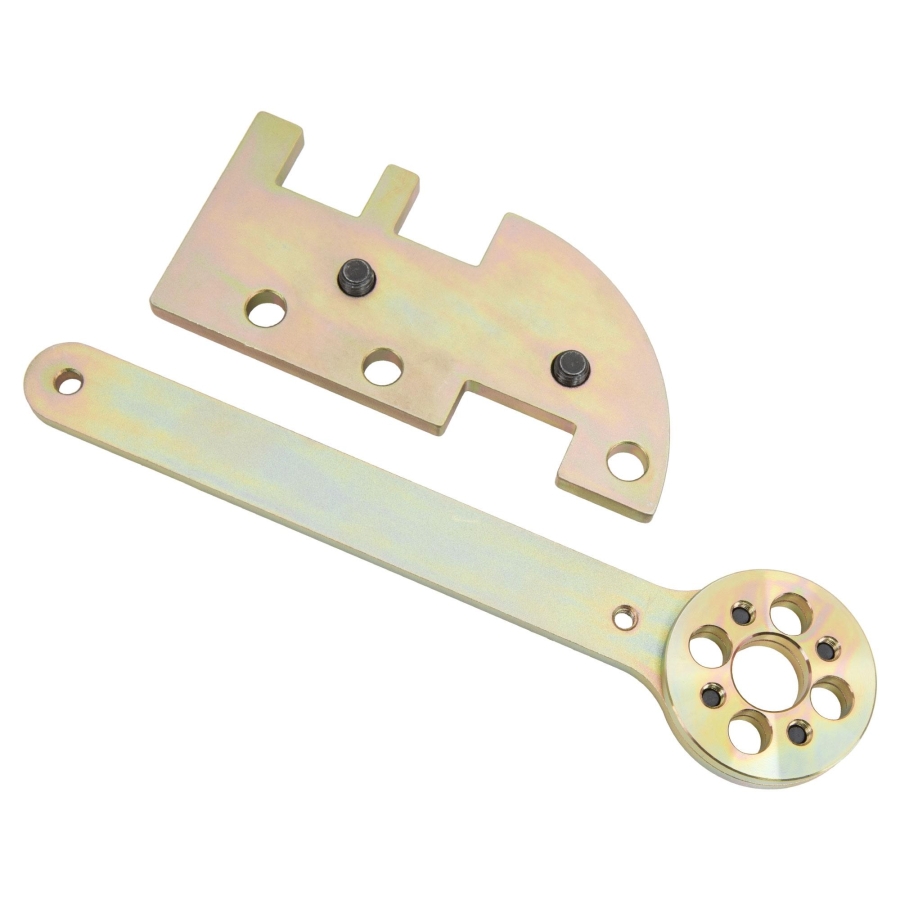

This professional special service tool, consisting of a crankshaft counter holder and adapter plate for the engine mount bracket, allows safe and controlled service procedures.

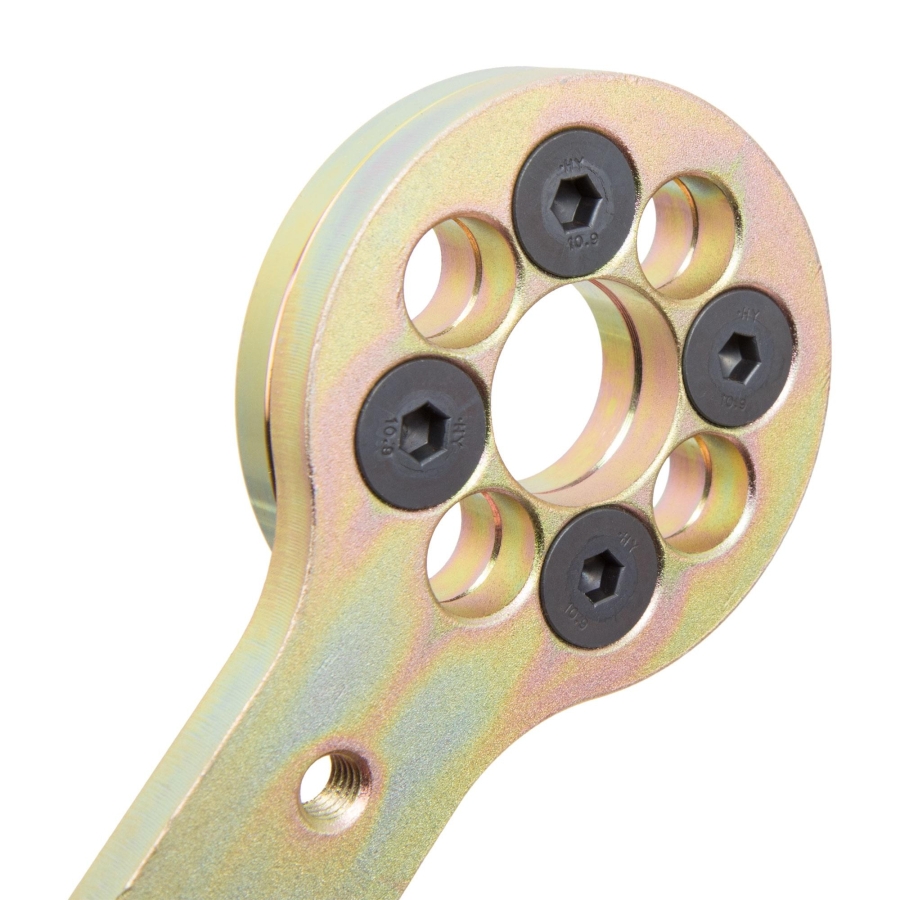

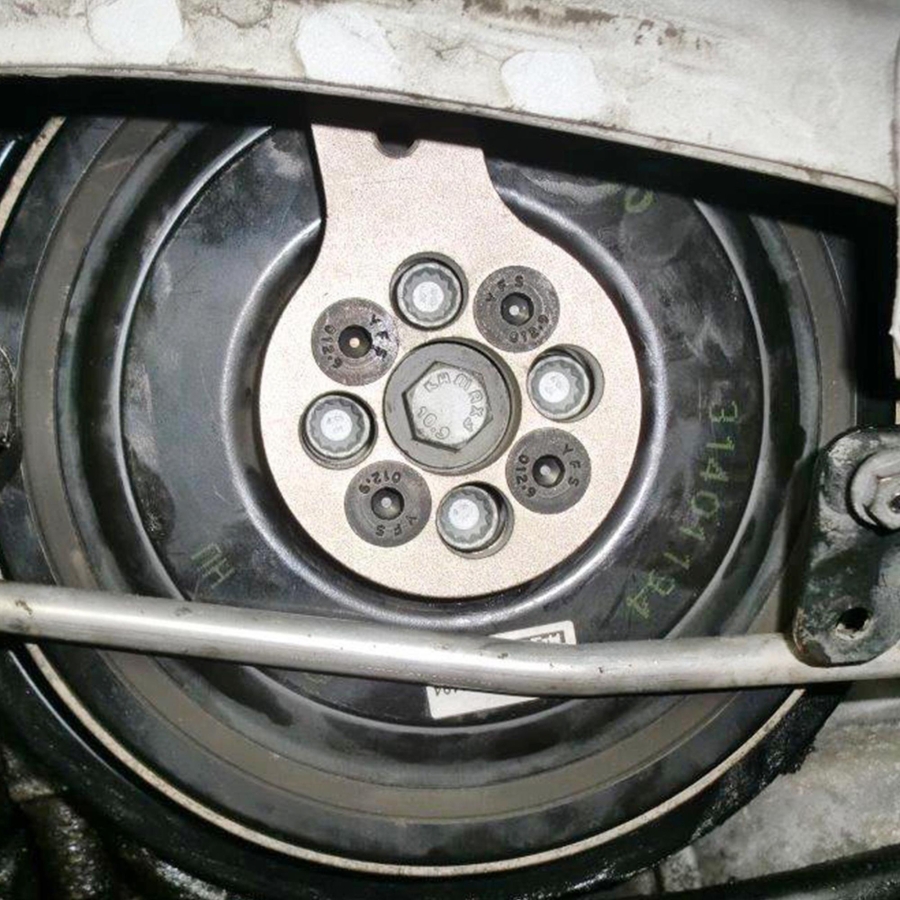

The counter holder is mounted to the crankshaft pulley using four fixing bolts, while the adapter plate is secured to the mounting bracket.

According to the manufacturer, two holding methods are possible depending on the repair procedure.

Application Methods

Method 1

If only the vibration damper is being replaced, the counter holder is positioned vertically downward and held manually.

Method 2

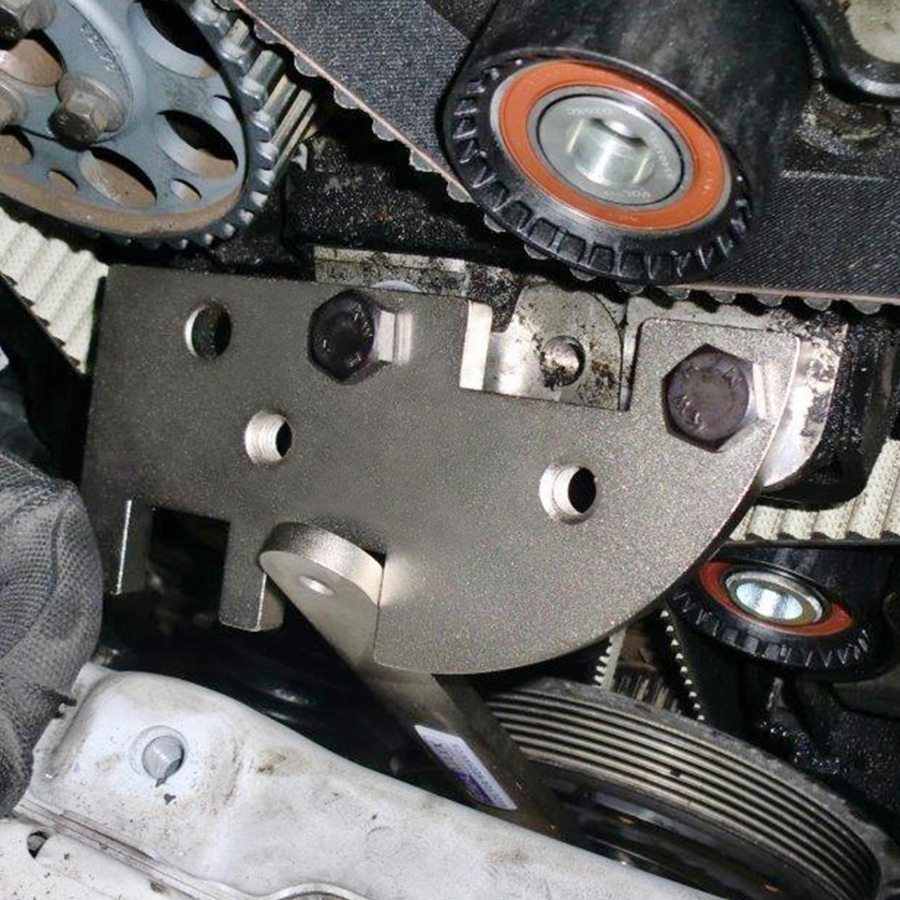

If the engine mount is removed, for example during timing belt replacement, the adapter plate is mounted to the support bracket and the counter holder is inserted into the designated recess to lock the crankshaft securely.

Engine Compatibility

Engine Variants

T2, T3, T4, T5, D2, D3, D4, D5

B4154 Engines:
B4154T2, B4154T3, B4154T4, B4154T5, B4154T6

B4204 Engines:
B4204T5, B4204T9, B4204T10, B4204T11, B4204T12, B4204T14, B4204T15, B4204T17, B4204T18, B4204T19, B4204T20, B4204T21, B4204T23, B4204T26, B4204T27, B4204T28, B4204T29, B4204T31, B4204T32, B4204T33, B4204T34, B4204T35, B4204T36, B4204T37, B4204T38, B4204T39, B4204T41, B4204T43, B4204T44, B4204T45, B4204T46, B4204T47, B4204T48, B4204T49, B4204T50

D4204 Engines:
D4204T4, D4204T5, D4204T6, D4204T7, D4204T8, D4204T9, D4204T11, D4204T12, D4204T13, D4204T14, D4204T16, D4204T20, D4204T23

Vehicle Compatibility

Suitable for:

• Volvo S60 (2011–2018)
• Volvo S60 (2019–)
• Volvo S60 Cross Country
• Volvo S60L
• Volvo S80 (2007–)
• Volvo S90 (2017–)
• Volvo S90L
• Volvo V40 (2013–)
• Volvo V40 Cross Country
• Volvo V60 (2010–)
• Volvo V60 Cross Country (2010–)
• Volvo V70 (2008–)
• Volvo V90 (2017–)
• Volvo V90 Cross Country
• Volvo XC40
• Volvo XC60 (-2017)
• Volvo XC60 (2018–)
• Volvo XC70 (2008–)
• Volvo XC90 (2016–)
• Volvo Polestar

OEM Reference Compatibility

To be used as:

• 9997495
• 999 7495

Reference Tightening Torques

D4204T14

• Crankshaft pulley (outer bolts): 25 Nm + 90°
• Crankshaft pulley (center bolt): 110 Nm + 90°
• Timing cover: 10 Nm
• Upper timing belt idler pulley: 65 Nm
• Lower timing belt idler pulley: lower bolt 24 Nm, upper bolts 30 Nm
• Timing belt tensioner pulley: 20 Nm + 45°
• High-pressure pump sprocket (outer bolts): 10 Nm
• Inner nut: 85 Nm

B4204T11 / B4204T15 / D4204T5

• Crankshaft pulley (outer bolts): 35 Nm + 50°
• Crankshaft pulley (center bolt): 30 Nm + 180°

Important Information

These engine series use a diamond-coated friction washer beneath the vibration damper and timing belt sprocket.

To prevent self-loosening of the crankshaft center bolt, the bolt should always be replaced during service procedures.

OEM numbers are provided for comparison purposes only. This is not an original Volvo tool.

VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW)

VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T3 (152 HP, 112 kW)

VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D4 (190 HP, 140 kW)

VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T3 (152 HP, 112 kW)

VOLVO S60 II (134) (04.2010 - 12.2018) T5 (245 HP, 180 kW)

VOLVO S60 II (134) (04.2010 - 12.2018) T5 AWD (245 HP, 180 kW)

VOLVO S60 III (224) (02.2019 - ) T4 (190 HP, 140 kW)

VOLVO S60 III (224) (02.2019 - ) T4 Polestar (210 HP, 155 kW)

VOLVO S60 III (224) (02.2019 - ) T5 (250 HP, 184 kW)

VOLVO S60 III (224) (02.2019 - ) T5 AWD (250 HP, 184 kW)

VOLVO S60 III (224) (02.2019 - ) T5 Polestar (253 HP, 186 kW)

VOLVO S80 II (124) (03.2006 - 12.2016) T5 (245 HP, 180 kW)

VOLVO S90 II (234) (01.2016 - ) 2.0 T5 (254 HP, 187 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T2 (122 HP, 90 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T3 (152 HP, 112 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 (190 HP, 140 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 AWD (190 HP, 140 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 (245 HP, 180 kW)

VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 AWD (245 HP, 180 kW)

VOLVO V60 I ​​(155, 157) (07.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW)

VOLVO V60 I ​​(155, 157) (07.2010 - 12.2018) 2.0 T4 (190 HP, 140 kW)

VOLVO V60 I ​​(155, 157) (07.2010 - 12.2018) T3 (152 HP, 112 kW)

VOLVO V60 I ​​(155, 157) (07.2010 - 12.2018) T5 (245 HP, 180 kW)

VOLVO V60 I ​​(155, 157) (07.2010 - 12.2018) T5 AWD (245 HP, 180 kW)

VOLVO V60 II (225, 227) (02.2018 - ) T5 AWD (250 HP, 184 kW)

VOLVO V70 III (135) (04.2007 - 04.2016) T4 (190 HP, 140 kW)

VOLVO V70 III (135) (04.2007 - 04.2016) T5 (245 HP, 180 kW)

VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (250 HP, 184 kW)

VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (254 HP, 187 kW)

VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (254 HP, 187 kW)

VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 (190 HP, 140 kW)

VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 AWD (190 HP, 140 kW)

VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (247 HP, 182 kW)

VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 (245 HP, 180 kW)

VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 AWD (245 HP, 180 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T4 (190 HP, 140 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (250 HP, 184 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (254 HP, 187 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (250 HP, 184 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (254 HP, 187 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (303 HP, 223 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) T4 Polestar (210 HP, 155 kW)

VOLVO XC60 II (246) (03.2017 - 12.2018) T5 Polestar AWD (253 HP, 186 kW)

VOLVO XC90 II (256) (09.2014 - 12.2019) T5 AWD (254 HP, 187 kW)
