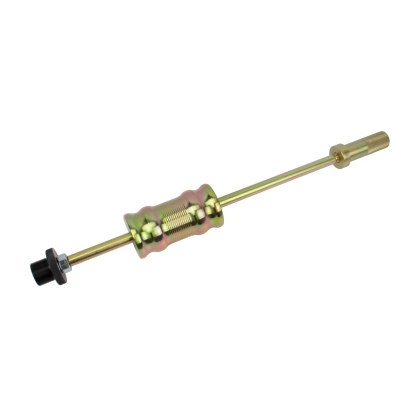

Slide Hammer with Wheel Hub and Driveshaft Puller Flange
-
Code:118128
-
Weight:6.820 Kgs
Overview:
✔ Professional slide hammer and puller flange set for wheel hubs and driveshafts
✔ Designed for pressing out driveshafts and removing wheel hubs
✔ Suitable for 4- and 5-lug wheel hubs with PCD 98–121 mm
✔ Compatible with wheel studs up to M14
✔ Heavy 4.5 kg slide weight for effective pulling force
✔ Includes adapter to UN 1.1/2" x 16 thread
This professional slide hammer set is designed for extracting driveshafts and removing wheel hubs during vehicle repair and maintenance work. The combination of a heavy-duty slide hammer and puller flange provides controlled and efficient pulling force, making it easier to remove seized or tightly fitted components.
The puller flange is suitable for a wide range of wheel hub applications and features a large center opening to accommodate wheel hubs with a center bore up to 74 mm.
Features
- Base tool for driveshaft extraction and wheel hub removal
- Suitable for professional workshop applications
- Compatible with 4- and 5-lug wheel hubs
- Suitable for wheel studs up to M14
- Large center opening for hub centering up to 74 mm
- Heavy-duty slide hammer with threaded handle
- Includes thread adapter for expanded compatibility
Compatibility
Suitable for:
- 4-lug wheel hubs
- 5-lug wheel hubs
- PCD 98–121 mm
- Wheel studs up to M14
- Hub center bore up to 74 mm
Technical Specifications
Slide Hammer
- Connection Thread: M18 x 2.5
- Slide Bar Length: 650 mm
- Slide Weight: 4.5 kg
- Total Weight: 6.2 kg
- Handle Type: Threaded handle
- Adapter Thread: UN 1.1/2" x 16
Puller Flange
- Thread: UN 1.1/2" x 16
- PCD Range: 98–121 mm
- Maximum Wheel Stud Size: M14
- Center Bore Capacity: 74 mm
Package Contents
- 1 × Slide Hammer
Item No. 118128
Connection Thread: M18 x 2.5 - 1 × Wheel Hub and Driveshaft Puller Flange
Item No. 118127
