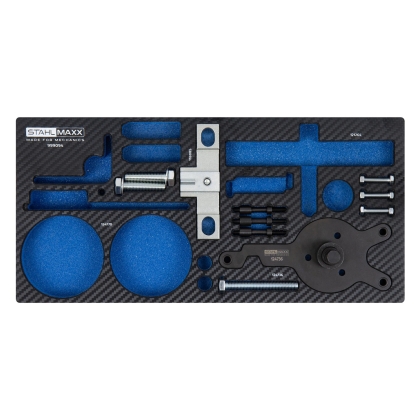

Timing and High-Pressure Pump Tool Set for Ford 2.0L EcoBlue Wet-Belt Engines

Price: €175.00

Code:

999094-2
Weight:

1.826 Kgs

Overview:
✔ Complete set for engine timing and high-pressure pump replacement
✔ For Ford 2.0L EcoBlue engines with a belt-in-oil timing system
✔ Also suitable for specified VAG 2.0L TDI applications from 2025
✔ Includes flywheel locking, crankshaft pulley removal and timing tools
✔ Supplied in a robust case with a fitted carbon-look foam insert

Set Version: Complete SetTiming ToolsHP Pump Tools

Temporarily Unavailable

Add to wishlist

Timing and High-Pressure Pump Tool Set for Ford 2.0L EcoBlue Wet-Belt Engines

Send to friend

Rate this product

Professionally assembled special tool set for engine repair, setting the engine timing and removing or installing the high-pressure fuel pump on widely used Ford 2.0L EcoBlue engines with a wet timing belt.

These engines are also installed in specified VAG vehicles from 2025.

The complete set, item no. 999094, contains all special tools included in variants 1 and 2.

Recommendations

Observe the special tools listed under “Additional Tools” for the relevant repair.

We recommend replacing the bonded front timing cover.
Use a suitable 3/4″ drive tool when loosening and tightening the central crankshaft bolt.
The crankshaft nose has a long precision fit inside the pulley, which can make removal difficult.
The set includes the most common crankshaft pulley puller version for pulleys with two threaded mounting holes.
Two additional crankshaft pulley designs are used. Check the pulley design and part no. before beginning the repair.

Always follow the applicable manufacturer repair instructions.

Storage

The tools are supplied in a robust storage case with a precisely fitted foam insert.

The insert has a durable, wipe-clean carbon-look coating and is also suitable for commonly used workshop and service trolleys.

Compatible Engine Codes

Ford 2.0L EcoBlue:

BC2X, BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFB, BCFC, BCFD, BCRA, BCRB, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, DZJA, DZJF, T20DD0J, YLCA, YLCB, YLCC, YLDA, YLDC, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMRA, YMR6, YN2X, YNCA, YNF6, YNFA, YNFB, YNFS, YNRA, YNR6, YNSX

VAG 2.0L TDI from 2025:

DZJA, DZJF

Suitable Vehicles

Vehicles with Ford or VAG 2.0L TDCi EcoBlue engines:

Edge, Focus, Galaxy, Mondeo, Ranger, S-MAX, Tourneo Custom, Transit, Transit Custom

VAG:

Transporter T7

Reference Torque Values

Reference application: 2.0L EcoBlue, engine code YMFS, Ford Tourneo Custom.

Starter motor: 35 Nm
Auxiliary drive-belt tensioner: 48 Nm
Crankshaft pulley: 10 Nm, loosen by 60°, 20 Nm, 70 Nm, 150 Nm, loosen by 90°, 100 Nm, 300 Nm + 90°
Timing-belt tensioner: 25 Nm

Torque specifications can differ depending on the engine and vehicle version. Always verify all values using the applicable manufacturer repair instructions.

To Be Used as Ford and VAG

204-158-01, 205-295, 303-1635, 303-1637, 303-1643, 303-1650

Scope of Delivery

1 × flywheel locking tool for Gen. 2 EcoBoost, EcoBlue and Duratec engines, item no. 118885, to be used as Ford 303-1643
1 × crankshaft pulley puller for Ford 2.0L EcoBlue TDCi, item no. 121264, to be used as Ford 205-295 and 204-158-01
1 × high-pressure fuel pump removal and installation tool for Ford 2.0L EcoBlue, item no. 124736, to be used as Ford 303-1635
1 × crankshaft and camshaft timing tool set for Ford 2.0L EcoBlue, item no. 124770, to be used as Ford 303-1637 and 303-1650
1 × 1/3 carbon-look foam insert, 395 × 187 × 32 mm, item no. 999094S
1 × 1/3 Stahlmaxx storage case, item no. 115269

Available Set Variants

Complete set, item no. 999094:

Includes all special tools from variants 1 and 2.

Variant 1, item no. 999094-1:

Special timing tool set for Ford 2.0L EcoBlue diesel engines with a wet timing belt.

Variant 2, item no. 999094-2:

Special tool set for removing and installing the high-pressure fuel pump on Ford 2.0L EcoBlue diesel engines.

Original numbers are provided for comparison purposes only. This is not an original tool.

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

FORD FOCUS IV (HN) (01.2018 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD FOCUS IV (HN) (01.2018 - ) 2.0 ST EcoBlue (190 hp, 140 kW) FORD FOCUS IV Turnier (HP) (09.2018 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD FOCUS IV Turnier (HP) (09.2018 - ) 2.0 ST EcoBlue (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (120 hp, 88 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (150 hp, 110 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue AWD (150 hp, 110 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue Bi-Turbo (240 hp, 176 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 TDCi (120 hp, 88 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 TDCi (150 hp, 110 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 TDCi AWD (150 hp, 110 kW) FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD KUGA III (DFK) (07.2019 - ) 2.0 EcoBlue mHEV (150 hp, 110 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 TDCi (150 hp, 110 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 TDCi AWD (150 hp, 110 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 TDCi (150 hp, 110 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 TDCi AWD (150 hp, 110 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 TDCi (150 hp, 110 kW) FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 TDCi AWD (150 hp, 110 kW) FORD RANGER (TKE) (04.2011 - ) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD RANGER (TKE) (04.2011 - ) 2.0 EcoBlue AWD (213 hp, 157 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (120 hp, 88 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (150 hp, 110 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (190 hp, 140 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue AWD (150 hp, 110 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue BI-Turbo (240 hp, 176 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 TDCi (120 hp, 88 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 TDCi (150 hp, 110 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 TDCi AWD (150 hp, 110 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 hp, 136 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 hp, 136 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 hp, 125 kW) VW AMAROK (T1A, T1B) (09.2022 - 12.2024) 2.0 TDI 4motion (205 hp, 151 kW)
