Connection Manifold Set for R1234yf A/C Systems, for Testing and Charging, without Pressure Regulator

This connection manifold set is designed for the maintenance, charging, testing and pressure testing of air conditioning systems using refrigerant R1234yf. It is suitable for workshop use and can be connected directly to an A/C service station, making it a practical addition to existing A/C diagnostic and pressure testing equipment.

With this set, the workshop or mechanic can independently test an R1234yf system and pressure test the A/C system with nitrogen or forming gas, without first having to flush manifold components that may have been contaminated by R134a. This makes it especially useful when working on dedicated R1234yf systems and when avoiding cross-contamination between refrigerants is important.

Because a pressure regulator is typically already available in combination with the pressure gas cylinder, this set is supplied without a pressure regulator.

Suitable for Refrigerant

• R1234yf

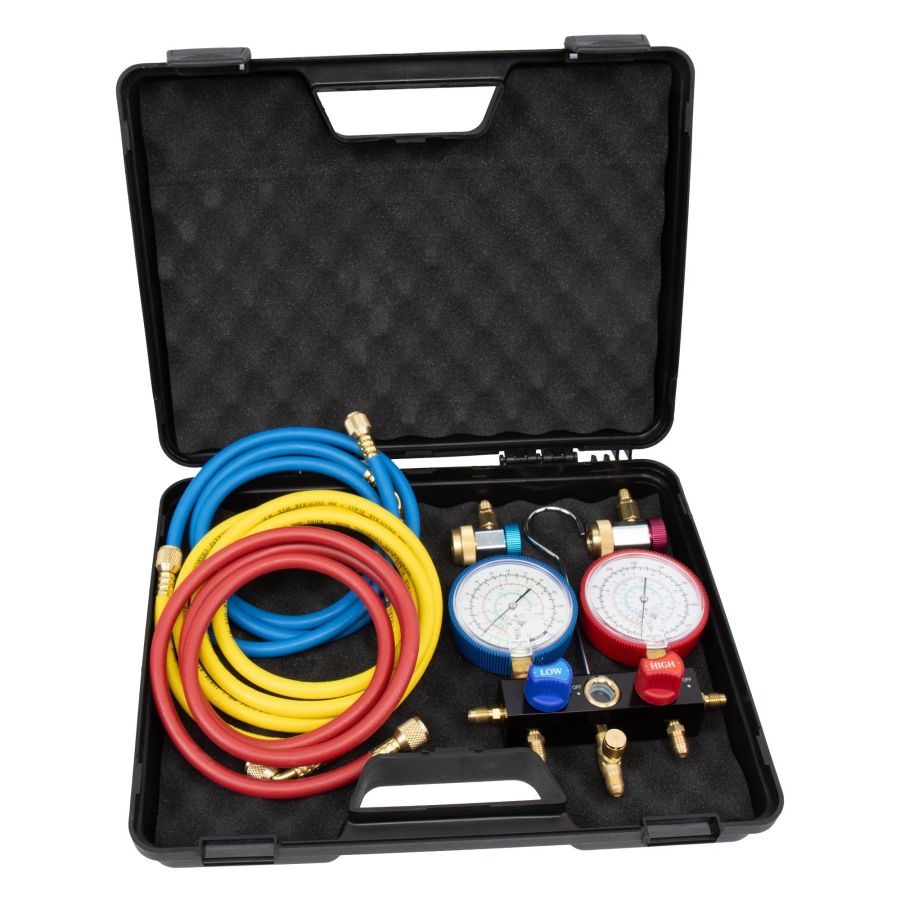

Scope of Delivery

• 1 x 2-valve test manifold with damped diaphragm pressure gauges, Ø 80 mm, high-pressure and low-pressure
• 1 x connection hose, 1.8 m, yellow
• 1 x connection hose, 1.5 m, red, connection SAE 1/2 female, 12 mm male
• 1 x connection hose, 1.5 m, blue, connection SAE 1/2 female, 12 mm male
• 1 x R1234yf quick coupler valve, high-pressure
• 1 x R1234yf quick coupler valve, low-pressure
• 1 x practical storage case

Applications

• Servicing R1234yf A/C systems
• Charging and checking A/C systems
• Pressure testing with nitrogen or forming gas
• Leak testing and diagnostic work on R1234yf systems
• Workshop use as an extension to existing A/C service equipment
