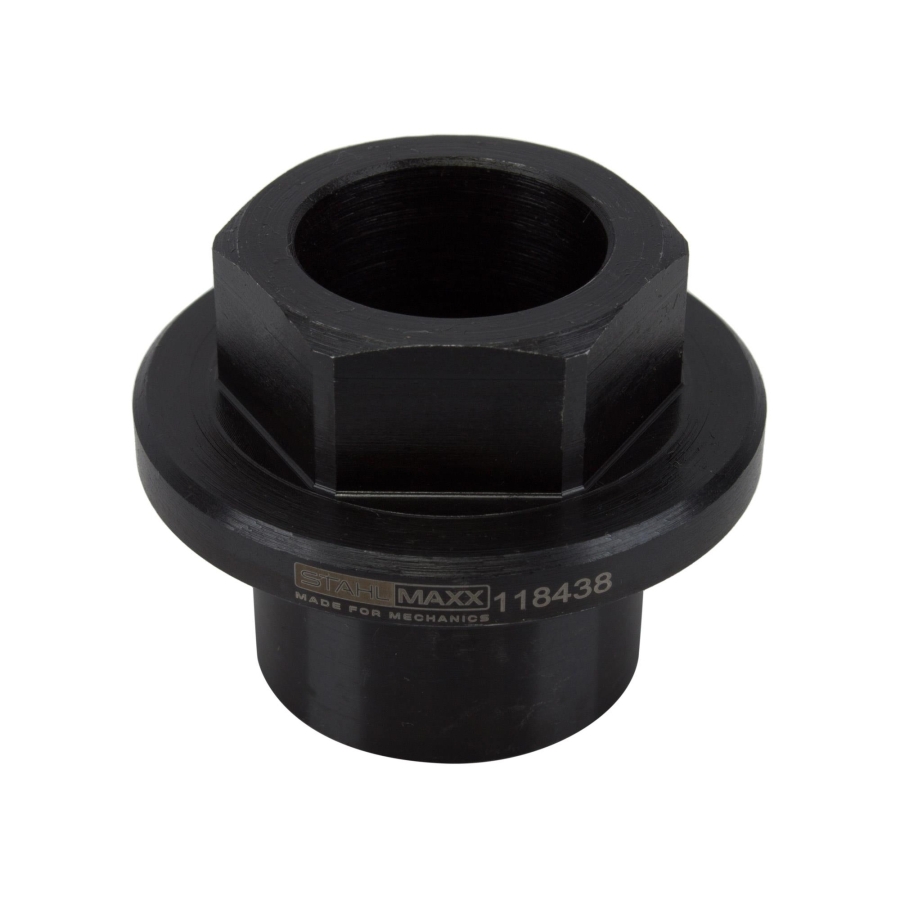

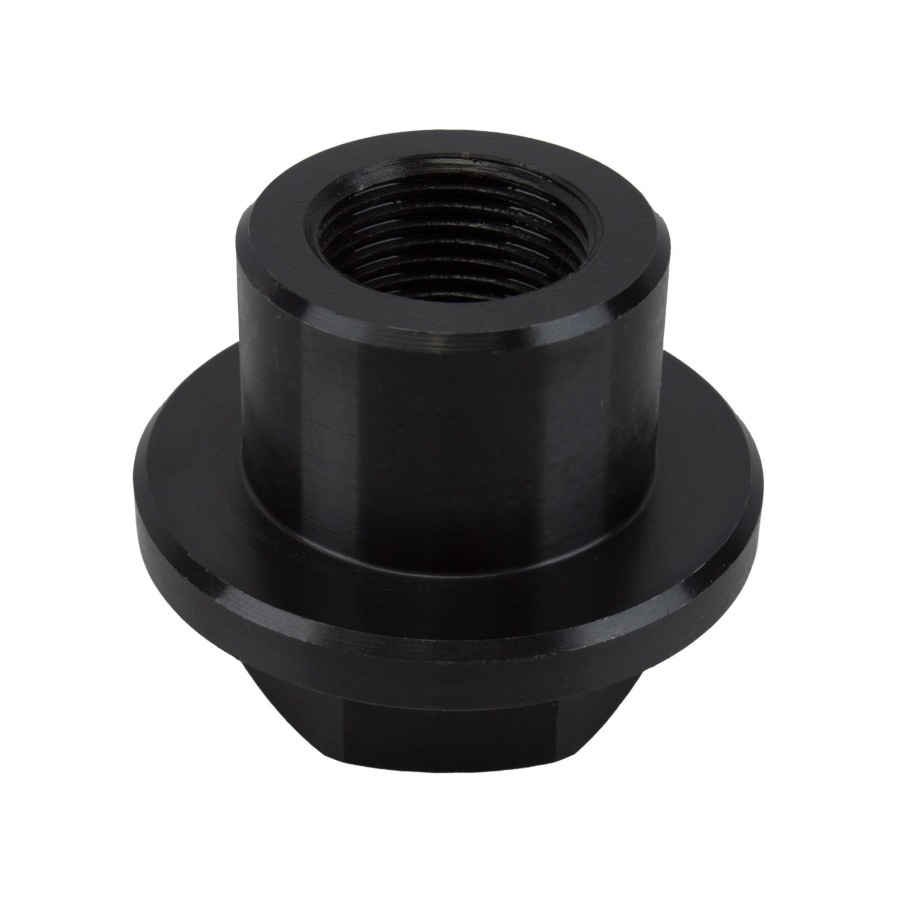

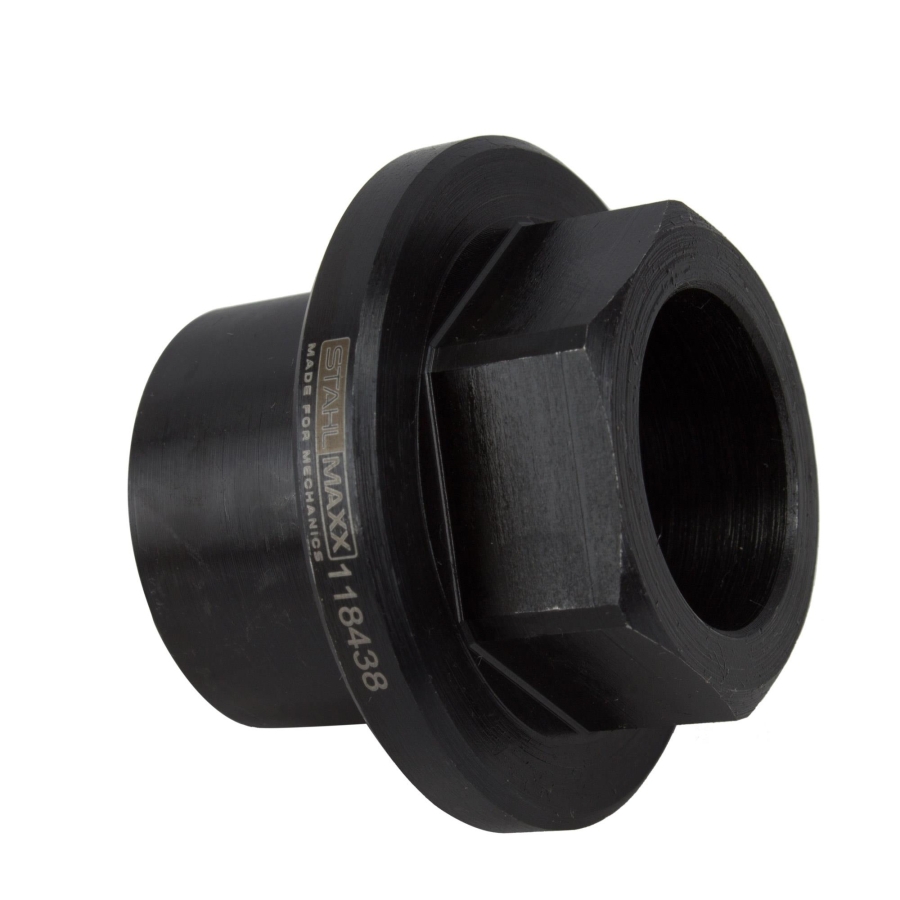

Rear Wheel Bearing Installation Tool for VAG as VW 3420

Price: €19.50 38.14лв.

Code:

118438
Weight:

0.180 Kgs

Overview:
✔ Special tool for installing rear wheel bearing and hub assemblies
✔ Designed for use as VAG OEM tool VW 3420
✔ Prevents bearing misalignment and damage during installation
✔ Applies force to the inner bearing race as specified by professional repair procedures
✔ Suitable for many Audi, Volkswagen, SEAT and Škoda models
✔ Fits rear axle stub shafts with M20 × 1.5 thread
✔ Helps extend wheel bearing service life and prevent premature failures

Rear Wheel Bearing Installation Tool for VAG as VW 3420

Send to friend

Rate this product

This special installation tool, designed for use as VAG tool VW 3420, is intended for the professional installation of rear wheel bearing and wheel hub assemblies on a wide range of VAG vehicles.

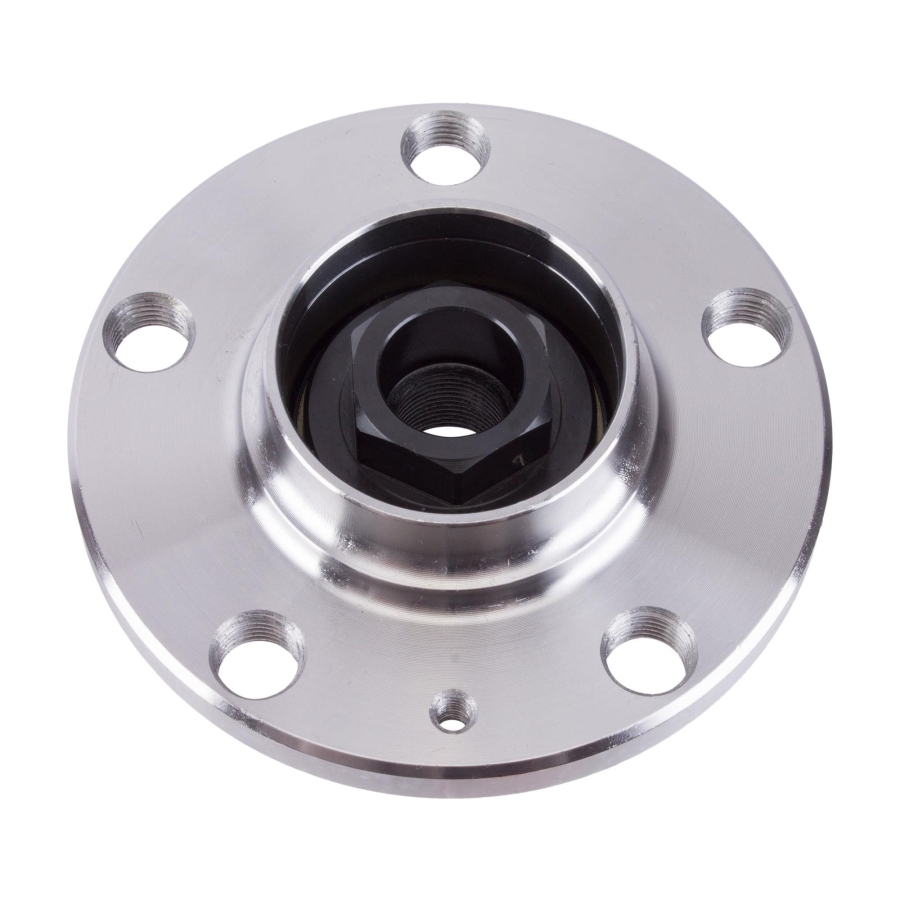

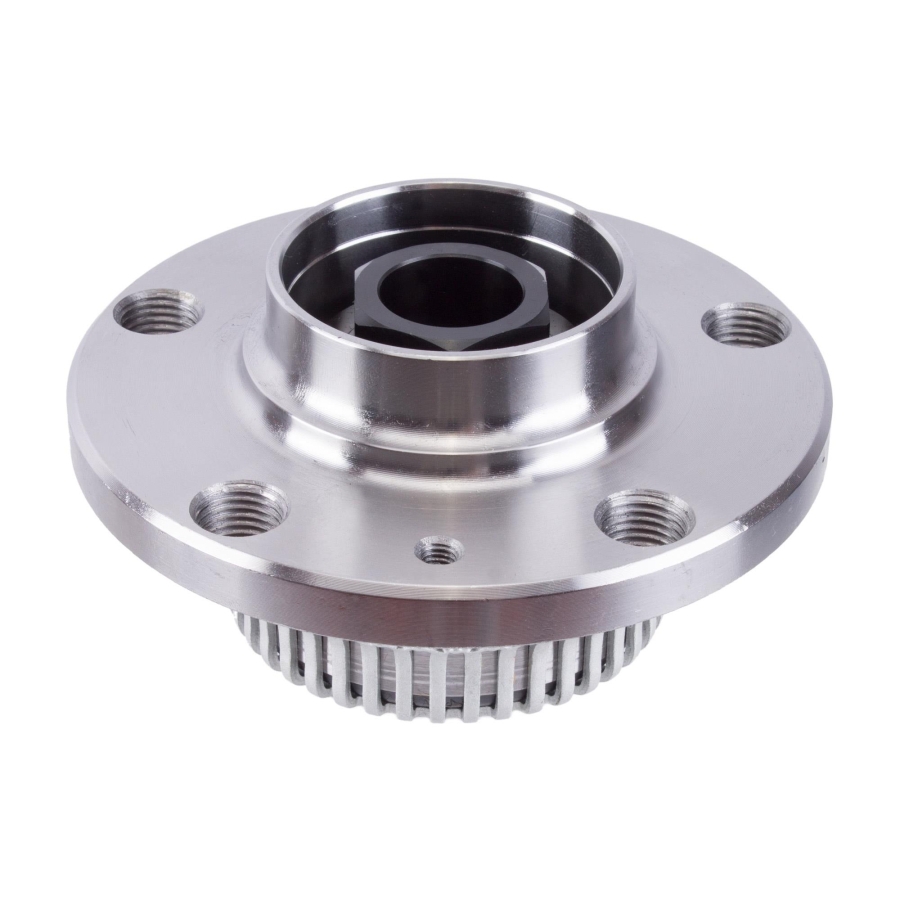

The tool enables the wheel bearing unit to be pressed onto the rear axle stub shaft correctly and without unnecessary stress on the bearing assembly.

Additional Information

Due to the wide range of applications, not all compatible vehicle models can be listed.

Please compare the wheel bearing specifications and application requirements before purchase.

Safe Wheel Bearing Installation

Applying installation force to the outer hub can cause the wheel bearing to become misaligned, resulting in displacement or distortion of the inner sleeve.

Such installation errors can lead to premature wheel bearing failure or wear of the axle stub shaft.

This tool applies installation force directly to the inner bearing race, allowing the wheel bearing assembly to be mounted cleanly, accurately and without internal stress.

It also helps prevent damage to the wheel hub, wheel bearing assembly and bearing seals.

Technical Specifications

Designed for use as VW 3420
For rear wheel bearing and hub assembly installation
Fits rear axle stub shafts with M20 × 1.5 thread
Professional workshop-quality construction

Wheel Bearing Compatibility

Suitable for wheel bearings such as:

SKF VKBA 3456
FAG 713 6102 20
NK 764715

Vehicle Compatibility

Audi

Audi A1 (2010–2019)
Audi A2 (2000–2005)
Audi A3 (1996–2003)
Audi TT (1998–2006)

SEAT

SEAT Arosa (1997–2004)
SEAT Ibiza (1993–present)
SEAT Cordoba (1996–2009)
SEAT Leon (1999–2006)
SEAT Toledo (1998–2006)

Škoda

Škoda Fabia (1999–present)
Škoda Roomster (2006–2015)
Škoda Octavia (1999–2010)

Volkswagen

Volkswagen Bora (1998–2005)
Volkswagen Caddy (1995–2004)
Volkswagen Fox (2003–2014)
Volkswagen Golf (1993–2005)
Volkswagen Lupo (1998–2005)
Volkswagen Polo (1994–present)

Reference Numbers

Can be used as:

VAG VW 3420

Original numbers are for comparison purposes only. This is not an original manufacturer tool.

AUDI A3 (8L1) (09.1996 - 09.2006) 1.6 (101 HP, 74 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.6 (102 HP, 75 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.8 (125 HP, 92 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.8 T (150 HP, 110 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.8 T (180 HP, 132 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.8 T quattro (150 hp, 110 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.8 T quattro (180 HP, 132 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (100 HP, 74 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (110 HP, 81 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (130 HP, 96 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (90 HP, 66 kW) AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI quattro (130 HP, 96 kW) AUDI A3 (8L1) (09.1996 - 09.2006) S3 quattro (210 HP, 154 kW) AUDI A3 (8L1) (09.1996 - 09.2006) S3 quattro (224 HP, 165 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T (150 HP, 110 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T (163 HP, 120 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T (180 HP, 132 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T (182 HP, 134 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T (190 HP, 140 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (180 HP, 132 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (182 HP, 134 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (190 HP, 140 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (224 HP, 165 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (228 HP, 168 kW) AUDI TT (8N3) (10.1998 - 12.2006) 1.8 T quattro (245 HP, 180 kW) AUDI TT (8N3) (10.1998 - 12.2006) 3.2 VR6 quattro (250 HP, 184 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T (150 HP, 110 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T (163 HP, 120 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T (180 HP, 132 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T (182 HP, 134 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T (190 HP, 140 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T quattro (180 hp, 132 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T quattro (182 HP, 134 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T quattro (190 HP, 140 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T quattro (224 HP, 165 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 1.8 T quattro (228 HP, 168 kW) AUDI TT Roadster (8N9) (10.1999 - 12.2006) 3.2 VR6 quattro (250 HP, 184 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.4 16V (75 HP, 55 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.6 (100 HP, 74 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.6 (102 HP, 75 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.6 16 V (105 HP, 77 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 20V (125 HP, 92 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 20V T (180 HP, 132 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 20V T 4 (180 HP, 132 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 T Cupra R (209 HP, 154 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 T Cupra R (225 HP, 165 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.8 Turbo 4x4 (209 HP, 154 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (100 HP, 74 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (130 HP, 96 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (150 HP, 110 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI Syncro (150 HP, 110 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 2.3 VR5 (170 HP, 125 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 2.8 (204 HP, 150 kW) SEAT LEON (1M1) (11.1999 - 06.2006) 2.8 Cupra 4 (204 HP, 150 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.4 16V (75 HP, 55 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.6 (100 HP, 74 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.6 (102 HP, 75 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.6 16V (105 HP, 77 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.8 20V (125 HP, 92 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.8 20VT (180 hp, 132 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 SDI (68 HP, 50 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (101 HP, 74 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (110 HP, 81 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (130 HP, 96 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (150 HP, 110 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (90 HP, 66 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI 4Dr4e (150 HP, 110 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 2.3 V5 (150 HP, 110 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 2.3 V5 20V (170 HP, 125 kW) SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 2.8 (204 HP, 150 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.4 (60 HP, 44 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.4 16V (75 HP, 55 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.6 (101 HP, 74 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.6 (102 HP, 75 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.6 (75 HP, 55 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.8 (125 HP, 92 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.8 T (150 HP, 110 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.8 T 4x4 (150 HP, 110 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 SDI (68 HP, 50 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (100 HP, 74 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (110 HP, 81 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (130 HP, 96 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (90 HP, 66 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 2.0 (116 HP, 85 kW) SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) RS 1.8 T (180 HP, 132 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.4 16V (75 HP, 55 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.6 (101 HP, 74 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.6 (102 HP, 75 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.6 (75 HP, 55 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.8 20V (125 HP, 92 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.8 T (150 HP, 110 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.8 T 4x4 (150 HP, 110 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 SDI (68 HP, 50kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (100 HP, 74 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (110 HP, 81 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (130 HP, 96 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (90 HP, 66 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI 4x4 (100 hp, 74 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI 4x4 (90 HP, 66 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 2.0 (116 HP, 85 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 2.0 4x4 (116 HP, 85 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 2.0 4x4 (120 HP, 88 kW) SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) RS 1.8 T (180 HP, 132 kW) SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 D (68 HP, 50 kW) SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 TDI (90 HP, 66 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 (64 HP, 47 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 (70 HP, 51 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 LPG (69 HP, 51 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TDI (75 HP, 55 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (105 HP, 77 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (86 HP, 63 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.4 (86 HP, 63 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.4 LPG (86 HP, 63 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.4 TDI (70 HP, 51 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.4 TDI (80 HP, 59 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.6 (105 HP, 77 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.6 LPG (105 HP, 77 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.6 TDI (105 HP, 77 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.6 TDI (90 HP, 66 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.9 TDI (101 HP, 74 kW) SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.9 TDI (105 HP, 77 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.4 16V (75 HP, 55 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.6 (101 HP, 74 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.6 (102 HP, 75 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.6 (107 HP, 78 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.6 16V (105 HP, 77 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.6 FSI (110 HP, 81 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 (125 HP, 92 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 4motion (125 HP, 92 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 T (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 T (152 HP, 112kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 T (170 HP, 125 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 T (180 HP, 132 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.8 T 4motion (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 SDI (68 HP, 50 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (101 HP, 74 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (110 HP, 81 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (115 HP, 85 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (130 HP, 96 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (90 HP, 66 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (101 hp, 74 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (115 HP, 85 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (130 HP, 96 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (90 HP, 66 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.0 (115 HP, 85 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.0 (173 HP, 127 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.0 4motion (115 HP, 85 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 (170 HP, 125 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 4motion (150 HP, 110 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 4motion (170 HP, 125 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.8 V6 4motion (204 HP, 150 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.8 VR6 (177 HP, 130 kW) VW BORA (1J2) (10.1998 - 12.2013) 2.8 VR6 (200 HP, 147 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.4 16V (75 HP, 55 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.6 (100 HP, 74 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.6 (102 HP, 75 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.6 16V (105 HP, 77 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.6 FSI (110 HP, 81 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.8 4motion (125 HP, 92 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.8 T (150 HP, 110 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.8 T (173 HP, 127 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.8 T (180 HP, 132 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (101 HP, 74 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (110 HP, 81 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (115 HP, 85 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (130 HP, 96 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (150 HP, 110 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (90 HP, 66 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI 4motion (101 HP, 74 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI 4motion (115 HP, 85 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI 4motion (130 HP, 96 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI 4motion (150 HP, 110 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.0 (115 HP, 85 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.0 4motion (115 HP, 85 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.0 4motion (120 HP, 88 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 (150 HP, 110 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 (170 HP, 125 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 4motion (150 HP, 110 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 4motion (170 HP, 125 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.8 V6 4motion (204 HP, 150 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.8 VR6 (177 HP, 130 kW) VW BORA Variant (1J6) (05.1999 - 05.2005) 2.8 VR6 (204 HP, 150 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.0 (58 HP, 43 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.0 (69 HP, 51 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.0 Turbo (111 HP, 82 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.4 16V (75 hp, 55 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 (100 hp, 74 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 (101 hp, 74 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 (102 hp, 75 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 (107 hp, 78 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 (92 hp, 68 kW) kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 16V (105 HP, 77 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 D (54 HP, 40 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 FSI (110 HP, 81 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.6 Total Flex (103 HP, 76 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 (105 HP, 77 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 (125 HP, 92 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 (173 HP, 127 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 (90 HP, 66 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 4motion (125 HP, 92 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 GTI (173 HP, 127 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 T (150 HP, 110 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.8 T GTI (180 HP, 132 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 SDI (68 HP, 50 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TD (75 HP, 55 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (101 HP, 74 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (110 HP, 81 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (115 hp, 85 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (130 hp, 96 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (150 hp, 110 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI (90 hp, 66 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (101 hp, 74 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (115 HP, 85 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (130 HP, 96 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (150 HP, 110 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (90 HP, 66 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.0 (115 HP, 85 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.0 4motion (115 HP, 85 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.0 BiFuel (116 HP, 85 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.3 V5 (150 HP, 110 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.3 V5 (170 HP, 125 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.3 V5 4motion (150 HP, 110 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.3 V5 4motion (170 HP, 125 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.8 VR6 (177 HP, 130 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.8 VR6 (200 HP, 147 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 2.8 VR6 4motion (204 HP, 150 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 3.2 R32 4motion (241 HP, 177 kW) VW GOLF 4 (1J1) (08.1997 - 12.2007) 3.2 R32 4motion (243 HP, 179 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 SDI (68 HP, 50 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 TDI (110 HP, 81 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 TDI (116 HP, 85 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 TDI (130 HP, 96 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 TDI (90 HP, 66 kW) VW GOLF 4 Van (1J1) (10.1997 - 05.2004) 1.9 TDI 4motion (116 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.4 16V (75 HP, 55 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.6 (101 HP, 74 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.6 (102 HP, 75 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.6 16V (105 HP, 77 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.6 FSI (110 HP, 81 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.6 FSi (116 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.8 4motion (125 HP, 92 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.8 T (150 HP, 110 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.8 T (152 HP, 112 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.8 T (173 HP, 127 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.8 T (180 HP, 132 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (101 HP, 74 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (115 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (130 HP, 96 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (150 HP, 110 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (101 HP, 74 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (115 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (130 HP, 96 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (150 HP, 110 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (90 HP, 66 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.0 (115 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.0 4motion (115 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.0 4motion (120 HP, 88 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.0 Bi-Fuel (116 HP, 85 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.3 V5 (150 HP, 110 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.3 V5 (170 HP, 125 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.3 V5 4motion (150 HP, 110 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.3 V5 4motion (170 HP, 125 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.8 V6 (177 HP, 130 kW) VW GOLF 4 Variant (1J5) (05.1999 - 06.2006) 2.8 V6 4motion (204 HP, 150 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.4 (75 HP, 55 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.6 (105 HP, 77 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (101 HP, 74 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (116 HP, 85 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (131 HP, 96 kW) VW GOLF VAN 4 Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.4 (75 HP, 55 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.6 (100 HP, 74 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.6 (102 HP, 75 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.8 T (150 HP, 110kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.8 T (173 HP, 127 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.8 T (180 HP, 132 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.9 TDI (101 HP, 74 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.9 TDI (105 HP, 77 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.9 TDI (90 HP, 66 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 2.0 (115 HP, 85 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 2.3 V5 (170 HP, 125 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 2.5 (150 HP, 110 kW) VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 3.2 RSI 4motion (1C9) (224 HP, 165 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.4 (75 HP, 55 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.6 (102 HP, 75 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.8 T (150 HP, 110 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.8 T (173 HP, 127 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.9 TDI (100 HP, 74 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.9 TDI (105 HP, 77 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.9 TDI (90 HP, 66 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 2.0 (115 HP, 85 kW) VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 2.5 (150 HP, 110 kW)
