Rear Axle Trailing Arm Bush Tool Set Right Side for Ford and Volvo

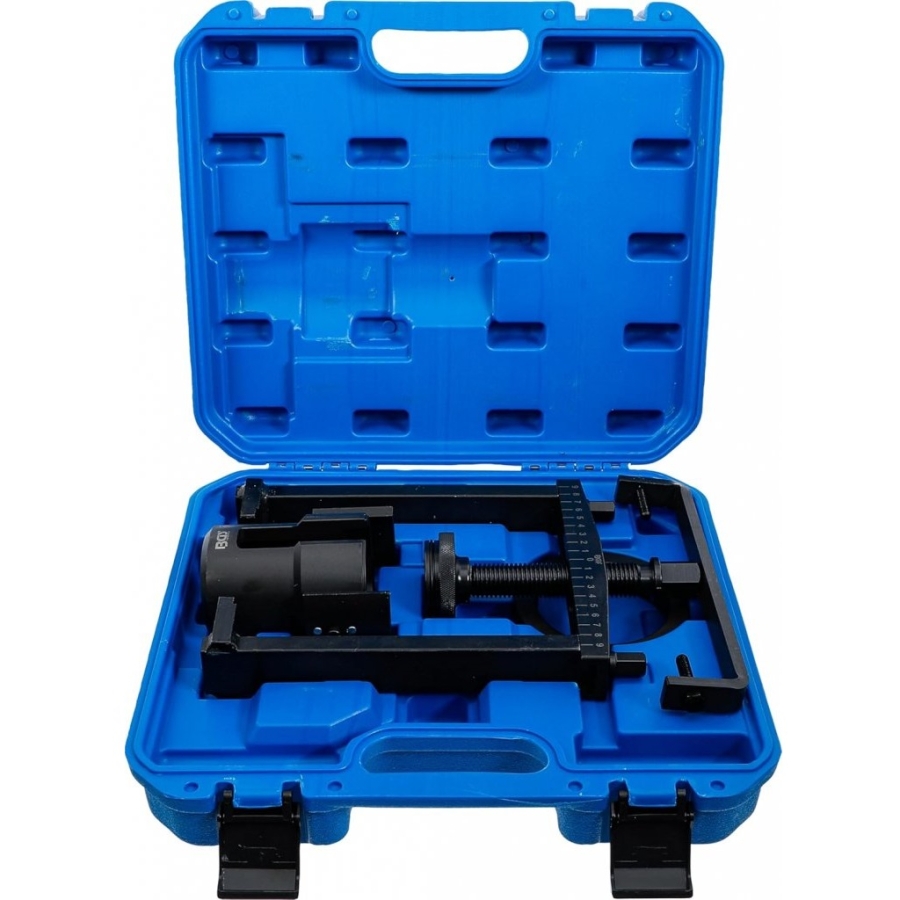

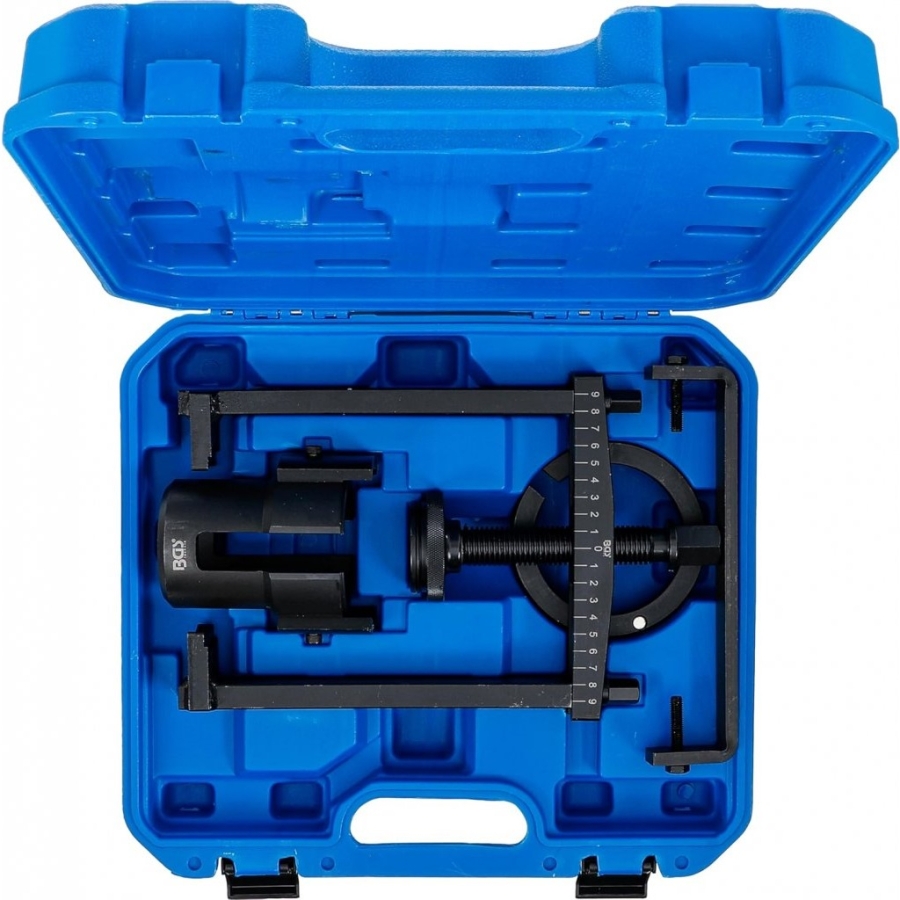

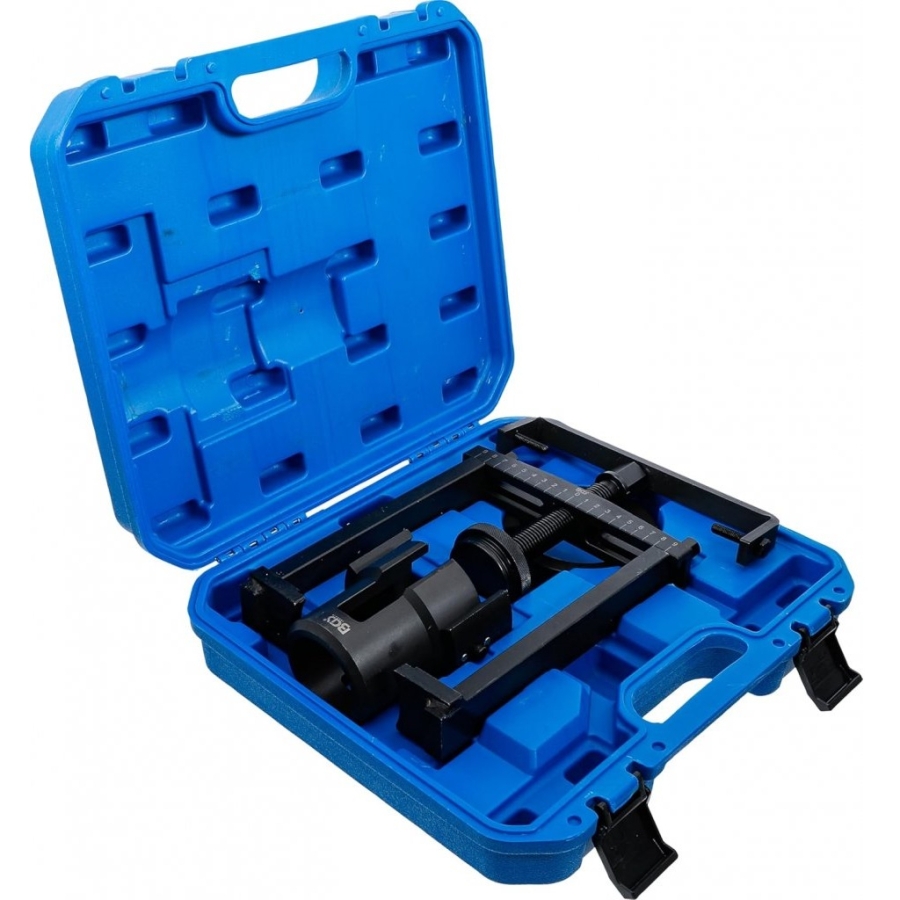

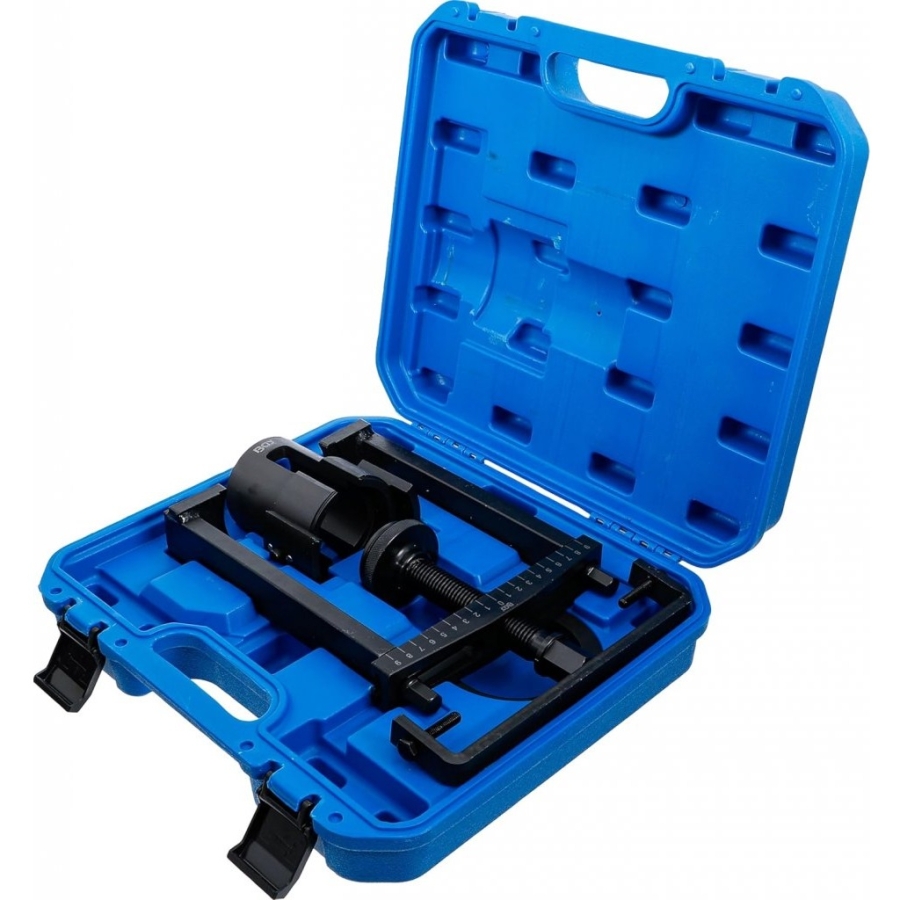

This professional tool set is designed for the removal and installation of rubber-metal bushes fitted in the rear axle trailing arm on selected Ford and Volvo vehicles.

The tool enables efficient replacement of the trailing arm bush directly on the vehicle, eliminating the need to remove the complete rear axle assembly. This significantly reduces repair time and workshop labour costs.

Designed for professional suspension repairs, the tool ensures controlled removal and installation of the bush while helping prevent damage to surrounding suspension components.

Applications

Suitable for:

• Rear axle trailing arm bushes
• Rear suspension rubber-metal bushes
• Suspension repairs
• Rear axle maintenance
• Bush replacement directly on the vehicle

Vehicle Compatibility

Ford

• Mondeo (from 2007)
• Mondeo Estate (2000–2007)
• S-Max (from 2006)
• Galaxy (from 2006)

Volvo (Ford platform models)

• S60 (from 2006)
• S80 (from 2006)
• XC60 (from 2006)
• V70 (from 2006)
• XC70 (from 2006)

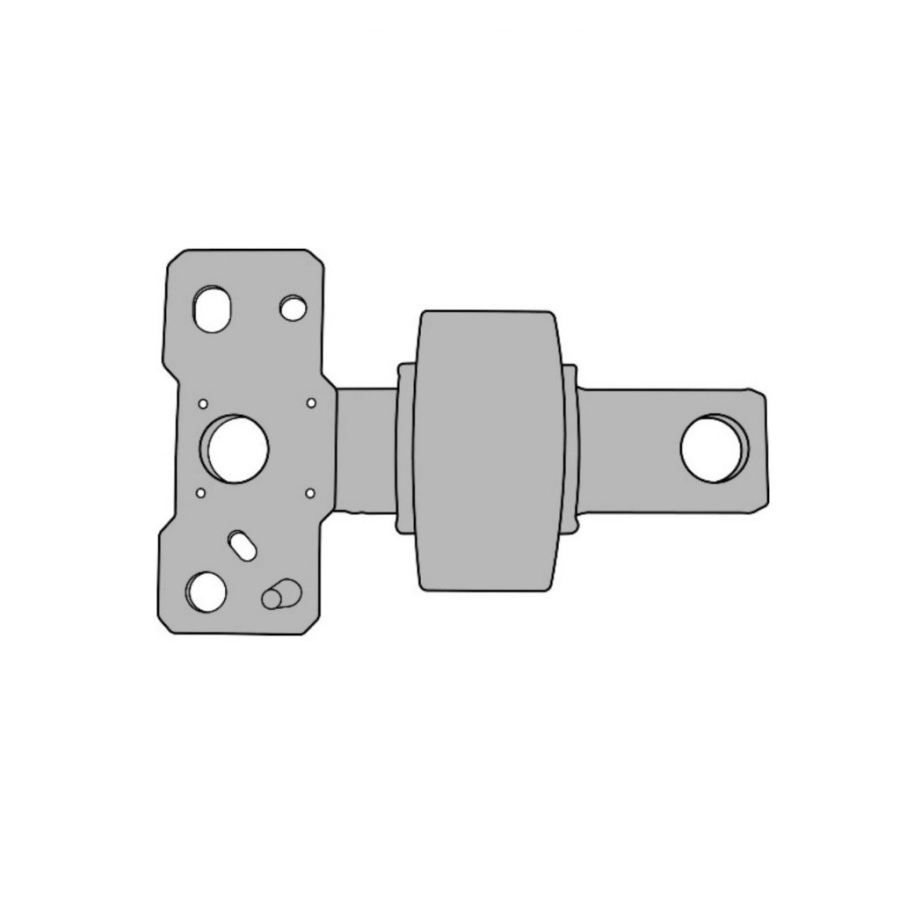

Compatible Bush References

Right Side

Ford

• 1865033
• 2040702
• 6G91-5K896-AA
• 6G91-5K896-AB

Volvo

• 31406337
• 31387280
• 31476221

Left Side (Reference Information)

Ford

• 1865034
• 2040703
• 6G91-5K896-BA
• 6G91-5K896-BB

Volvo

• 31406350
• 31387281
• 31476222

Features

• Designed for right-side rear trailing arm bushes
• No rear axle removal required
• Significant reduction in repair time
• Suitable for Ford and Volvo applications
• Professional workshop quality

Benefits

• Direct on-vehicle servicing
• Reduced labour costs
• Controlled bush extraction and installation
• Minimizes suspension disassembly
• Improves workshop efficiency

OEM numbers and reference numbers are provided for identification and comparison purposes only. This product is not an original manufacturer tool.

Bushing Removal

The following components are required for removal: 1 | 2 | 3 | 4 | 5 | 6 | 7 | 10

Important! Before removing the bushing, mark its installation position on both sides of the trailing arm.

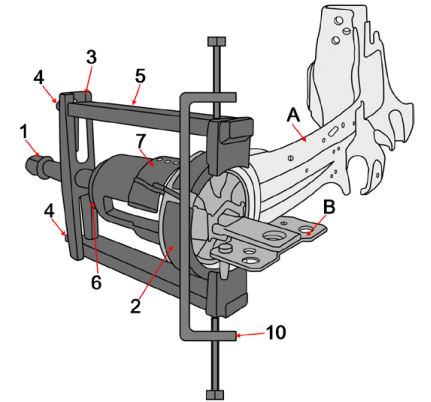

1. Attach the C-ring (2) using the magnets to the side of the trailing arm where the bushing has the larger metal tab.
2. Adjust the frame arms (5) on the frame bridge (3) so that the spindle (1) and sleeve (7) apply even pressure to the bushing from the opposite side.
   • Use the scale on the frame bridge (3) for accurate alignment.
3. Once all components are correctly aligned, the bushing can be removed.

A = Trailing Arm
B = Bushing

Bushing Installation

The following components are required for installation: 1 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10

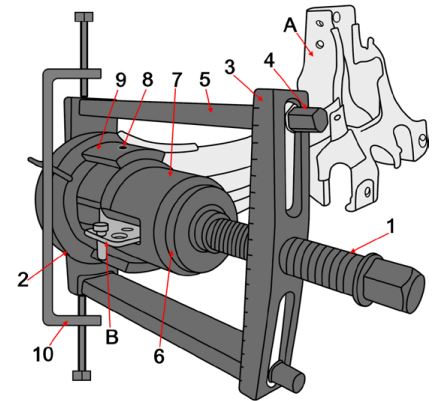

1. Attach the C-ring (2) using the magnets to the side of the trailing arm where the bushing has the smaller metal tab.
2. Install both spacers (9) onto sleeve (7) using the hex socket screws (8).
3. Align the new bushing with the previously made marks using the press frame and apply slight preload.
4. The bushing can now be drawn into position while ensuring the correct installation orientation.
5. Continue pressing the bushing until the spacers (9) contact the trailing arm.
6. Once the bushing is fully installed, remove the tool and reassemble the vehicle.

A = Trailing Arm
B = Bushing
