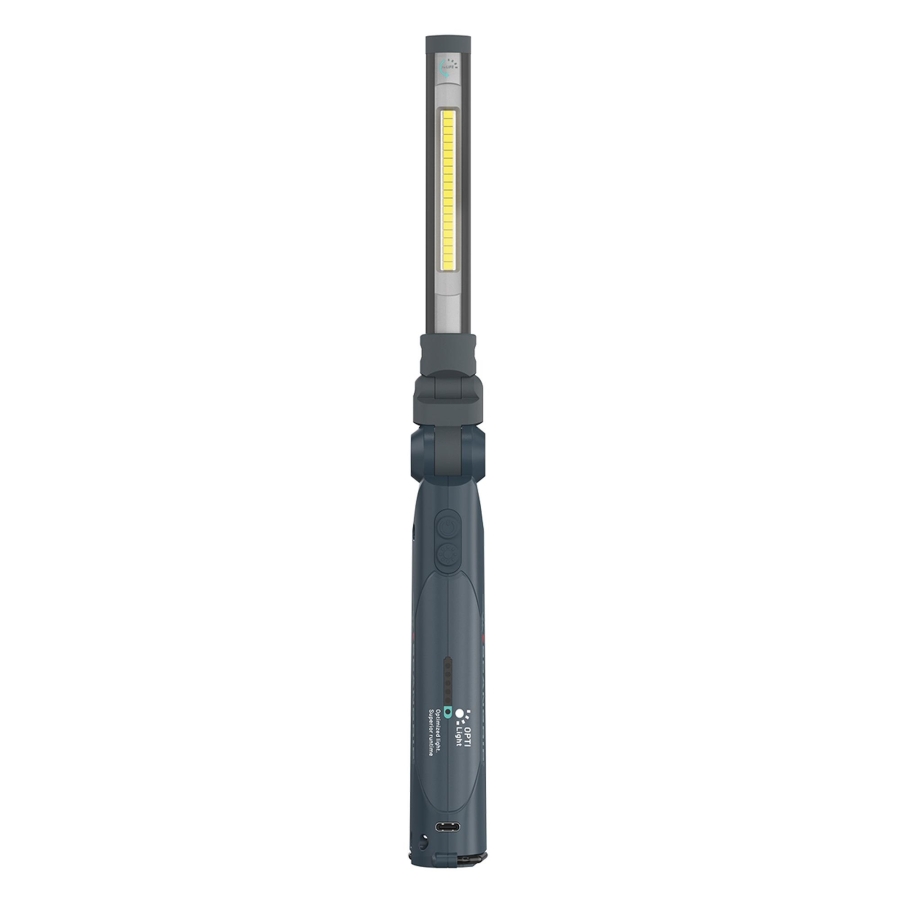

Scangrip SLIM 3-in-1 LED Inspection Light

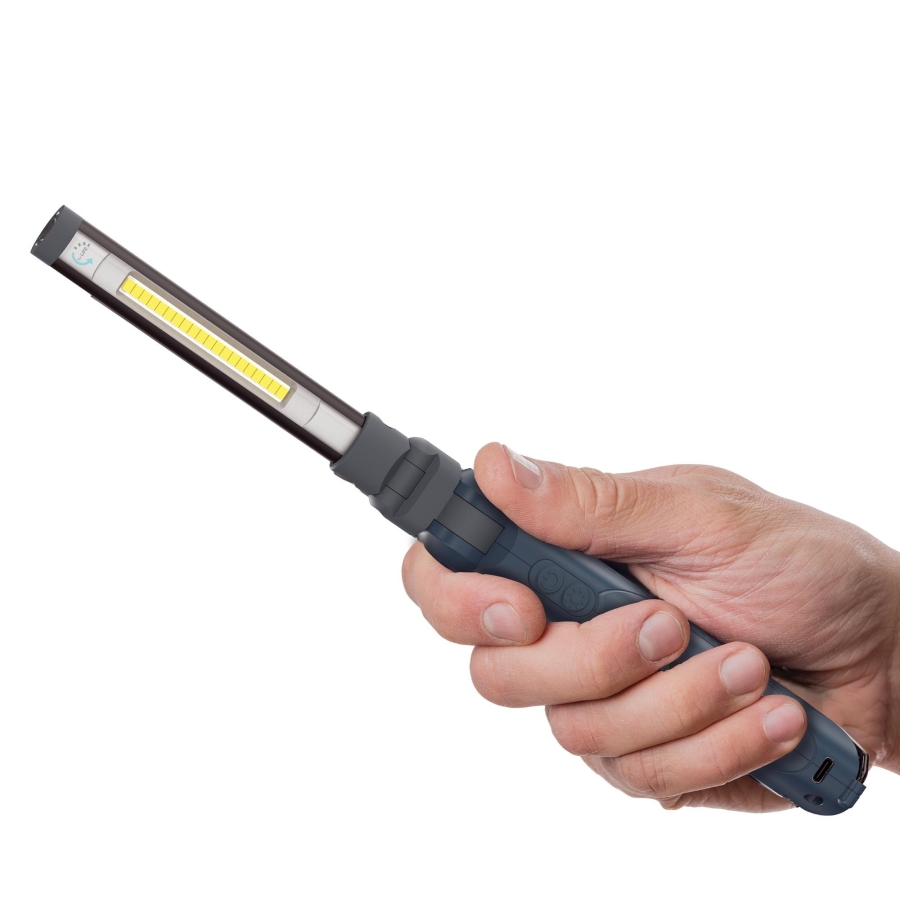

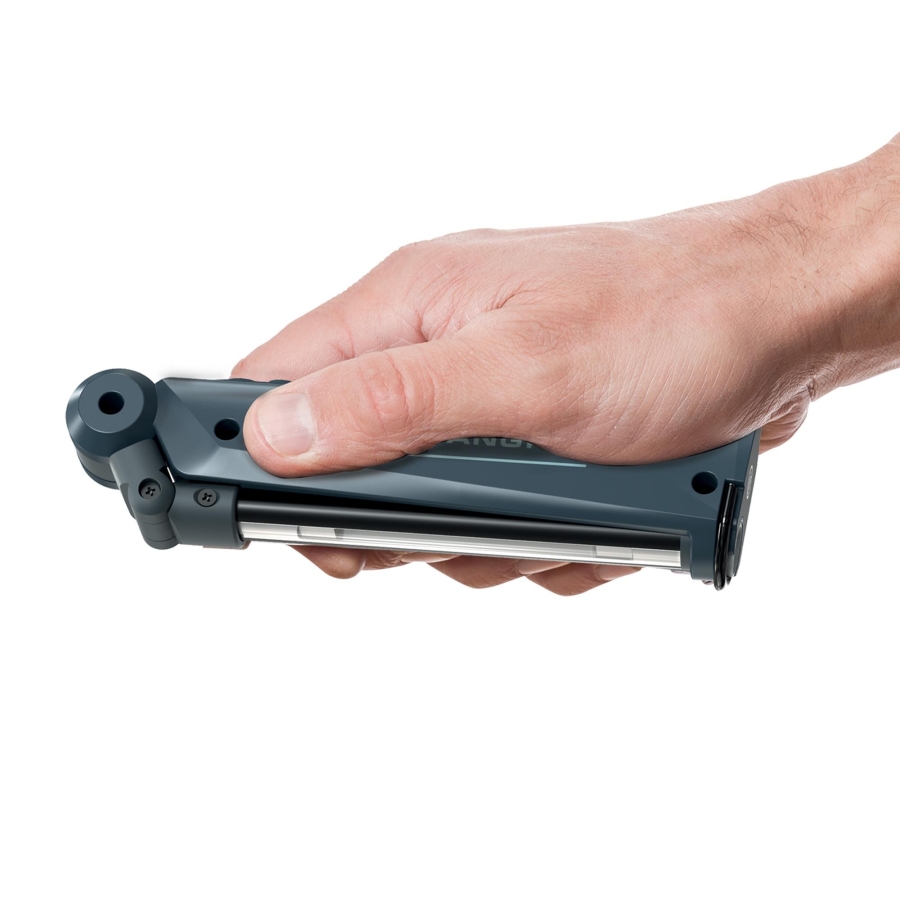

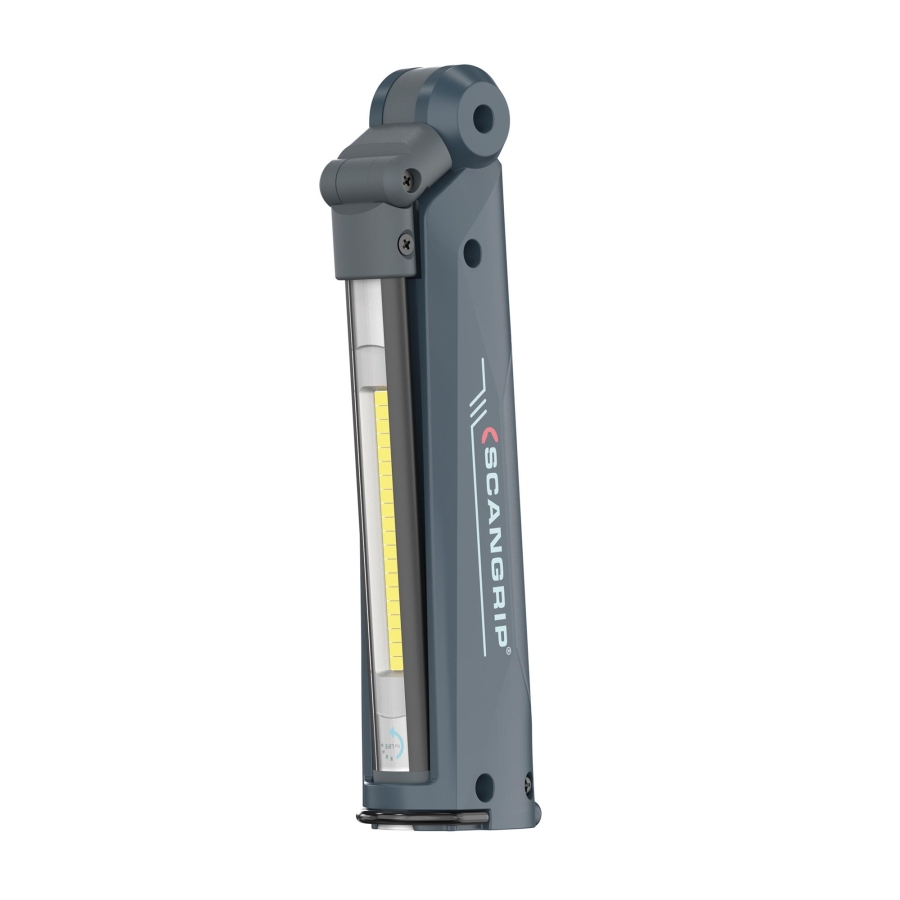

Scangrip SLIM combines an inspection light, work light and flashlight. Its 9 mm diameter light strip reaches into narrow areas during inspections. The lamp can be used by hand or folded completely to form a compact flashlight with a firm grip.

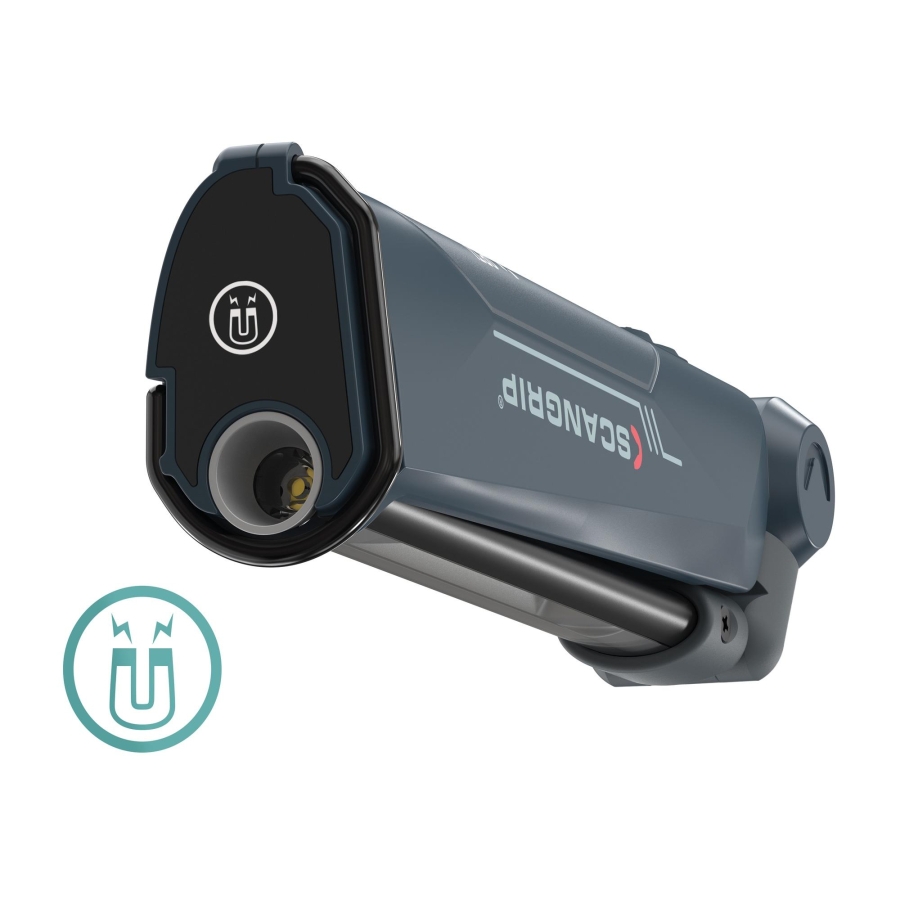

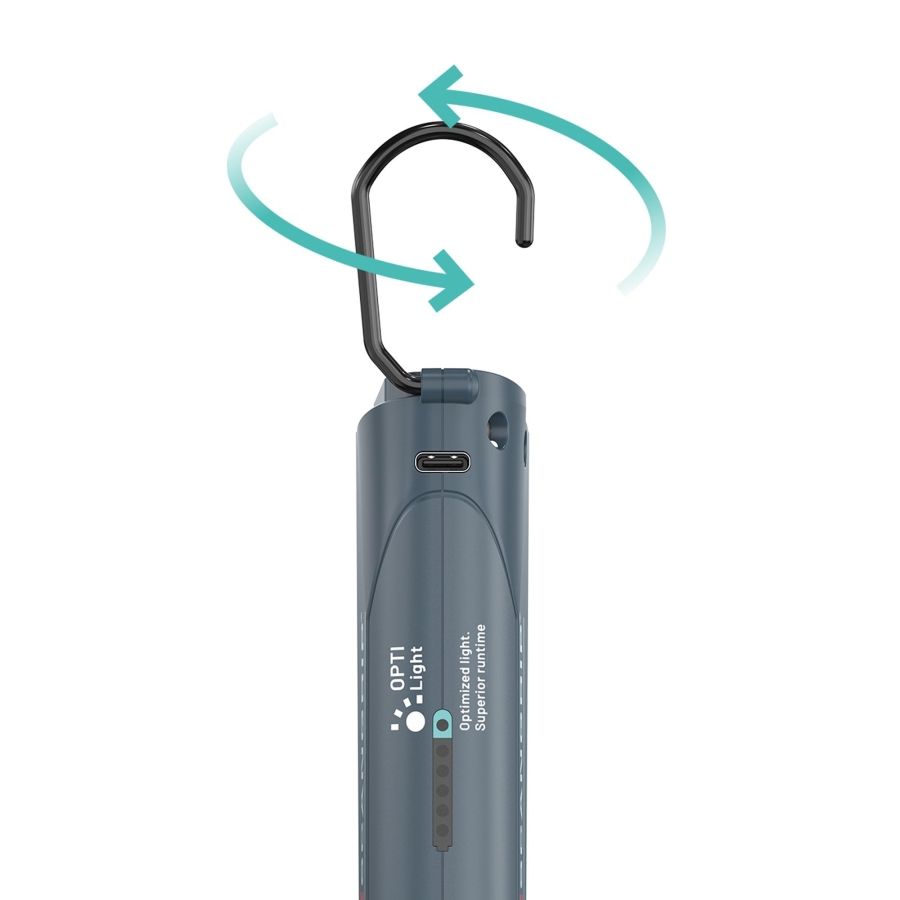

The built-in magnet and hook provide positioning options when both hands are needed. A battery indicator shows the remaining charge.

Main light and spotlight

The main light uses 20 LEDs and offers three brightness levels from 50 to 500 lm. The OPTILight setting provides 500 lx at 0.5 m for typical inspection work, with a stated runtime of 4 hours. A spotlight at the top supplies a focused beam for examining specific components.

Separate power and brightness buttons make it easy to select the light needed for the task. The main light has a 110° beam angle, a colour temperature of 5700 K and a colour rendering index of Ra >80.

Battery and durability

The 3.7 V / 2600 mAh lithium-ion battery provides up to 27 hours of operation at minimum output or 2.5 hours at maximum output. Charging takes approximately 3.5 hours using a 5 V / 1 A USB charger. The included charging cable is 1 m long; a mains charger is not included.

The lamp has IP30 protection, IK07 impact protection and a stated impact resistance of 2 m. Temperature monitoring helps protect the lamp and battery. Scangrip specifies a minimum of 1,000 charging cycles and offers spare parts for the lamp.

Technical specifications

• Main light: 50–500 lm; 20 LEDs; three brightness levels
• OPTILight: 500 lx at 0.5 m; approximately 4 hours of runtime
• Colour temperature: 5700 K
• Battery: lithium-ion, 3.7 V / 2600 mAh
• Charging connection: USB-C
• Operating temperature: −10 °C to +40 °C
• Charging temperature: +5 °C to +40 °C
• Dimensions: 166 × 46 × 29 mm
• Weight: approximately 205 g

Included

• Scangrip SLIM lamp
• 1 m USB charging cable
• User manual
