Solder Seal Wire Connector Assortment with Heat Shrink Tubing – 9 pcs.

This assortment contains nine solder seal wire connectors in three different sizes. Each connector consists of a transparent heat-shrink sleeve with a color-coded ring and an integrated solder ring.

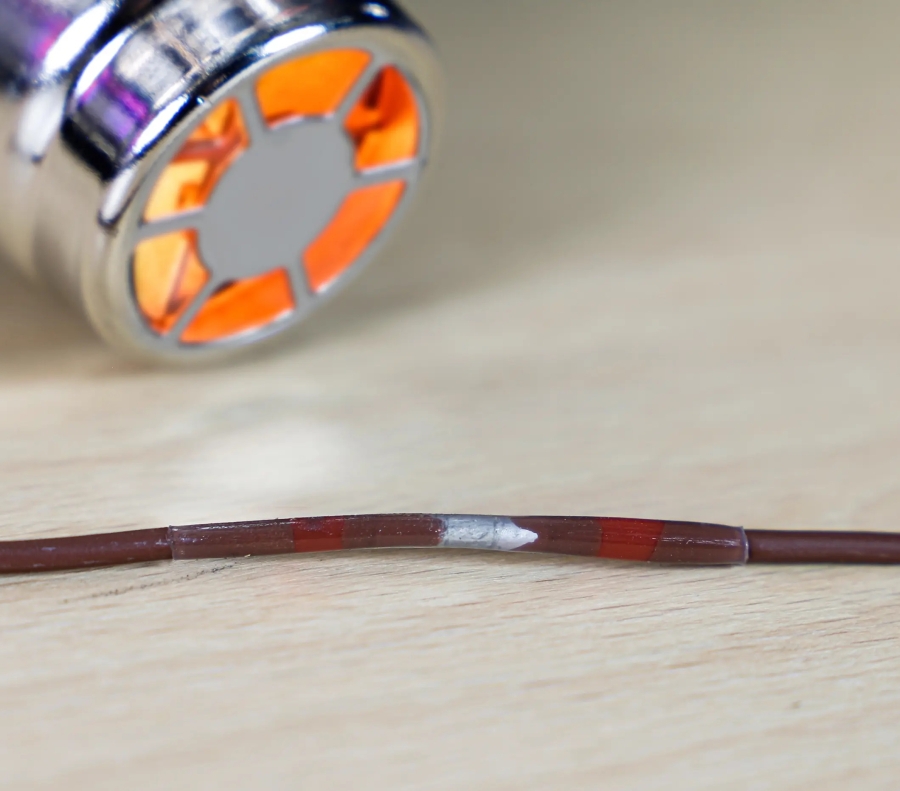

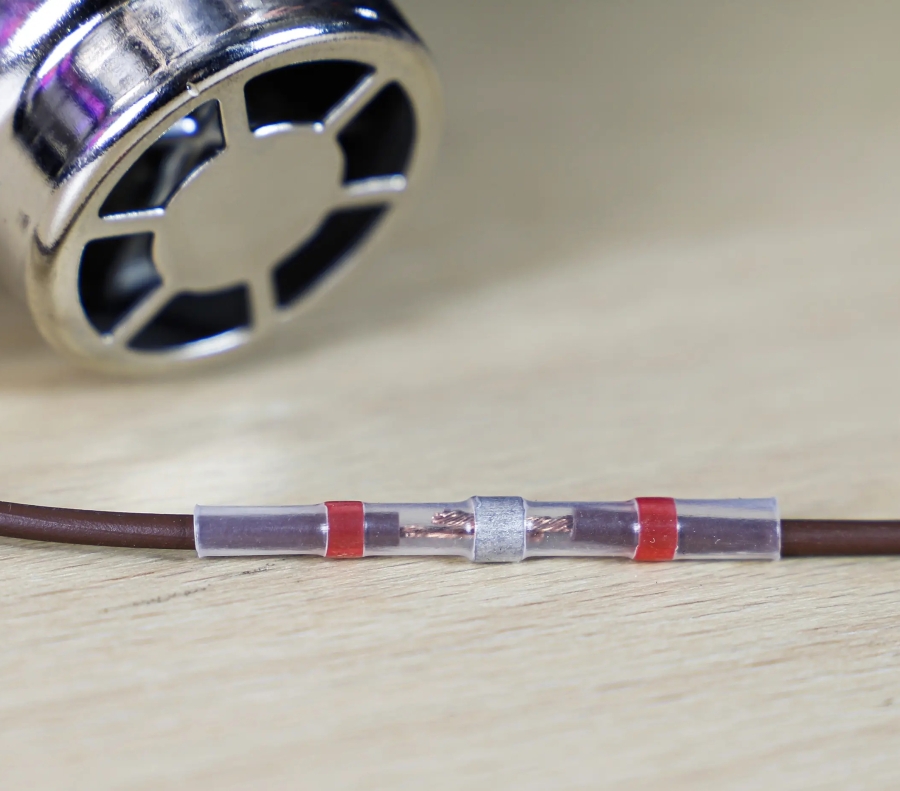

When evenly heated, the solder ring melts while the sleeve shrinks around the cable connection. This allows the cable ends to be soldered and insulated in a single operation.

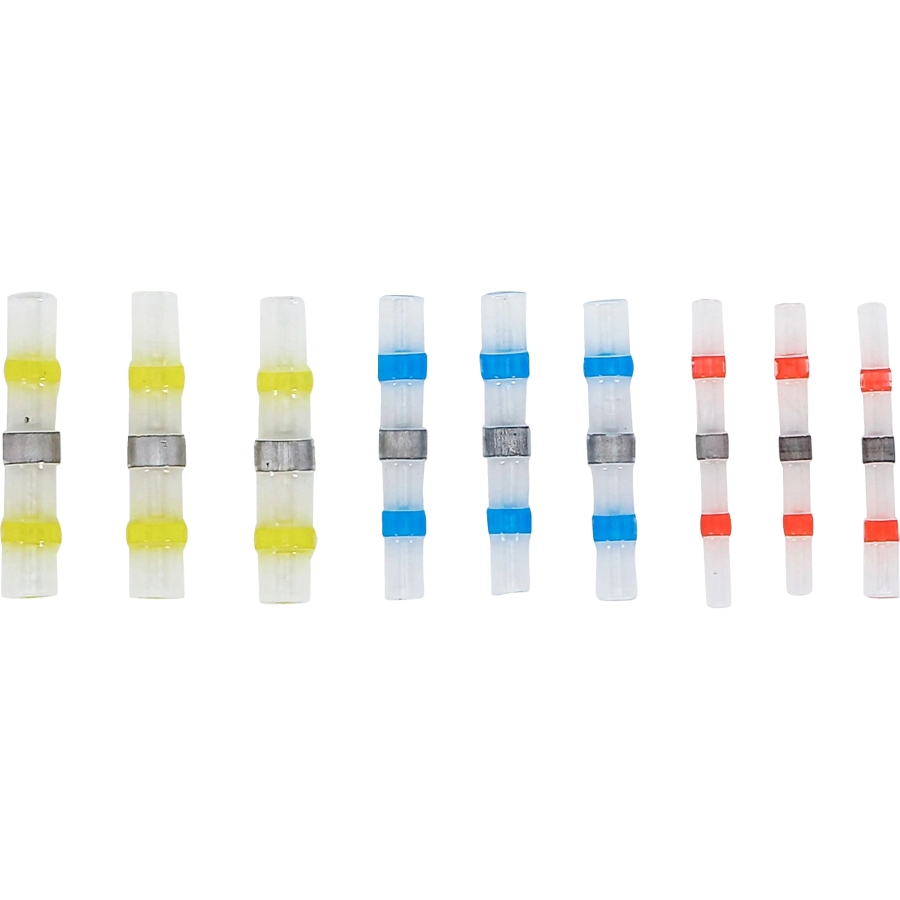

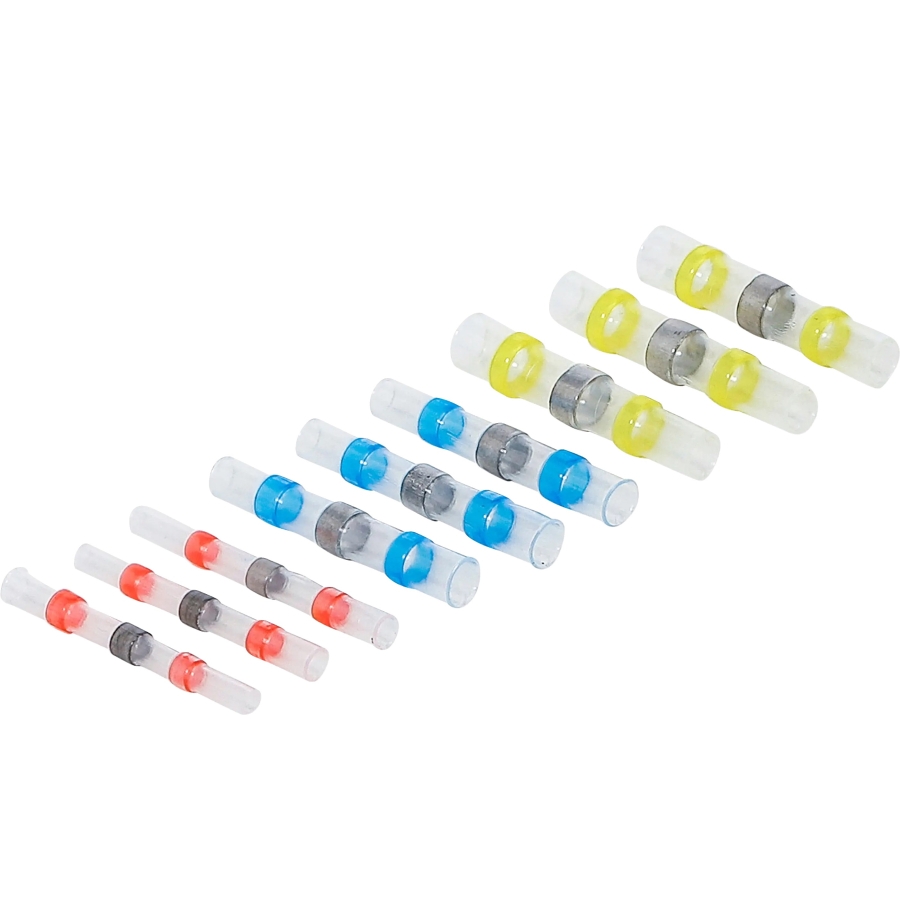

Three Connector Sizes

The set contains three connectors in each of the following sizes:

• 3 connectors, 2.7 mm inside diameter, 40 mm length
• 3 connectors, 4.5 mm inside diameter, 40 mm length
• 3 connectors, 6.8 mm inside diameter, 40 mm length

Temperature Resistance and Protection

The connectors are suitable for a temperature range from -55 to 125 °C. When correctly installed, the completed connection provides an IP67 protection rating.

Technical Data

• Connection method: Simultaneous soldering and heat shrinking
• Inside diameters: 2.7, 4.5 and 6.8 mm
• Length: 40 mm
• Temperature range: -55 to 125 °C
• Protection rating: IP67
• Contents: 9 pcs.
