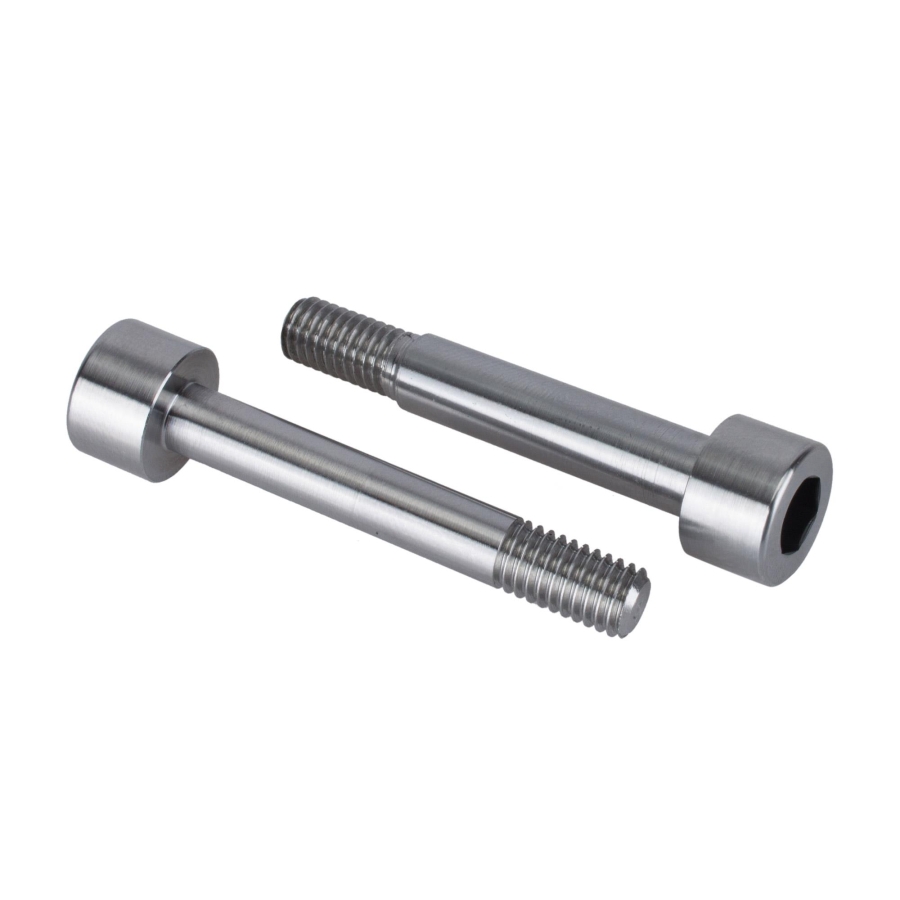

Special Screws for High-Pressure Pump / Timing Belt Pulley

These specially machined screws are required when servicing the timing belt or replacing the injection pump on 1.9L and 2.0L diesel engines used in Alfa Romeo, Fiat, Opel, and Suzuki vehicles.

Function

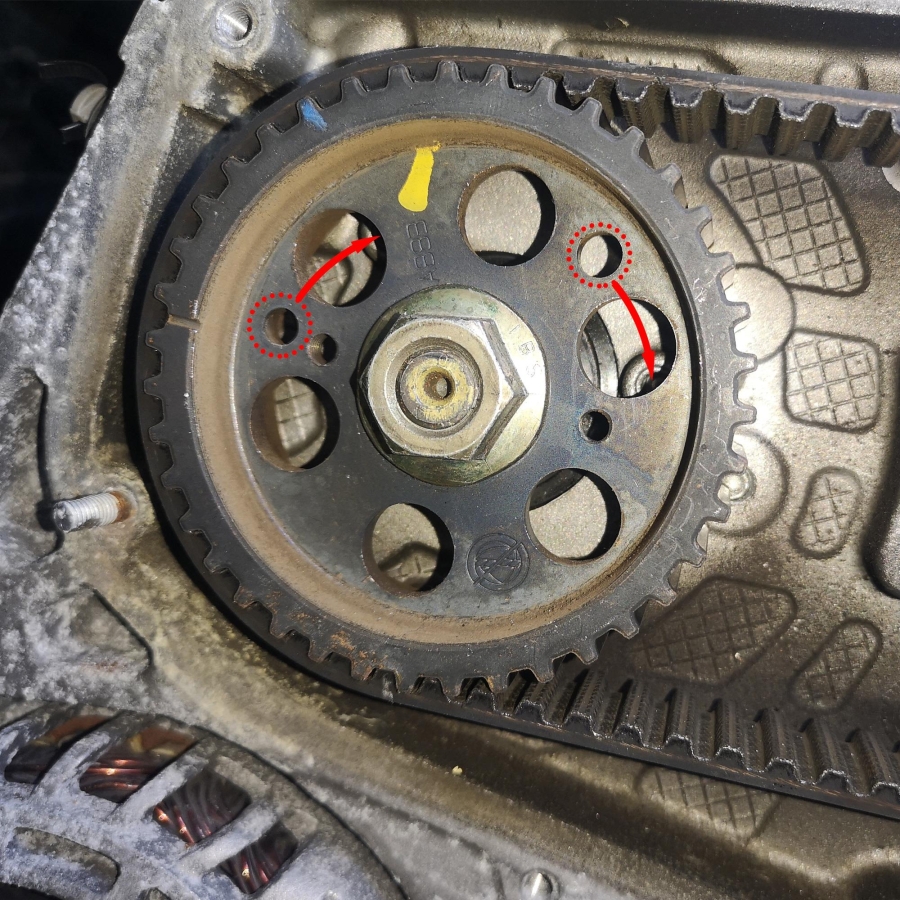

The screws are inserted through the holes in the timing belt pulley and threaded into the transmission housing to securely lock the pulley in position. This ensures safe and accurate work during maintenance procedures.

Efficient Repair Process

When used together with a puller (e.g. Art. No. 112424), the drive pulley can be removed without causing damage.

If the injection pump needs to be replaced, these screws allow the timing belt to remain in place. This eliminates the need to remove:

• Lower engine cover
• Crankshaft pulley
• Timing belt
• Timing belt tensioner

This method ensures that engine timing remains unchanged during the repair.

Technical Notes

According to Opel repair instructions, this screw set does not have a dedicated OE tool number but is specified as required for timing belt drive service.

OEM Reference Number

• Alfa Romeo / Fiat: 2000026900

The OEM number is for comparison purposes only. This product is not an original tool.

FIAT SEDICI (189_) (06.2006 - 10.2014) 1.9 D Multijet (120 HP, 88 kW)

FIAT SEDICI (189_) (06.2006 - 10.2014) 1.9 D Multijet 4x4 (120 HP, 88 kW)

OPEL ASTRA H (A04) (01.2004 - 05.2014) 1.9 CDTI (L48) (100 HP, 74 kW)

OPEL ASTRA H (A04) (01.2004 - 05.2014) 1.9 CDTI (L48) (120 HP, 88 kW)

OPEL ASTRA H (A04) (01.2004 - 05.2014) 1.9 CDTI (L48) (150 HP, 110 kW)

OPEL ASTRA H (A04) (01.2004 - 05.2014) 1.9 CDTI 16V (L48) (120 HP, 88 kW)

OPEL ASTRA H Caravan (A04) (08.2004 - 05.2014) 1.9 CDTI (L35) (100 HP, 74 kW)

OPEL ASTRA H Caravan (A04) (08.2004 - 05.2014) 1.9 CDTI (L35) (120 HP, 88 kW)

OPEL ASTRA H Caravan (A04) (08.2004 - 05.2014) 1.9 CDTI (L35) (150 HP, 110 kW)

OPEL ASTRA H Caravan (A04) (08.2004 - 05.2014) 1.9 CDTI 16V (L35) (120 HP, 88 kW)

OPEL ASTRA H GTC (A04) (03.2005 - 10.2010) 1.9 CDTI (L08) (101 HP, 74 kW)

OPEL ASTRA H GTC (A04) (03.2005 - 10.2010) 1.9 CDTI (L08) (120 HP, 88 kW)

OPEL ASTRA H GTC (A04) (03.2005 - 10.2010) 1.9 CDTi (L08) (150 HP, 110 kW)

OPEL ASTRA H GTC (A04) (03.2005 - 10.2010) 1.9 CDTi 16V (L08) (120 HP, 88 kW)

OPEL ASTRA H Box Body/Estate (L70) (02.2004 - 12.2013) 1.9 CDTI (L70) (101 HP, 74 kW)

OPEL ASTRA H Box Body/Estate (L70) (02.2004 - 12.2013) 1.9 CDTI (L70) (120 HP, 88 kW)

OPEL ASTRA H Box Body/Estate (L70) (02.2004 - 12.2013) 1.9 CDTI (L70) (150 HP, 110 kW)

OPEL ASTRA H Box Body/Estate (L70) (02.2004 - 12.2013) 1.9 CDTI 16V (L70) (120 HP, 88 kW)

OPEL ASTRA H TwinTop (A04) (09.2005 - 10.2010) 1.9 CDTi (L67) (150 HP, 110 kW)

OPEL SIGNUM CC (Z03) (05.2003 - 12.2008) 1.9 CDTI (F48) (100 HP, 74 kW)

OPEL SIGNUM CC (Z03) (05.2003 - 12.2008) 1.9 CDTI (F48) (120 HP, 88 kW)

OPEL SIGNUM CC (Z03) (05.2003 - 12.2008) 1.9 CDTI (F48) (150 HP, 110 kW)

OPEL VECTRA C (Z02) (04.2002 - 01.2009) 1.9 CDTI (F69) (100 HP, 74 kW)

OPEL VECTRA C (Z02) (04.2002 - 01.2009) 1.9 CDTI (F69) (120 HP, 88 kW)

OPEL VECTRA C (Z02) (04.2002 - 01.2009) 1.9 CDTI (F69) (150 HP, 110 kW)

OPEL VECTRA C CC (Z02) (08.2002 - 01.2009) 1.9 CDTI (F68) (100 HP, 74 kW)

OPEL VECTRA C CC (Z02) (08.2002 - 01.2009) 1.9 CDTI (F68) (120 HP, 88 kW)

OPEL VECTRA C CC (Z02) (08.2002 - 01.2009) 1.9 CDTI (F68) (150 HP, 110 kW)

OPEL VECTRA C Caravan (Z02) (10.2003 - 01.2009) 1.9 CDTI (F35) (100 HP, 74 kW)

OPEL VECTRA C Caravan (Z02) (10.2003 - 01.2009) 1.9 CDTI (F35) (120 HP, 88 kW)

OPEL VECTRA C Caravan (Z02) (10.2003 - 01.2009) 1.9 CDTI (F35) (150 HP, 110 kW)

OPEL ZAFIRA / ZAFIRA FAMILY B (A05) (07.2005 - 05.2019) 1.9 CDTI (M75) (100 hp, 74 kW)

OPEL ZAFIRA / ZAFIRA FAMILY B (A05) (07.2005 - 05.2019) 1.9 CDTI (M75) (120 hp, 88 kW)

OPEL ZAFIRA / ZAFIRA FAMILY B (A05) (07.2005 - 05.2019) 1.9 CDTI (M75) (150 hp, 110 kW)

OPEL ZAFIRA B Panel Van/MPV (A05) (07.2005 - 04.2015) 1.9 CDTI VAN (M75) (120 hp, 88 kW)

OPEL ZAFIRA B Panel Van/MPV (A05) (07.2005 - 04.2015) 1.9 CDTI VAN (M75) (150 HP, 110 kW)

SAAB 9-3 (YS3F, E79, D79, D75) (09.2002 - 02.2015) 1.9 TiD (120 HP, 88 kW)

SAAB 9-3 (YS3F, E79, D79, D75) (09.2002 - 02.2015) 1.9 TiD (150 HP, 110 kW)

SAAB 9-3 Cabriolet (YS3F) (08.2003 - 02.2015) 1.9 TiD (120 HP, 88 kW)

SAAB 9-3 Cabriolet (YS3F) (08.2003 - 02.2015) 1.9 TiD (150 HP, 110 kW)

SAAB 9-3 station wagon (E50) (03.2005 - 02.2015) 1.9 TiD (120 HP, 88 kW)

SAAB 9-3 Estate (E50) (03.2005 - 02.2015) 1.9 TiD (150 HP, 110 kW)

SAAB 9-5 (YS3E) (09.1997 - 12.2009) 1.9 TiD (150 HP, 110 kW)

SAAB 9-5 Estate (YS3E) (10.1998 - 12.2009) 1.9 TiD (150 HP, 110 kW)

SUZUKI SX4 (EY, GY) (06.2006 - 12.2015) 1.9 DDiS (RW 419D) (120 HP, 88 kW)

SUZUKI SX4 (EY, GY) (06.2006 - 12.2015) 1.9 DDiS 4x4 (RW 419D) (120 HP, 88 kW)
