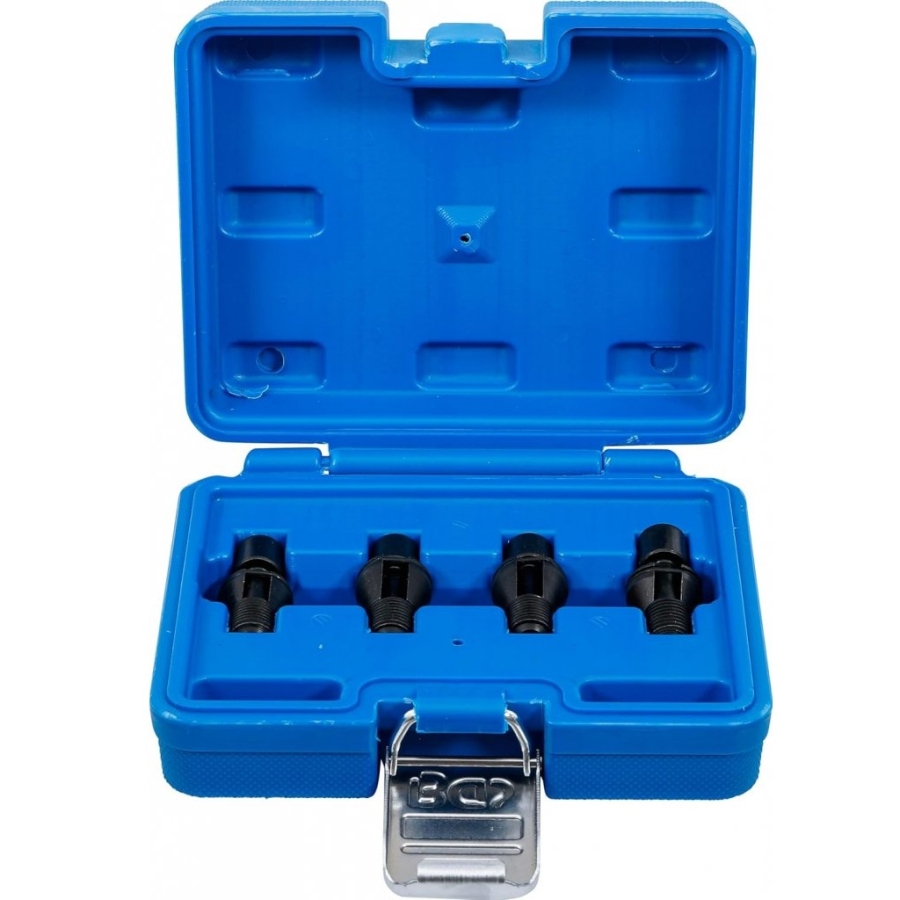

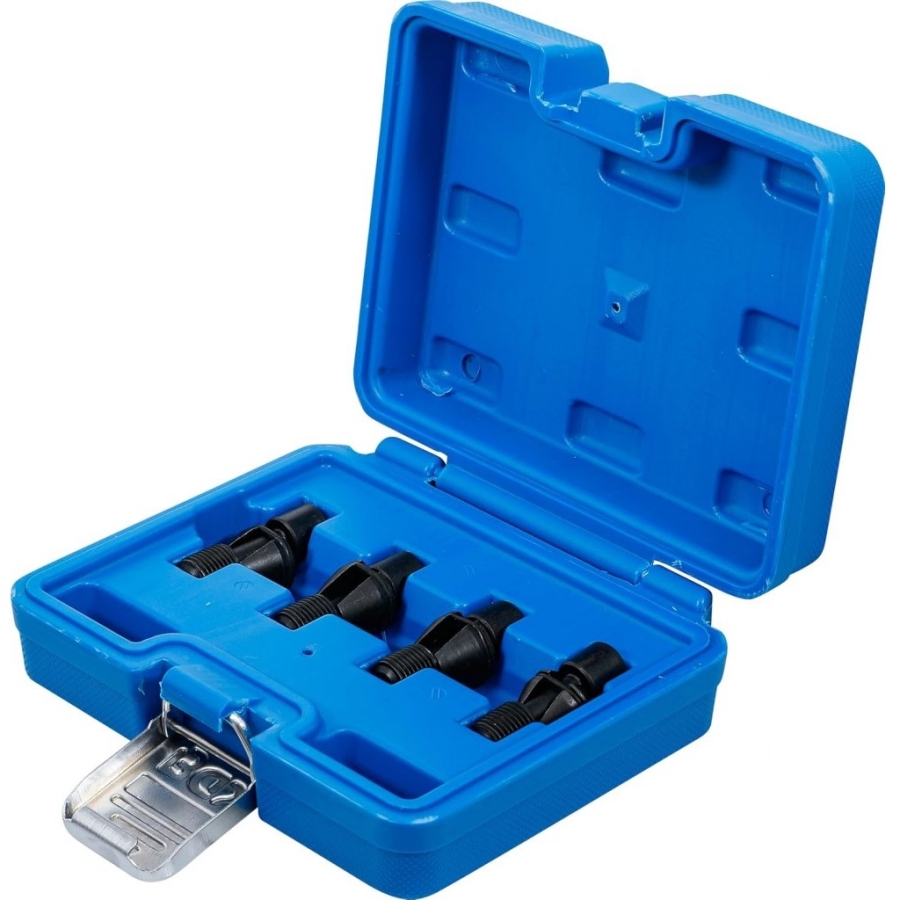

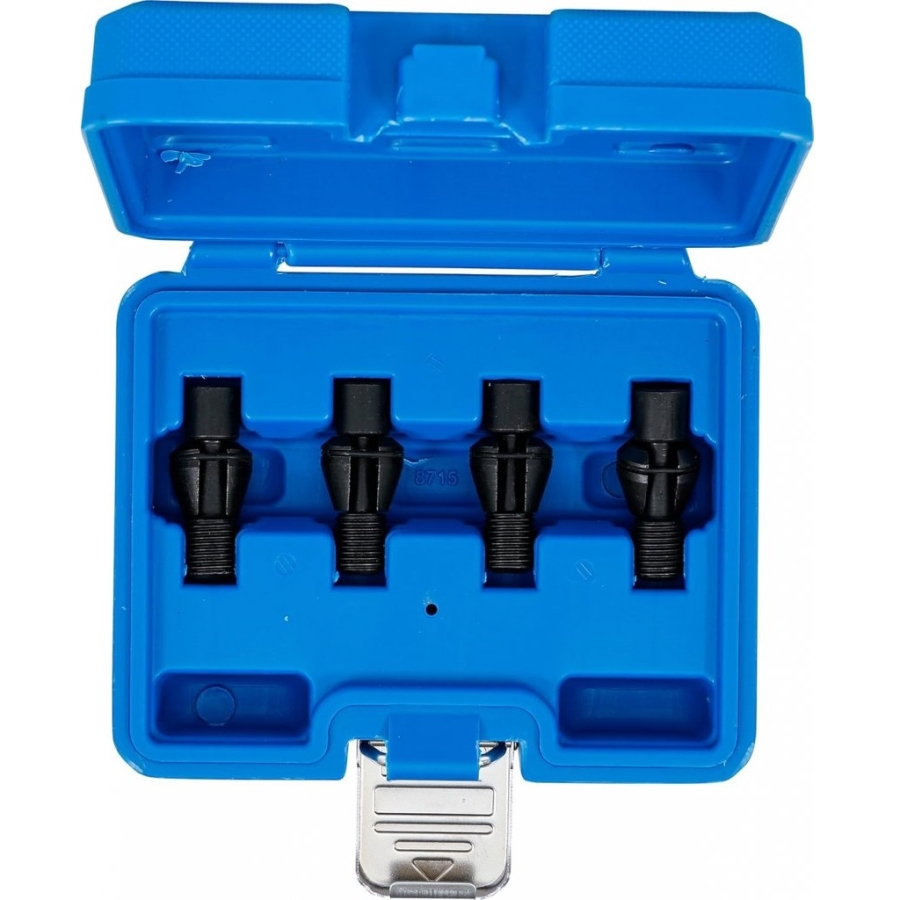

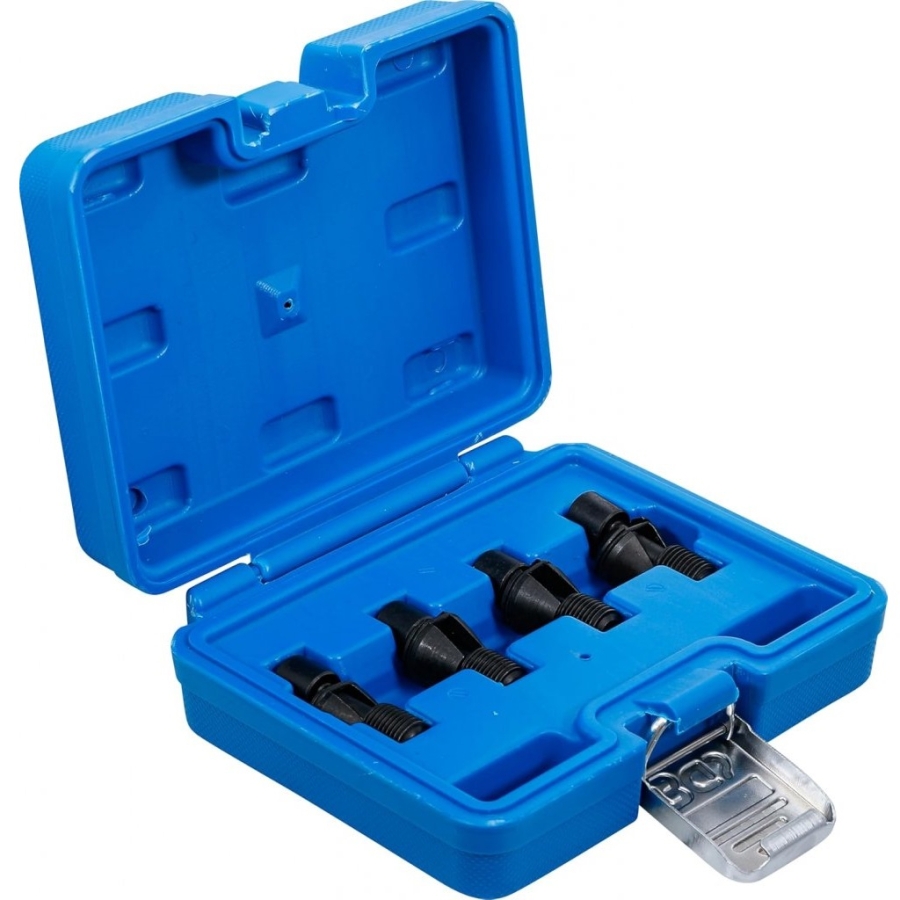

Subframe Alignment Pin Set for VW T5, T6, Crafter, Touareg and MAN TGE

This specialized alignment pin set is designed for accurate positioning and alignment of the subframe (engine carrier) during installation and repair procedures.

The tool is particularly useful when replacing suspension bushings or carrying out repairs that require removal of the subframe. It helps ensure the subframe is correctly aligned before the original mounting bolts are reinstalled.

Vehicle Compatibility

Suitable for:

• VW Transporter T5
• VW Transporter T6
• VW Crafter II
• VW Touareg
• MAN TGE

Function

The alignment pins temporarily replace the original mounting bolts, allowing precise positioning of the subframe before final tightening.

This helps:

• Maintain correct subframe alignment
• Reduce installation errors
• Preserve suspension geometry
• Facilitate reassembly after repairs

Instructions for Use

To align the subframe, the opposing mounting bolts must be replaced with the alignment pins in two stages.

Important notes:

• Tighten the alignment pins to a maximum of 20 Nm
• Exceeding 20 Nm may damage the threads of the alignment pins
• Never remove more than two mounting bolts at the same time
• Always support the subframe using a transmission jack during the procedure

Reference Tool

Can be used in the same manner as:

• OEM T10227

Features

• Precise subframe positioning
• Simplifies subframe installation
• Suitable for suspension and chassis repairs
• Professional workshop quality
• Designed for repeated use

OEM numbers are provided for identification purposes only. This product is not an original OEM tool.
