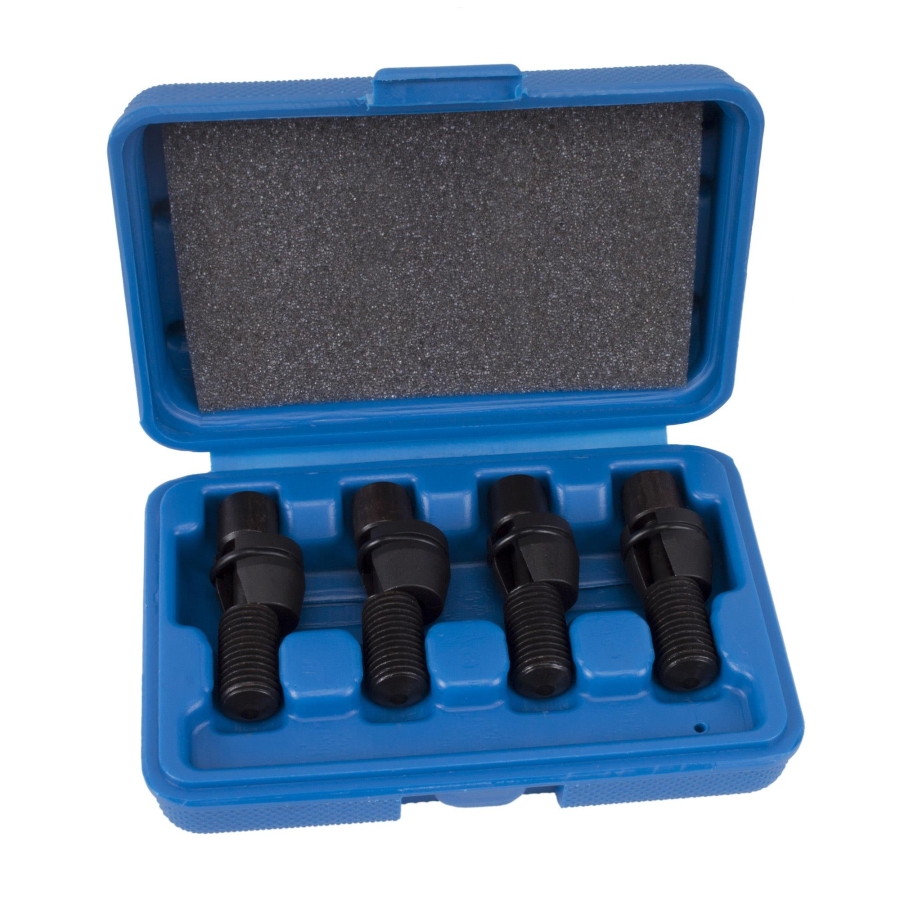

Subframe Centering Tool Set M12 for VW, Audi and Seat

This specialized tool set is designed for the accurate alignment and positioning of the subframe during assembly and repair procedures.

The set is particularly useful when replacing suspension bushings or carrying out repairs that require removal of the subframe. It ensures the subframe is returned to its correct factory position before final tightening of the mounting bolts.

Vehicle Compatibility

Volkswagen

• VW Eos (from 2006)
• VW Fox (from 2006)
• VW Golf (from 2009)
• VW Golf Plus (from 2005)
• VW Jetta (from 2004)
• VW Passat (from 2006)
• VW Passat CC (from 2009)
• VW Polo (from 2002)
• VW Scirocco (from 2009)

Audi

• Audi A1
• Audi A2
• Audi A3
• Audi A4
• Audi TT

Seat

• Seat Alhambra (from 2011)
• Seat Altea
• Seat Altea Freetrack
• Seat Altea XL
• Seat Cordoba
• Seat Ibiza
• Seat Leon
• Seat Toledo

Function

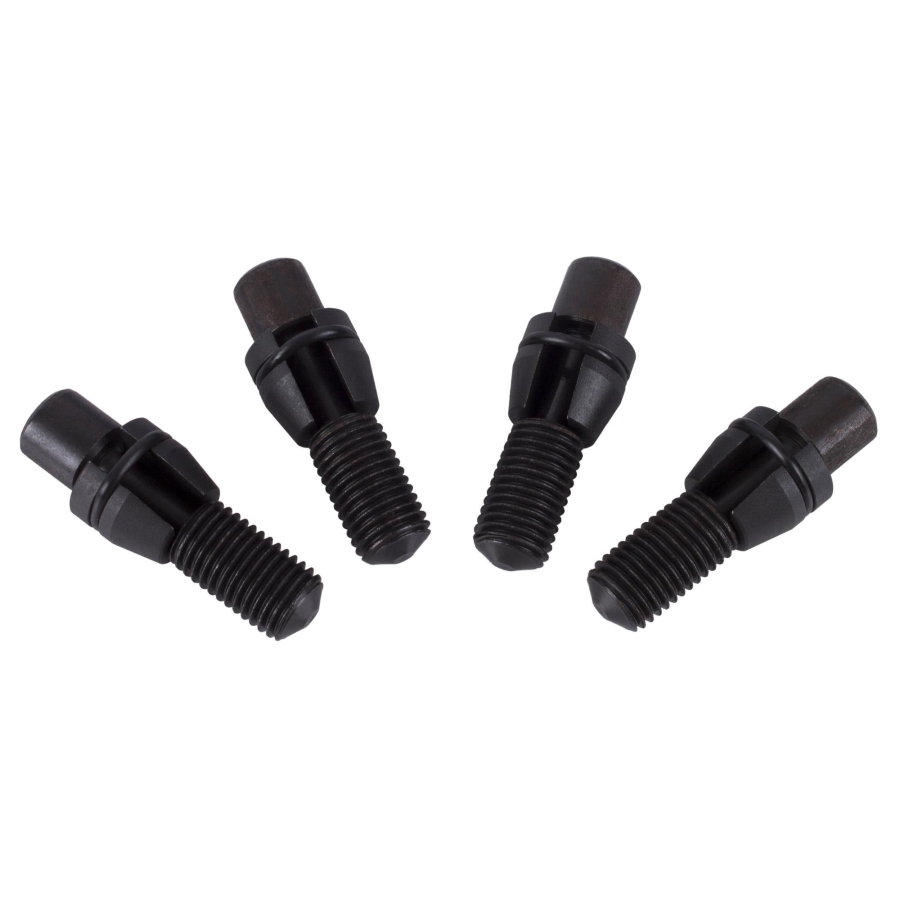

The alignment bolts temporarily replace the original mounting bolts, allowing the subframe and suspension assembly to be accurately centered before final assembly.

This helps:

• Maintain correct suspension geometry
• Ensure precise subframe positioning
• Reduce installation errors
• Simplify reassembly after repairs

Subframe Alignment Procedure

To align the subframe, the alignment bolts must be installed sequentially in the specified mounting locations.

Important instructions:

• Tighten the alignment bolts to a maximum of 20 Nm
• Exceeding 20 Nm may damage the alignment bolt threads
• Replace the front subframe bolts one at a time with the alignment bolts
• Tighten each alignment bolt to a maximum of 20 Nm
• Once completed, the front axle assembly is correctly aligned
• Replace the mounting bracket bolts on both sides one at a time with the alignment bolts
• Tighten all alignment bolts to a maximum of 20 Nm

Reference Tool

Can be used in the same manner as:

• VAG T10096

Features

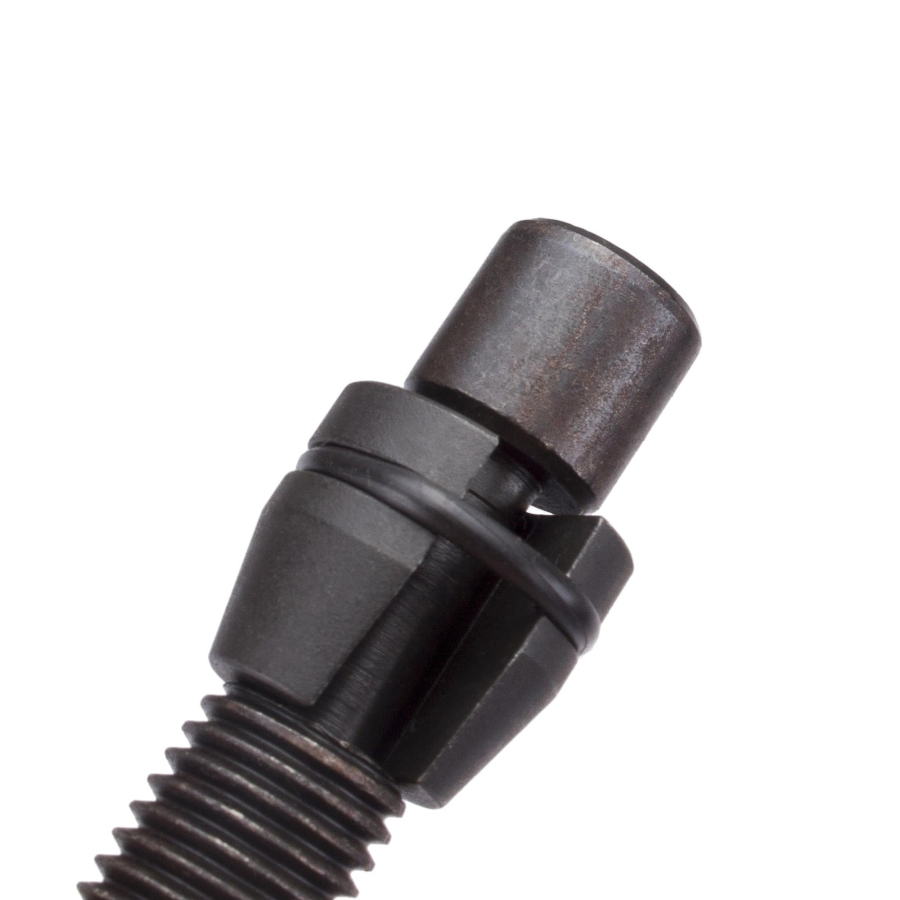

• Precise M12 alignment bolts
• Accurate subframe centering
• Suitable for suspension and chassis repairs
• Professional workshop quality
• Durable construction for repeated use

OEM and reference numbers are provided for identification purposes only. This product is not an original VAG tool.
