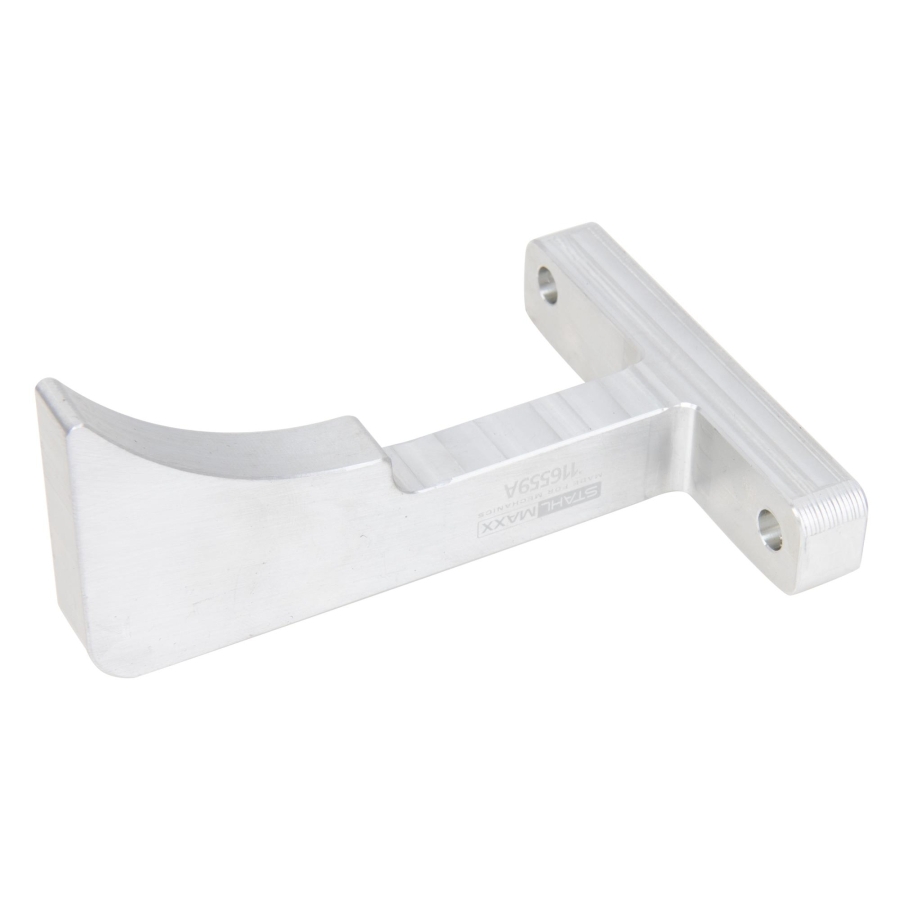

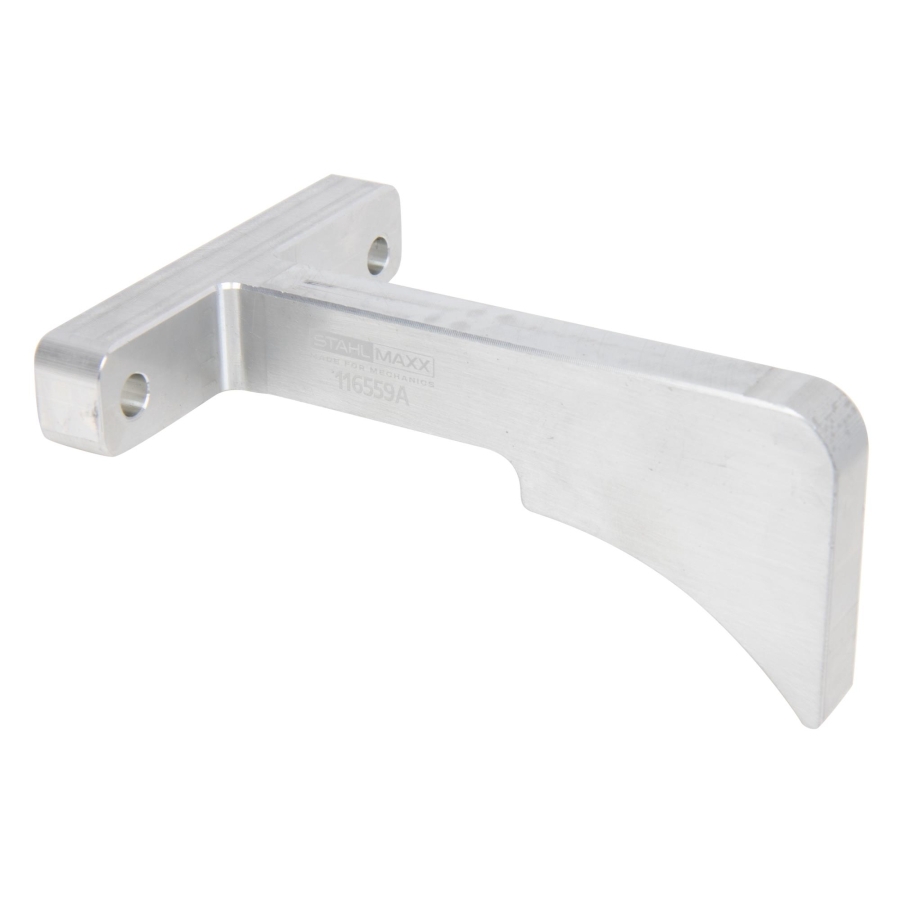

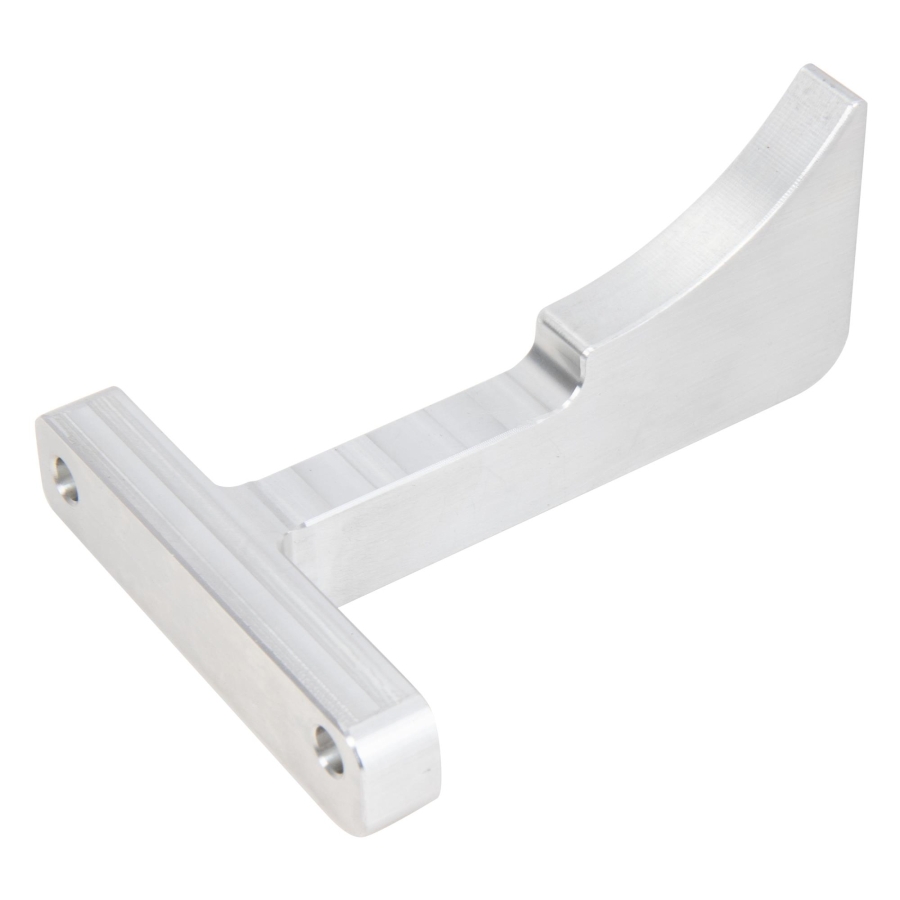

Timing Chain Holder Tool – Mercedes M266 (W169 W245) – as W266589004000

This tool is designed to hold the timing chain engaged on the camshaft sprocket during timing chain replacement on Mercedes M266 engines.

It is used when pulling through and riveting the timing chain, ensuring the chain remains correctly engaged with the sprockets and preventing timing shift or valve contact.

Engine and Vehicle Compatibility

Suitable for all Mercedes M266 engines:

Engine codes:
M266.920, M266.940, M266.960, M266.980

Installed in:

• Mercedes A-Class W169: A150, A160, A170, A180, A200
• Mercedes B-Class W245: B150, B170, B180, B200

Application Notes

During timing chain replacement, the old chain is cut and the new chain is pulled through. The chain must remain engaged with the timing gears during this process.

This tool prevents chain disengagement, which could lead to incorrect timing or valve damage.

The procedure can be performed without removing the front cover or pulleys. Only spark plugs and valve cover need to be removed.

Tool Design

Unlike the OE plastic version, this tool is manufactured from aluminium, providing increased strength and durability under load.

Important Notes

A timing chain riveting tool is required for this operation.
Compatible with timing chain riveting tool item.no. 112444 (also suitable for toothed chains with adapter).

Reference and Notes

• Can be used as Mercedes tool as W266589004000
• Also referenced as 266 589 00 40 00

OEM numbers are for reference purposes only. This product is not an original tool.

MERCEDES-BENZ A-CLASS (W168) (07.1997 - 08.2005) A 200 (136 HP, 100 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 150 (169.031, 169.331) (95 HP, 70 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 160 (169.031, 169.331) (95 HP, 70 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 170 (169.032, 169,332) (116 hp, 85 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 180 (169.032, 169.332) (116 HP, 85 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 200 (169.033, 169.333) (136 HP, 100 kW)

MERCEDES-BENZ A-CLASS (W169) (09.2004 - 06.2012) A 200 TURBO (169.034, 169.334) (193 HP, 142 kW)

MERCEDES BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 150 (245.231) (95 HP, 70 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 160 (245.231) (95 HP, 70 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 170 (245.232) (116 HP, 85 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 170 NGT (245.233) (116 HP, 85 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 180 (245.232) (116 HP, 85 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 180 NGT (245.233) (116 HP, 85 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 200 (245.233) (136 HP, 100 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W245) (03.2005 - 11.2011) B 200 TURBO (245.234) (193 hp, 142 kW)
