Timing Chain Riveting & Breaking Tool Set for Simplex & Duplex Chains (3 mm / 4 mm) – Petrol & Diesel

This professional timing chain riveting and breaking tool set is designed for servicing timing chains across a wide range of petrol and diesel engines.

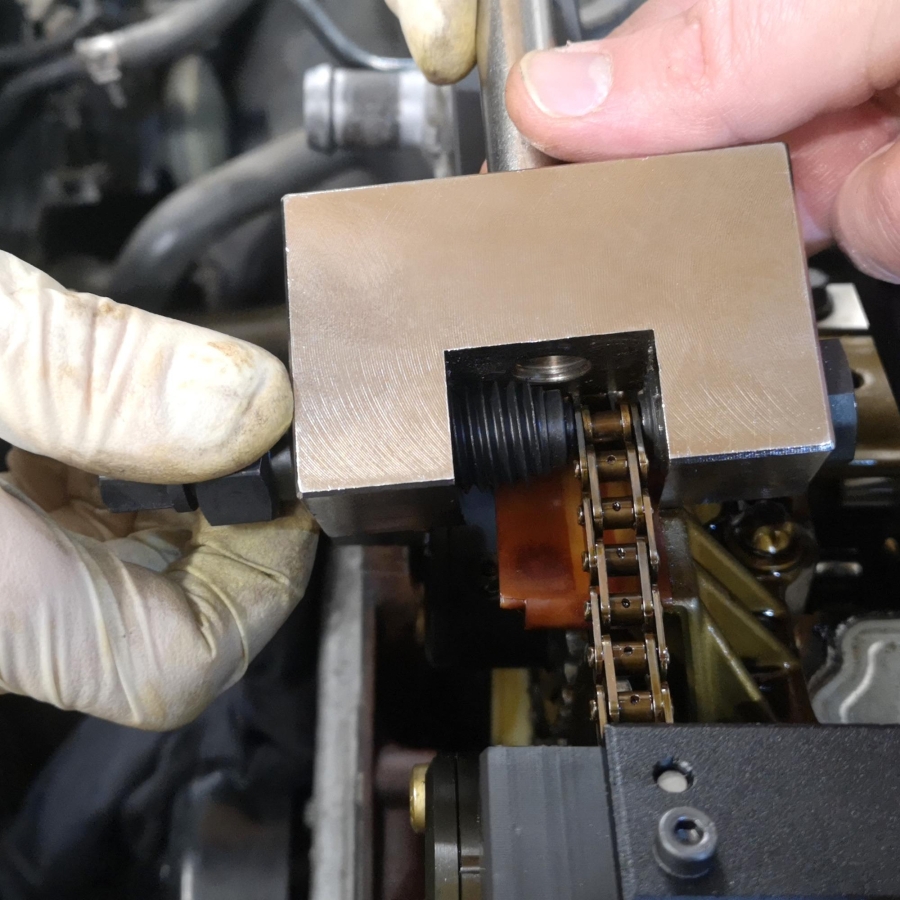

It enables both separation and re-riveting of timing chains after installation, making it essential for timing chain replacement, engine repair, and overhaul operations.

Universal Chain Compatibility

Unlike many standard tools that are limited to specific chain types (often only 4 mm duplex chains), this set is engineered to handle a broad spectrum of timing chain designs:

• Simplex (single-row) chains

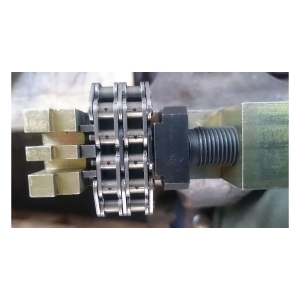

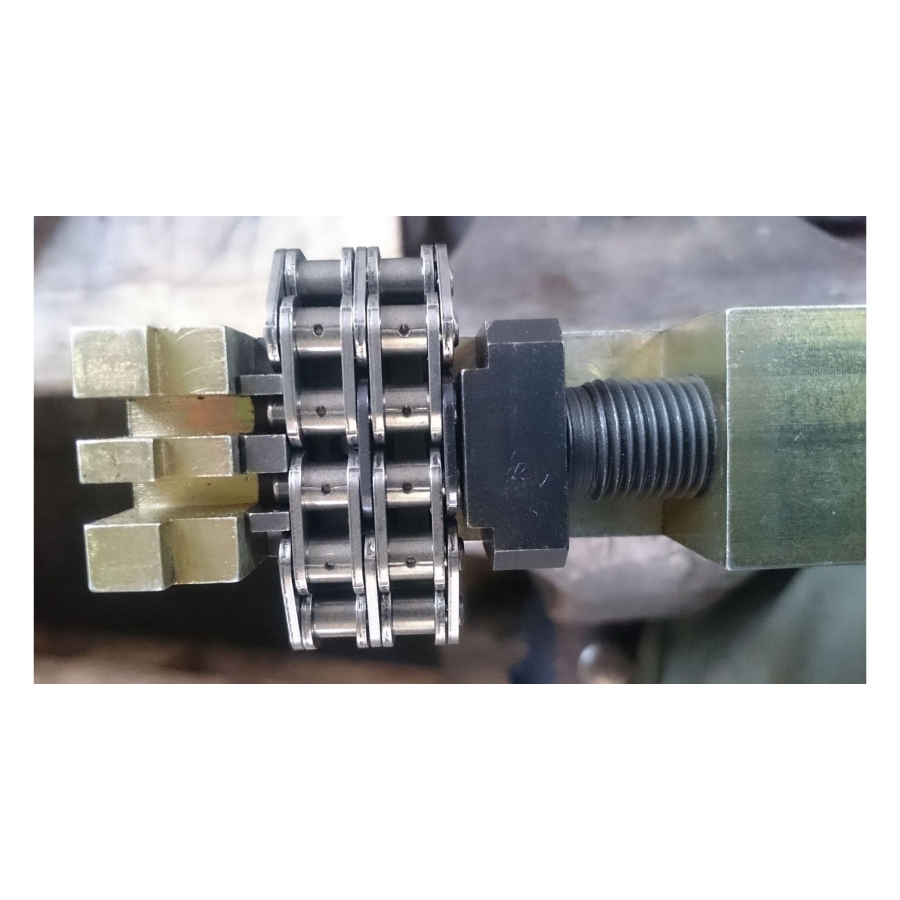

• Duplex (double-row) chains
• 3 mm and 4 mm chain pin sizes

It allows working with nearly all timing chains across different manufacturers.

Supported Chain Types

• Standard roller chains
• Standard bush chains
• Toothed chains*
• Rocker-joint toothed chains*
• Pin-joint toothed chains*

For certain chain types, additional tool item no. 118867 is required.

Advanced Tool Design

The tool set includes specially developed pressing components designed to accommodate various chain constructions.

• Hardened materials ensure durability and consistent pressing performance

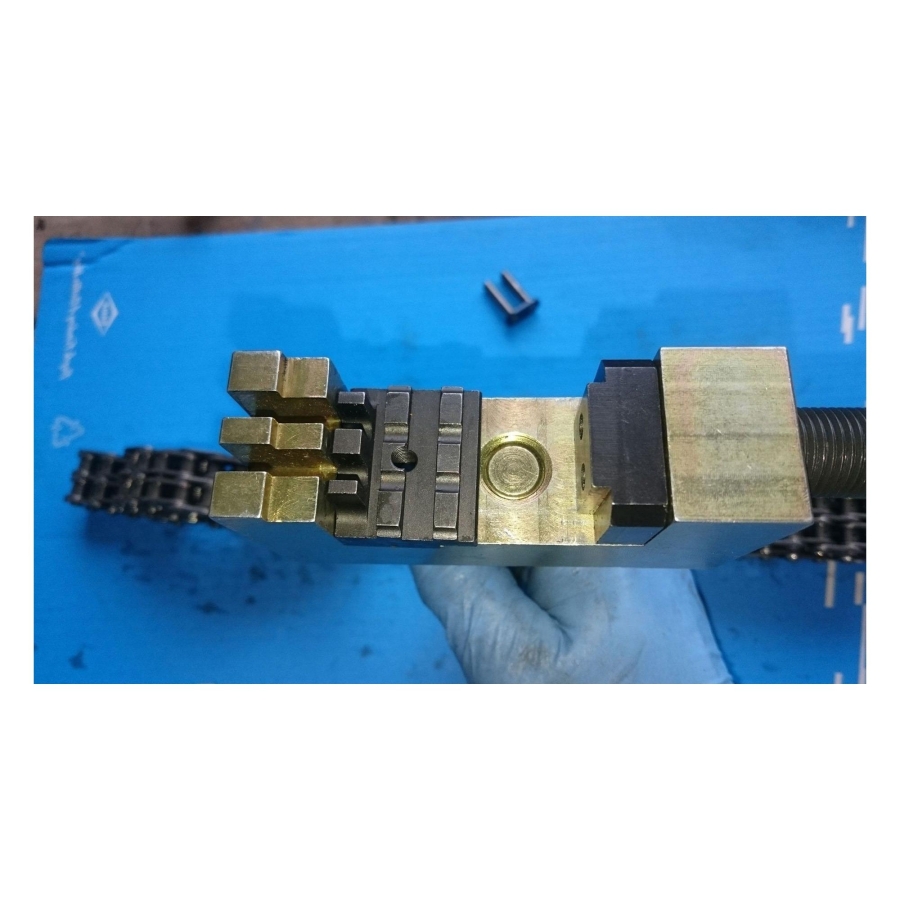

• Integrated magnets in pressing tools hold chain plates and links securely during assembly
• Precision components ensure accurate and safe riveting

Key Features

• Covers nearly all timing chain types on the market
• Suitable for both petrol and diesel engines
• High-strength components for long service life
• Magnetic inserts for improved handling
• Replacement and wear parts available separately

Compatibility

Suitable for a wide range of manufacturers, including:

• Mercedes
• BMW
• Smart
• Mini

Reference Numbers

• as BMW: 83302354981, 83302354985
• as Mercedes: 103589016300, 112589096300, 271589016300, 271589056300*,
  272589003900, 272589006300, 272589016300,
  602589009800, 602589023300, 602589024000,
  602589026300, 602589036300,
  602589046300, 602589046301, 602589056300, 6902589056301

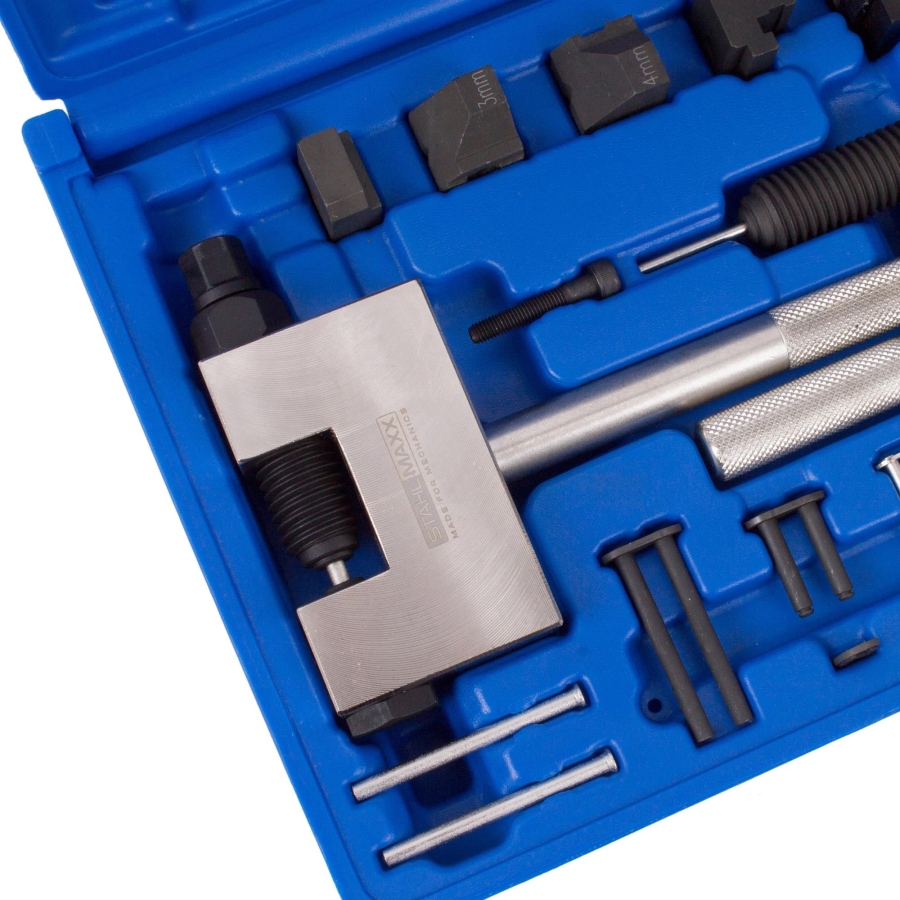

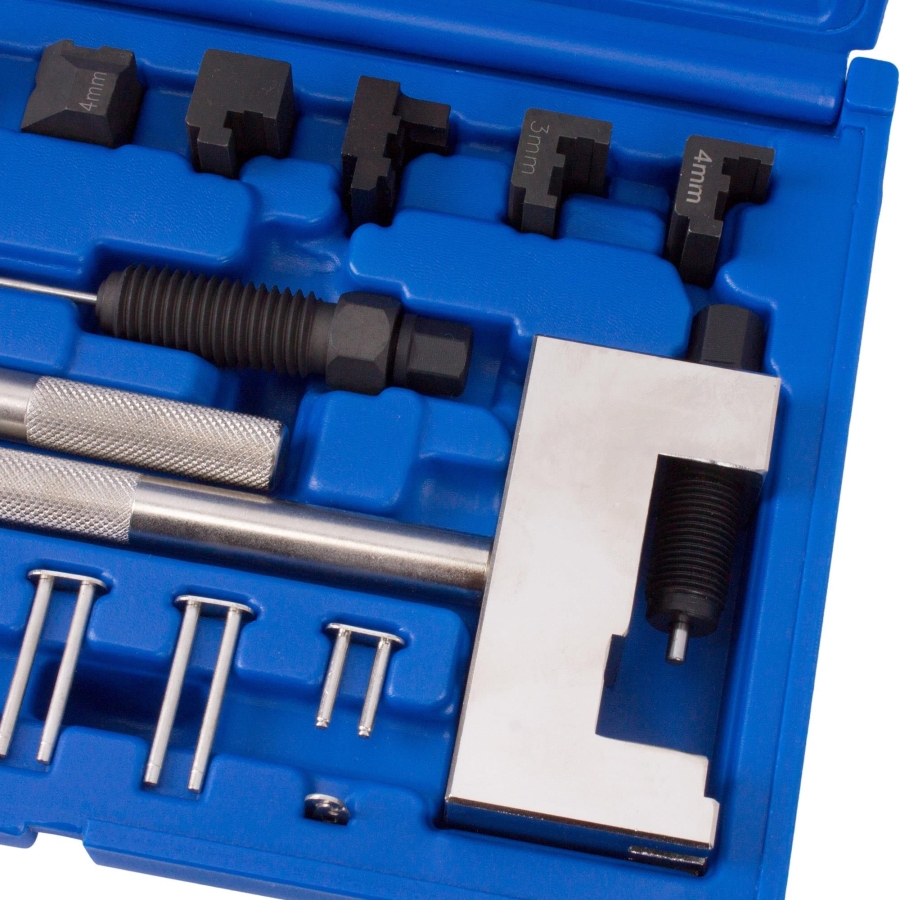

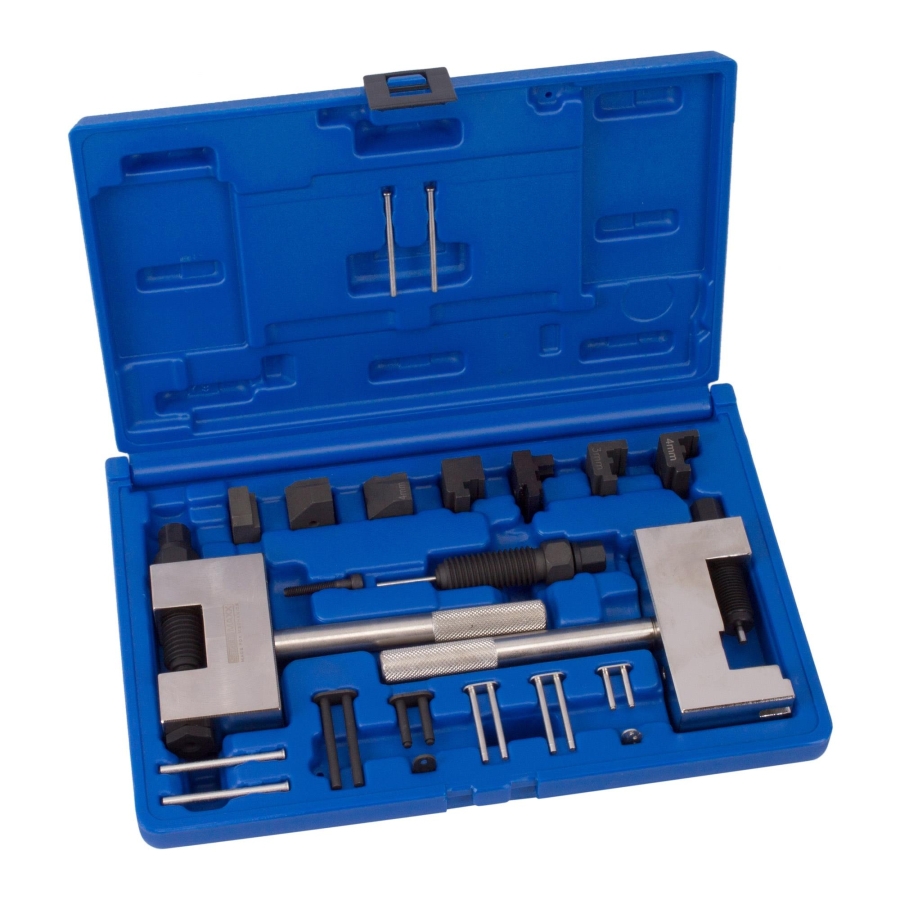

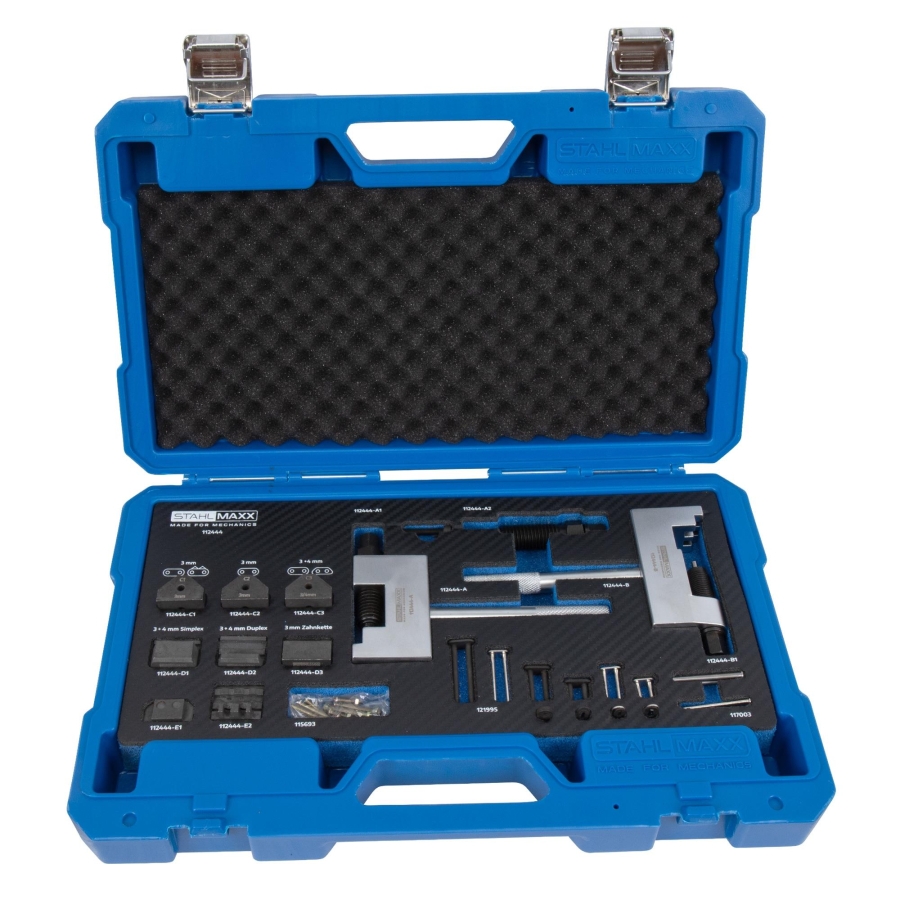

Scope of Delivery

• Assembly tool for timing chain links

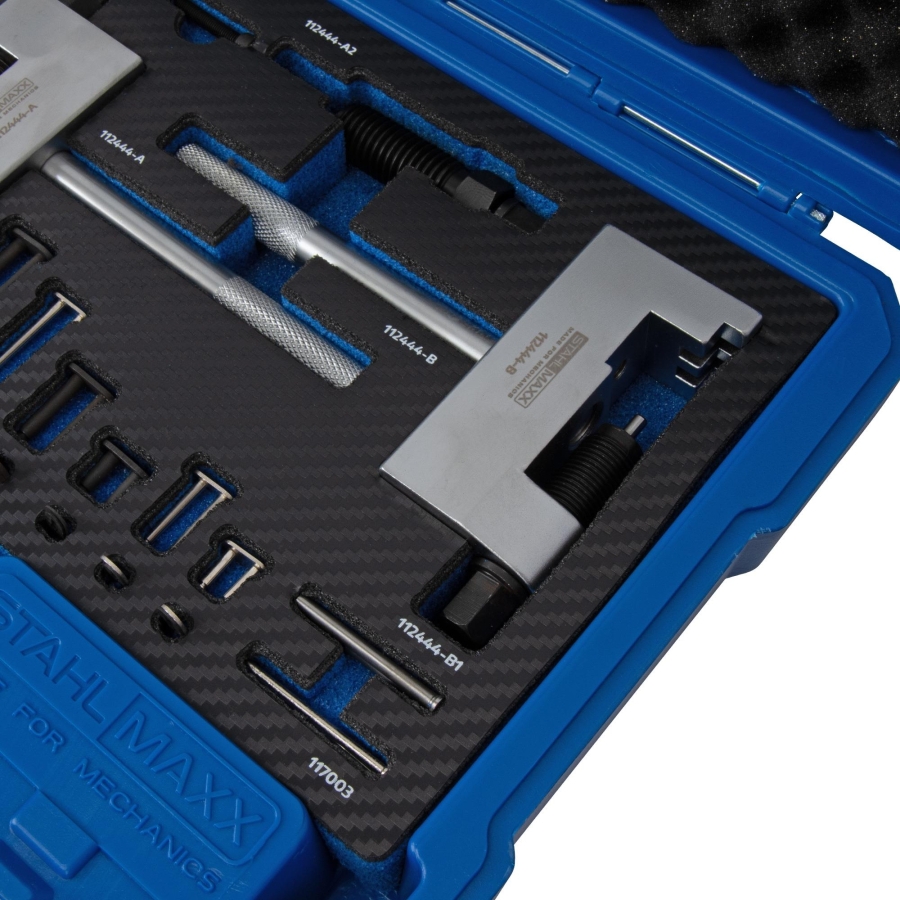

• Breaking tool base unit for timing chains

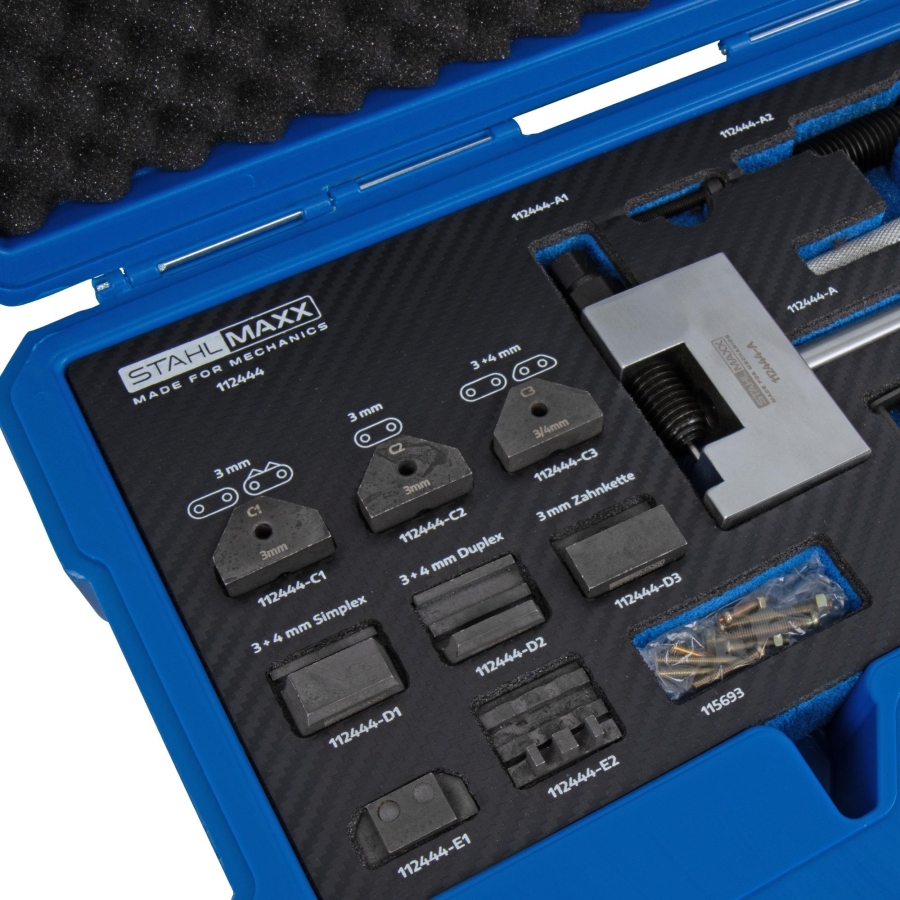

• Press tools and inserts for simplex chains
• Press tools and inserts for duplex chains
• Breaking pressure spindle for petrol engines
• Breaking pressure spindle for diesel engines
• Pressure pins for petrol & diesel engines
• Chain pulling link set

These OEM numbers are for reference purposes only and do not imply that the tool is an original product.
