Engine Timing Chain Tool Set for Mercedes-Benz M271

This specialized tool set is essential for professional repair work on Mercedes-Benz M271 engines. It is designed for timing chain replacement, timing adjustment, and repair of cylinder head, camshaft, and valvetrain components.

Functionality

The set includes all key tools required to safely and accurately perform timing work, including holding and locking tools for camshafts, timing chain guidance, and crankshaft-related operations. It ensures precise synchronization and reliable repair results.

Compatibility

Suitable for Mercedes-Benz engines:

Engine codes:
M271.820, M271.860, M271.861, M271.910, M271.911, M271.921, M271.940, M271.941, M271.942, M271.944, M271.946, M271.948, M271.950, M271.951, M271.952, M271.954, M271.955, M271.956, M271.957, M271.958

Vehicle Compatibility

Compatible with the following Mercedes-Benz models:

• C-Class (W203, W204)
• CLK (W209)
• E-Class (C207, W211, W212)
• SLK (R171, R172)
• Sprinter (906)

Important Note

For engines in the 271.9.. series, a long 27 mm socket is required for camshaft central valves. This is available separately under item.no. 101199 – as 001589650900.

Certain tools often listed (e.g. for chain tensioner cap installation or guide rail resetting) are intentionally not included, as they can be replaced with standard workshop tools.

Tool Features

✔ Precision-machined tools for exact fit
✔ Manufactured from high-quality materials
✔ Designed for professional workshop use

Torque Specifications

(Reference: C-Class W204 M271.952 – always follow manufacturer instructions)

• Camshaft adjuster (central valves): 90 Nm
• Crankshaft central bolt: 200 Nm + 90°
• Cylinder head cover: 9 Nm
• Chain tensioner: 40 Nm
• Water pump: M6 = 9 Nm, M8 = 20 Nm
• Camshaft bearing housing: upper 10 Nm + 90°, lower 14 Nm
• Balance shaft gears: M10 = 40 Nm, M14 = 100 Nm

Scope of Delivery

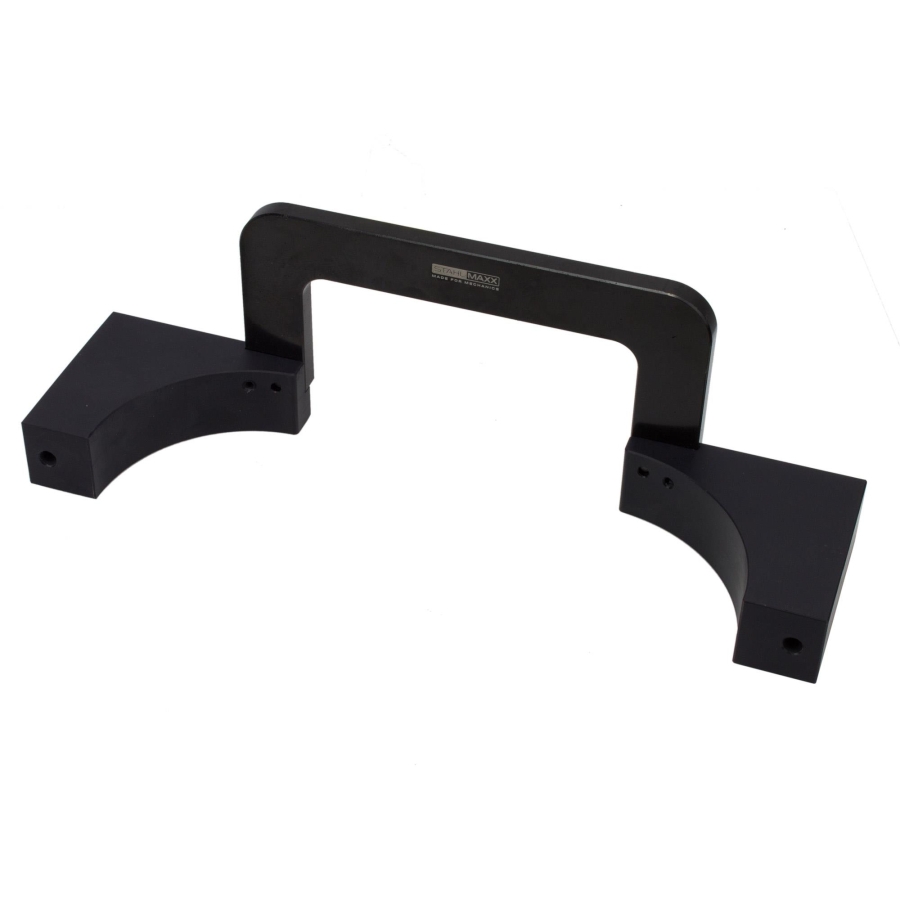

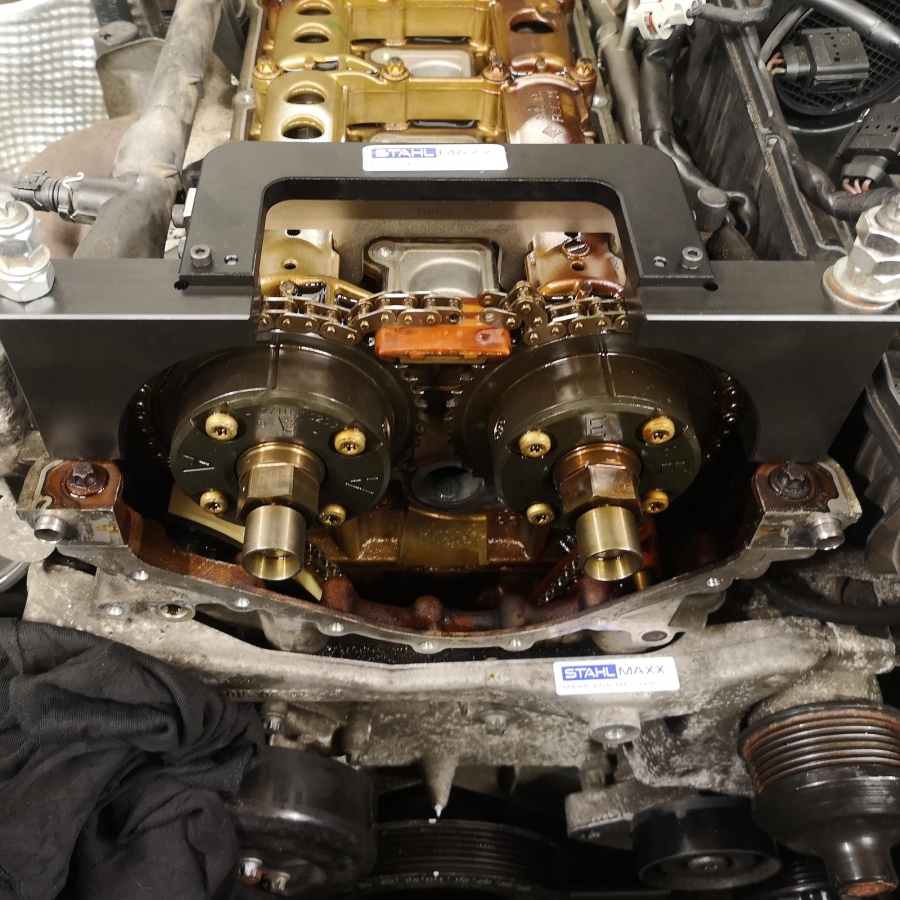

✔ item.no. 113809 – Timing chain holding tool for camshaft sprocket – as W271589014000

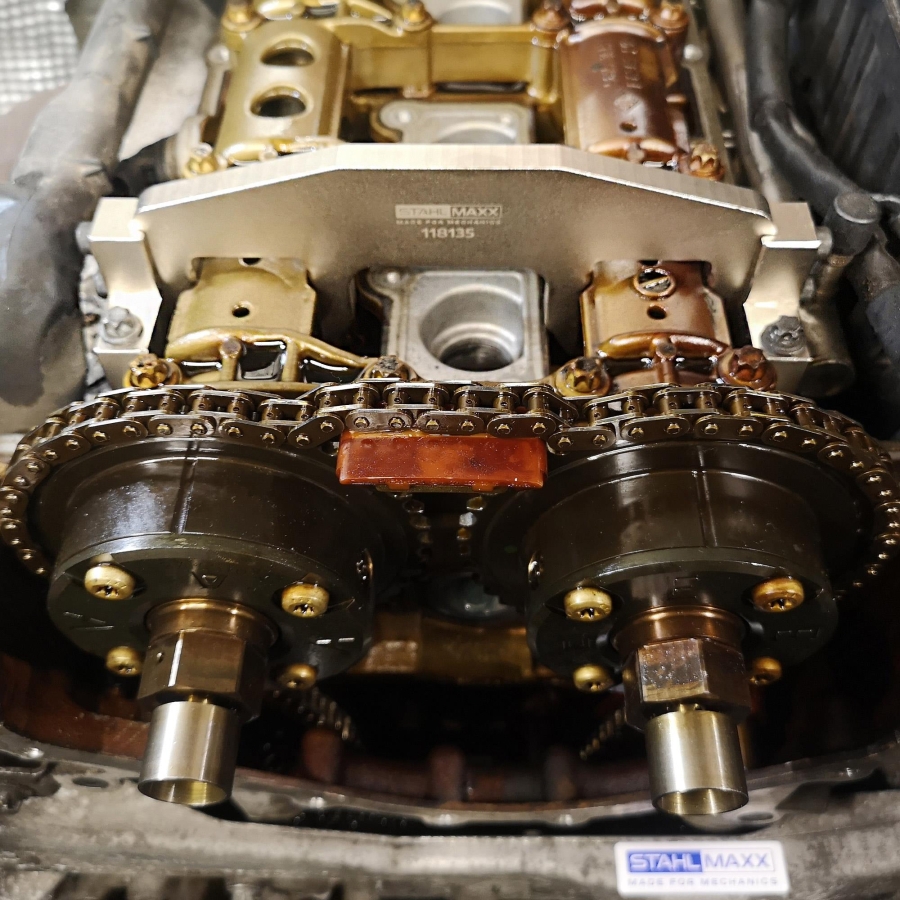

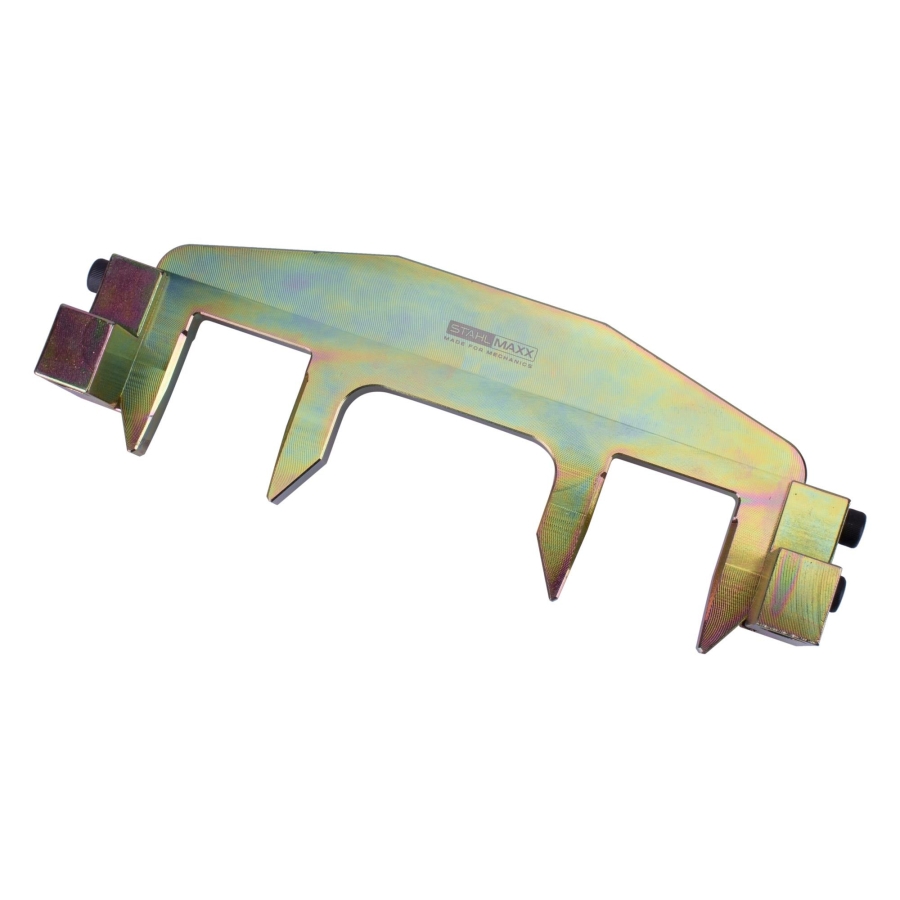

✔ item.no. 118135 – Camshaft locking tool – as W271589006100

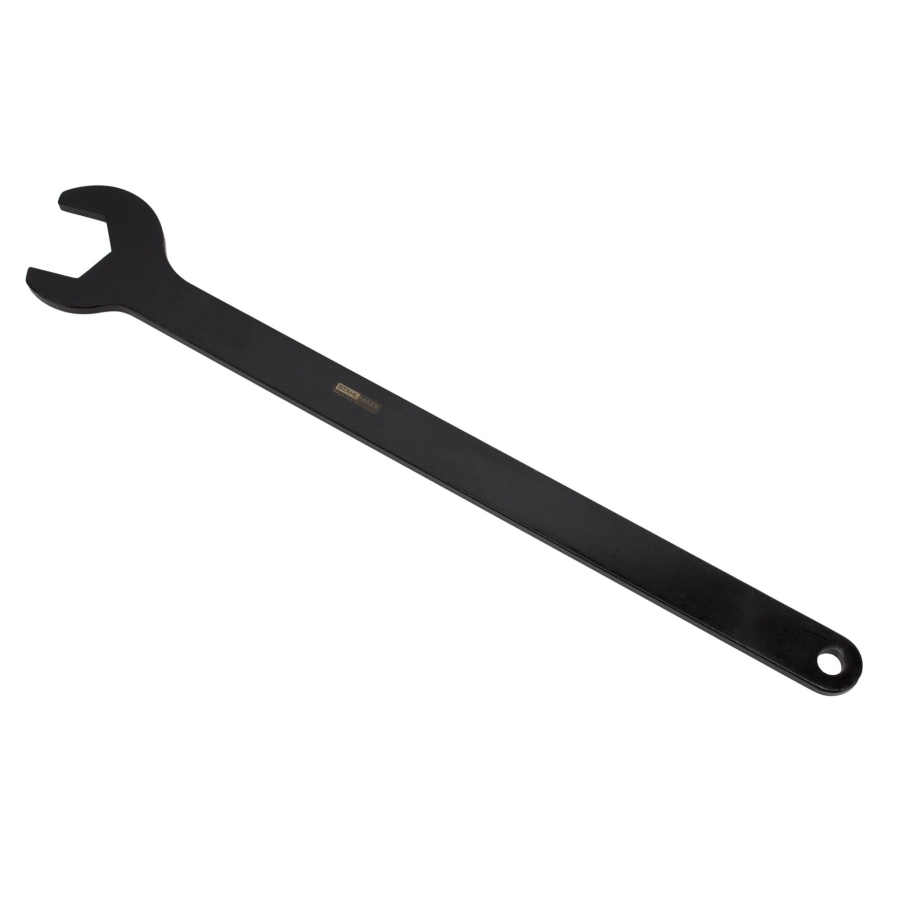

✔ item.no. 118541 – Holding wrench for camshaft and balance shaft – as W271589000100

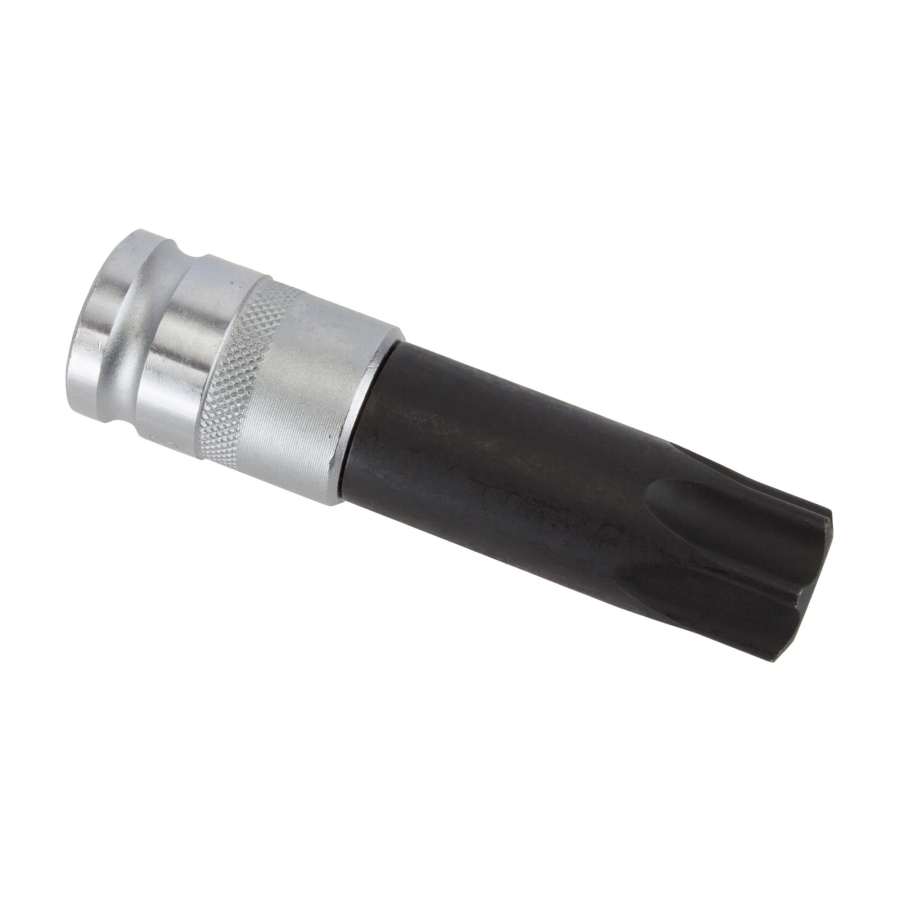

✔ item.no. 106706 – Special socket T100 – as W271589001000

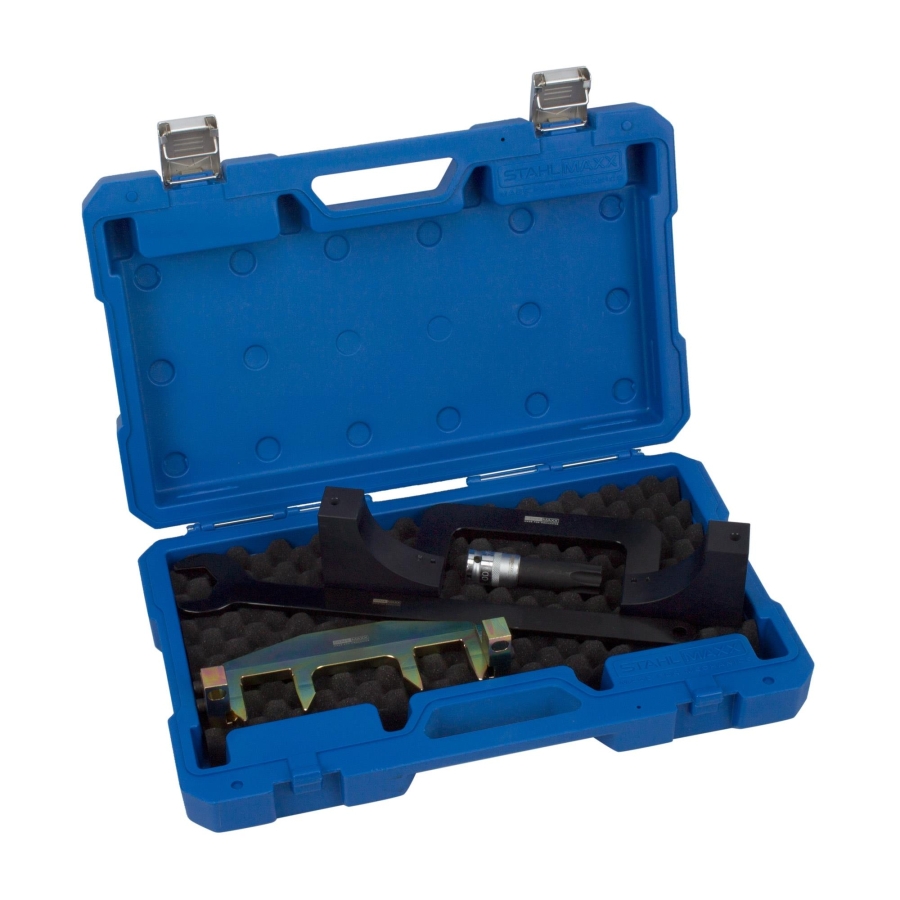

✔ item.no. 115269 – Storage case

OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 180 Kompressor (203.046) (143 hp, 105 kW)

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 200 CGI Kompressor (203.043) (170 hp, 125 kW)

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 200 Kompressor (203.042) (163 hp, 120 kW)

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 230 Kompressor (203.040) (192 HP, 141 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 180 CGI (204.049) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 180 Kompressor (204.044, 204.045) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 180 Kompressor (204.046) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 200 (204,048) (186 hp, 137 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 200 CGI (204.048) (184 HP, 135 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 200 Kompressor (204.041) (184 HP, 135 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 250 CGI (204.047) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS Coupe (C204) (06.2011 - 12.2014) C 180 (204.349) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS Coupe (C204) (06.2011 - 12.2014) C 200 CGI (204.348) (184 HP, 135 kW)

MERCEDES-BENZ C-CLASS Coupe (C204) (06.2011 - 12.2014) C 250 (204.347) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 160 Kompressor (203.730) (122 HP, 90 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 180 Kompressor (203.746) (143 HP, 105 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 200 CGI Kompressor (203.743) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 200 Kompressor (203.742) (163 HP, 120 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 220 (163 HP, 120 kW)

MERCEDES-BENZ C-CLASS Coupe (CL203) (03.2001 - 06.2011) C 230 Kompressor (203.740) (192 HP, 141 kW)

MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 180 Kompressor (203.246) (143 HP, 105 kW)

MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 200 CGI Kompressor (203.243) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 200 Kompressor (203.242) (163 hp, 120 kW)

MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 230 Kompressor (203.240) (192 HP, 141 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 180 CGI (204.249) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 180 Kompressor (204.245) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 180 Kompressor (204.246) (156 HP, 115 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 200 CGI (204.248) (184 HP, 135 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 200 Kompressor (204.241) (184 HP, 135 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 250 CGI (204.247) (204 HP, 150 kW)

MERCEDES-BENZ CLC-CLASS (CL203) (05.2008 - 06.2011) CLC 160 (203.731) (129 HP, 95 kW)

MERCEDES-BENZ CLC-CLASS (CL203) (05.2008 - 06.2011) CLC 180 Kompressor (203.746) (143 HP, 105 kW)

MERCEDES-BENZ CLC-CLASS (CL203) (05.2008 - 06.2011) CLC 200 Kompressor (203.741) (184 HP, 135 kW)

MERCEDES-BENZ CLK (C209) (05.2002 - 03.2010) 200 CGI (209,343) (170 hp, 125 kW)

MERCEDES-BENZ CLK (C209) (05.2002 - 03.2010) 200 Kompressor (209.341) (184 HP, 135 kW)

MERCEDES-BENZ CLK (C209) (05.2002 - 03.2010) 200 Kompressor (209.342) (163 HP, 120 kW)

MERCEDES-BENZ CLK Cabriolet (A209) (06.2002 - 03.2010) CLK 200 CGI (209.343) (170 HP, 125 kW)

MERCEDES-BENZ CLK Cabriolet (A209) (06.2002 - 03.2010) CLK 200 Kompressor (209.441) (184 hp, 135 kW)

MERCEDES-BENZ CLK Cabriolet (A209) (06.2002 - 03.2010) CLK 200 Kompressor (209.442) (163 hp, 120 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 200 Kompressor (211.041) (184 hp, 135 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 200 Kompressor (211.042) (163 hp, 120 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 200 NGT (211.042) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 200 CGI (212.048, 212.148) (184 HP, 135 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 200 NGT (212.041) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 250 CGI (212.047, 212.147) (204 HP, 150 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 200 CGI (207.448) (184 HP, 135 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 250 CGI (207.447) (204 HP, 150 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 200 CGI (207.348) (184 HP, 135 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 250 CGI (207.347) (204 hp, 150 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 200 Kompressor (211.241) (184 HP, 135 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 200 T Kompressor (211.242) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 200 CGI (212.248) (184 HP, 135 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 250 CGI (212.247) (204 hp, 150 kW)

MERCEDES-BENZ SLK (R171) (03.2004 - 12.2011) 200 Kompressor (171.442) (163 hp, 120 kW)

MERCEDES-BENZ SLK (R171) (03.2004 - 12.2011) 200 Kompressor (171.445) (184 hp, 135 kW)

MERCEDES-BENZ SLK (R172) (02.2011 - ) 200 (172.448) (184 hp, 135 kW)

MERCEDES-BENZ SLK (R172) (02.2011 - ) 250 (172.447) (204 hp, 150kW)

MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 316 (906.733, 906.735) (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 316 LGT (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 316 NGT (906.733) (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t bus (906) (06.2006 - 05.2016) 316 NGT (906.733, 906.735) (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 316 (906.635, 906.633) (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 316 LGT (906.633, 906.635) (156 HP, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t box (906) (06.2006 - 12.2017) 316 NGT (906.633, 906.635) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 316 (906.133, 906.135, 906.233, 906.235) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 316 LGT (906.133, 906.135, 906.233, 906.235) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3.5-t Flatbed/Chassis (906) (06.2006 - 12.2016) 316 NGT (906.133, 906.135, 906.233, 906.235) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 216 (906.713) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3-t Panel Van (906) (06.2006 - 12.2009) 216 (906.613) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 3-t Flatbed/Chassis (906) (06.2006 - 05.2016) 216 (906.113, 906.213) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 5-t Van (906) (06.2006 - 05.2016) 516 (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 5-t Flatbed/Chassis (906) (06.2006 - 05.2016) 516 (906.153, 906.155, 906.253, 906.255) (156 hp, 115 kW)

MERCEDES-BENZ SPRINTER 5-t Flatbed/Chassis (906) (06.2006 - 05.2016) 516 NGT (906.153, 906.155, 906.253, 906.255) (156 hp, 115 kW)
