Engine Timing Chain Tool Set for VAG 1.8 & 2.0 TFSI FSI

This professional engine timing tool set is designed for locking, adjusting, and controlling camshaft and crankshaft timing on VAG 1.8L and 2.0L FSI/TFSI engines.

It ensures precise synchronization during timing chain replacement, camshaft service, tensioner locking, and oil pump adjustment, reducing the risk of incorrect timing and engine damage.

Vehicle Application

Commonly used on vehicles such as:

• Audi A4 / A5 (from 2008)
• Audi A6 (from 2012)

Suitable for a wide range of VAG petrol engine applications.

Engine Compatibility

Compatible with the following engine codes:

BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CFPA, CGYA, CHHA, CHHB, CJBA, CJEB, CJKA, CJKB, CJSA, CJSB, CNCD, CPLA, CPSA

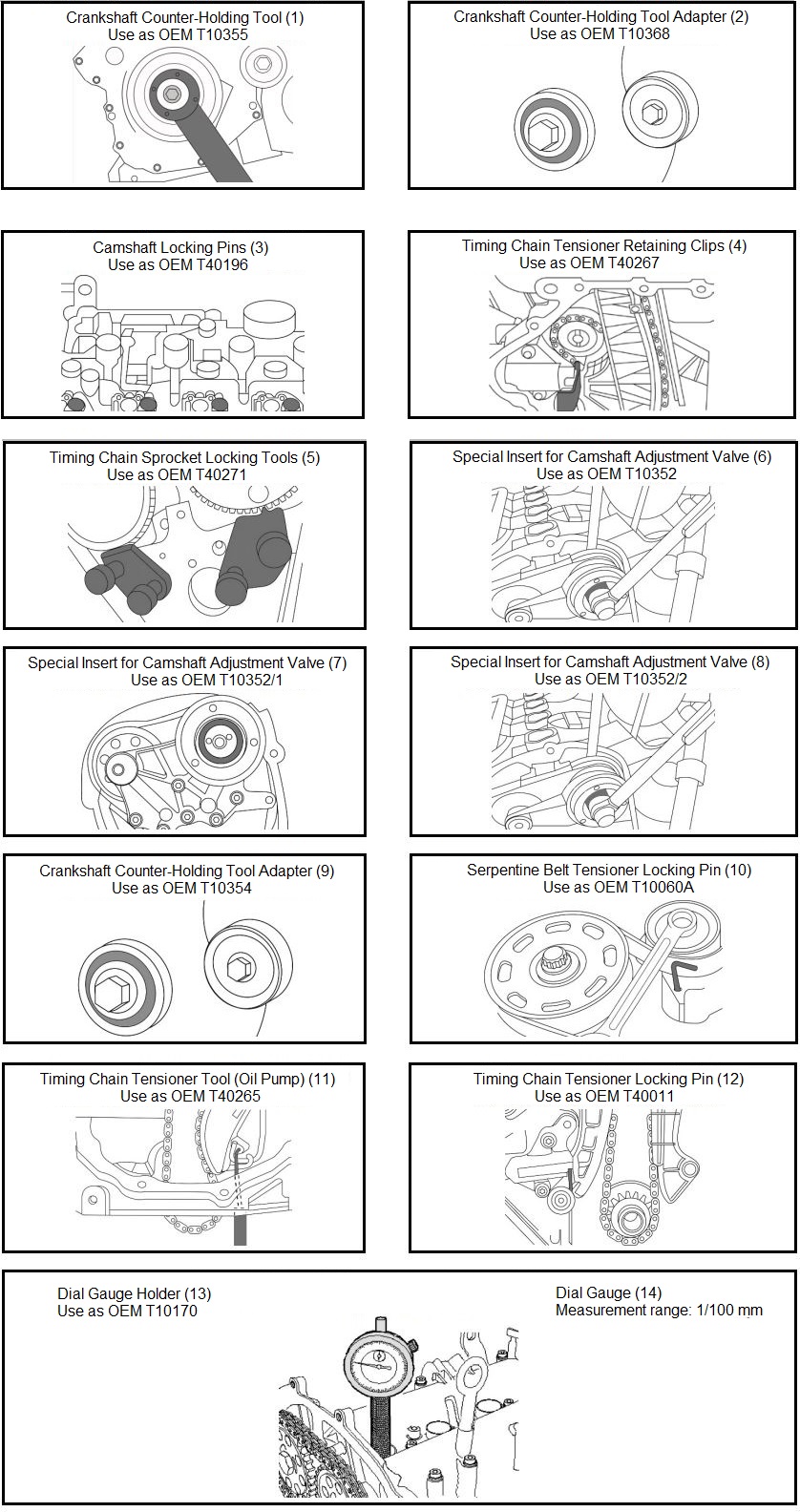

Tool Functions

The set enables:

• Camshaft locking and alignment
• Crankshaft holding and axial positioning
• Timing chain tensioner locking
• Sprocket locking during service procedures
• Oil pump locking and adjustment
• Accurate engine timing setup

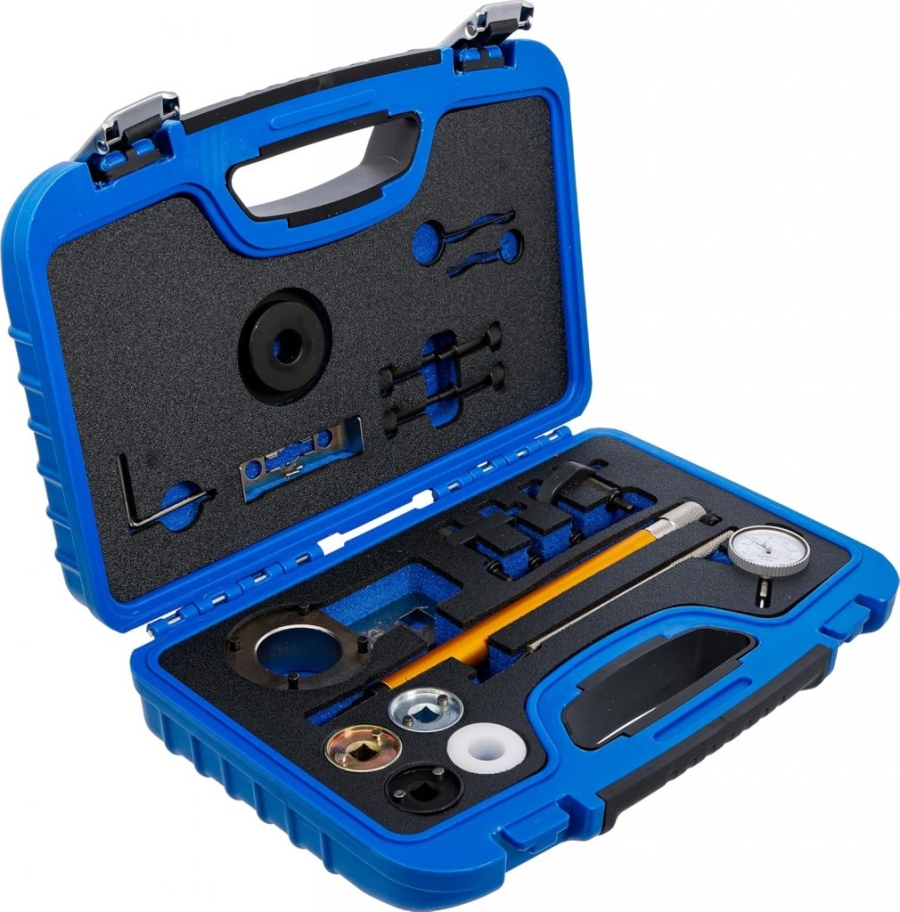

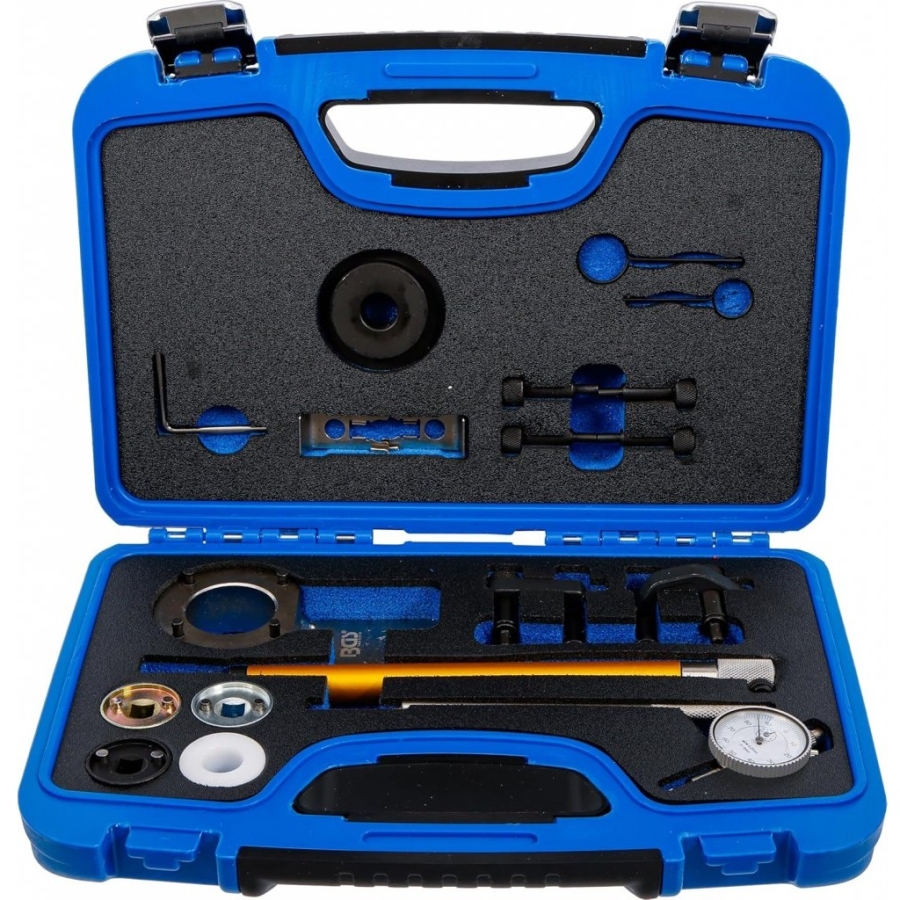

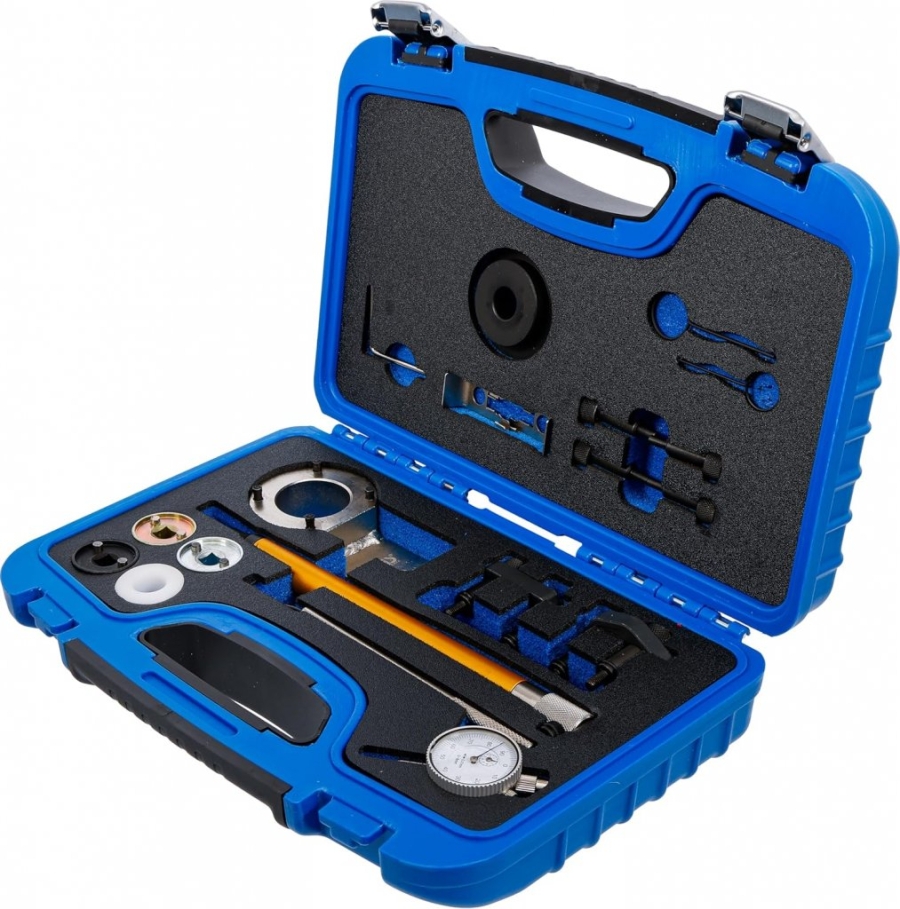

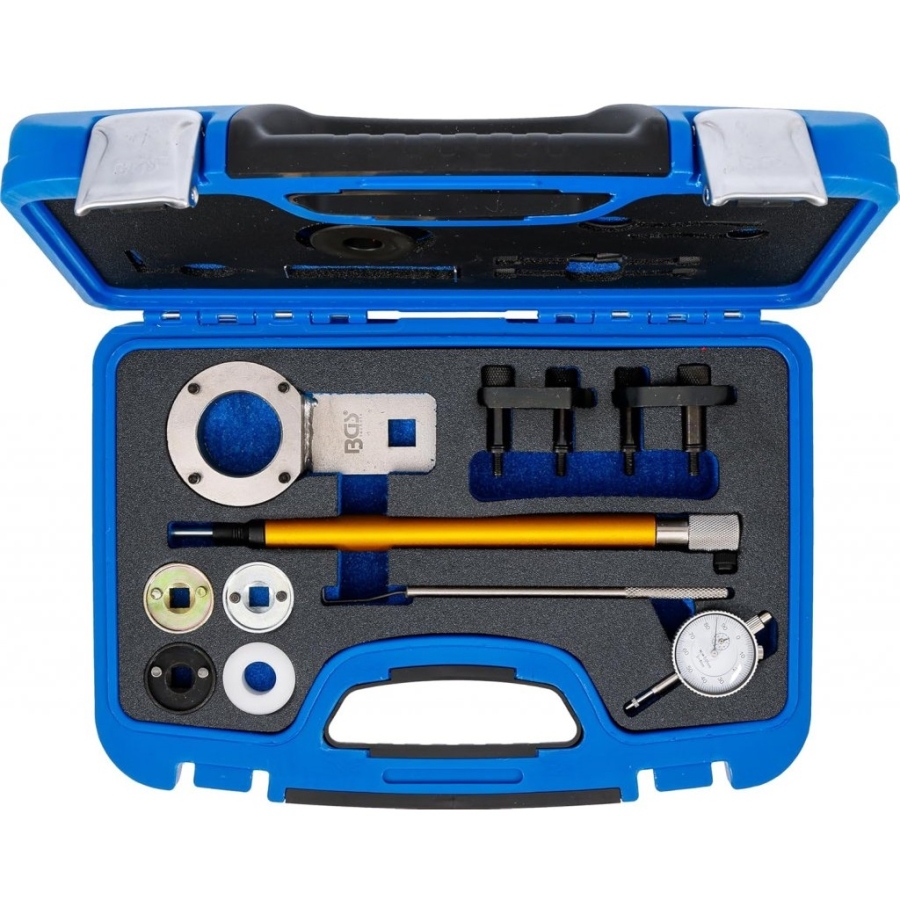

Set Contents

• Crankshaft holding tool (T10355)
• Crankshaft pressure tool (T10368)
• Crankshaft pressure tool (T10354)
• Camshaft locking pins (4 pcs) (T40196)
• Chain tensioner locking clips (2 pcs) (T40267)
• Sprocket locking tools (2 pcs) (T40271) (T20208)
• Camshaft valve tools (T10352)
• Camshaft valve tools (T10352/1)
• Camshaft valve tools (T10352/2)
• Tensioner locking pin (T10060A)
• Tensioner locking pins (2 pcs) (T40011)
• Oil pump locking pin (T40265)

OEM Reference

(T10355)
(T10368)
(T10354)
(T40196)
(T40267)
(T40271)
(T20208)
(T10352)
(T10352/1)
(T10352/2)
(T10060A)
(T40011)
(T40265)

Reference numbers are provided for identification purposes only. These tools are not OEM products.
