Transmission Housing Puller for DSG 7-Speed 0AM / DQ200 Gearboxes, as T10323, T10427, VW434

Price: €119.50 233.72лв.

Code:

120762
Weight:

3.500 Kgs

Overview:
✔ Professional transmission housing puller for DSG gearboxes
✔ Suitable for 7-speed DSG transmissions 0AM and DQ200
✔ Designed for separating gearbox housing halves during repairs
✔ Enables controlled pressing of transmission shafts from bearings
✔ Includes puller bridge, support feet, pressure adapters, and mounting plate
✔ Suitable for Audi, VW, Seat, and Skoda vehicles
✔ Ideal for professional transmission overhaul and inspection work
✔ item no. compatible references: as T10323, T10427, VW434

Transmission Housing Puller for DSG 7-Speed 0AM / DQ200 Gearboxes, as T10323, T10427, VW434

Send to friend

Rate this product

Specialized puller tool designed for separating the housing halves of VAG 7-speed DSG direct shift transmissions. The tool allows professional disassembly of the gearbox housing for repair, overhaul, damage inspection, and maintenance procedures.

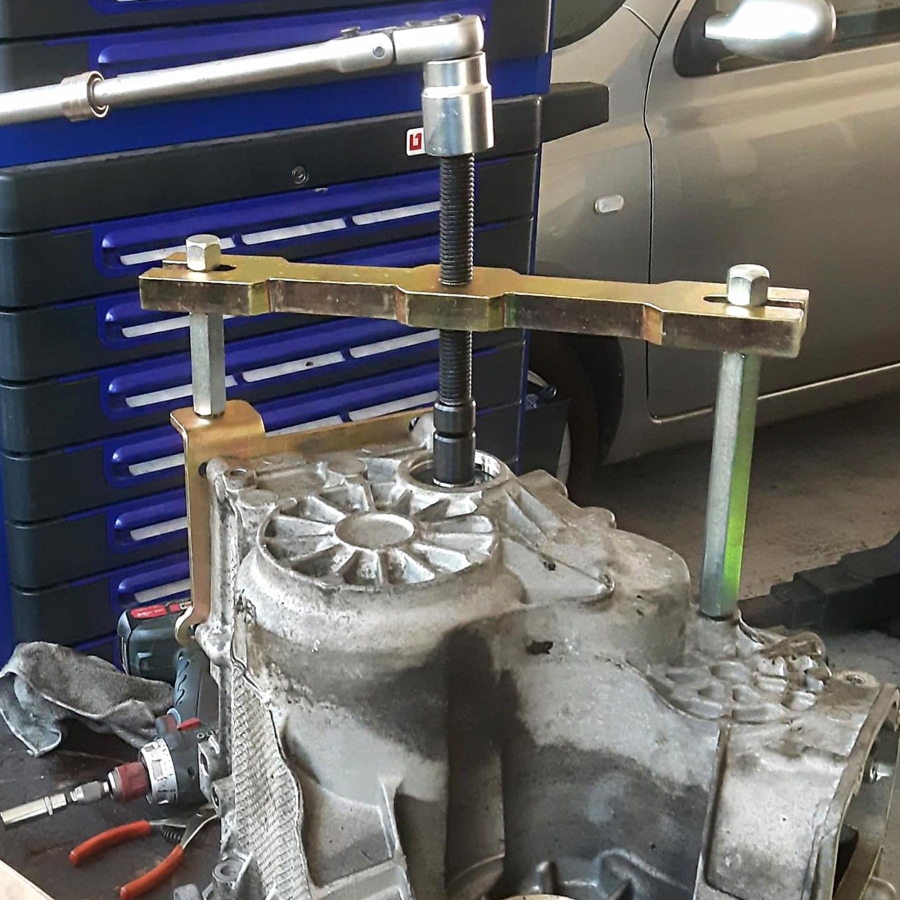

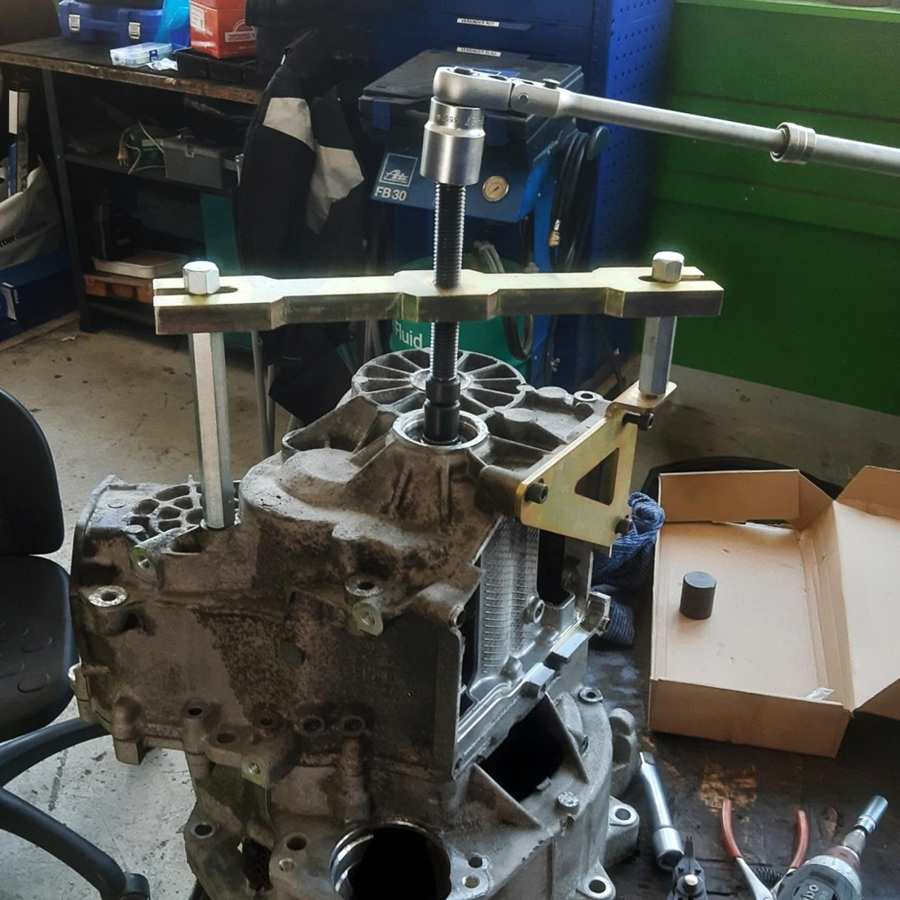

The triangular support bracket is mounted to the transmission housing to provide stable support during operation. Using the supplied pressure sleeves and puller bridge, controlled pressure can be applied to the transmission shaft in order to press the shaft safely out of the transmission bearings.

Suitable for professional workshop servicing of DSG transmissions.

Compatible Gearboxes

0AM
DQ200

Compatible Transmission Codes

Compatible Vehicles

Audi

Audi A3

Volkswagen

VW Golf
VW Tiguan

Seat

Seat Ibiza
Seat Toledo

Skoda

Skoda Fabia
Skoda Octavia

Reference Numbers

To be used as:

T10323
T10427
VW434

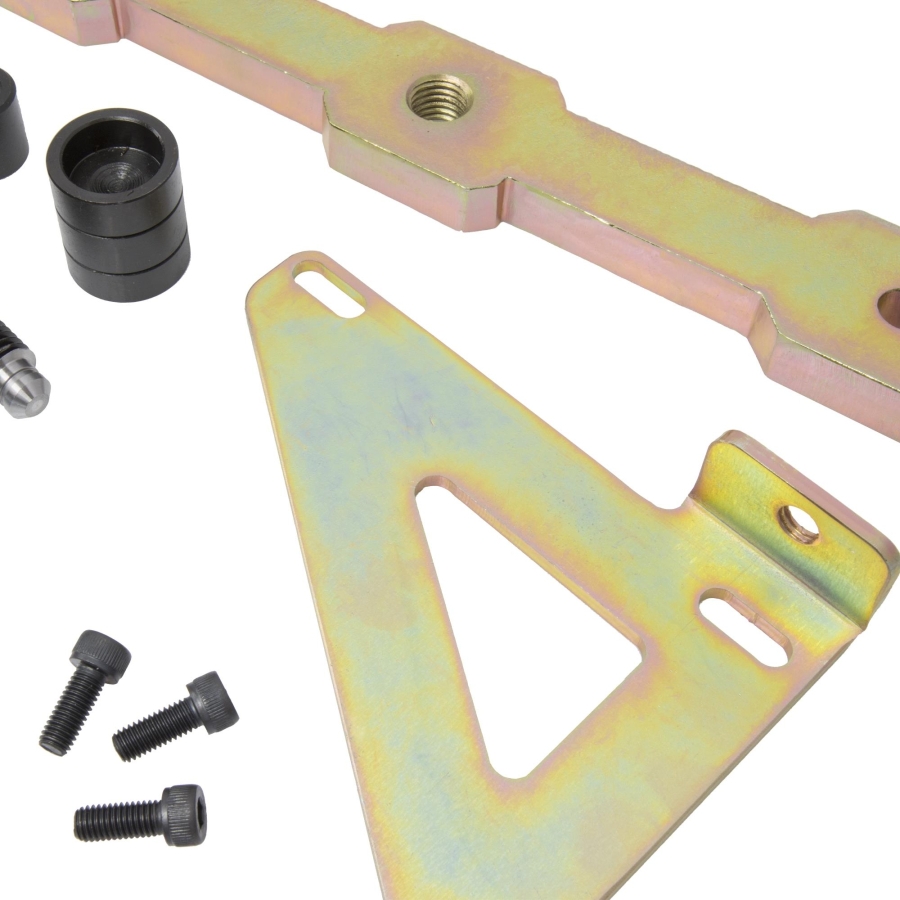

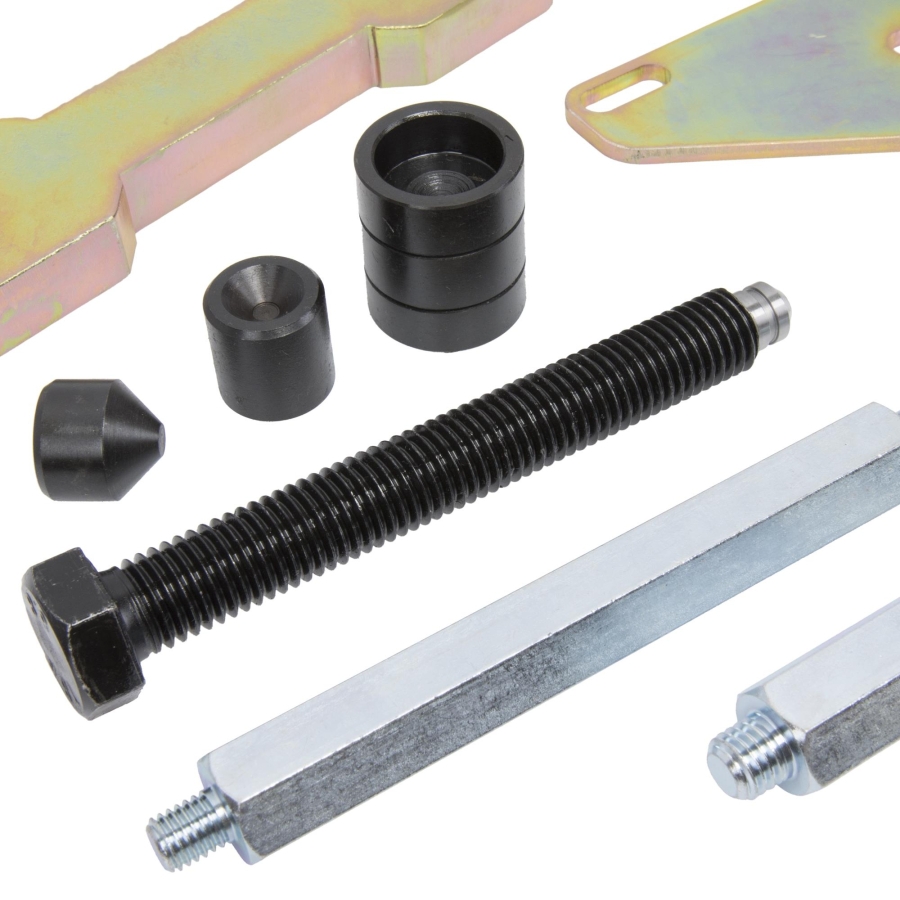

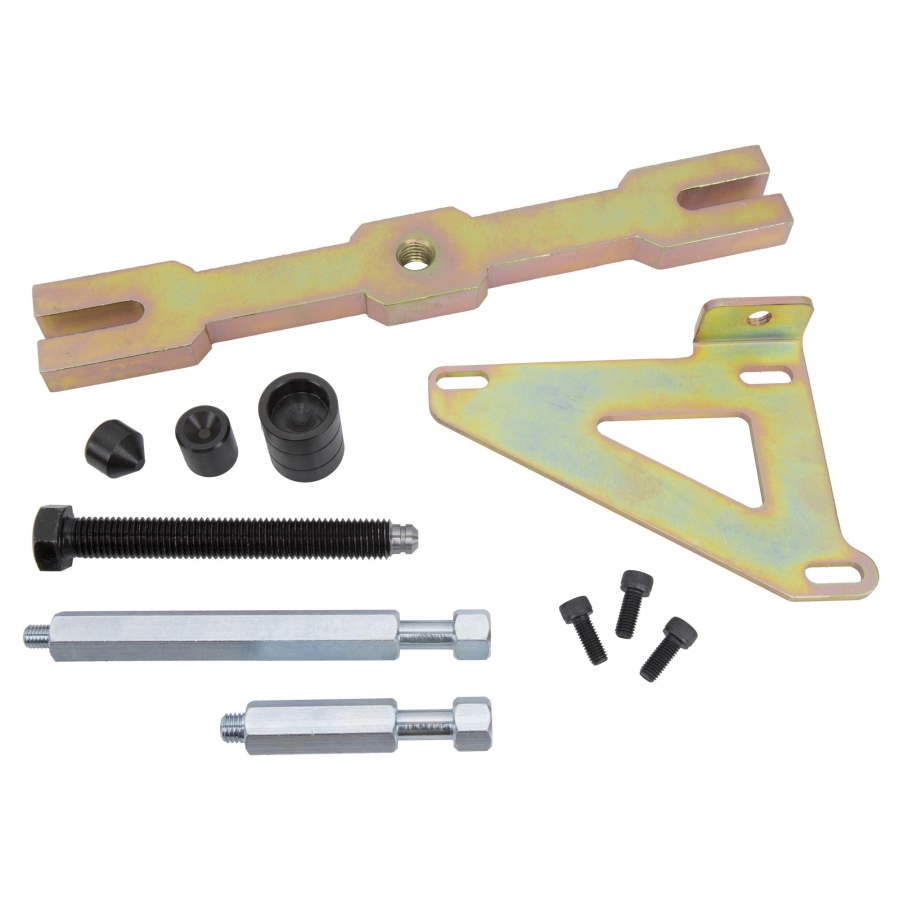

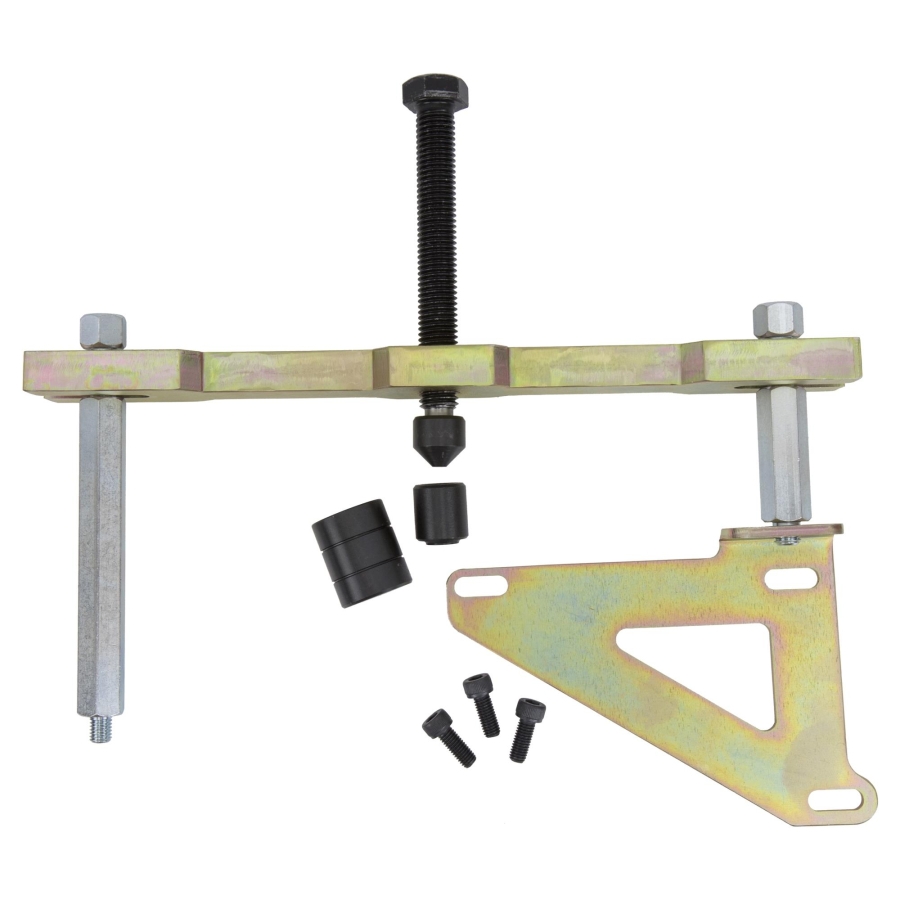

Package Contents

Puller with pressure spindle
Support feet, short and long, 2 pcs.
Transmission housing mounting plate
Pressure adapters, large and small, 2 pcs.
Mounting bolts, 3 pcs.

Original numbers are used for comparison purposes only. This is not an original manufacturer tool.

Remove the oil pan, housing bolts, and all components required for separating the housing halves.
Lubricate the spindle thread and insert the puller spindle (6) into the internal thread of the puller bridge (1).
Install the short and long support bolts (5 + 7) into the puller bridge (1).

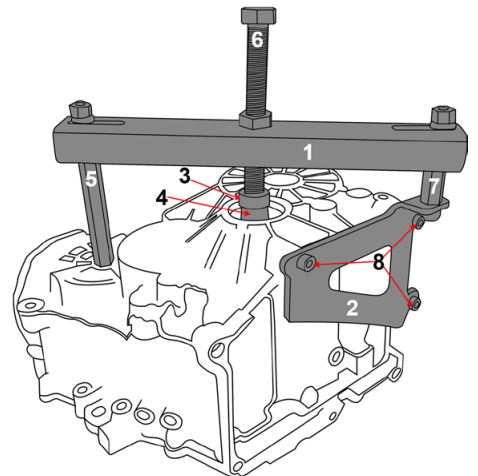

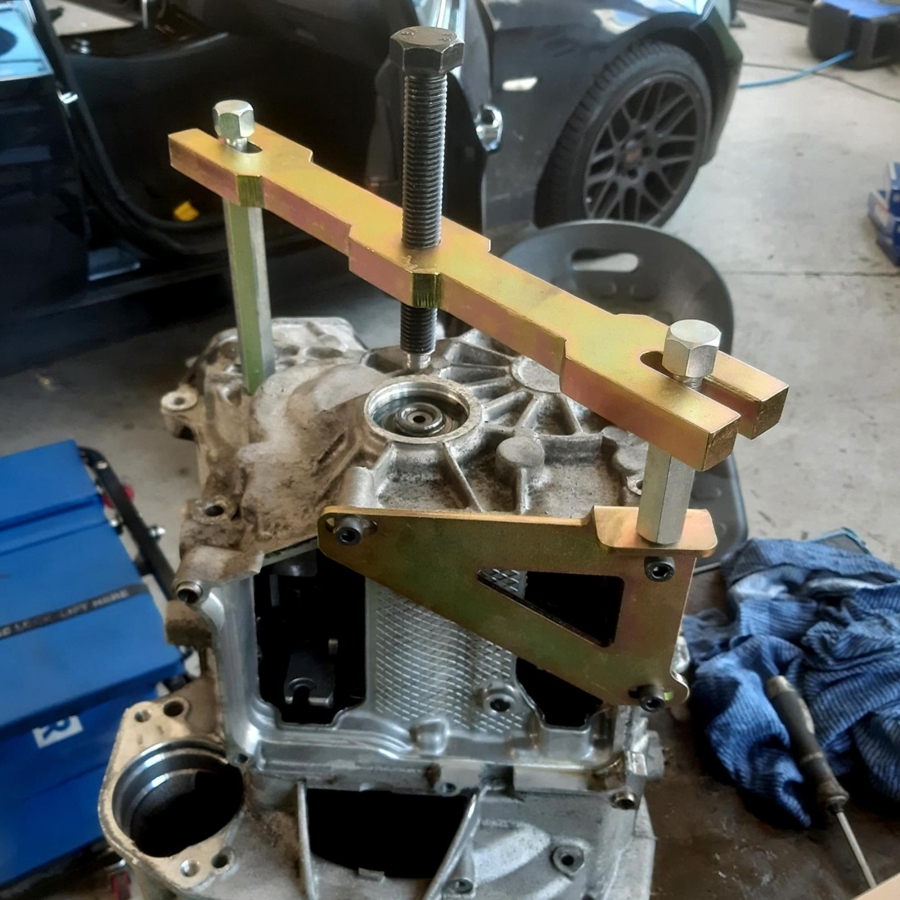

Attach the adapter plate to the underside of the housing using the three bolts (8), as shown in the illustration.
The mounting tab on the adapter plate (2) must be installed facing away from the transmission housing.

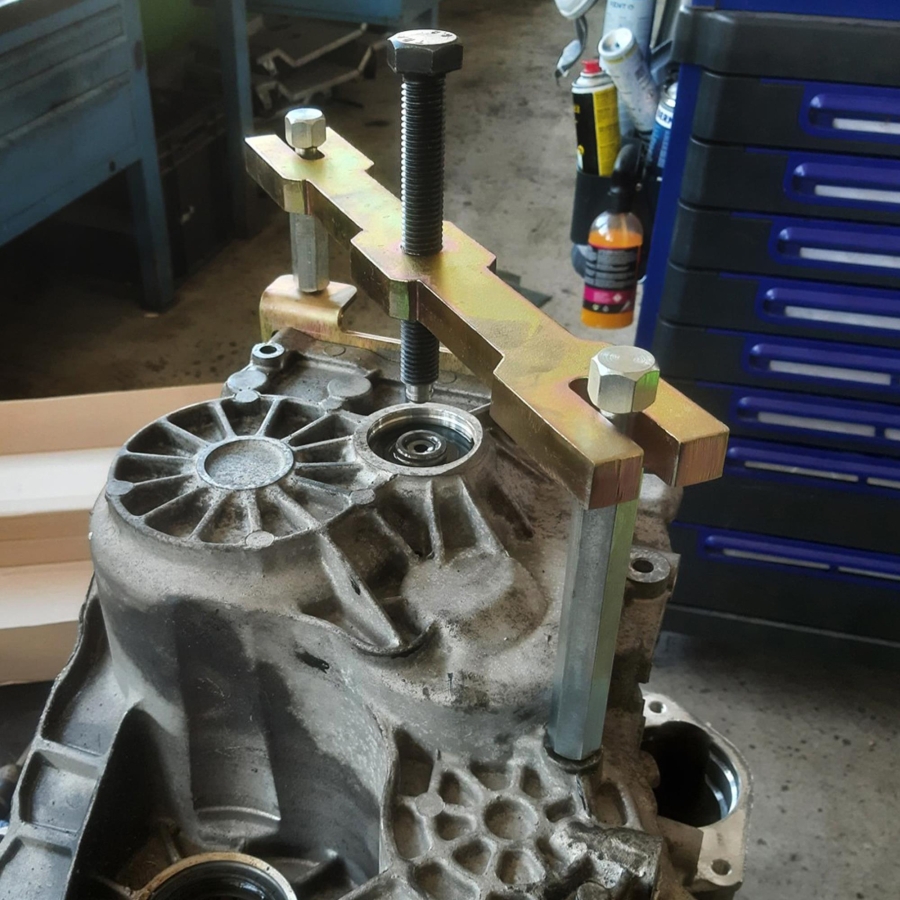

Position the pressure piece (4) and install the pre-assembled separating tool.
The long support bolt (5) is mounted against the housing, while the short support bolt (7) is mounted against the mounting tab of the adapter plate (2).
