Tube Flaring Tool Set Types D, E & F

This tube flaring tool set is designed for producing flare types D, E and F quickly and accurately. The straight-line flaring movement ensures uniform force distribution and allows precise, repeatable results.

The tool is suitable for a wide range of tube diameters and is intended for professional use in automotive workshops and general tube processing applications.

Supported Flaring Types

The tool allows the production of:

• Type D single flares
• Type E double flares (SAE)
• Type F double flares

The straight-line operating principle provides:

• Fast operation
• High precision
• Consistent flaring quality
• Reduced risk of tube deformation

Tube Compatibility

Suitable for tube diameters:

Metric sizes:

• 4.75 mm
• 5 mm
• 6 mm
• 8 mm
• 10 mm

Imperial sizes:

• 1/4"
• 1/2"

Suitable for:

• Tubes with wall thickness up to 1 mm

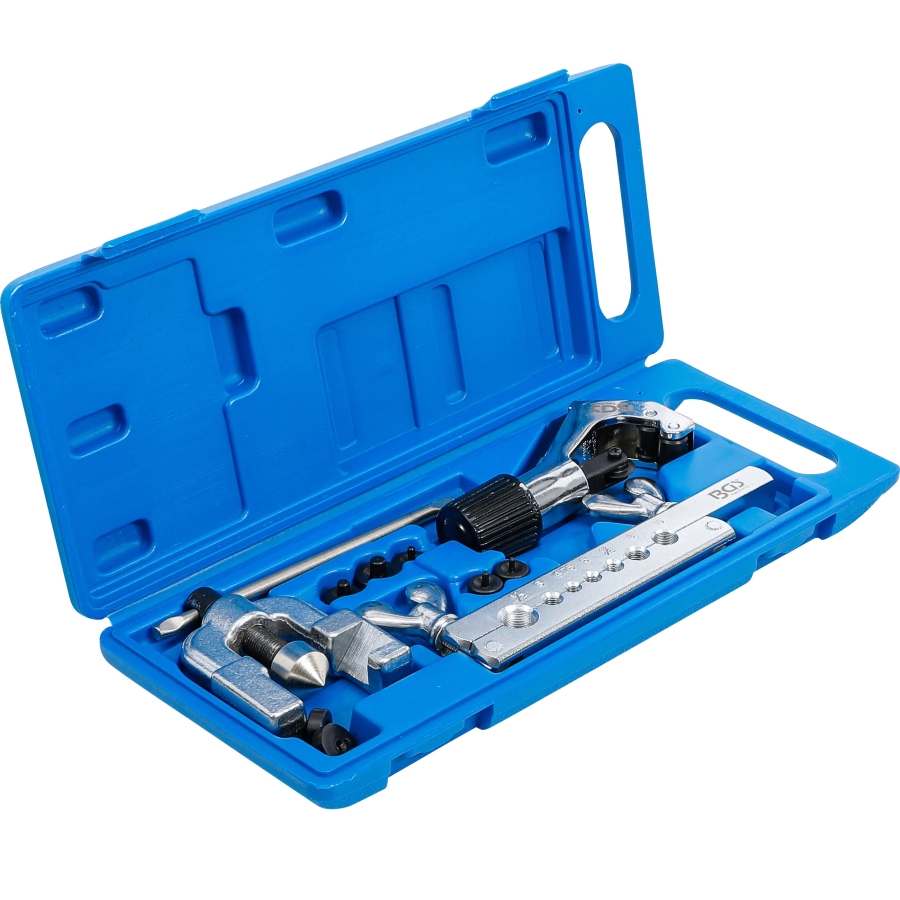

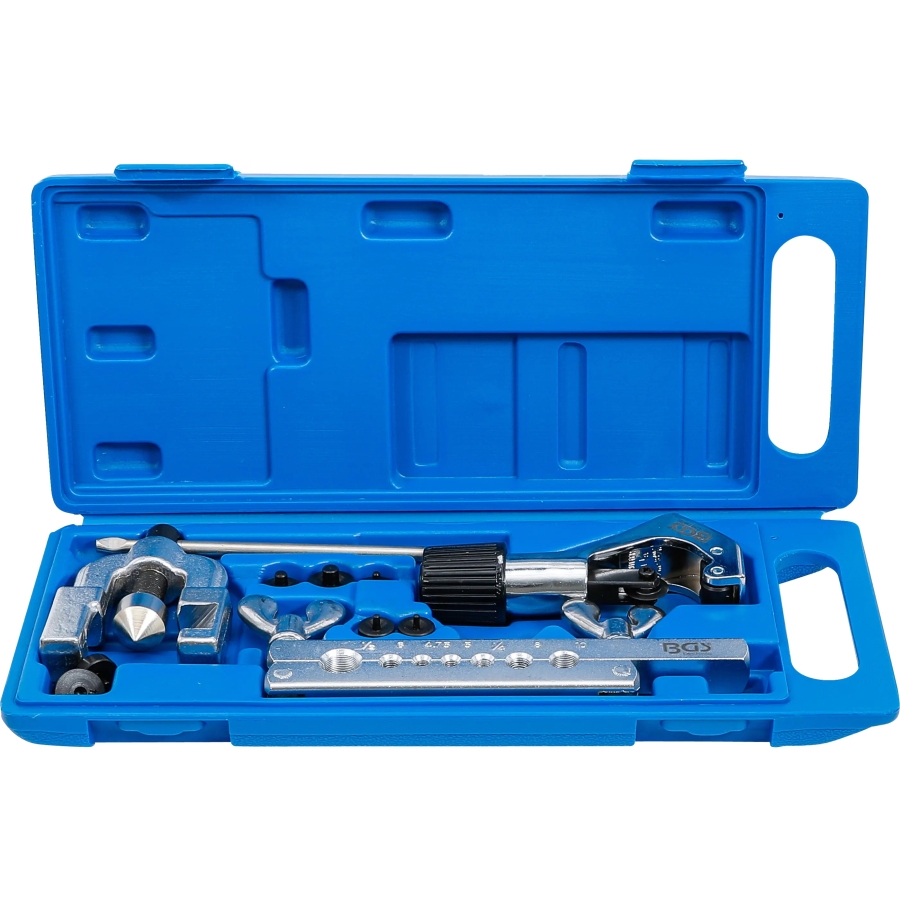

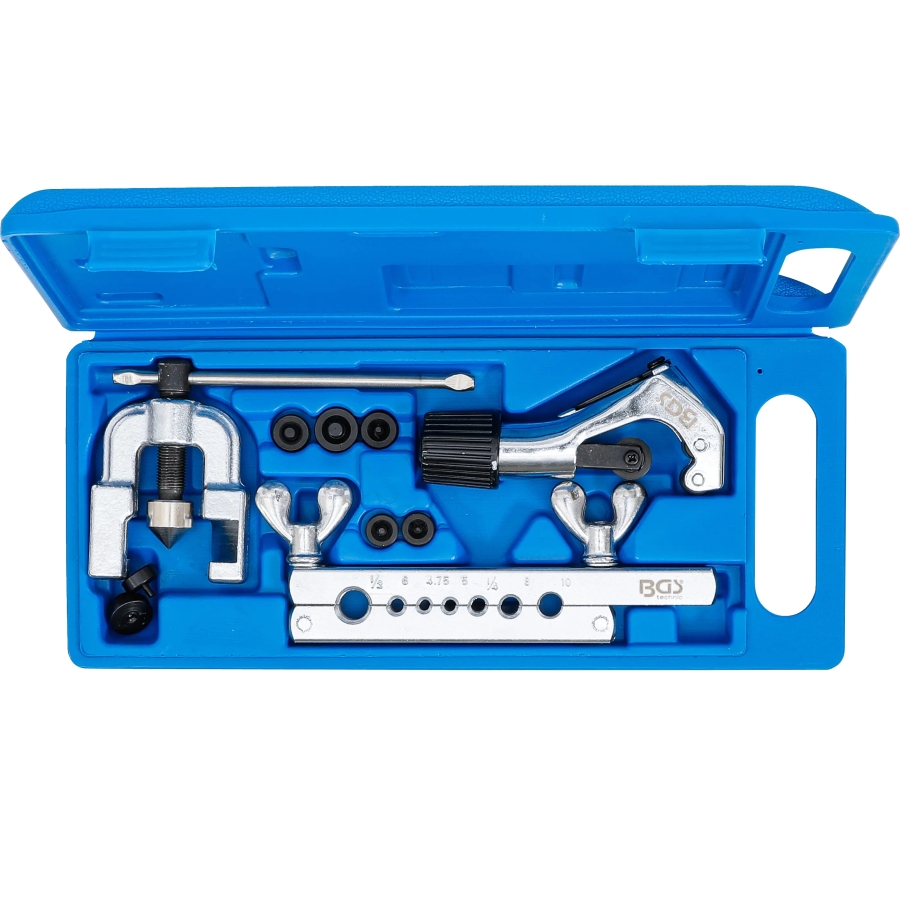

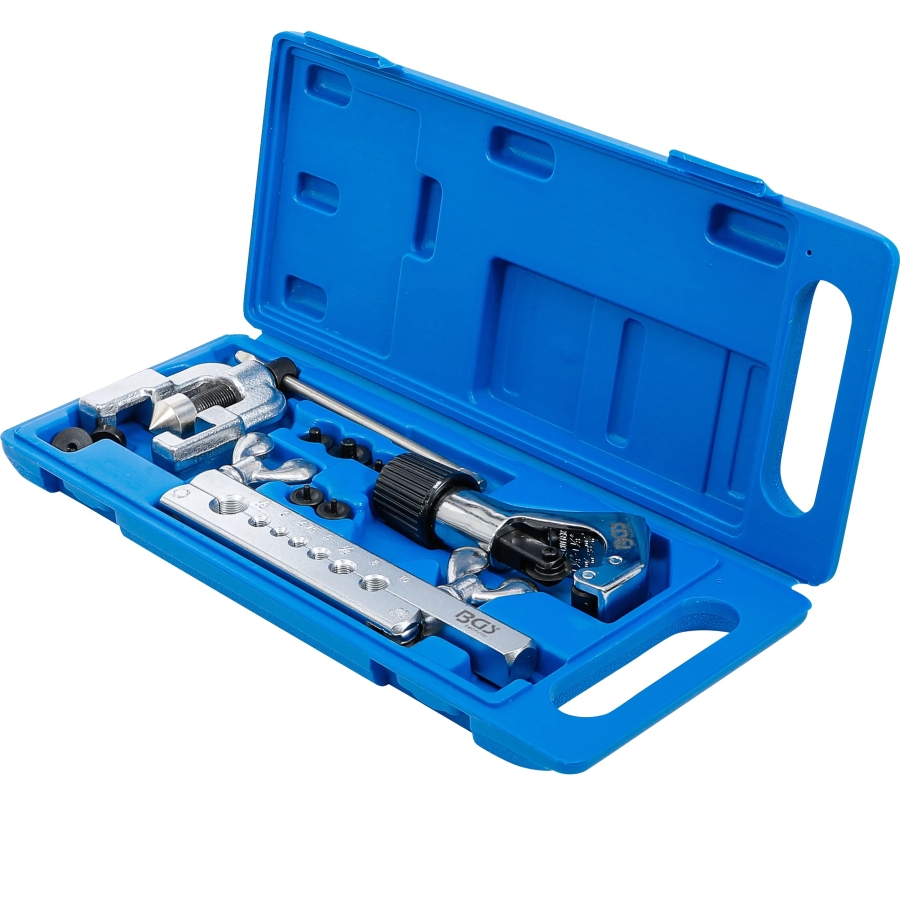

Package Contents

The set includes:

• 1 Base unit
• 1 Holding bracket with clamping jaws
• 1 Tube cutter
• 7 Pressure dies:
  • 1/4"
  • 1/2"
  • 4.75 mm
  • 5 mm
  • 6 mm
  • 8 mm
  • 10 mm

Advantages

• Produces Type D, E and F flares
• Straight-line flaring movement for precise results
• Suitable for metric and imperial tube sizes
• Compatible with tubes up to 1 mm wall thickness
• Includes tube cutter and pressure dies
• Professional-grade construction for workshop use
