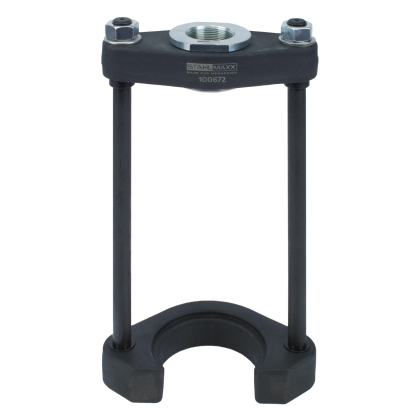

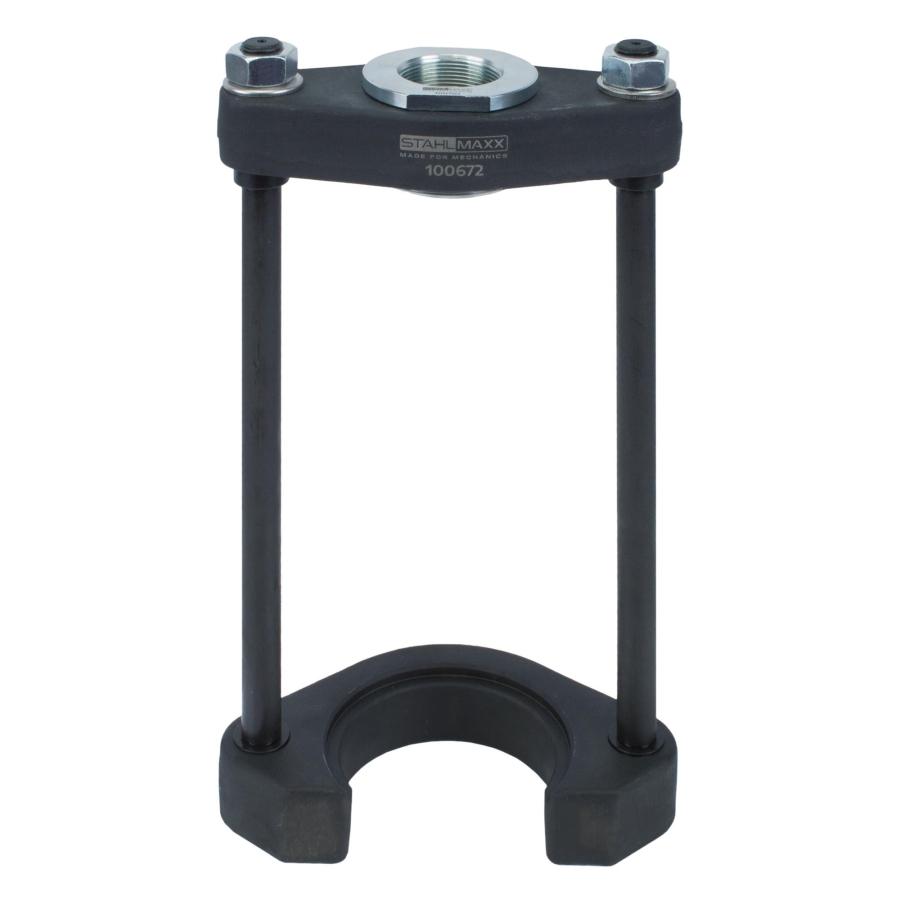

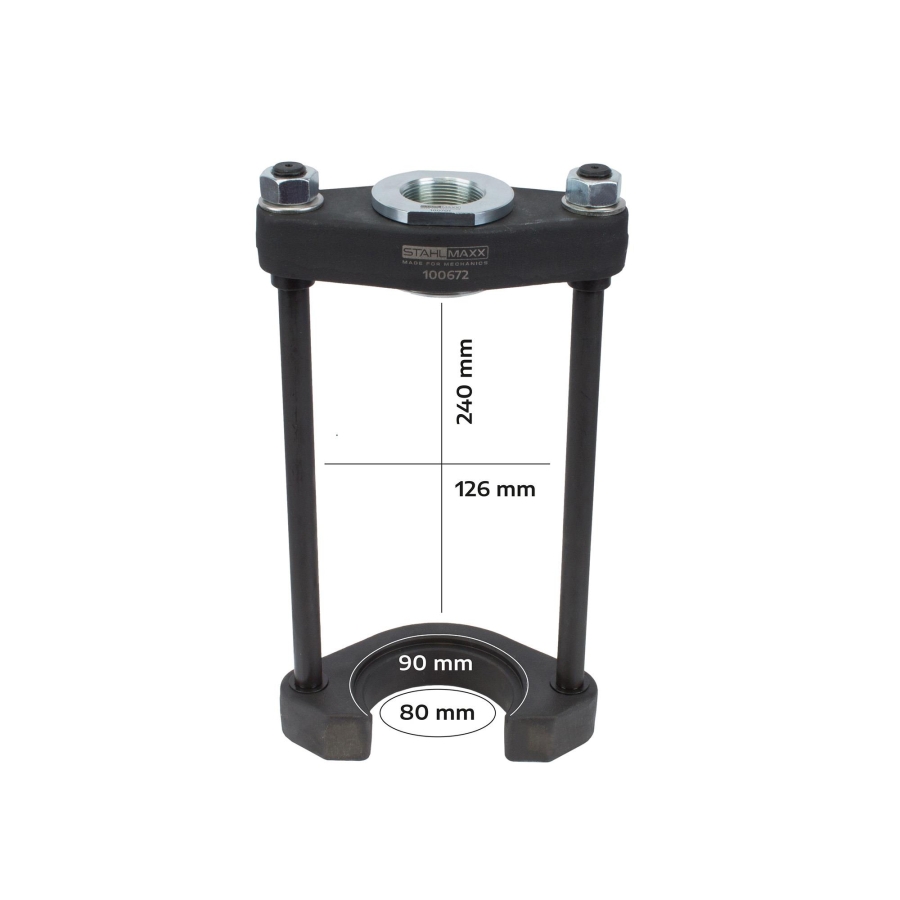

Universal Press Frame for Silent Bushings, Ball Joints and Bushes

The Universal Press Frame is designed for the professional installation and removal of silent bushings, ball joints, bearings, suspension bushes, and other press-fitted components. It enables fast and accurate service operations on both front and rear axle assemblies while helping reduce repair time and unnecessary component removal.

Its modular design allows the system to be expanded with various press adapters and vehicle-specific tooling sets, making it a versatile solution for modern automotive workshops.

Modular Expansion System

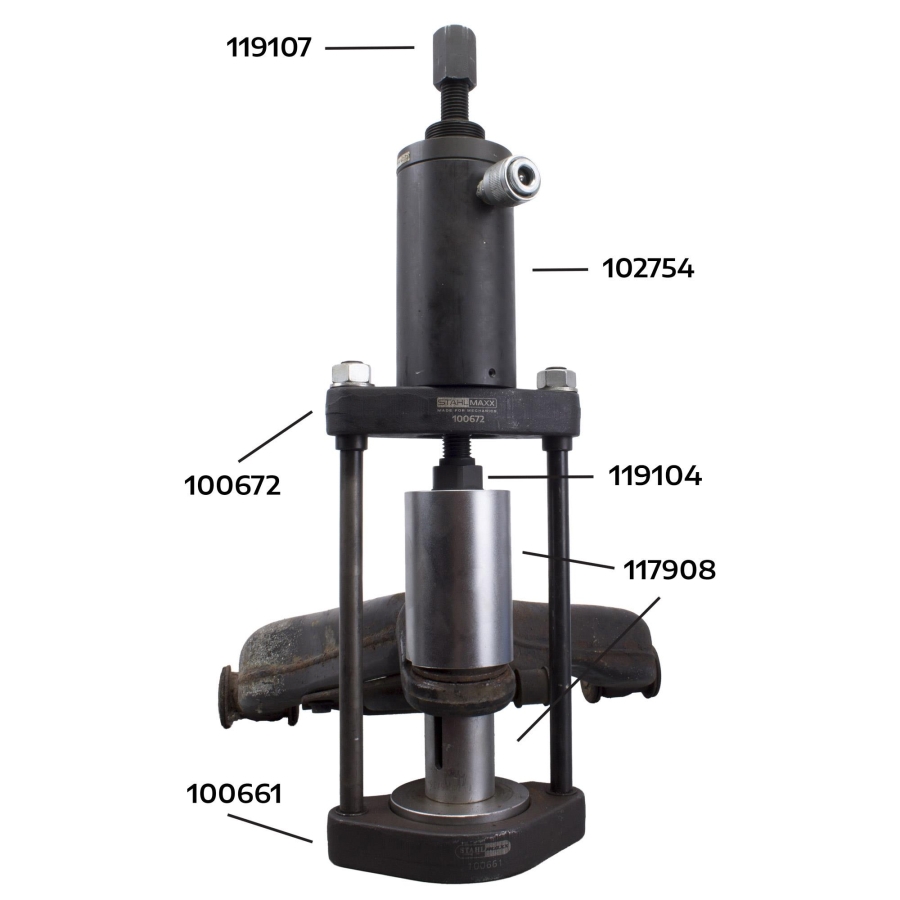

The press frame can be expanded according to workshop requirements through the use of separately available press adapters and tooling kits.

When combined with a universal silent bushing sleeve set, the system covers a large number of suspension and chassis repair applications.

Additional vehicle-specific press adapter sets are available for a wide range of vehicle models.

Drive System Compatibility

The press frame features:

• Upper mounting for 2.1/4-14 UNS hydraulic hollow piston cylinders
• 1.1/2" × 16 UN adapter
• Quick interchange between different spindle systems

Compatible drive accessories:

• Hydraulic Spindle 12 t – Item no. 15047
• Impact Spindle – Item no. 104767
• Trapezoidal Spindle – Item no. 104949
• Adapter Plate – Item no. 64007

Compatible Tool Sets and Adapter Kits

The press frame is compatible with the following tooling systems:

• Universal Press and Pull Sleeve Set for Silent Bushings – Item no. 117908
• Rear Axle Bushing Tool for Ford Mondeo, Galaxy, S-Max, Volvo S60, V60, XC60, V70, XC70 – Item no. 113046
• BMW Ball Joint and Silent Bushing Press Tool – Item no. 27014
• Ford Focus Rear Axle Trailing Arm Bushing Adapter Set – Item no. 107125
• VW Crafter and Mercedes-Benz Sprinter Ball Joint Adapter Set – Item no. 107126
• VW LT28-46, LT28-35 and Mercedes-Benz Sprinter Ball Joint Adapter Set – Item no. 107127
• VW T4 Upper Ball Joint Adapter Set – Item no. 107131
• Nissan Interstar, Opel Movano and Renault Master Lower Ball Joint Adapter Set – Item no. 107129
• Mercedes-Benz W201, W124, A124, C124 Ball Joint Adapter Set – Item no. 107128
• Nissan Interstar, Opel Movano and Renault Master Upper Ball Joint Adapter Set – Item no. 115386

Applications

Suitable for:

• Silent bushing replacement
• Ball joint installation and removal
• Suspension bushing replacement
• Bearing service operations
• Front axle repairs
• Rear axle repairs
• Chassis maintenance
• Professional workshop repairs

Key Benefits

• Universal workshop press system
• Expandable with vehicle-specific tooling
• Compatible with hydraulic and mechanical spindle systems
• Suitable for front and rear axle repairs
• Supports a broad range of vehicle applications
• Reduces repair time and component damage risk
• Designed for daily professional workshop use

Compatible Accessories

Drive Accessories

• Hydraulic Spindle 12 t – Item no. 15047
• Impact Spindle – Item no. 104767
• Trapezoidal Spindle – Item no. 104949
• Adapter Plate – Item no. 64007

Compatible Tool Sets and Adapter Kits

• Universal Press and Pull Sleeve Set for Silent Bushings – Item no. 117908
• Rear Axle Bushing Tool for Ford Mondeo, Galaxy, S-Max and Volvo S60, V60, XC60, V70, XC70 – Item no. 113046
• BMW Ball Joint and Silent Bushing Press Tool – Item no. 27014
• Adapter Set for Ford Focus Rear Axle Trailing Arm Bushings – Item no. 107125
• Adapter Set for VW Crafter and Mercedes-Benz Sprinter Ball Joints – Item no. 107126
• Adapter Set for VW LT and Mercedes-Benz Sprinter Ball Joints – Item no. 107127
• Adapter Set for VW T4 Upper Ball Joints – Item no. 107131
• Adapter Set for Nissan Interstar, Opel Movano and Renault Master Lower Ball Joints – Item no. 107129
• Adapter Set for Mercedes-Benz W201, W124, A124 and C124 Ball Joints – Item no. 107128
• Adapter Set for Nissan Interstar, Opel Movano and Renault Master Upper Ball Joints – Item no. 115386
