Universal Wheel Bearing Tool Set up to Ø91.5 mm, 31 Pieces with Hub Removal Bolts

This professional 31-piece wheel bearing tool set is designed for installation and removal of wheel bearings and wheel hubs in passenger vehicles. The wide range of pressure plates and extraction cups allows coverage of many common wheel bearing sizes used in automotive applications.

The kit enables complete wheel bearing servicing, including wheel hub removal, extraction of old bearings, installation of new bearings and reassembly of wheel hubs.

Universal Coverage for Passenger Vehicle Applications

The included adapter plates and extraction cups cover wheel bearing sizes from Ø50 mm up to Ø91.5 mm, making the set suitable for a broad range of vehicle models.

The universal configuration allows use across many passenger car applications and reduces the need for multiple dedicated service tools.

Heavy-Duty Spindle with Thrust Bearing

The professional spindle assembly is equipped with a high-load thrust bearing, allowing smooth force transfer and easier removal of seized or heavily fitted wheel bearings.

This design provides:

• Reduced friction during operation
• Lower effort during bearing extraction and installation
• Improved service life under intensive workshop use

The thrust bearing and spindle nut can also be replaced separately if necessary.

Designed for Daily Workshop Use

Manufactured for demanding workshop environments, the set is intended for regular use in professional automotive service operations.

Key benefits:

• Faster wheel bearing replacement procedures
• Reduced labor time
• Reduced risk of component damage
• Suitable for high-frequency workshop applications

Technical Information

Spindle specifications:

• Thread size: M22 × 300 mm
• Wrench size: 36

Note: Compatible socket available as Item no. KT04032 or Item no. 102775.

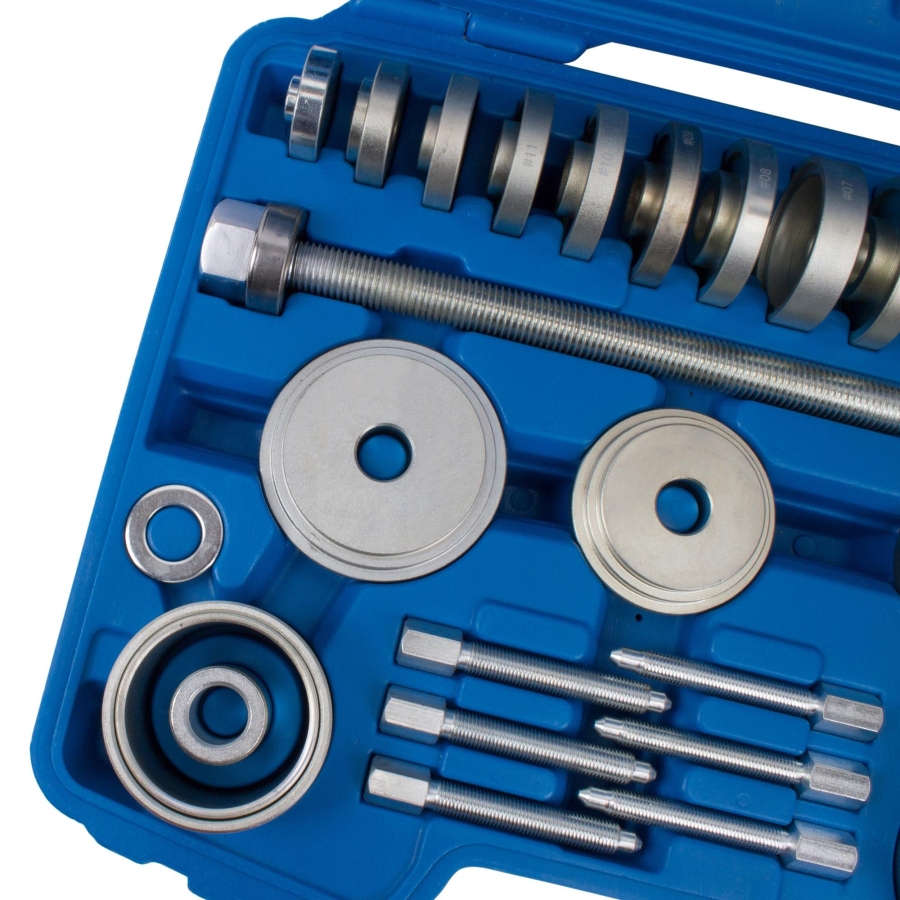

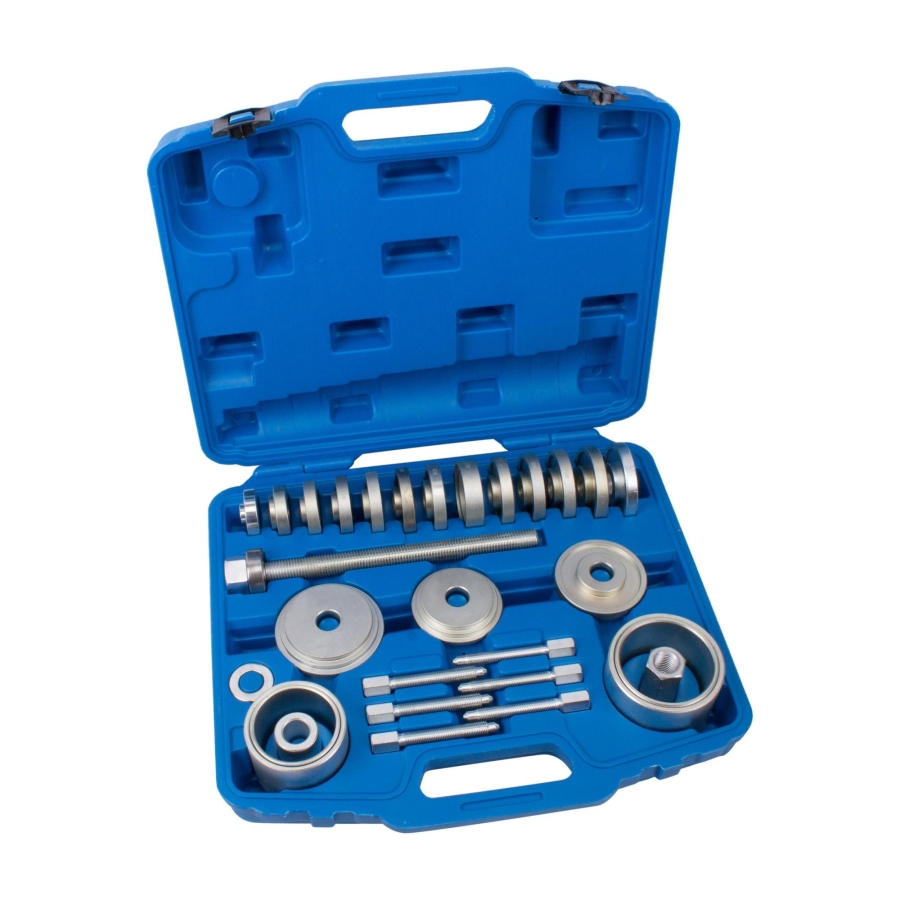

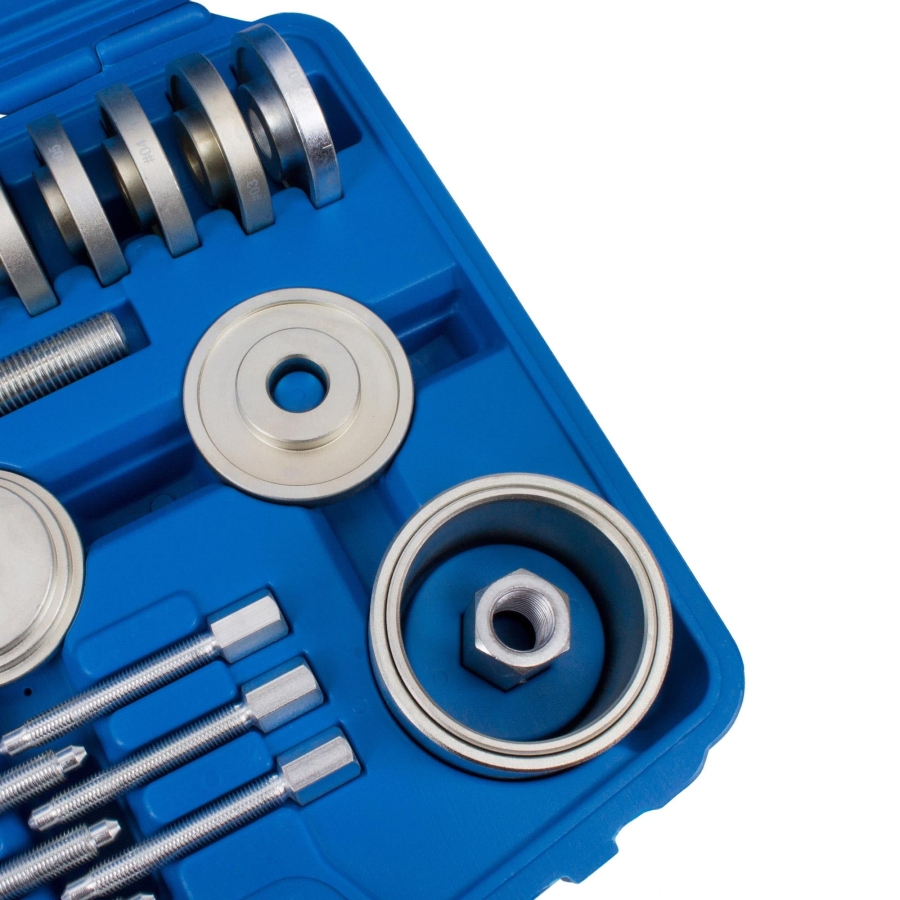

Package Contents

14 × Pressure plates

• Ø50 mm
• Ø55 mm
• Ø59 mm
• Ø63.3 mm
• Ø66.6 mm
• Ø70.3 mm
• Ø71.5 mm
• Ø73.1 mm
• Ø73.4 mm
• Ø74.8 mm
• Ø77.5 mm
• Ø81.5 mm
• Ø83.4 mm
• Ø88.4 mm

4 × Extraction cups

• Inner Ø68.5 mm / Outer Ø76.0 mm
• Inner Ø77.5 mm / Outer Ø86.0 mm
• Inner Ø81.5 mm / Outer Ø91.0 mm
• Inner Ø91.5 mm / Outer Ø102 mm

2 × Stepped pressure plates

3 × Wheel hub removal bolts

• M12 × 1.5
• Total length: 110 mm

3 × Wheel hub removal bolts

• M14 × 1.5
• Total length: 110 mm

Additional components

• 1 × Spindle M22 × 300 mm, 36
• 1 × Thrust bearing
• 1 × Pressure nut 32 × 60 mm
• 1 × Pressure sleeve Ø38 × 40 mm
• 1 × Pressure washer Ø40 × 3 mm
