VAG 2.0 TDI Common Rail Engine Timing Tool Kit (EA288)
-
Code:74309
-
Weight:1.880 Kgs
Overview:
✔ Professional engine timing and locking tool kit
✔ Designed for VAG 2.0L TDI Common Rail engines (EA288)
✔ Ensures precise alignment of crankshaft, camshaft, and high-pressure pump
✔ Suitable for Audi and Volkswagen models
✔ Supplied in practical 1/3 tool tray (189 x 408 x 32 mm) for workshop trolleys
Estimated Shipping
outside Varna starts at
€4.54
to Varna starts at
€4.54
This professional tool kit is specifically developed for accurate timing and locking of VAG 2.0L TDI Common Rail engines (EA288). It is essential for maintaining correct engine synchronization during servicing, timing belt replacement, and engine repairs.
The tools ensure secure positioning of critical engine components, minimizing the risk of misalignment and engine damage.
Vehicle Compatibility
Compatible with selected VAG models equipped with 2.0L TDI Common Rail engines:
- Audi A3 (8V) 2.0 TDI – Engine code CRUA (2015)
- VW Beetle 2.0 TDI – Engine code CVCA (2015)
- VW Golf 2.0 TDI – Engine code CRUA (2015)
- VW Jetta 2.0 TDI (EA288) – Engine code CVCA (2015)
- VW Passat (NMS) 2.0 TDI – Engine code CVCA (2015)
Function
The tool set enables:
- Locking of crankshaft in correct timing position
- Securing camshaft alignment during service procedures
- Locking and stabilizing the high-pressure fuel pump
- Proper tensioning and locking of timing belt tensioner
- Accurate engine timing adjustment according to manufacturer specifications

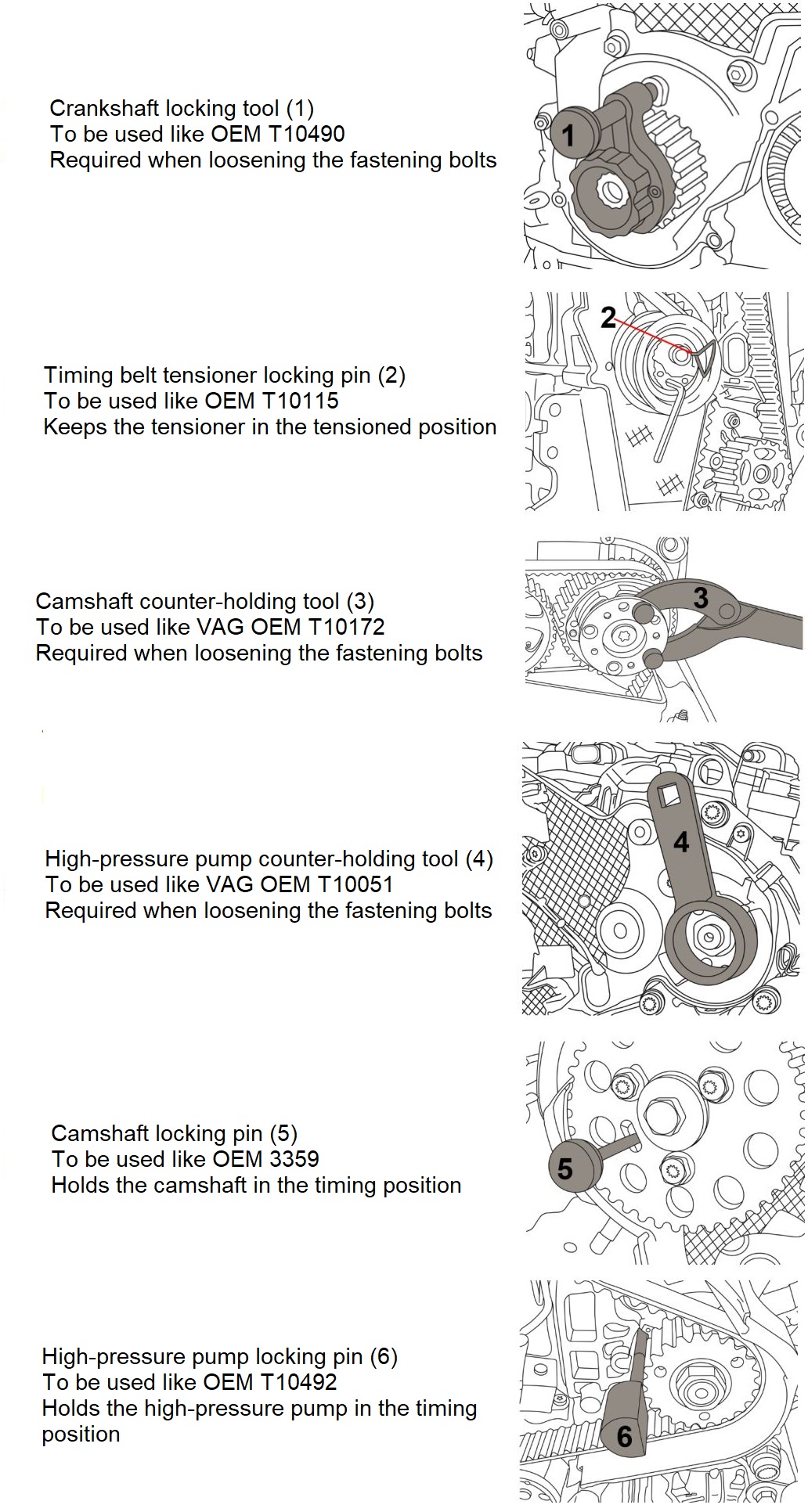

Scope of Delivery
- Crankshaft locking tool (T10490)
- Timing belt tensioner locking pin (T10115)
- Camshaft counterhold tool (T10172)
- High-pressure pump counterhold tool (T10051)
- Camshaft locking pin (3359)
- High-pressure pump locking pin (T10492)
Supplied in durable storage case with 1/3 tool tray insert (189 x 408 x 32 mm), compatible with workshop tool trolleys.
OEM numbers are for reference purposes only and do not imply original manufacturer tools.
