VAG 2.4 / 3.2 V6 FSI Timing Chain Tool Kit

This professional engine timing tool kit is designed for servicing VAG 2.4L and 3.2L V6 FSI engines equipped with timing chains. It includes all essential tools required for precise engine timing during timing chain replacement or cylinder head gasket repair.

The kit enables accurate positioning and locking of camshaft and crankshaft components, ensuring correct synchronization during complex engine service procedures. It is suitable for professional workshops and advanced mechanical work.

Applications

✔ VAG 2.4L & 3.2L V6 FSI engines (approx. 2004–2011)
✔ Engine codes: AUK, BDW, BKH
✔ Timing chain replacement
✔ Cylinder head gasket replacement
✔ Engine timing and synchronization procedures

Important Note

✔ Can also be used for certain V8 engines (e.g. BSM), but requires additional tools (art. no. 116307 and 16023)

Key Features

✔ Complete set for timing chain service
✔ Ensures precise camshaft and crankshaft alignment

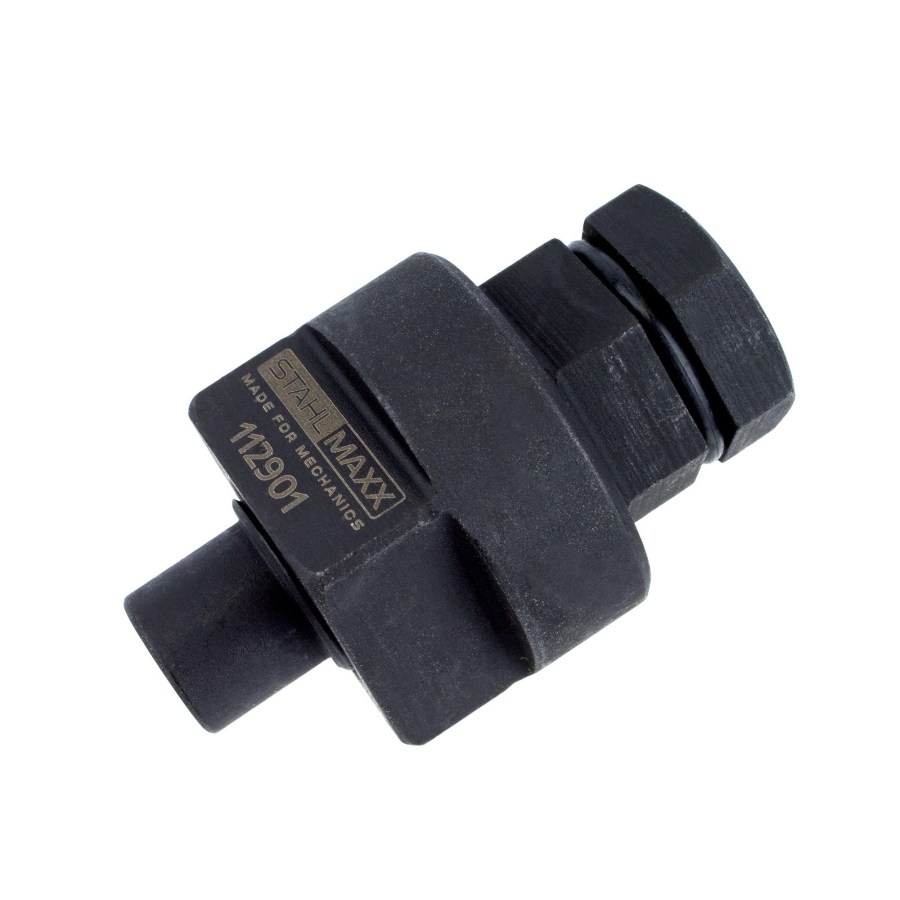

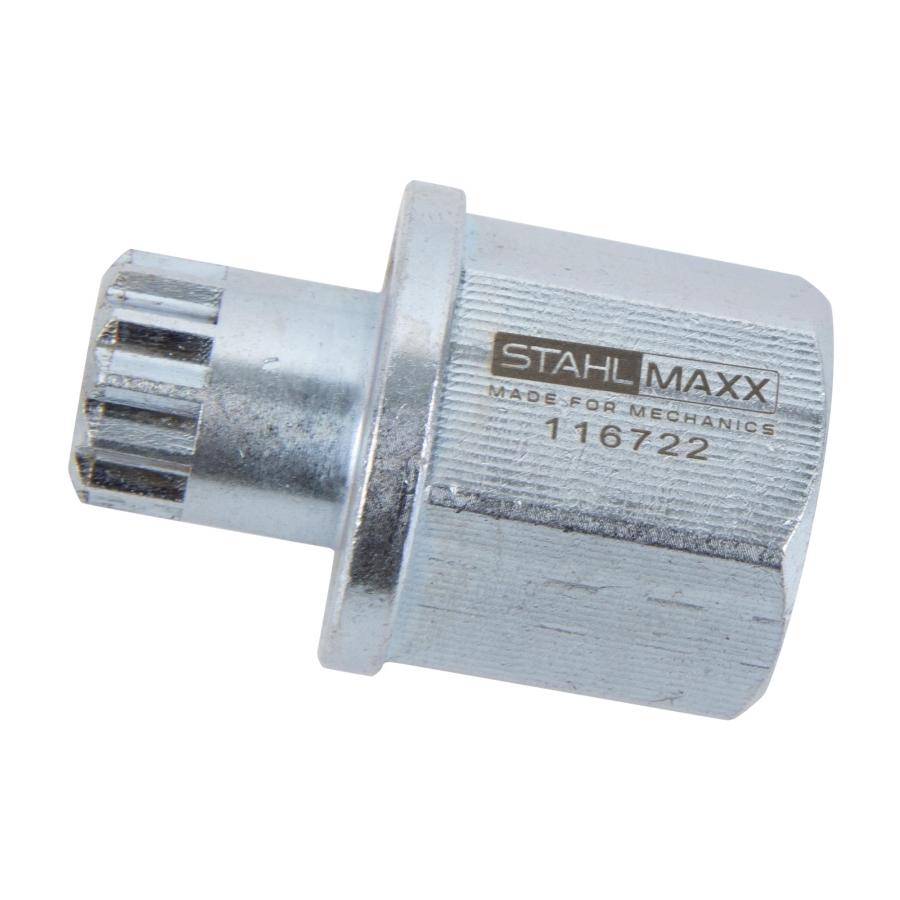

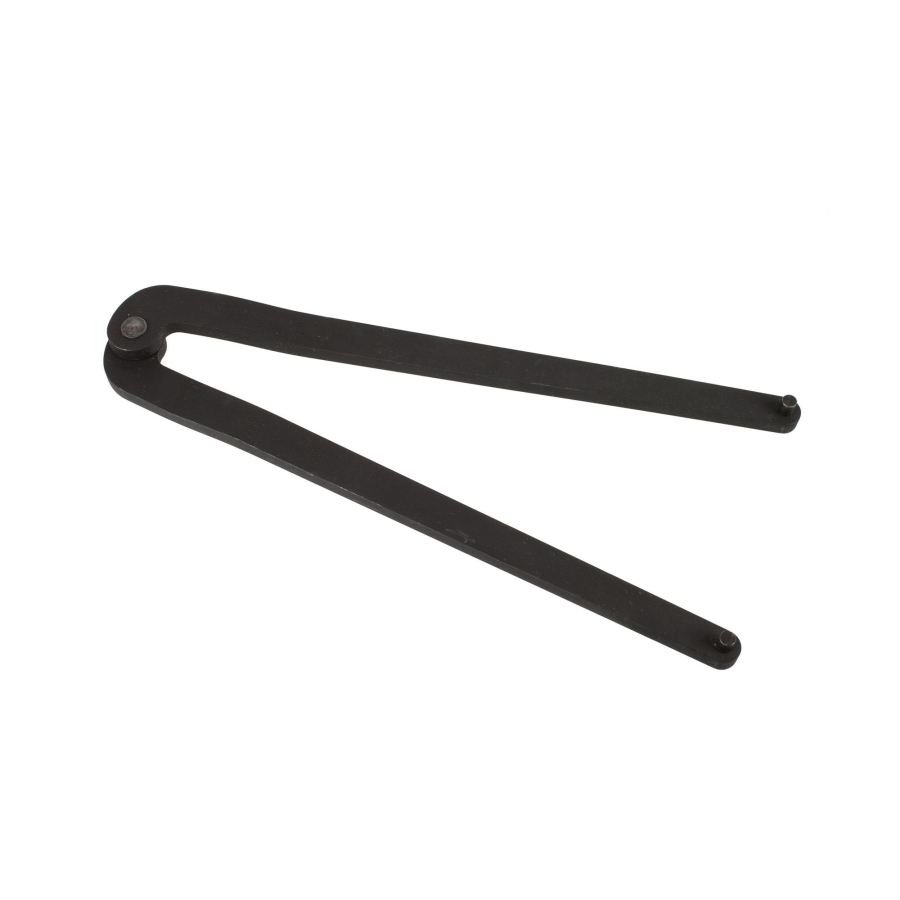

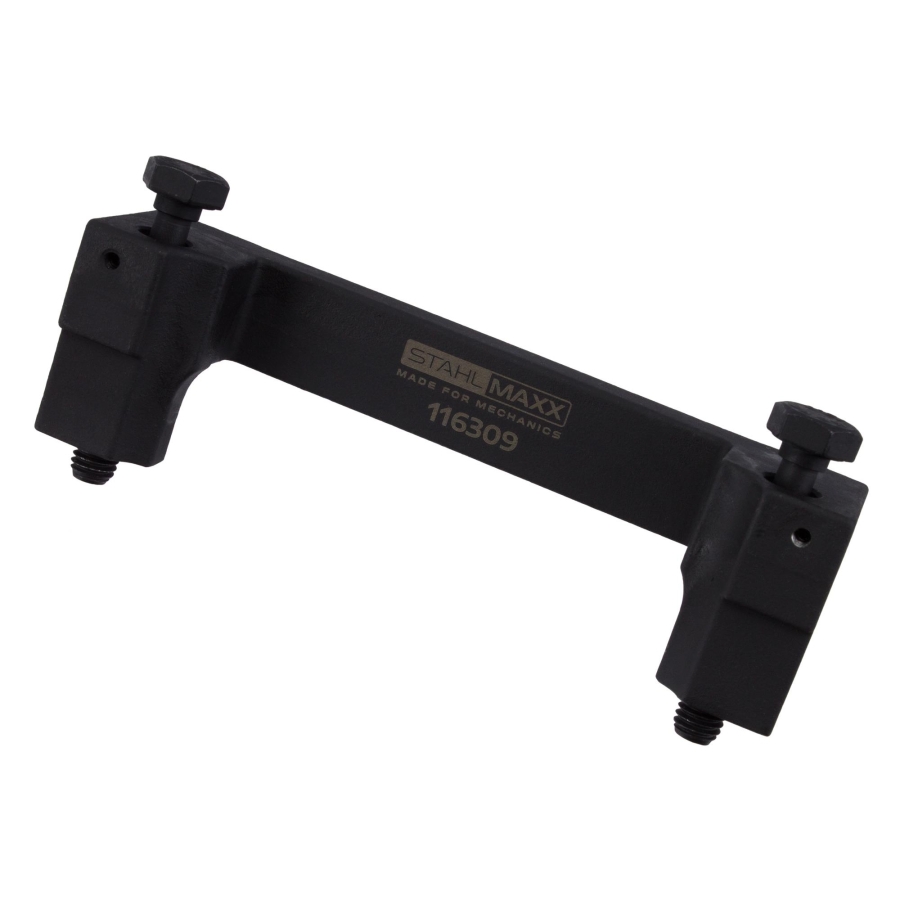

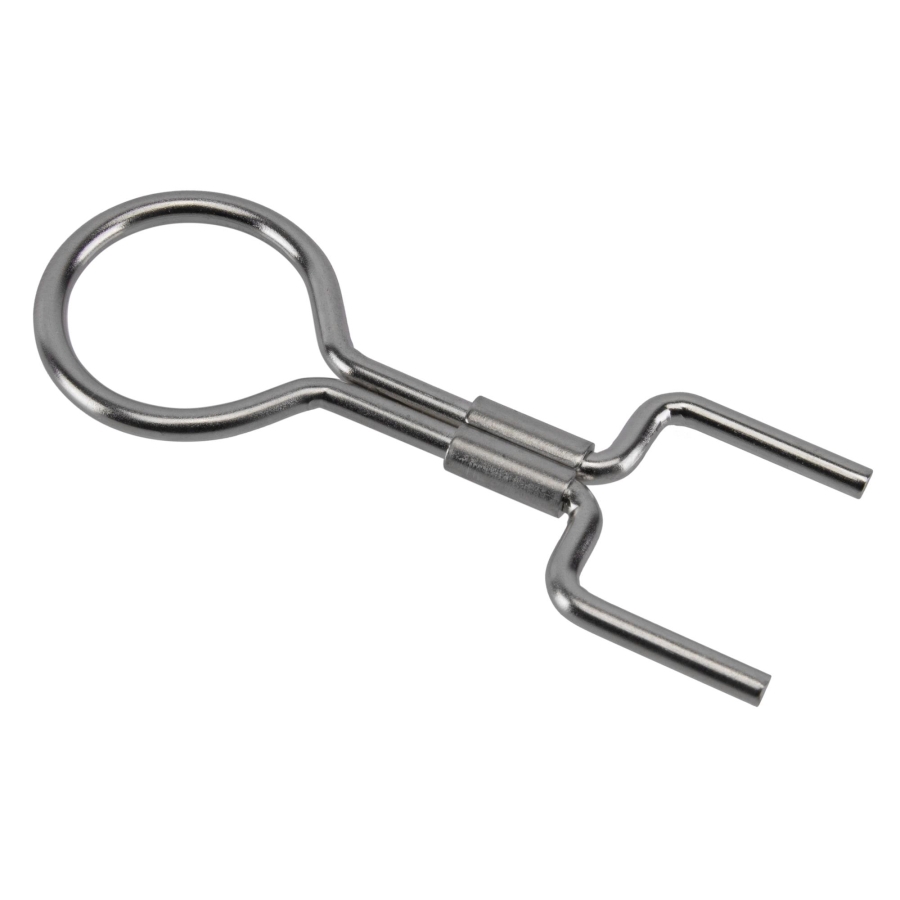

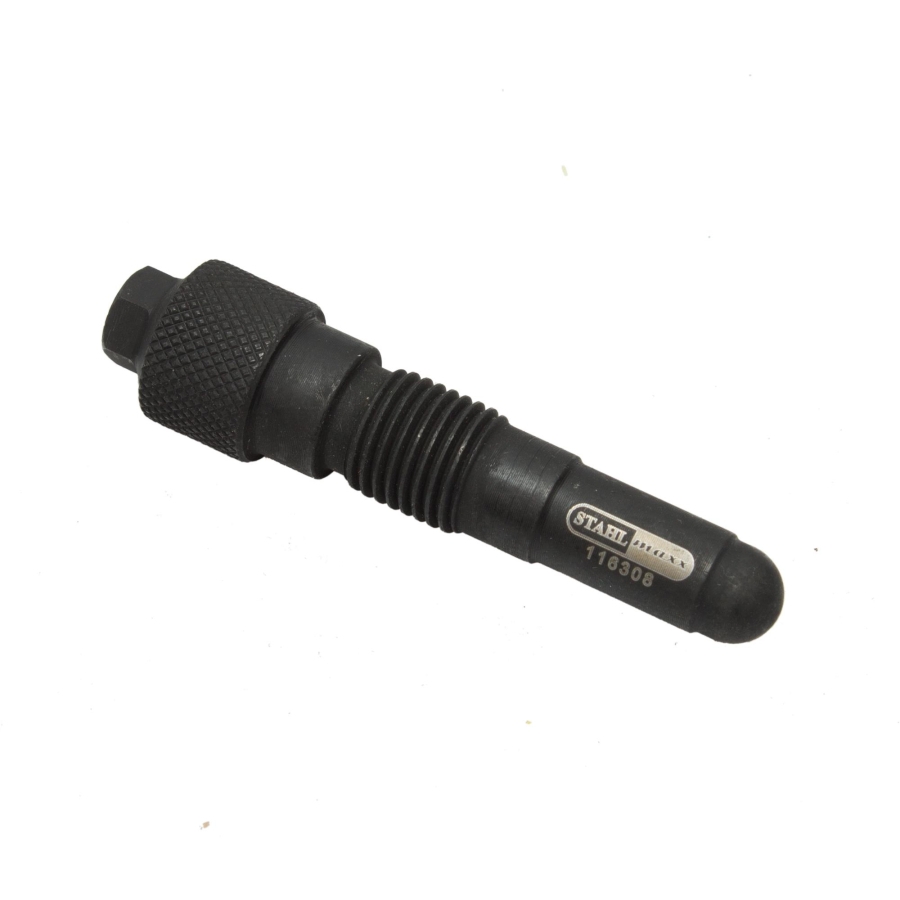

✔ Includes locking, turning, and tensioner tools
✔ Durable construction for professional use
✔ Reduces risk of engine timing errors

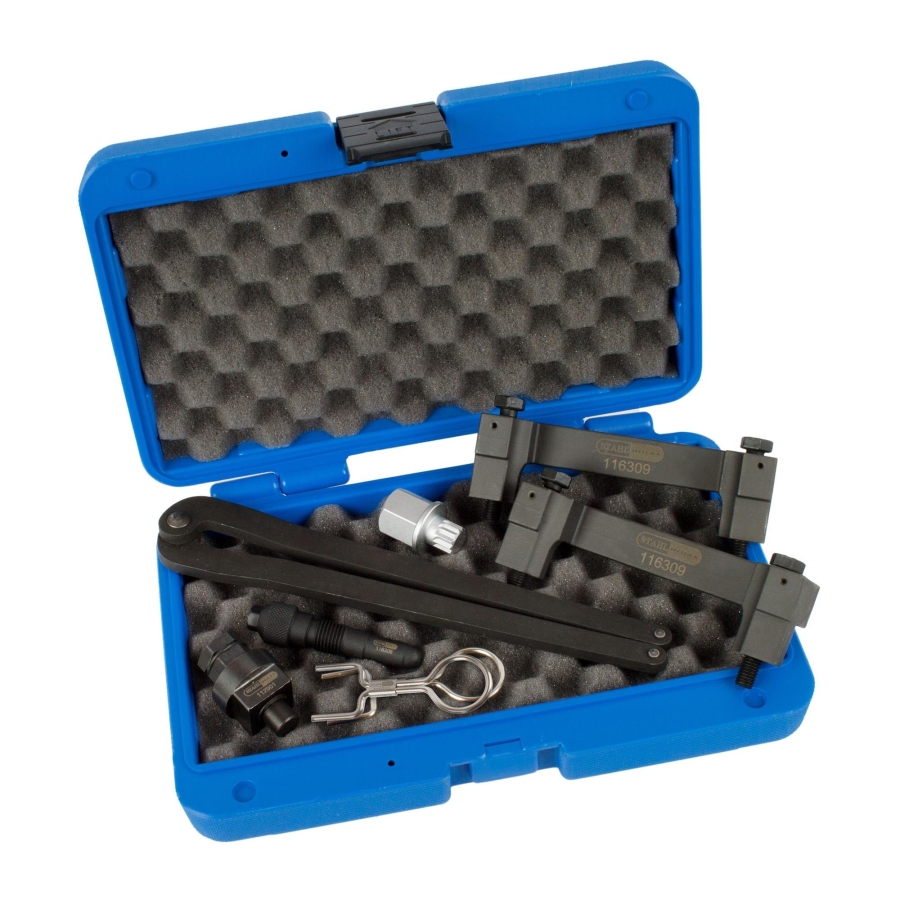

Scope of Delivery

OEM numbers are for reference purposes only and do not imply original manufacturer origin.

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 3.2 FSI (255 HP, 188 kW)

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 3.2 FSI quattro (255 HP, 188 kW)

AUDI A4 B7 Avant (8ED) (11.2004 - 06.2008) 3.2 FSI (255 HP, 188 kW)

AUDI A4 B7 Avant (8ED) (11.2004 - 06.2008) 3.2 FSI quattro (255 HP, 188 kW)

AUDI A4 B7 Cabriolet (8HE) (10.1995 - 12.2009) 3.2 FSI (255 HP, 188 kW)

AUDI A4 B7 Cabriolet (8HE) (10.1995 - 12.2009) 3.2 FSI quattro (255 HP, 188 kW)

AUDI A6 Allroad C6 (4FH) (03.2006 - 08.2011) 3.2 FSI quattro (255 HP, 188 kW)

AUDI A6 C6 (4F2) (04.2004 - 08.2011) 2.4 (177 HP, 130 kW)

AUDI A6 C6 (4F2) (04.2004 - 08.2011) 2.4 quattro (177 HP, 130 kW)

AUDI A6 C6 (4F2) (04.2004 - 08.2011) 3.2 FSI (255 HP, 188 kW)

AUDI A6 C6 (4F2) (04.2004 - 08.2011) 3.2 FSI quattro (255 HP, 188 kW)

AUDI A6 C6 Avant (4F5) (11.2004 - 08.2011) 2.4 (177 HP, 130 kW)

AUDI A6 C6 Avant (4F5) (11.2004 - 08.2011) 2.4 quattro (177 HP, 130 kW)

AUDI A6 C6 Avant (4F5) (11.2004 - 08.2011) 3.2 FSI (255 HP, 188 kW)

AUDI A6 C6 Avant (4F5) (11.2004 - 08.2011) 3.2 FSI quattro (255 HP, 188 kW)
