VAG Engine Timing Tool Kit – Petrol & Diesel
-
Code:8155
-
Weight:4.712 Kgs
Overview:
✔ Comprehensive timing tool kit for VAG petrol & diesel engines
✔ Suitable for 1.2 / 1.4 / 1.6 petrol and 1.9 / 2.0 / 2.5 / 3.3 TDI
✔ Enables locking of camshaft, crankshaft and injection pump
✔ Covers wide range of VAG engines and applications
✔ Ideal for timing belt and timing chain service
✔ Professional workshop-grade tool set
Estimated Shipping
outside Varna starts at
€4.94
to Varna starts at
€4.94
This comprehensive engine timing tool kit is designed for precise locking and alignment of critical engine components during timing belt or timing chain service on VAG engines.
It allows secure positioning of camshaft, crankshaft, injection pump, and tensioning systems, ensuring correct timing during maintenance and repair procedures.
Compatible Engines
Diesel Engines:
1.9 / 2.0 TDI Pumpe-Düse
1.9L TDI
2.5L V6 TDI
3.3L V8 TDI
Petrol Engines:
1.2L 3-cylinder
1.4L / 1.6L petrol engines
Functionality
The tool set is designed to prevent misalignment of engine timing components during disassembly and reassembly.
It supports a wide range of service operations including:
- Timing belt replacement
- Timing chain service
- Injection pump alignment
- Camshaft and crankshaft locking

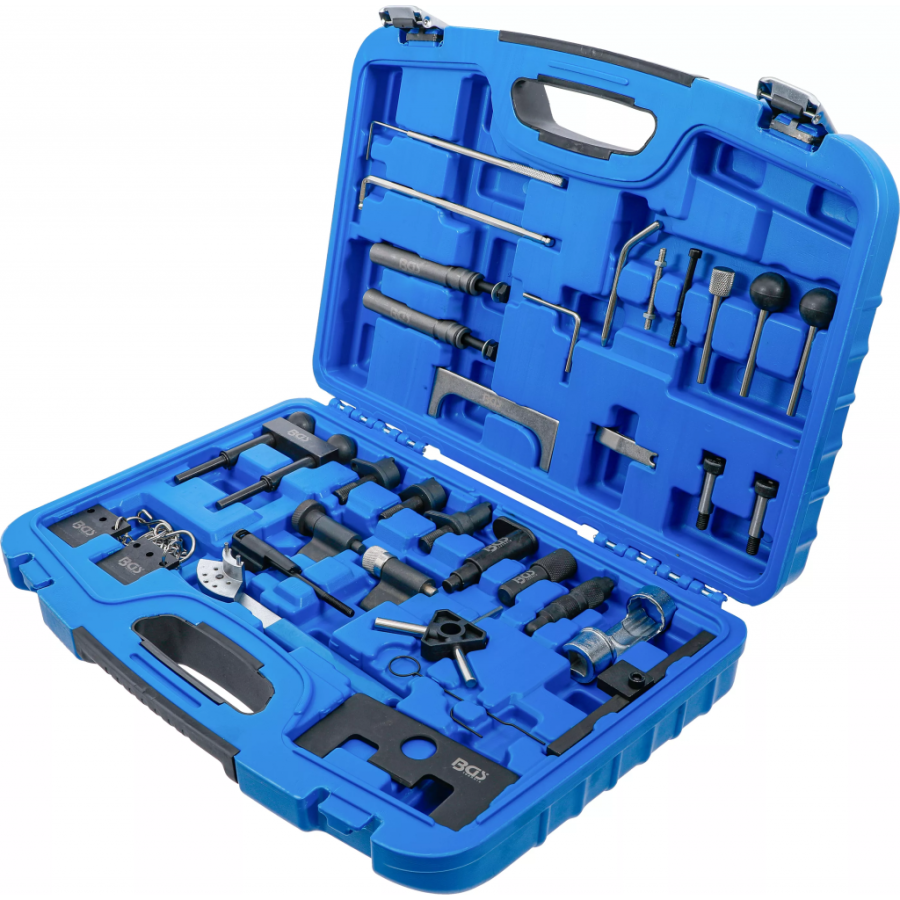

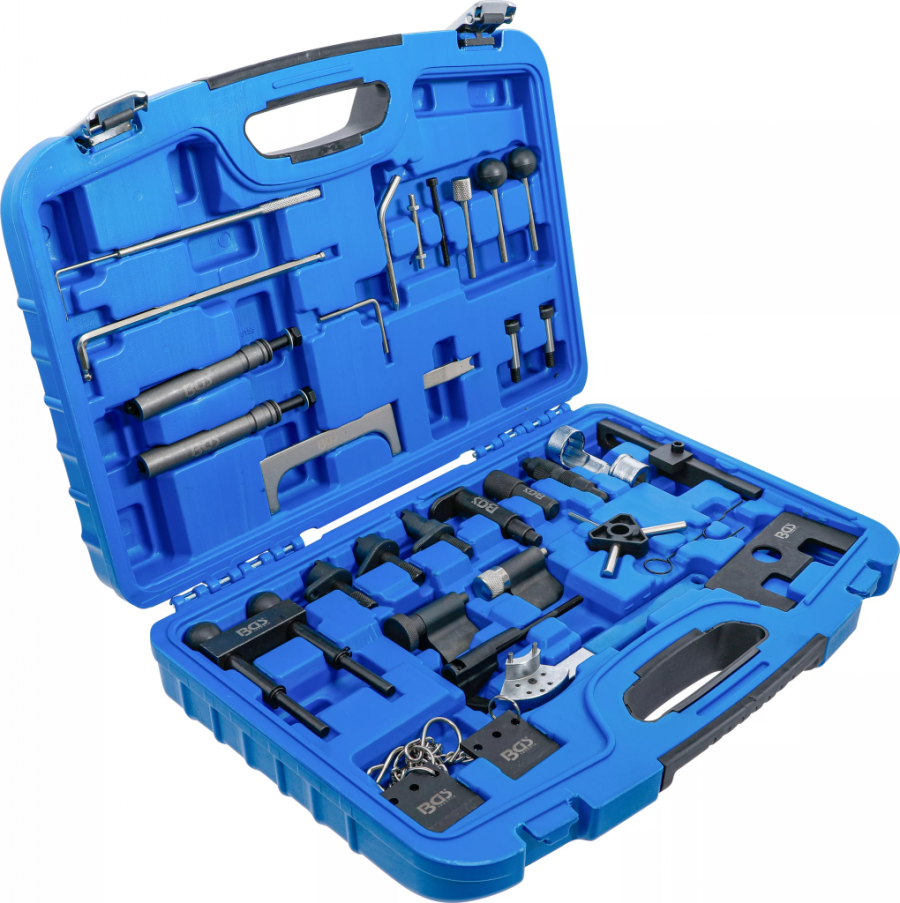

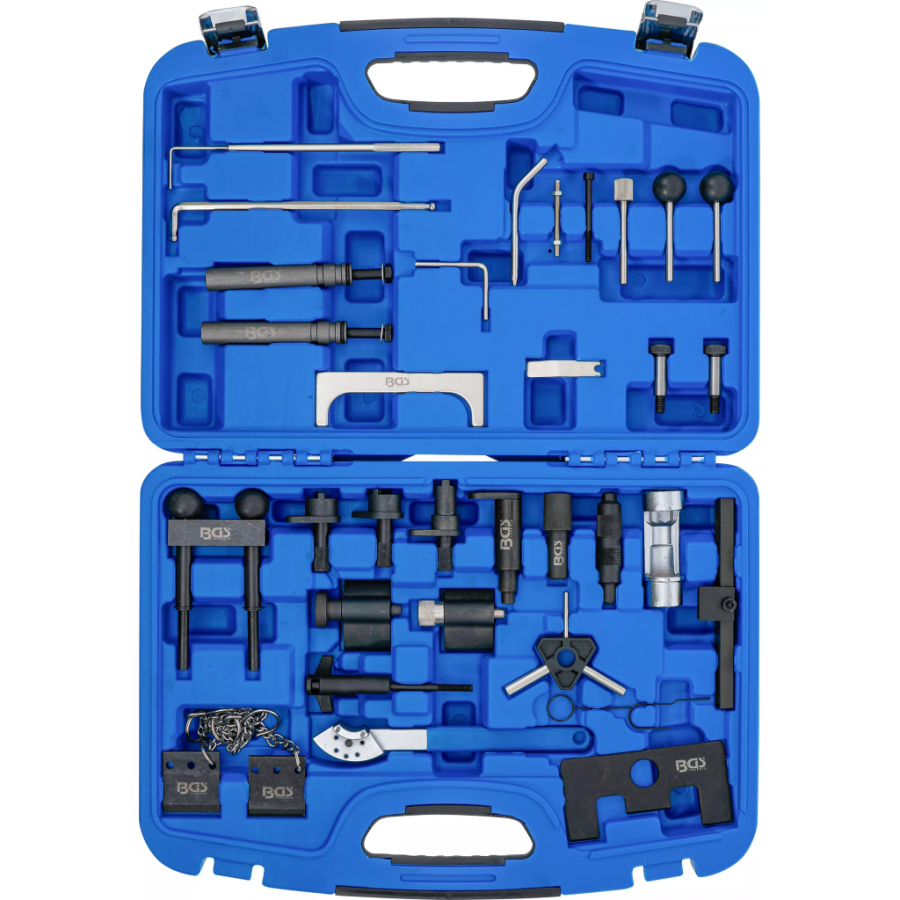

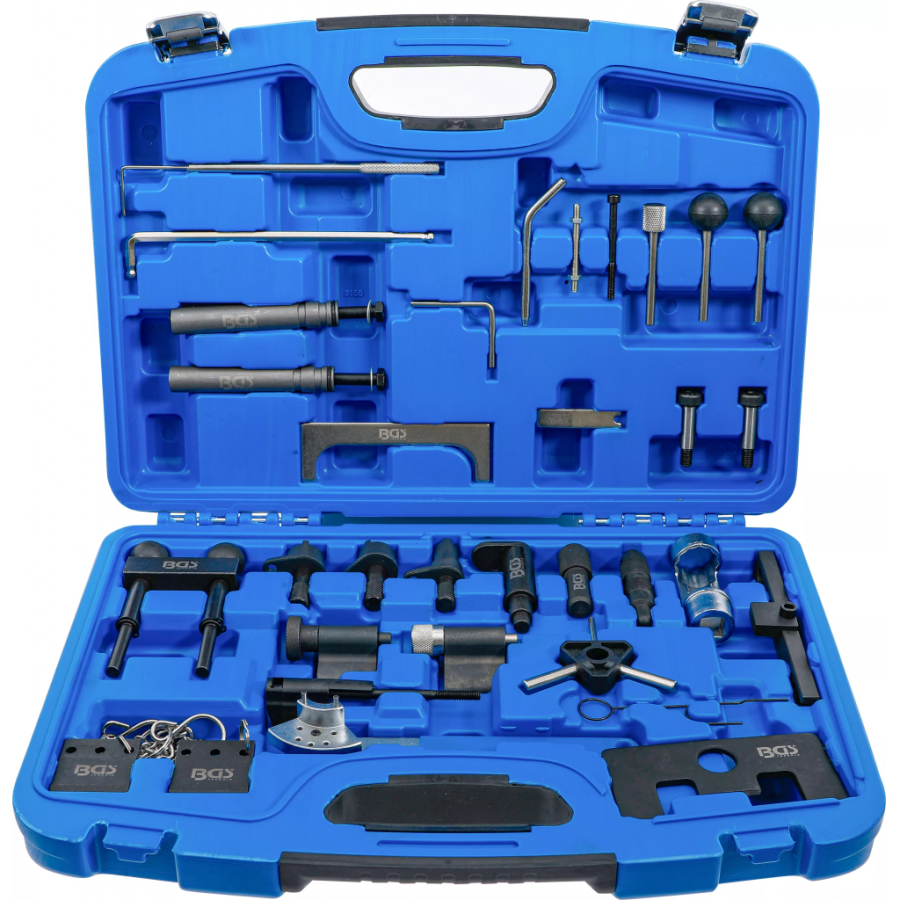

Scope of Delivery
| No. | Description |
|---|---|
| 1 | Camshaft setting gauge (3418) |
| 2 | Locking tool for camshaft & crankshaft V6/V8 (3458) |
| 3 | Crankshaft locking pin V6/V8 (3242) |
| 4 | Locking pin for tensioning device |
| 5 | Locking pin for injection pump / camshaft (3359) |
| 6 | Locking tool for crankshaft pulley 2.0 TDI (T10100) |
| 7 | Timing belt tensioner wrench (flex head) |
| 8 | Locking screw for viscous fan coupling |
| 9 | Camshaft setting gauge (2065A) |
| 10 | Locking tool for crankshaft pulley (10050) |
| 11 | Locking pin for tensioning device (T40011) |
| 12 | Stud bolt for tension relief (T10092) |
| 13 | Support bars (3369) |
| 14 | Locking pin for TDI pump-nozzle (3359) |
| 15 | Retaining plate for tensioner (T10008) |
| 16 | Camshaft locking tool petrol 1.4 / 1.6 16V (T10016) |
| 17 | Locking pin for injection pump (2064) |
| 18 | Camshaft locking gauge without valve cover removal (T10098A) |
| 19 | Locking tool for timing chain 1.2L (T10123) |
| 20 | Diesel injector socket 12-point SW22 (3078) |
| 21 | Crankshaft locking bolt (T10120) |
| 22 | Chain tensioner holder (3366) |
| 23 | Pins 4 / 7 / 8 mm |
| 24 | Locking tool for tension pulley (T10264) |
| 25 | Activation tool for tension pulley (T10265) |
| 26 | Locking tool for belt tensioner (T10060 / T10060A) |
| 27 | Locking tool for camshaft & crankshaft (T10120) |
| 28 | Locking pin |
The OEM numbers are provided for identification purposes only and do not imply that these tools are original manufacturer parts.
